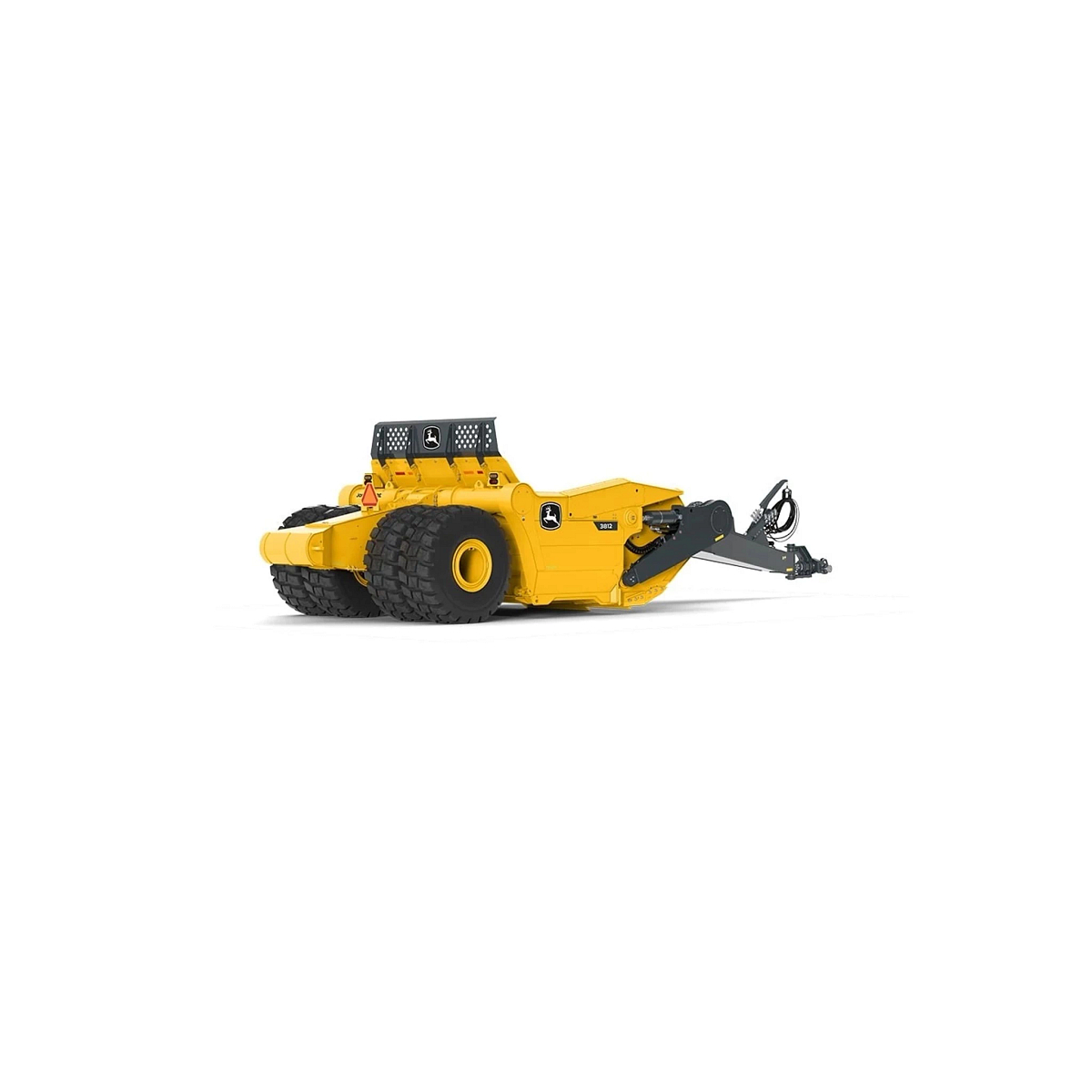

A John Deere scraper offers versatility in construction and mining applications. It efficiently handles material excavating, spreading, and grading, proving to be an essential machine in any construction fleet. Its capability to work with various materials makes it ideal for diverse operational needs, enhancing productivity.

The John Deere scraper system allows for efficient material movement with reduced labor and investment. It enables one operator to load, transport, and spread materials, reducing the need for additional equipment. This independent earthmoving system impacts fuel consumption positively and lowers daily operating costs.

John Deere scrapers are built to withstand harsh top-loading conditions, enabling higher productivity across various applications. With heavily shielded hydraulic components, the design accommodates top-loading, minimizing risks and optimizing the performance of the hydraulic system for efficient operation.

Answer text goes here
Struck Capacity | 25.1 cu yd |
Struck Capacity | 19.19 m³ |
Heaped Capacity | 38 cu yd |
Heaped Capacity | 29.05 m³ |
Bowl Length | 11.83 ft |
Bowl Length | 3.62 m |
Bowl Width | 12.83 ft |
Bowl Width | 3.91 m |
Overall Height | 11.91 ft |
Overall Height | 3.56 m |
Approximate Shipping Weight | 48898 lb. |
Approximate Shipping Weight | 22180 kg |
Tongue | 26 % |
Wheels | 74 % |
Number Of Tires Per Scraper | 4 |
Tire Size - Standard | 29.5R25 |
Minimum Horsepower | 710 hp |
Minimum Horsepower | 529.1 kW |
Maximum Horsepower | 770 hp |
Maximum Horsepower | 574.3 kW |
Straight Blade Configuration | Optional |
Drop Center Configuration | 3-in. (optional), 6-in. (standard), 6-in. HD (optional), Serrated (optional) |
Minimum Flow Required | 83 gpm |
Minimum Flow Required | 314.16 L/min |
Minimum Pressure Required | 4061.06 psi |
Minimum Pressure Required | 280 bar |
Direct Loading | Yes |
Top Loading | Yes |
Push Loading | Yes |
Hitch Type | Four-Hook Short Drawbar |
Special Tractor Drawbar Required | Yes |
Full Warranty | 12 months |
Structural Warranty | 36 months |
Drawbar Hitch Adapters | Optional |
Rear Bumper | Standard |
