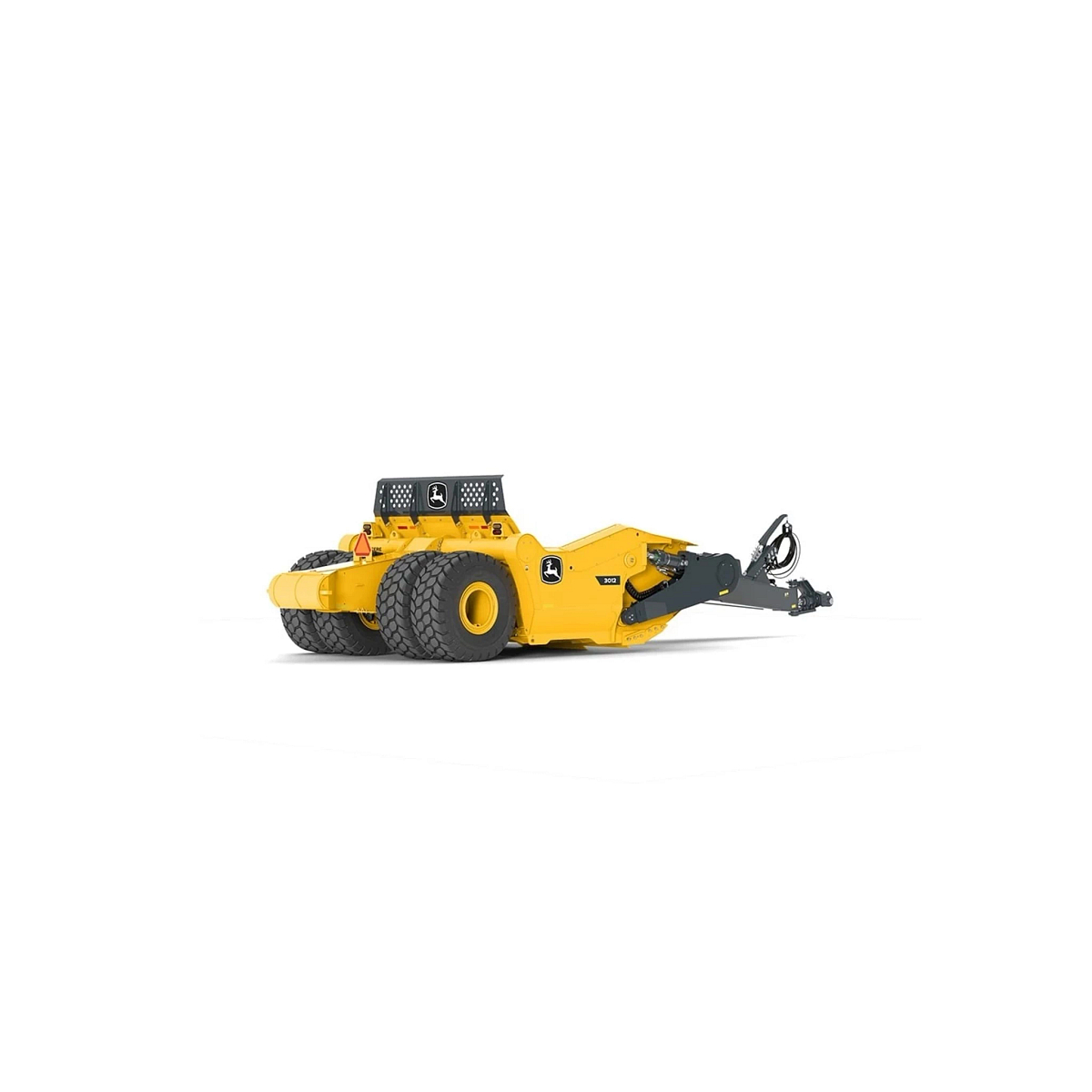

3012 4-Tire Ejector Scraper Scraper Systems with a close up of a yellow construction vehicle on a white background
No items found.
new
John Deere
3012 DIRECT HITCH
Scrapers

John Deere 3012

Starting at

One Machine and One Operator, A Lot of Material

The John Deere scraper system allows for efficient material movement with reduced labor and investment. It enables one operator to load, transport, and spread materials, reducing the need for additional equipment. This independent earthmoving system impacts fuel consumption positively and lowers daily operating costs.

Side left view of a 9 series tractor pulling a loaded 3012 4-Tire Ejector Scraper across a dirt lot
Top-Loading Scrapers Increase Productivity

John Deere scrapers are built to withstand harsh top-loading conditions, enabling higher productivity across various applications. With heavily shielded hydraulic components, the design accommodates top-loading, minimizing risks and optimizing the performance of the hydraulic system for efficient operation.

Front right view of a 9R 640 scraper special tractor pulling a loaded 3012 scraper across a dirt jobsite
Versatile and Productive in Many Applications

A John Deere scraper offers versatility in construction and mining applications. It efficiently handles material excavating, spreading, and grading, proving to be an essential machine in any construction fleet. Its capability to work with various materials makes it ideal for diverse operational needs, enhancing productivity.

Side rear view of a 3012 large direct hitch scraper loaded with dirt being pulled by a 9R 640 scraper special tractor
Question text goes here

Answer text goes here

Capacity
Struck Capacity

20.7 cu yd

Struck Capacity

15.83 m³

Heaped Capacity

30 cu yd

Heaped Capacity

22.94 m³

Dimensions
Bowl Length

9.83 ft

Bowl Length

3 m

Bowl Width

12 ft

Bowl Width

3.66 m

Overall Height

9.5 ft

Overall Height

2.9 m

Weight
Approximate Shipping Weight

38200 lb.

Approximate Shipping Weight

17327 kg

Scraper Weight Distribution
Tongue

23 %

Wheels

77 %

Tires
Number Of Tires Per Scraper

4

Tire Size - Standard

26.5R25

Horsepower Recommendations
Minimum Horsepower

450 hp

Minimum Horsepower

335.6 kW

Maximum Horsepower

575 hp

Maximum Horsepower

428.9 kW

Blades and Router
Two Rows Of Blade Bolts

Standard

Straight Blade Configuration

Optional

Drop Center Configuration

Optional

Teeth Configuration

Optional

Adjustable Router Bits

Optional

Hydraulics
Minimum Flow Required

45 gpm

Minimum Flow Required

169.95 L/min

Minimum Pressure Required

2900.47 psi

Minimum Pressure Required

199.98 bar

Loading Type
Direct Loading

Yes

Top Loading

Yes

Push Loading

Yes

Hitches and Drawbars
Hitch Type

Quick-attach

Special Tractor Drawbar Required

Yes

Warranty
Full Warranty

12 months

Structural Warranty

36 months

Additional Equipment
Quick-Attach Drawbars

Optional

Drawbar Hitch Adapters

Optional

Rear Bumper

Standard
