John Deere
1705
Mounted Planters

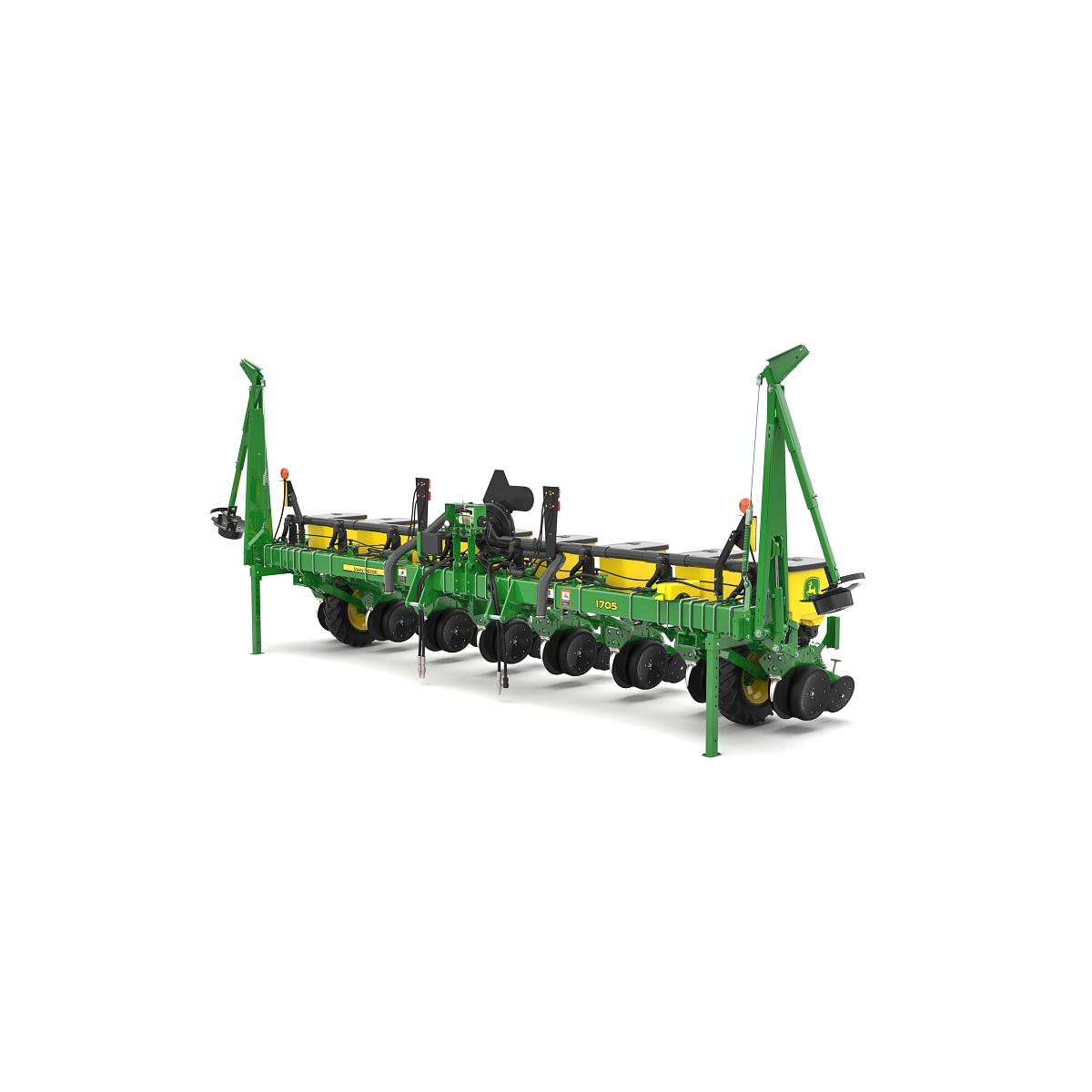

John Deere 1705 (Six Row)

Starting at

Plant with Confidence and Simplicity

When the field is fit, you need a planter that’s easy to run and delivers consistent results. With proven MaxEmerge™ 5 row units, vacuum metering, and practical features like pneumatic downforce and row-cleaner options, this lineup helps you place seed with confidence.

Tractor with large yellow wheels pulling a multi-row planter across a brown, freshly tilled field, with crop residue visible on the soil and a line of trees in the background under an overcast sky.
Right-Sized for Real Fields and Real Roads

Not every operation needs the biggest planter - just the right one. From rigid integral frames to stack-fold, pivot-fold, and flex wing-fold designs, these planters are built to fit tighter field shapes, smaller acreages, and narrow transport situations, so moving between fields stays manageable and planting stays efficient.

1725 integral stack-fold planter in a field.
Planters That Can Grow With You

John Deere has planter options for where you are today and where you want to be tomorrow, setting your operation up with a strong foundation with flexible configurations. Choose row counts, spacings, and hopper sizes that match your operation, with options like variable-rate drive, row cleaners, and downforce choices - so you invest where it matters today and prepare your planter for upgrades tomorrow.

Close-up of a green farm planter in a field, showing metal wheels, hoses, and planting discs cutting through low crops. A yellow seed hopper is partially visible, with soil and cut vegetation beneath a cloudy sky.
Question text goes here

Answer text goes here

Rows and Row Spacing
Number Of Rows

6

Row Spacing

36, 38, 40 in.

Row Spacing

91, 97, 102 cm

Lift System
Type

Integral or semi-integral

Tires
Base

7.60-15 6 Ply - Traction: 280 kPa 2.8 bar 40 psi; 7.60-15 8 Ply - Traction: 359 kPa 3.6 bar 52 psi

Row Units
Type

MaxEmerge™ 5 row unit

Opener

Tru-Vee double disk

Seed Hopper Capacity

1.6, 3 bu

Seed Hopper Capacity

56.4, 105.7 L

Seed Meters
Base Seed Meter

Vacuum

Drive System
Base

Ground driven or hydraulic driven

Markers
Type

Automatic alternating or independent control

Dimensions
Transport Width (With Markers)

23.083 ft

Transport Width (With Markers)

7.036 m

Transport Width (Without Markers)

19.17 ft

Transport Width (Without Markers)

5.842 m

Transport Length

11.083 ft

Transport Length

3.378 m

Transport Weight

3280 lb.

Transport Weight

1490 kg

Additional Information
Recommended Tractor Hydraulics

Hydraulic oil required to operate the planter: 5.7 L 1.5 gal.; Hydraulic system working pressure: 20,684 kPa 207 bar 3000 psi; Hydraulic system burst pressure: 82,737 kPa 827 bar 12,000 psi
