Planting & Seeding
>
Drawn Planters
>
John Deere 1795 12Row Split 24

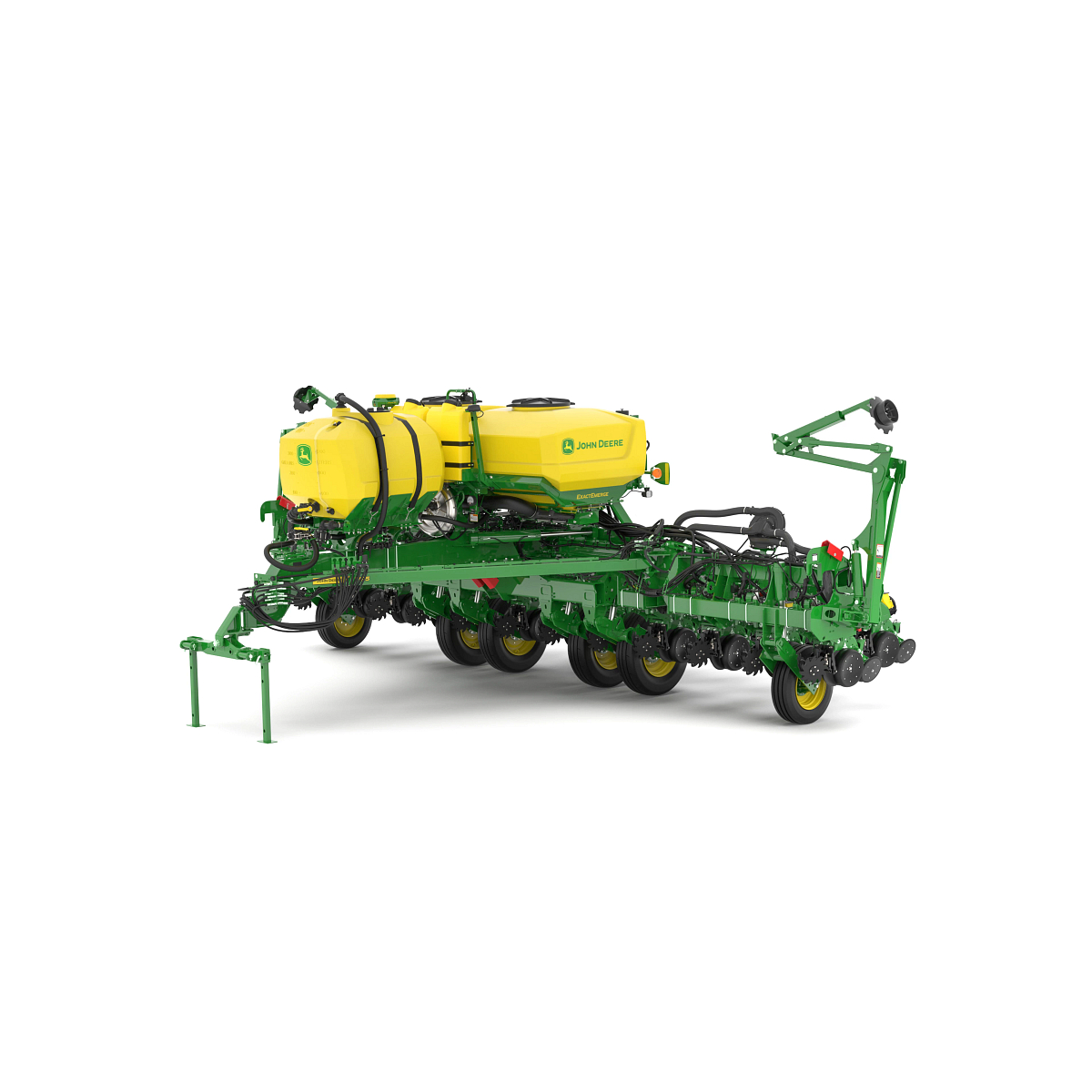

Studio image with front left view of 1795 12-Row Split 23 Planter.
Studio image with left rear view of 1795 12-Row Split 23 Planter.
Studio image with front right view of 1795 12-Row Split 23 Planter.
Studio image with right view of 1795 12-Row Split 23 Planter.
Studio image with left view of 1795 12-Row Split 23 Planter.
Studio image with front view of 1795 12-Row Split 23 Planter.
Studio image with right rear view of 1795 12-Row Split 23 Planter.
Studio image with rear view of 1795 12-Row Split 23 Planter.
Studio image with overhead view of 1795 12-Row Split 23 Planter.
No items found.
new
John Deere
1795
Drawn Planters

John Deere 1795 12Row Split 24

Starting at

Key Features

  • 30-ft Toolbar With 12 Rows on 30-in. Spacing
  • 24-Row Split Row in 15-in. Spacing
  • Available With Optional ExactEmerge™ or MaxEmerge™ 5e Row Unit or Standard Mini-Hopper MaxEmerge™ 5 Row Unit
  • 3-Section Frame Flexes 15 Degrees Up and Down With Narrow Transport of 12 ft
Request a Quote
Order Now
Apply for financing
Apply for financing
Print Page
Loan Calculator
Product Brochure
Features
Specifications
Increase Visibility With Planter Auxiliary Camera

The planter auxiliary camera, compatible with model year 2025 and newer SeedStar™ 5 planters, features an adjustable magnetic mounting base that allows customers to move and adjust the field of view, with video streamed to the CommandCenter™ display.

Close-up view of machinery with visible hoses and hydraulics, featuring an orange slow‑moving vehicle triangle and a “20 mile/h” sign.
Improve Liquid Fertilizer Tendering Logistics With Fertilizer Level Sensors

Liquid fertilizer level sensing allows farmers to monitor fertilizer levels from the cab via the G5 CommandCenter™ Display in the SeedStar™ app, and enables remote viewing through the John Deere Operations Center™ mobile app.

Close-up of hydraulic hoses, fittings, and an electrical sensor mounted under a planter fertilizer tank
Improve Seed Tendering Logistics With Central Commodity System (CCS™) Tank Level Sensors

Seed level sensing helps farmers monitor seed levels to prevent running out of seed and manage tendering logistics efficiently. Farmers can view individual and total tank levels on the G5 CommandCenter™ display, remotely check seed tank levels via John Deere Operations Center™, and receive customizable low seed tank level warning alarms.

CCS Tanks control panel showing Tank Alarm toggle set to ON, Volume Remaining trigger with 15 bu threshold, and Seed Tank Overview displaying tank levels of 45 bu, 35 bu, and 80 bu. Diagnostics button at bottom.
Question text goes here

Answer text goes here

Rows and Row Spacing
Number Of Rows

24

Row Spacing

15 in.

Row Spacing

38 cm

Frame
Frame Flexibility - Up

15 degree (angle)

Frame Flexibility - Down

15 degree (angle)

Lift System
Type

Wheel modules with rephasing hydraulic cylinders

Tires
Base

Wing tires: VF245/70R19.5; Center tires: VF295/75R22.5

Row Units
Type

Standard: MaxEmerge™ 5 row units; Optional: ExactEmerge™ row units MaxEmerge 5e row units

Opener

Tru-Vee™ double disk

Seed Hopper Capacity

0.062 bu

Seed Hopper Capacity

2.2 L

Seed Meters
Base Seed Meter

Vacuum

CCS Seed Capacity - Without Liquid Tank

100 bu

CCS Seed Capacity - Without Liquid Tank

3524 L

CCS Seed Capacity - With Liquid Tank

70 bu

CCS Seed Capacity - With Liquid Tank

2467 L

Drive System
Base

Hydraulic variable rate drive

Markers
Type

Automatic alternating or independent control

Seed Monitor System
Base

SeedStar™ on GreenStar™ displays

Fertilizer
Tank Capacity

420 gal.

Tank Capacity

1590 L

ExactRate Fluid Transfer System

Available

Dimensions
Transport Width (With Markers)

13.27 ft

Transport Width (With Markers)

4.043 m

Transport Length

29.25 ft

Transport Length

8.914 m

Transport Height

13.48 ft

Transport Height

4.111 m

Field Operation Width

32.39 ft

Field Operation Width

9.874 m

Field Operation Length

23.46 ft

Field Operation Length

7.151 m

Additional Information
Recommended Tractor Horsepower

Minimum required for 9.1 m (30 ft) models: 270 hp 201.3 kW; Minimum required for 12.2 m (40 ft) models: 360 hp 268.5 kW

Recommended Tractor Hydraulics

Hydraulic oil pump required to operate ExactEmerge™ planter: 60 gpm 227 L/min; Tractor standby pressure: 2300 psi 158.6 bar; Hydraulic system working pressure: 3000 psi 206.8 bar; Hydraulic system burst pressure: 12,000 psi 827.4 bar
