John Deere
W260M
Windrowers

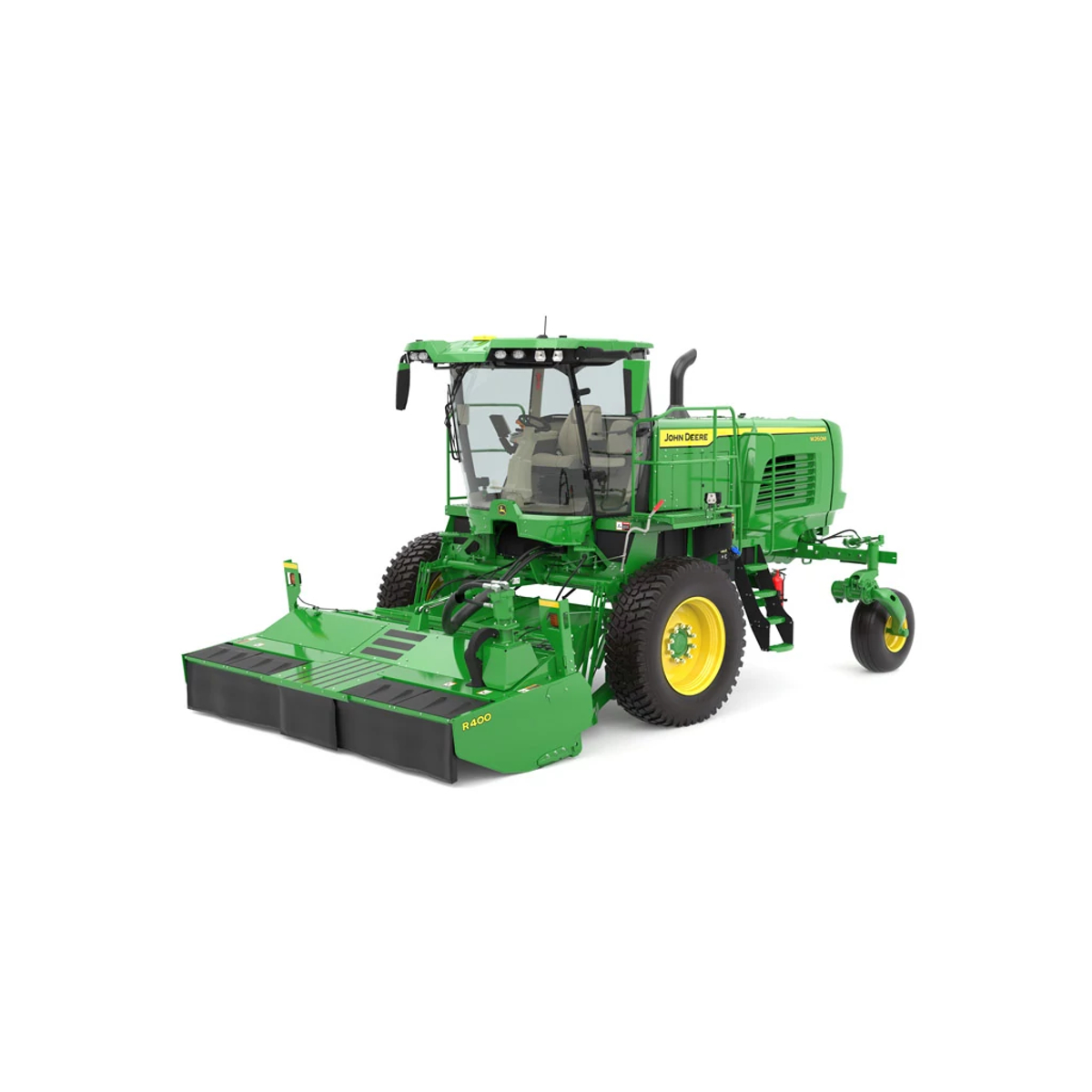

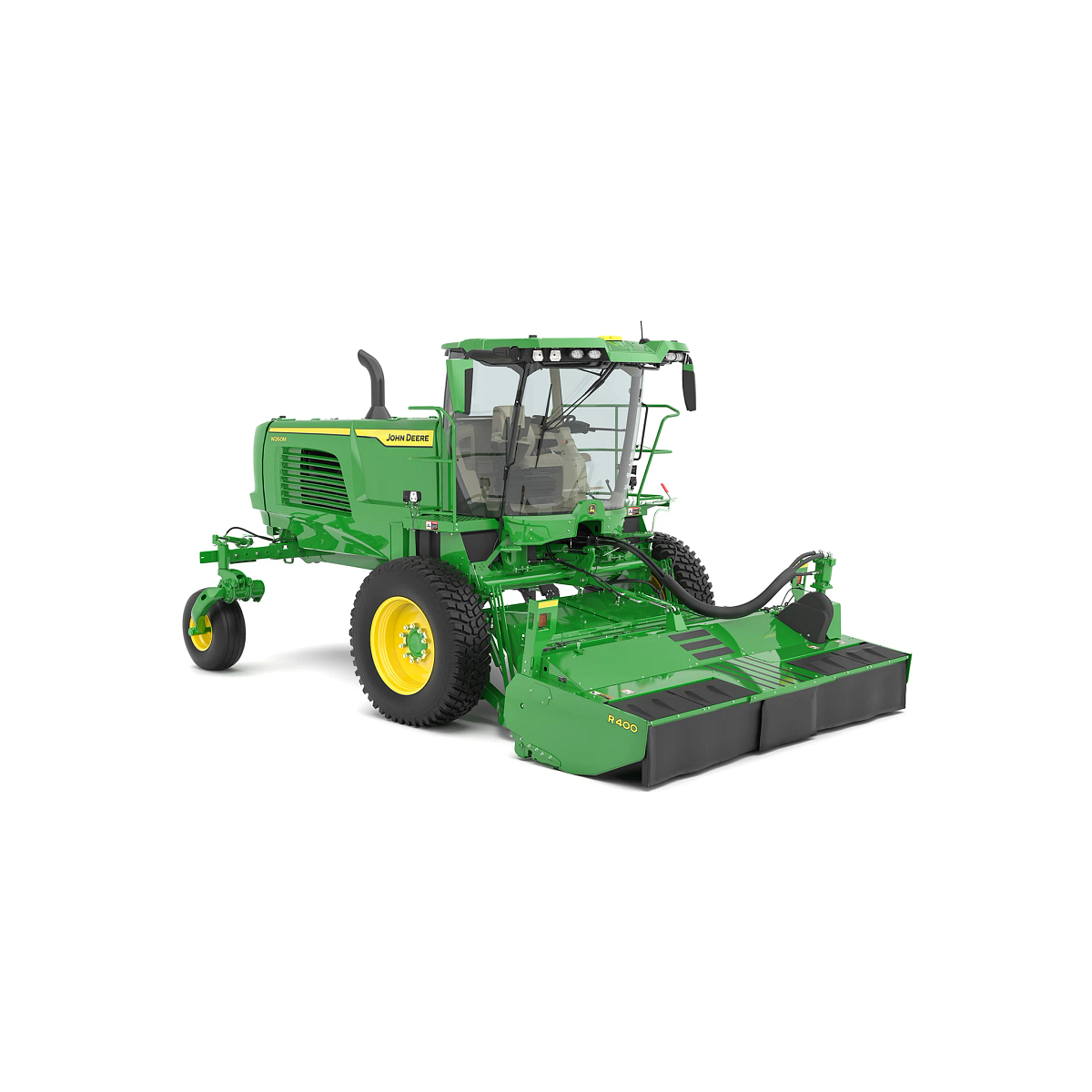

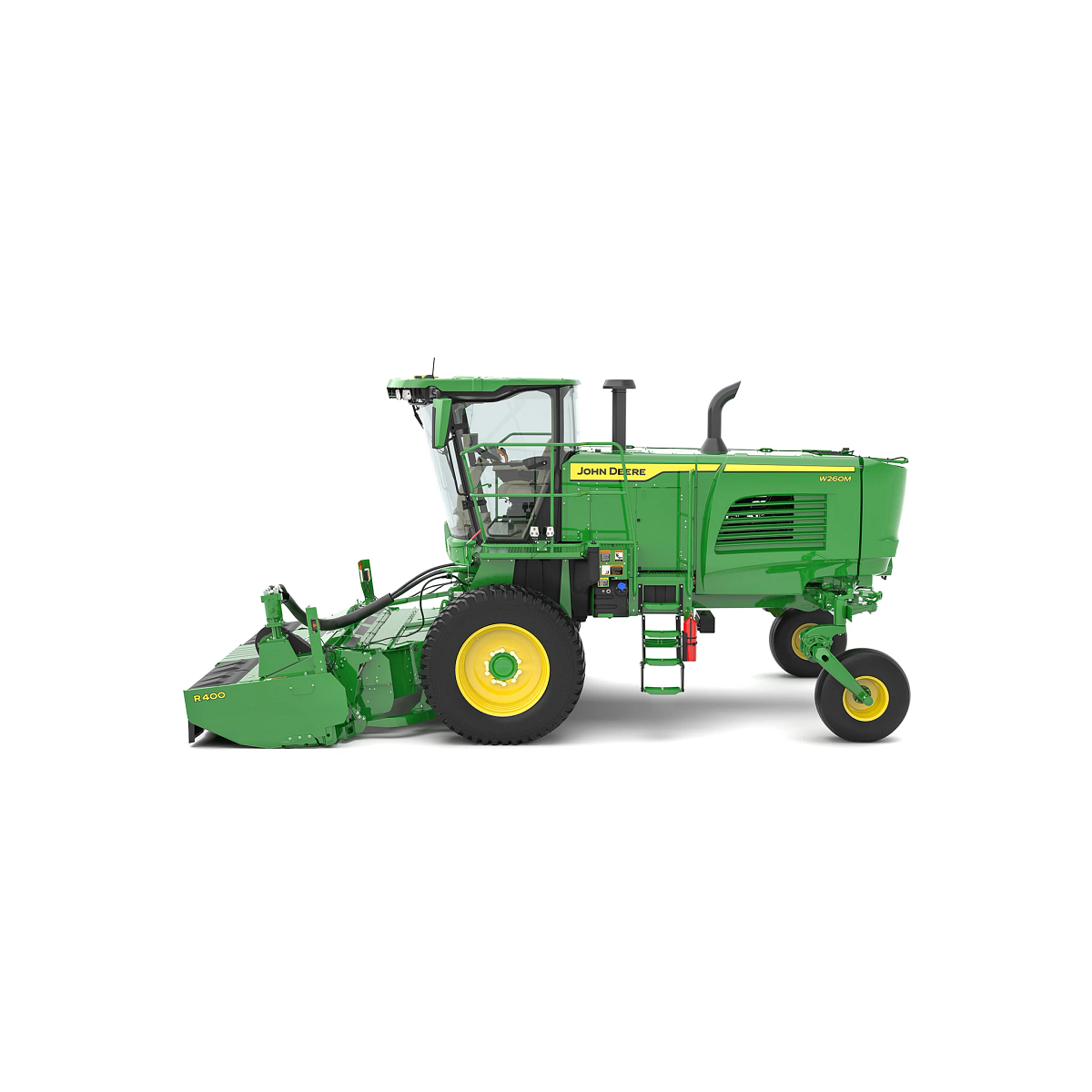

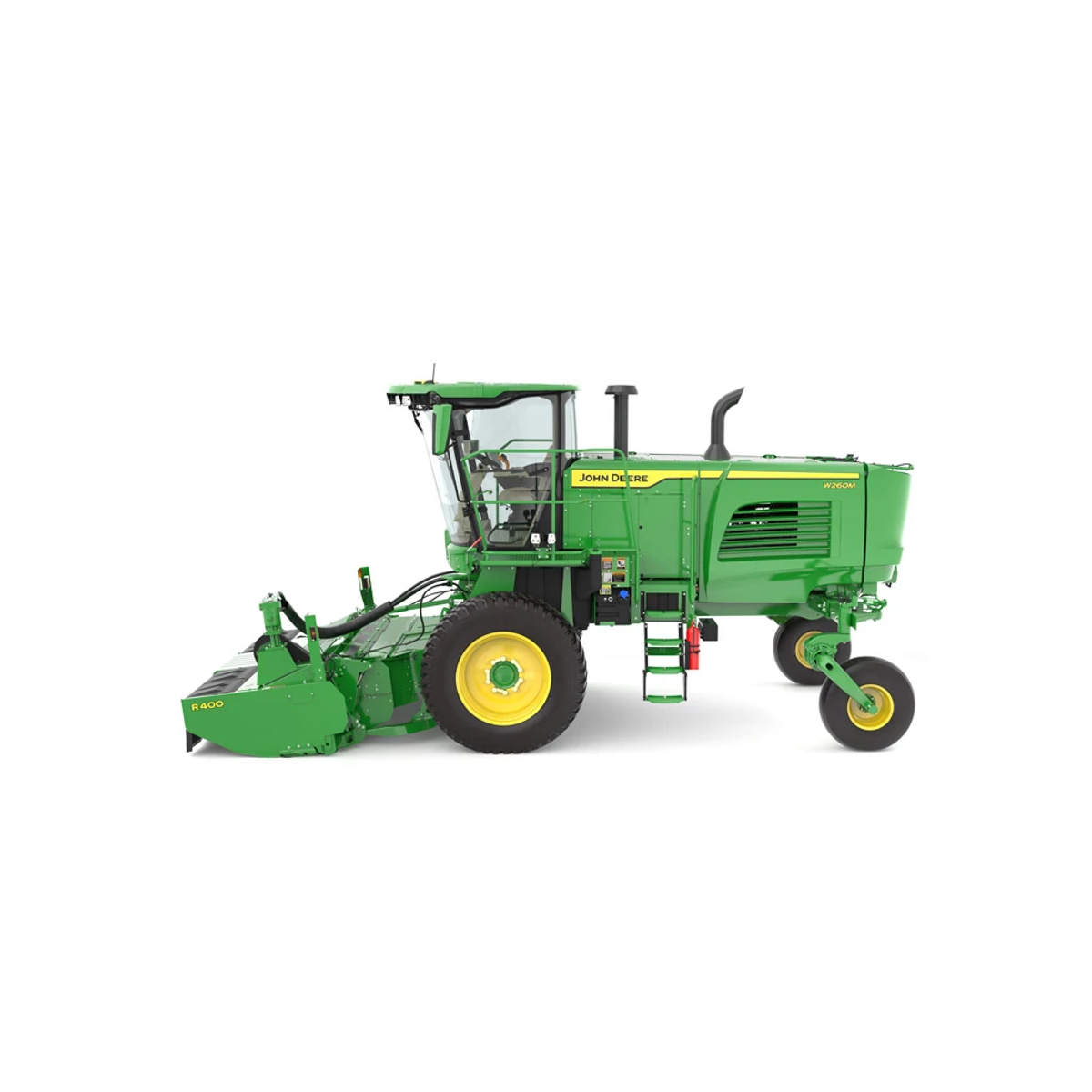

John Deere W260M

Starting at

Designed to Keep You Comfortable All Day Long

With the shocks placed at each corner of the cab, the entire cab can go up or down from the resting position. This suspension makes the the machine one of the most comfortable cabs in the industry.

John Deere self‑propelled windrower with enclosed cab and wide mower‑conditioner cutting alfalfa field, operator visible inside, mountains and blue sky in background.
Precision Technology That Can Drive Efficiency

Integrated with advanced precision ag technology, including a high‑definition touchscreen display paired with a StarFire™ receiver and AutoTrac™ guidance, help to improve accuracy and reduce overlaps.

Interior of a John Deere self‑propelled windrower cab showing operator seat, armrest‑mounted joystick, touchscreen display, and control panel, with green crop visible through the front window.
Merger Attachments Can Help Streamline Harvest

A merger attachment enables you to combine crops from multiple windrows into one, improving harvest efficiency and reducing passes. It helps maintain consistent feed into the machine, boosting productivity while minimizing field time and preserving crop quality in varying conditions.

John Deere self‑propelled windrower cutting hay in an open field, side view showing mower‑conditioner forming a windrow behind the machine under a blue sky with scattered clouds.
Question text goes here

Answer text goes here

Engine
Make

John Deere

Model

PowerTech™ PSS Final Tier 4

Horsepower At 2,400 rpm

260 hp

Horsepower At 2,400 rpm

193.9 kW

Horsepower Peak At 2,200 rpm

285 hp

Horsepower Peak At 2,200 rpm

215.5 kW

Number Of Cylinders

6

Exhaust Direction

Vertical

Engine Displacement

415 cu in.

Engine Displacement

6.8 L

Low Idle Engine Speed

900 rpm

Variable Idle Engine Speed

Electronic adjustable from 1,700 to 2,450 rpm

High Idle (No Load) Engine Speed

2450 rpm

Rated Engine Speed

2450 rpm

Oil Crankcase Capacity (With Filter)

33.2 U.S. qt

Oil Crankcase Capacity (With Filter)

31.4 L

Cooling System

13 U.S. gal.

Cooling System

49.2 L

Ground Drive
Ground Drive Type

Base: Two-speed hydrostatic

Hydraulic Platform Drive
Number Of Pumps (Rotary/Auger)

1

Number Of Motors (Rotary/Auger)

1

Speed Control System

Electronic adjusted from cab

Pump Displacement

7.02 cu in.

Pump Displacement

115 cc

Motor Displacement (Per Revolution)

4.6 cu in.

Motor Displacement (Per Revolution)

75.4 cm³

Platform Float System
Platform Float System Type

Hydraulic piston accumulator

Platform Float System Control

Resume on header lower

Final Drives
Final Drives Type

Direct drive heavy-duty wheel motors

Brakes
Brake Type/Activation

Manual parking brake engage button on armrest; Parking brake automatically engages and disengages, integrated into multi-function lever

Hydraulics
Reservoir Capacity

25 U.S. gal.

Reservoir Capacity

94.5 L

Fuel
Fuel Capacity

150 U.S. gal.

Fuel Capacity

568 L

DEF Capacity

7 U.S. gal.

DEF Capacity

26.5 L

Electrical System
Alternator

240 amp

Battery

Heavy-duty 12 V

Tires
Drive Wheel Standard

620/75R26 Bar

Drive Wheel Option

Hybrid tires: 480/80R34; Radial button: 23.1R26 R3

Caster Wheels

14Lx16.1 8-ply ribbed

Speeds
Low Range - With Two Speed

15 mph

Low Range - With Two Speed

24.1 km/h

High Range 2-Speed/Mid Range 3-Speed - With Two Speed

24 mph

High Range 2-Speed/Mid Range 3-Speed - With Two Speed

38.4 km/h

Suspension
Vehicle Suspension

Suspended rear axle in base

Cab Suspension

Air-ride seat suspension for smooth ride

Cab
Cab Construction

Uni-body, welded

Cab Glass

58.7 sq ft

Cab Glass

5.45 m²

Cab Seat

Air suspension

Steering Column

Dual-tilt telescoping

Cab Instructional Seat

Standard

Cab Windshield Wiper

Single blade

Air Conditioner

Standard with manual temperature control

Air Conditioner Refrigerant

R134a

Air Conditioner Capacity

5.5 lb.

Air Conditioner Capacity

2.5 kg

Air Conditioner Filters

Dry type, reusable

Air Conditioner Compressor

Rotary

Air Conditioner Overload Protection

Low-pressure and high-pressure cut off

Lights
Front Lights

Six halogen

Side Lights

Four optional

Back Lights

Standard: Two halogen

Delayed Egress Lights

Yes

Display And Input
Display Type

Electronic touchscreen

Display Size

8.4 in.

Display Size

21.4 cm

Technology
Automatic Steering Technology

John Deere GreenStar™ with integrated AutoTrac™ system

Dimensions (With Platform Installed)
Overall Length Without Platform

225.5 in.

Overall Length Without Platform

590 cm

Overall Height

148 in.

Overall Height

376 cm

Under Frame Clearance

44 in.

Under Frame Clearance

112 cm

Wheelbase

146 in.

Wheelbase

371 cm

Track Width

133 in.

Track Width

340 cm

Weight
Front Axle Weight

9636 lb.

Front Axle Weight

4370 kg

Rear Axle Weight

5792 lb.

Real Axle Weight

2627 kg

Total Weight

15428 lb.

Total Weight

6998 kg

Warranty
Manufacturer's Warranty

Full machine: 1 year; Engine: 2 years or 2,000 hours

Service Plan (Extended Warranty)

PowerGard™ Protection Plan
