Windrowers

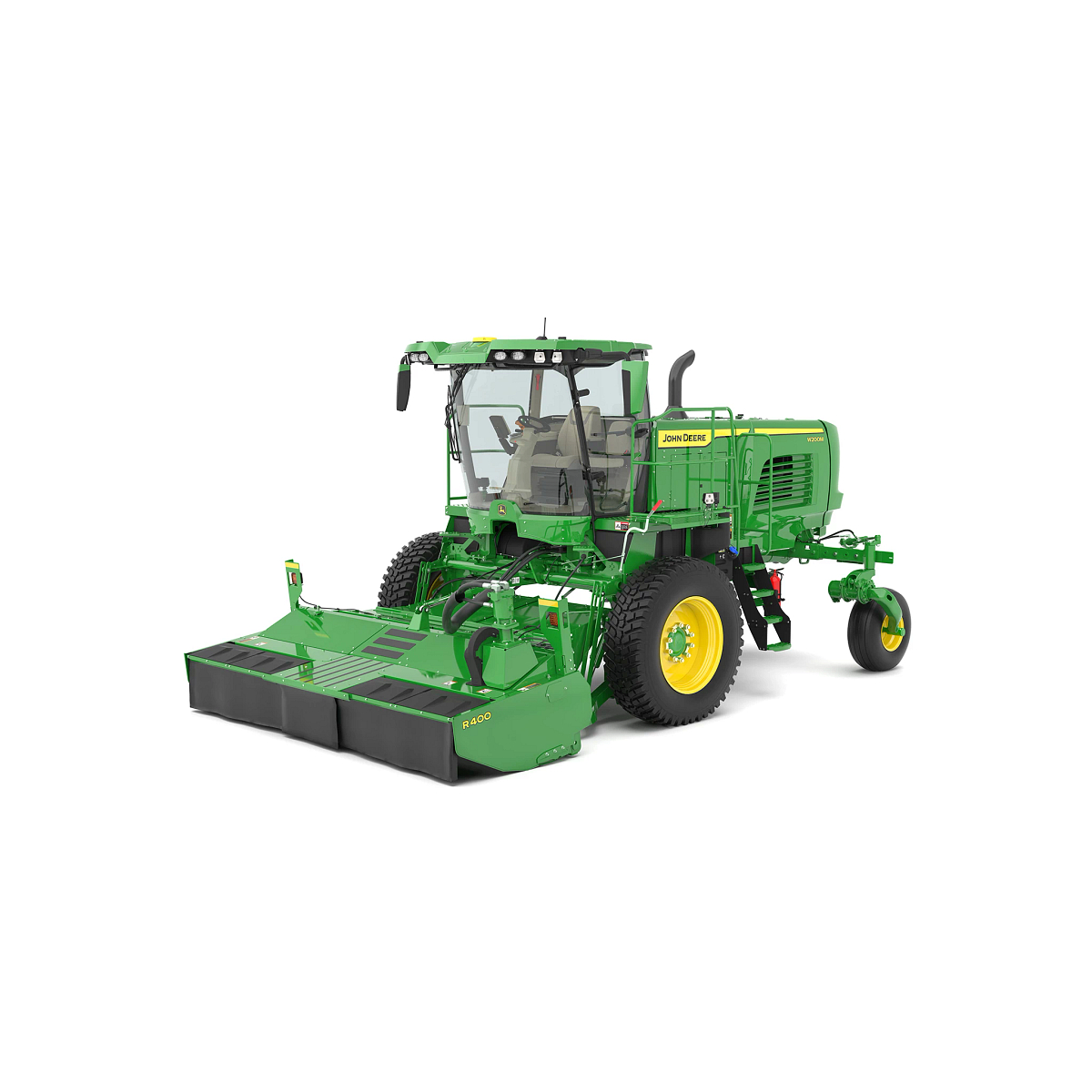

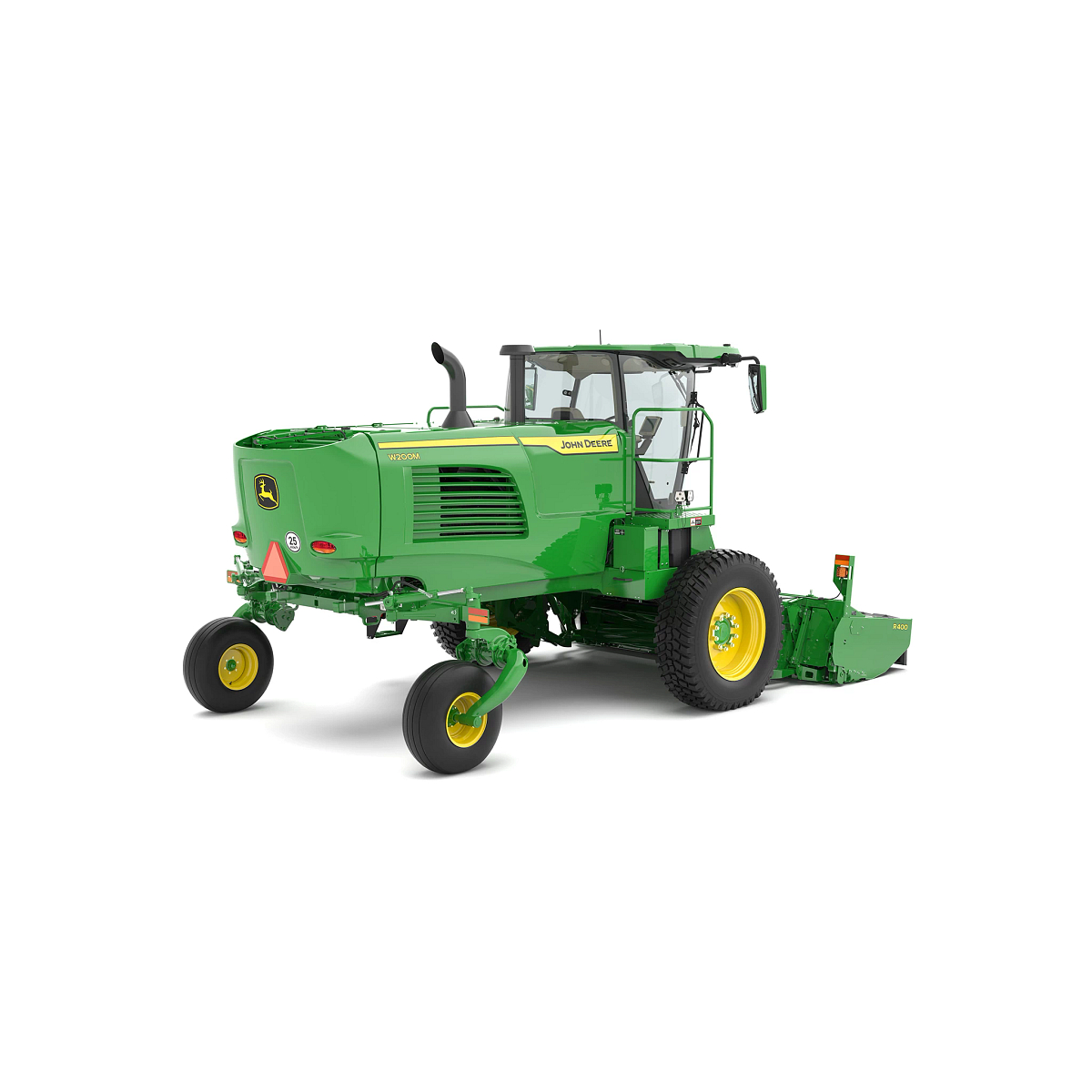

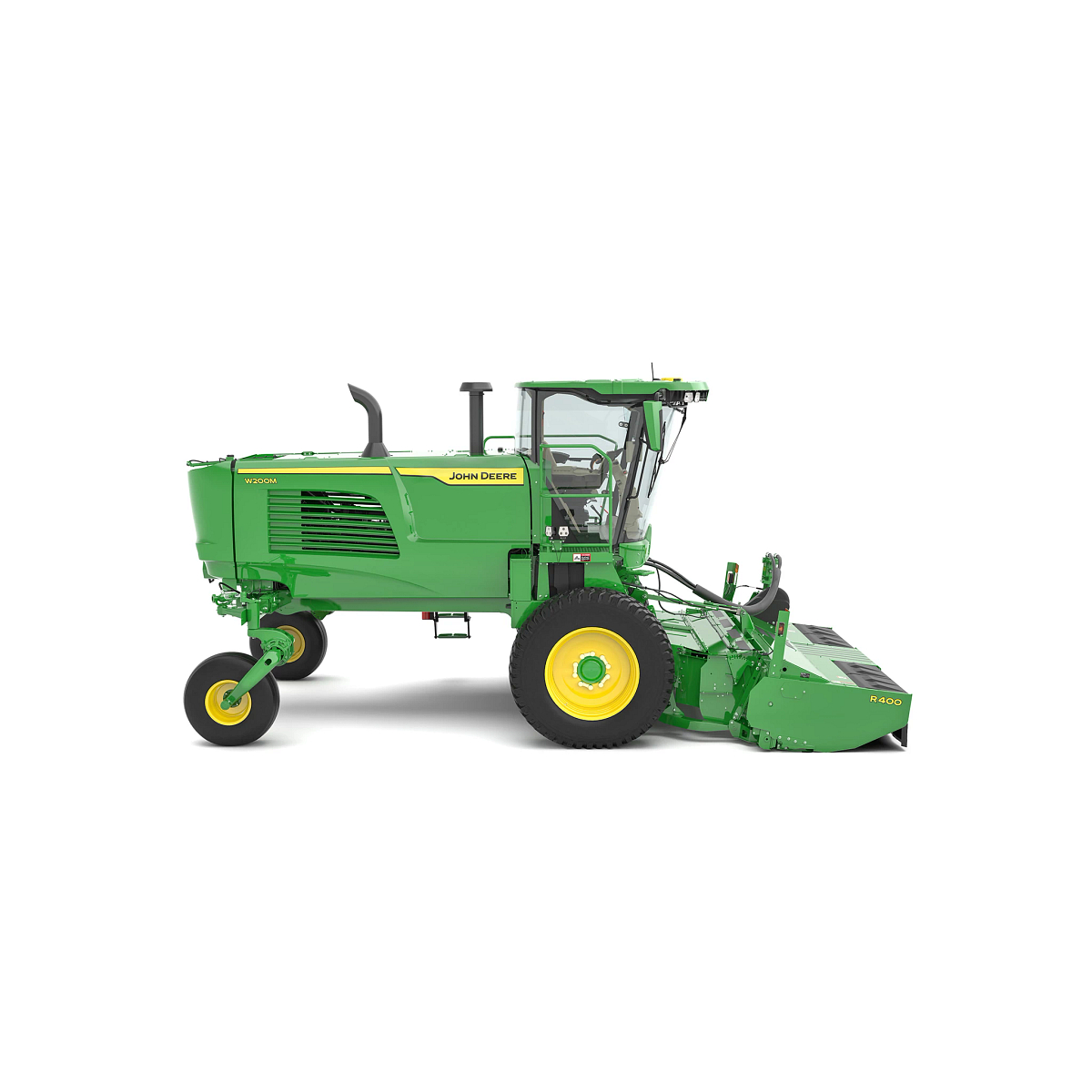

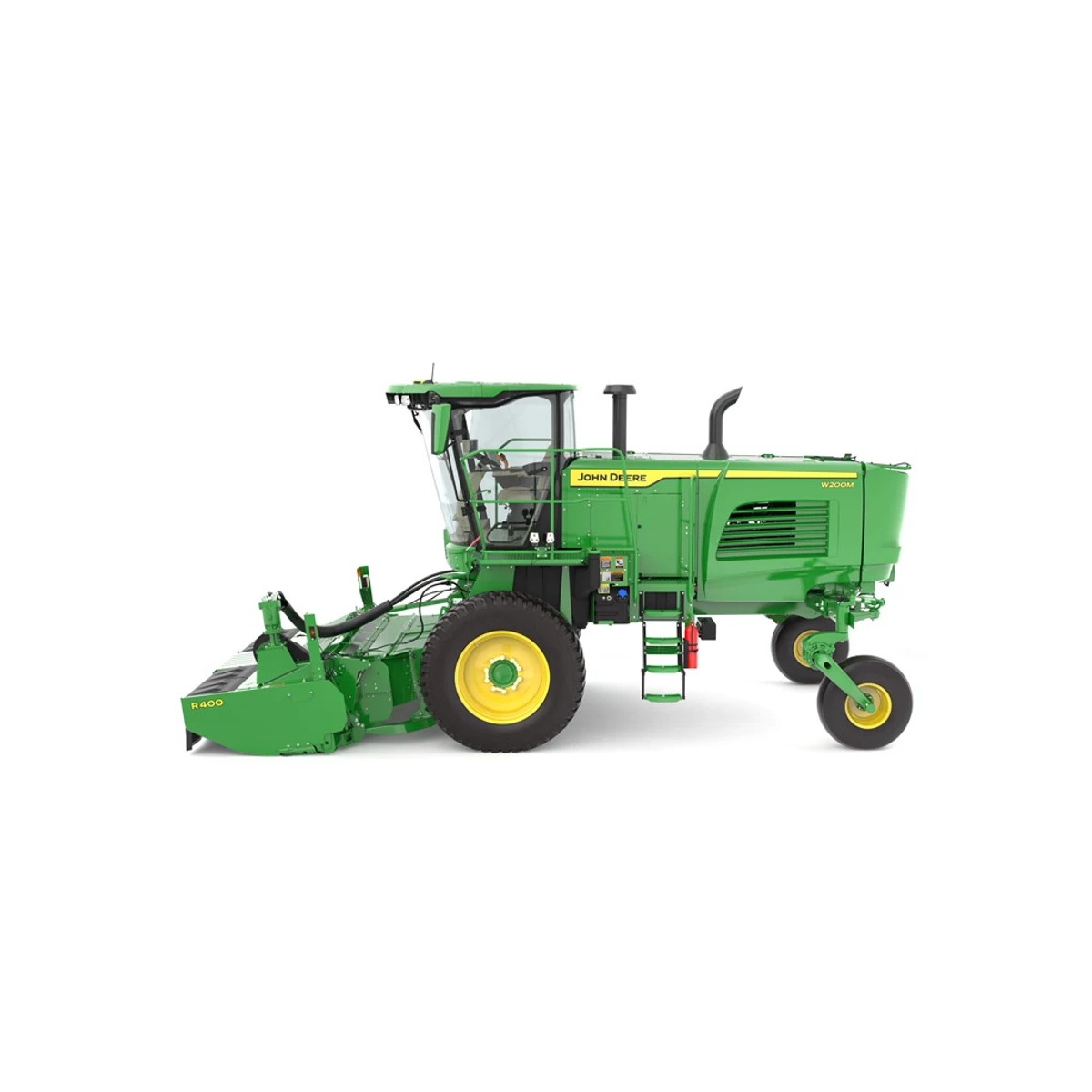

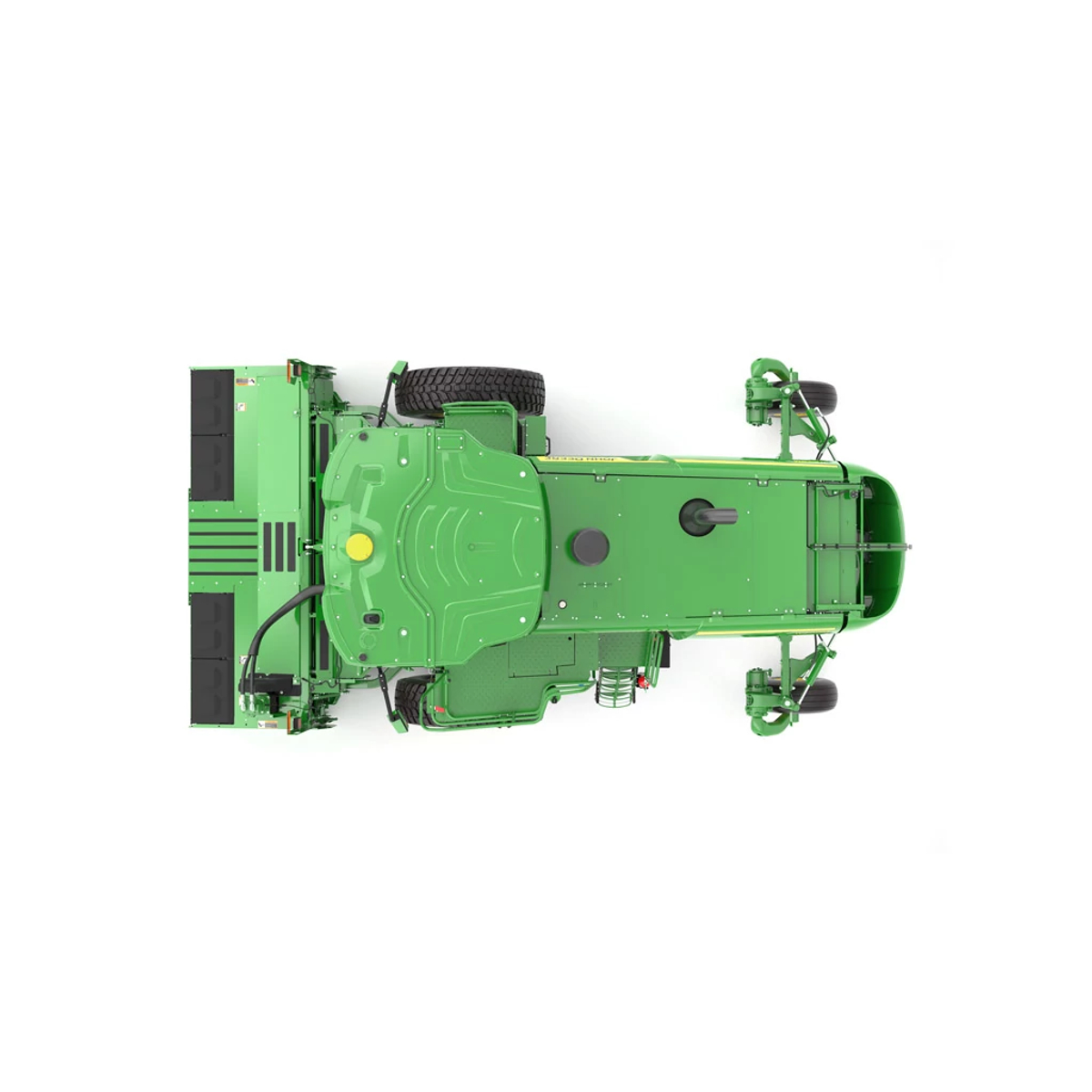

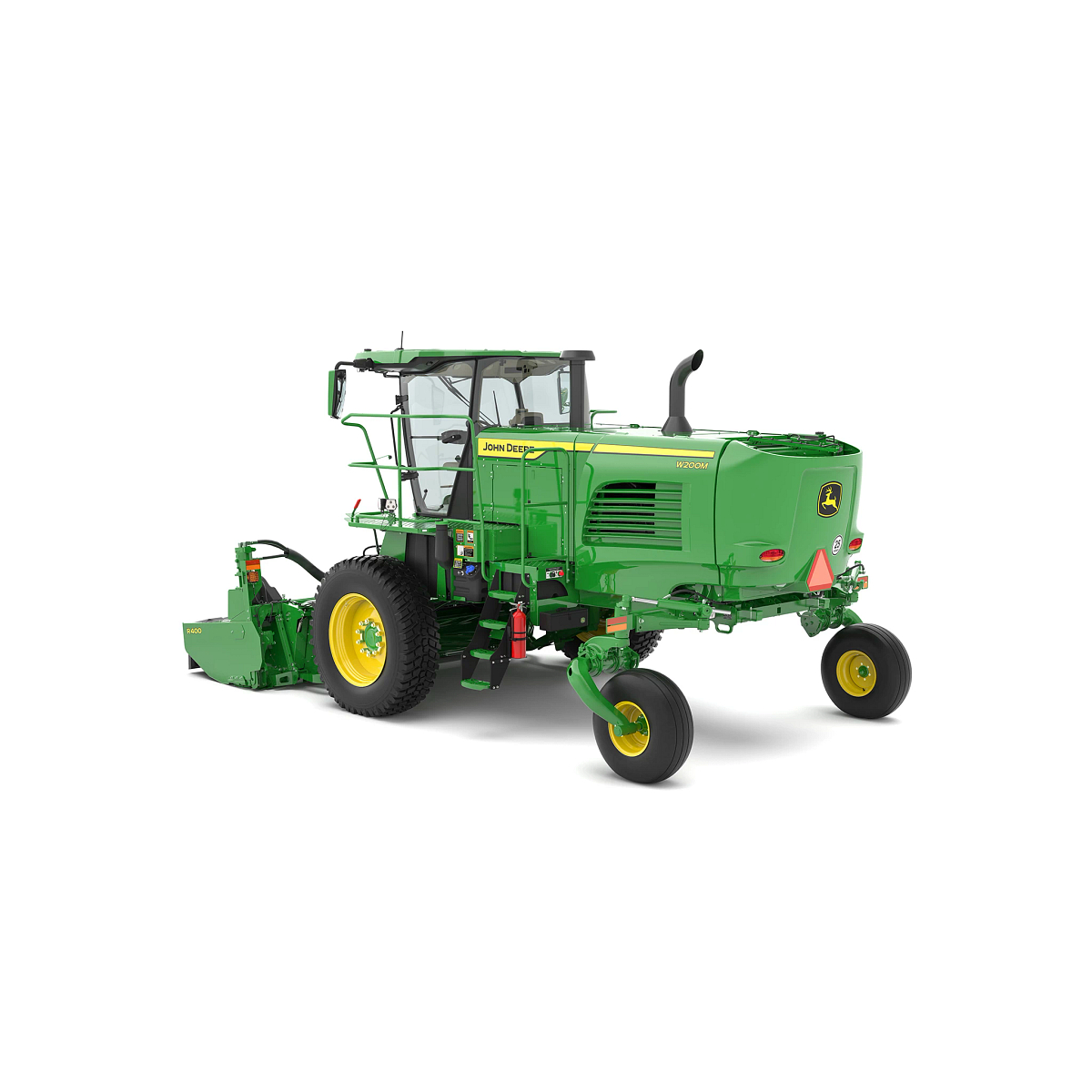

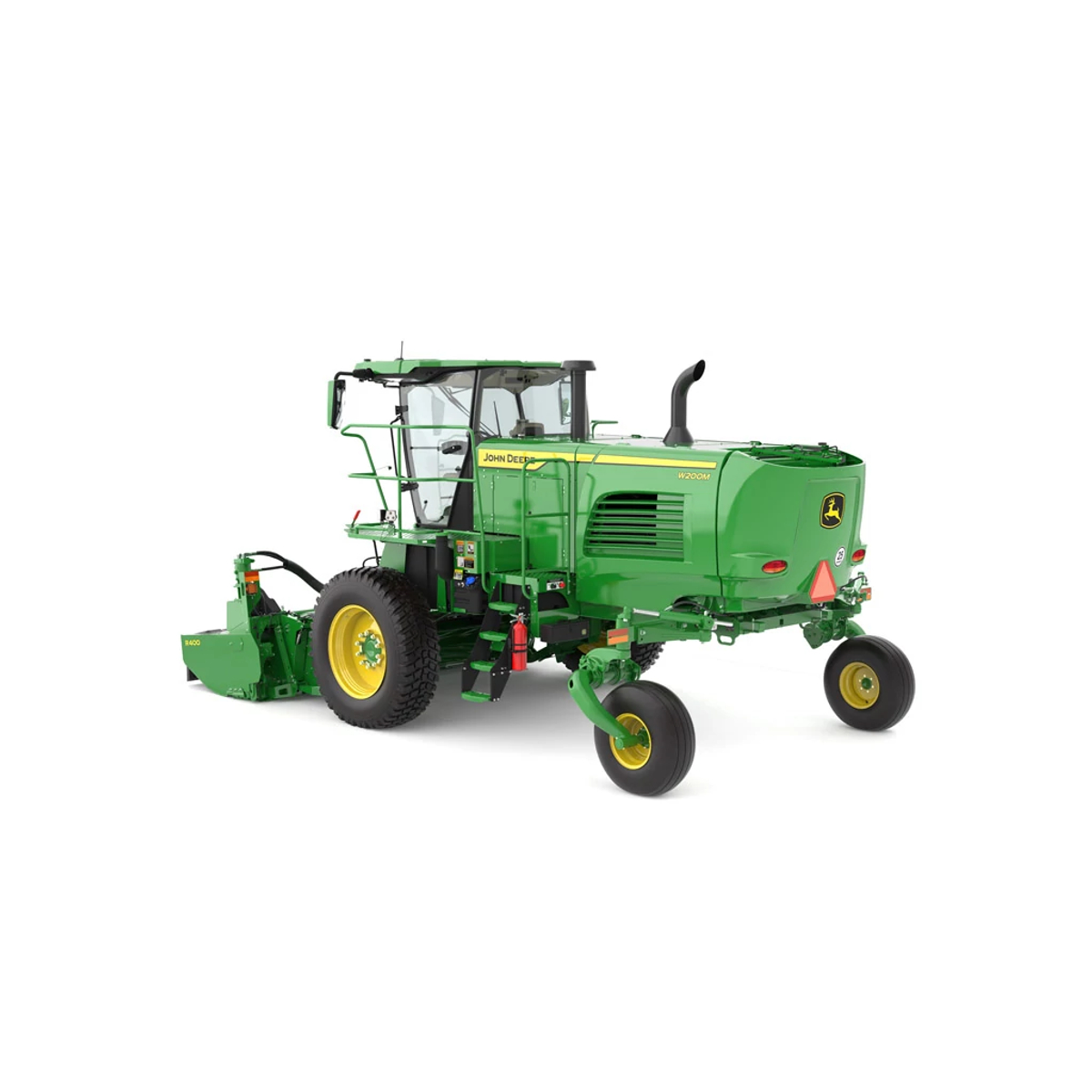

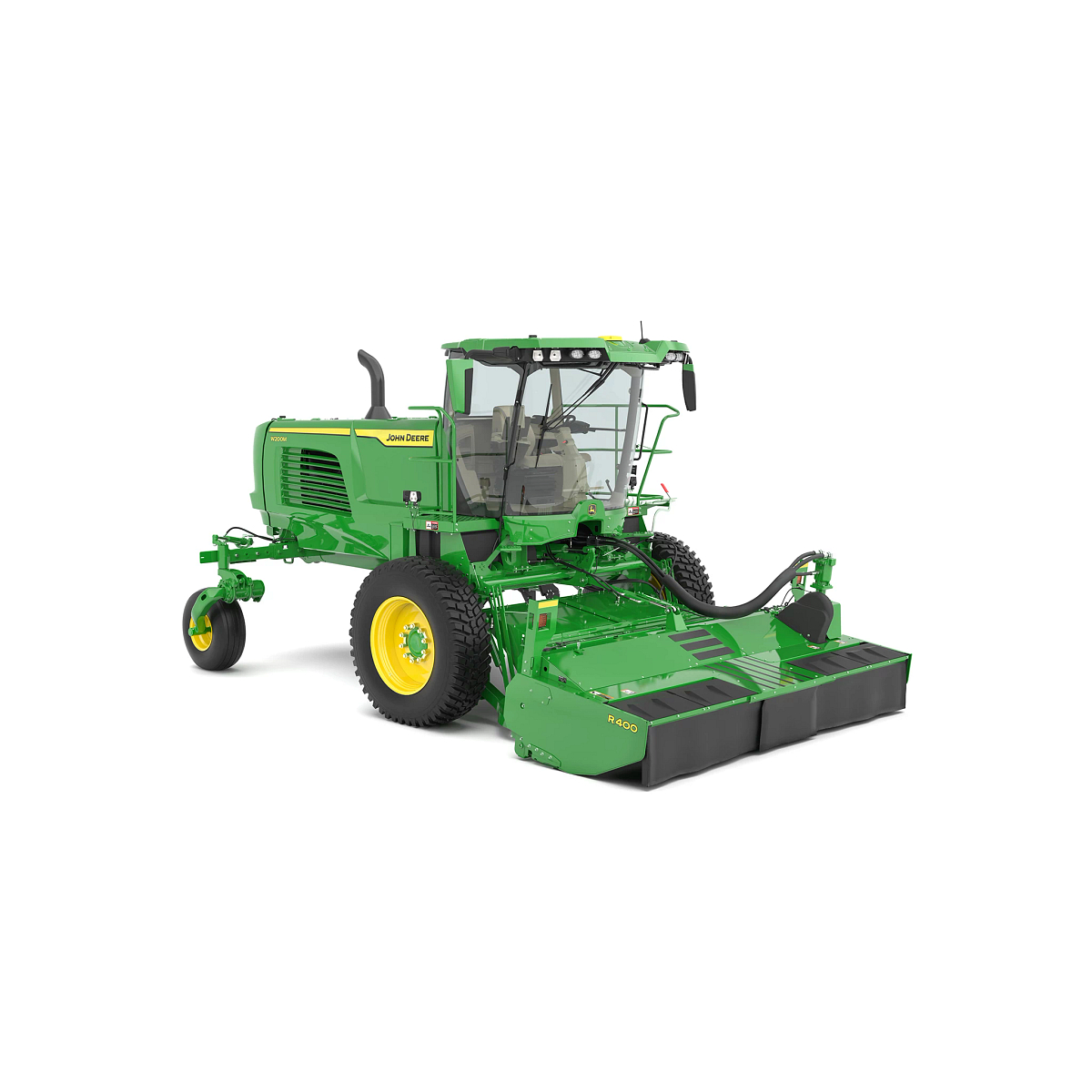

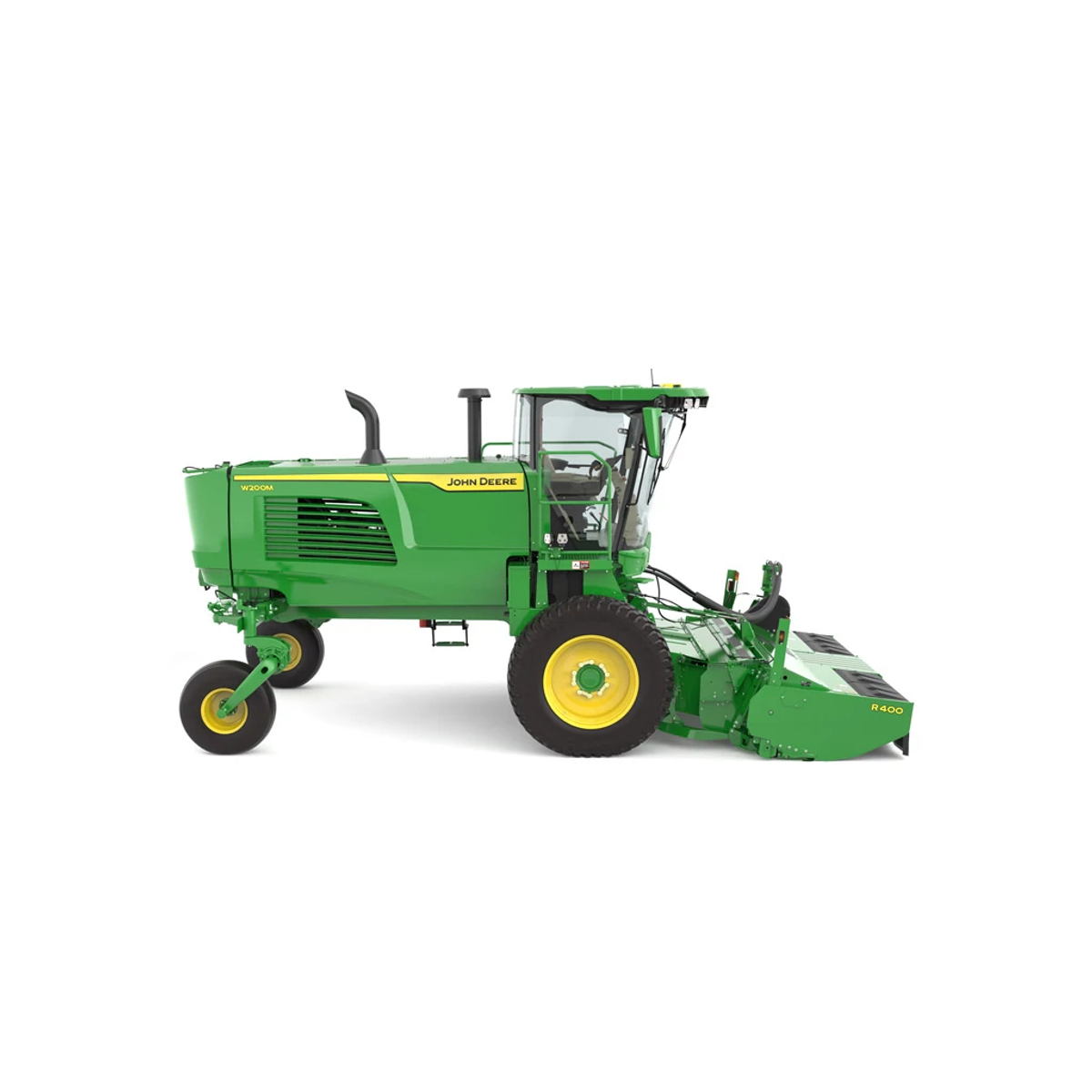

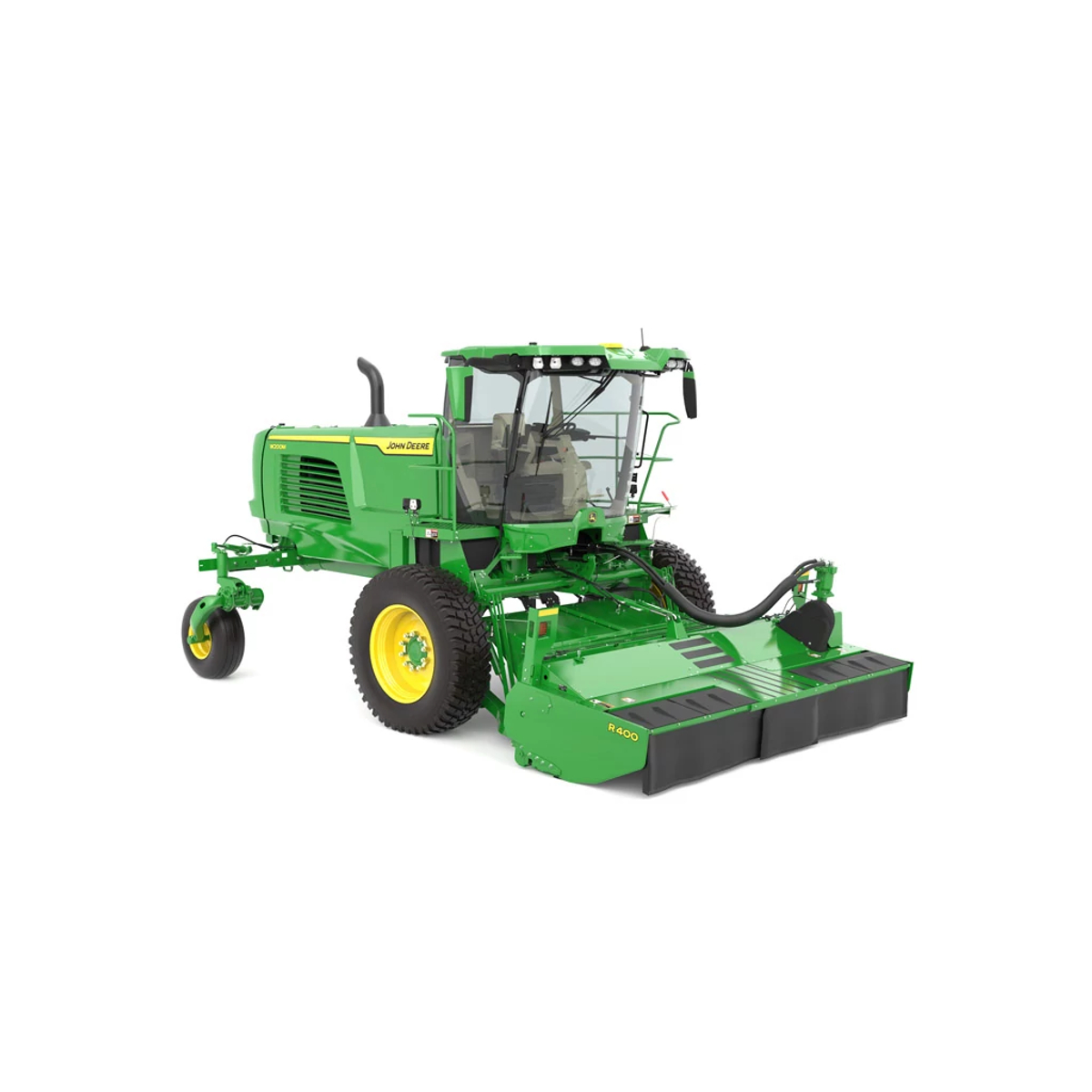

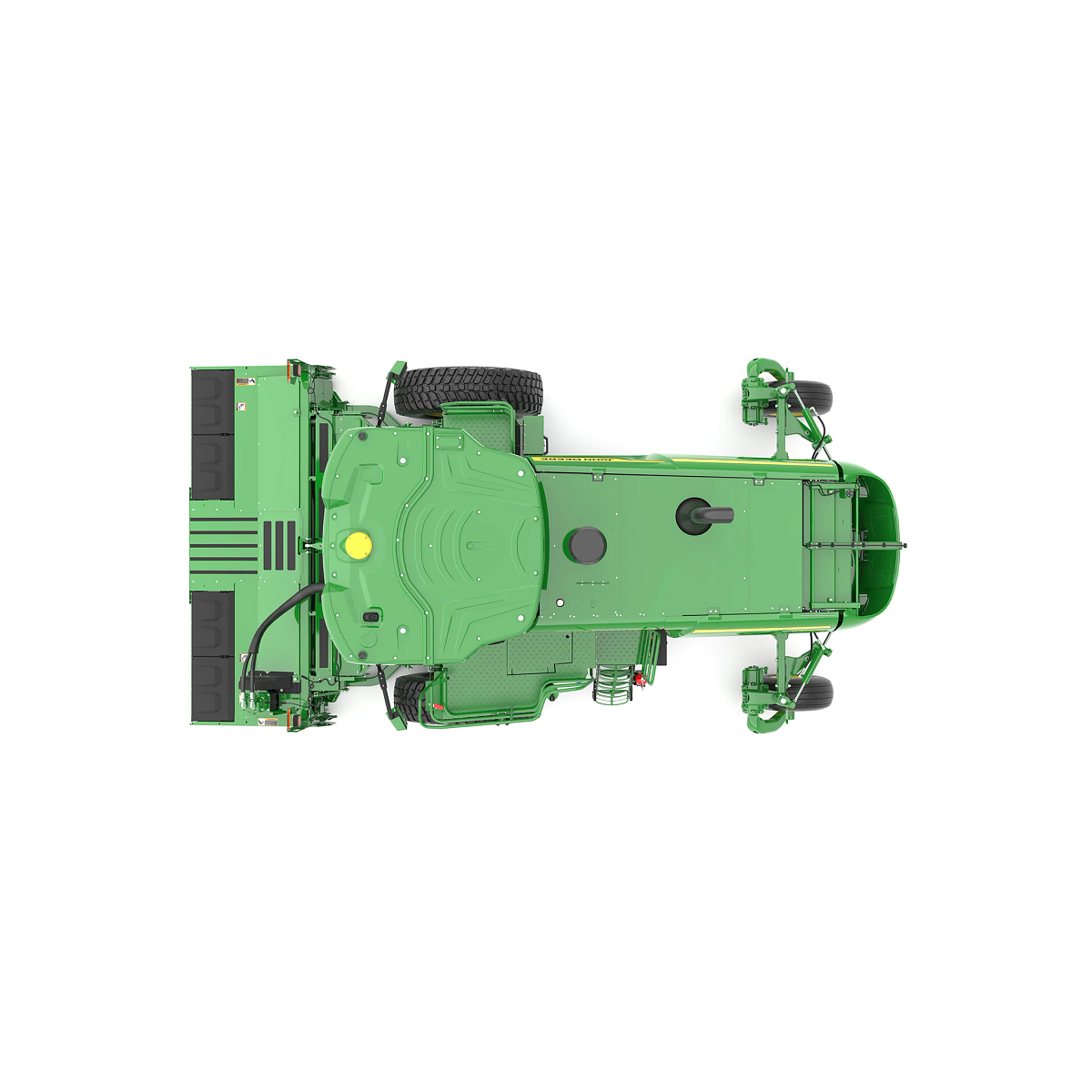

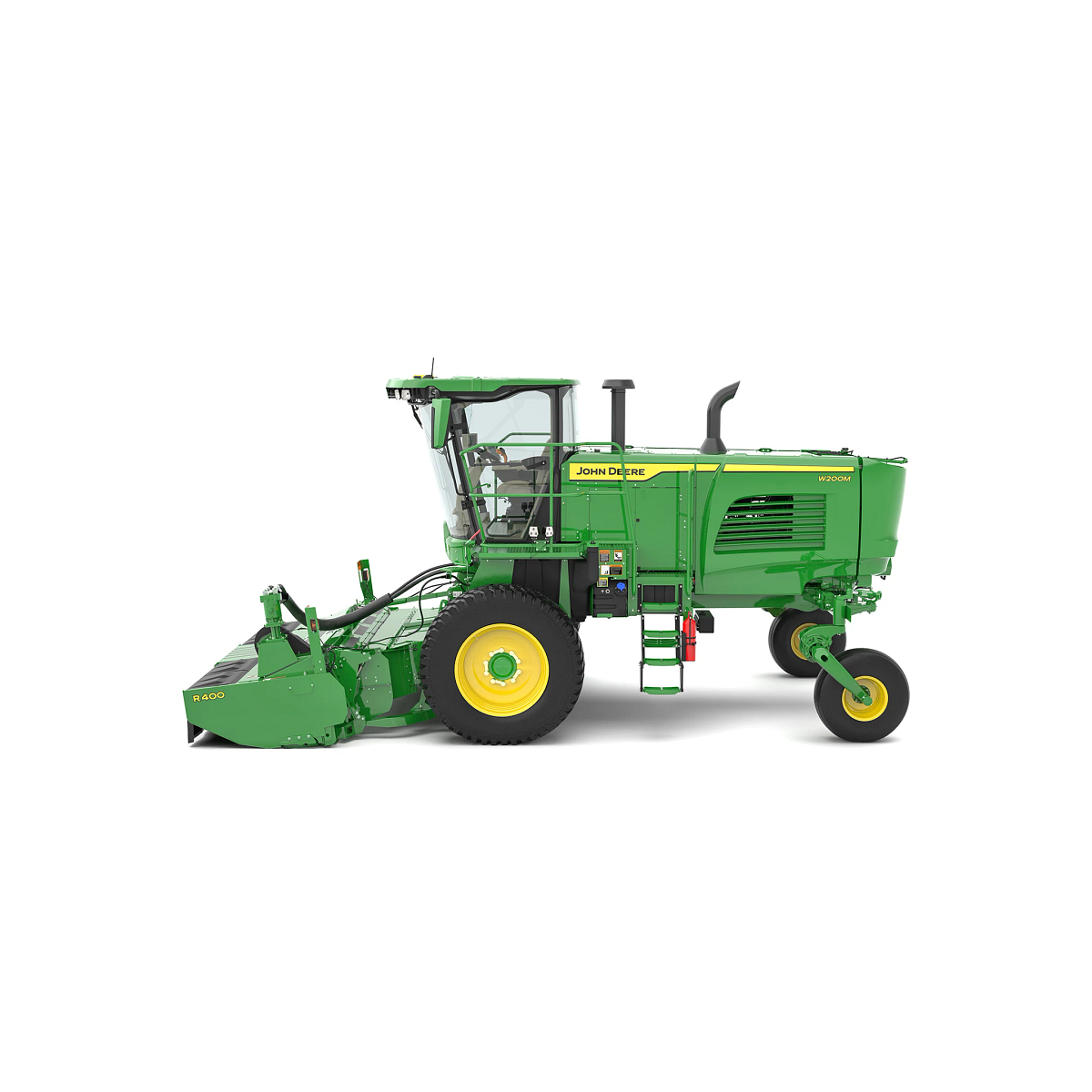

John Deere W200M

Starting at

Key Features

200 hp
Integrated AutoTrac™ Steering System
JDLink™ Enabled
Optional 24 mph Transport Speed

Designed to Keep You Comfortable All Day Long

With the shocks placed at each corner of the cab, the entire cab can go up or down from the resting position. This suspension makes the the machine one of the most comfortable cabs in the industry.

John Deere self‑propelled windrower with enclosed cab and wide mower‑conditioner cutting alfalfa field, operator visible inside, mountains and blue sky in background.

Precision Technology That Can Drive Efficiency

Integrated with advanced precision ag technology, including a high‑definition touchscreen display paired with a StarFire™ receiver and AutoTrac™ guidance, help to improve accuracy and reduce overlaps.

Interior of a John Deere self‑propelled windrower cab showing operator seat, armrest‑mounted joystick, touchscreen display, and control panel, with green crop visible through the front window.

Transportation in Seconds

When it’s time to move on from field to field, transport at speeds up to 24 mph (38.6 km/h). Ride in comfort and style with the air suspension seat on M Spec models.

Two John Deere self‑propelled windrowers traveling in line on a dirt farm road between green fields, with wide mower‑conditioner heads raised and mountains visible in the distance under a clear sky.

Engine

Make	John Deere
Model	PowerTech™ PVS Final Tier 4
Horsepower At 2,400 rpm	200 hp
Horsepower At 2,400 rpm	149 kW
Horsepower Peak At 2,200 rpm	220 hp
Horsepower Peak At 2,200 rpm	164 kW
Number Of Cylinders	6
Exhaust Direction	Vertical
Engine Displacement	415 cu in.
Engine Displacement	6.8 L
Low Idle Engine Speed	900 rpm
Variable Idle Engine Speed	Electronic adjustable from 1,700 to 2,450 rpm
High Idle (No Load) Engine Speed	2450 rpm
Rated Engine Speed	2450 rpm
Oil Crankcase Capacity (With Filter)	33.2 U.S. qt
Oil Crankcase Capacity (With Filter)	31.4 L
Cooling System	13 U.S. gal.
Cooling System	49.2 L

Ground Drive

Ground Drive Type

Base: Single-speed hydrostatic; Optional: Two-speed hydrostatic

Hydraulic Platform Drive

Number Of Pumps (Rotary/Auger)	1
Number Of Motors (Rotary/Auger)	1
Speed Control System	Electronic adjusted from cab
Pump Displacement	7.02 cu in.
Pump Displacement	115 cc
Motor Displacement (Per Revolution)	4.6 cu in.
Motor Displacement (Per Revolution)	75.4 cm³

Platform Float System

Platform Float System Type	Hydraulic piston accumulator
Platform Float System Control	Resume on header lower

Final Drives

Final Drives Type

Direct drive heavy-duty wheel motors

Brakes

Brake Type/Activation

Manual parking brake engage button on armrest; Parking brake automatically engagaes and disingages, integrated into multi-function lever

Hydraulics

Reservoir Capacity	25 U.S. gal.
Reservoir Capacity	94.5 L

Fuel

Fuel Capacity	150 U.S. gal.
Fuel Capacity	568 L
DEF Capacity	7 U.S. gal.
DEF Capacity	26.5 L

Electrical System

Alternator	240 amp
Battery	Heavy-duty 12 V

Tires

Drive Wheel Standard	620/75R26 Bar
Drive Wheel Option	Hybrid tires: 480/80R34; Radial button: 23.1R26 R3
Caster Wheels	14Lx16.1 8-ply ribbed

Speeds

Low Range - With Single Speed	18 mph
Low Range - With Single Speed	28.8 km/h
Low Range - With Two Speed	15 mph
Low Range - With Two Speed	24.1 km/h
High Range 2-Speed/Mid Range 3-Speed - With Two Speed	24 mph
High Range 2-Speed/Mid Range 3-Speed - With Two Speed	38.4 km/h

Suspension

Vehicle Suspension	Suspended rear axle in base
Cab Suspension	Air-ride seat suspension for smooth ride

Cab

Cab Construction	Uni-body, welded
Cab Glass	58.7 sq ft
Cab Glass	5.45 m²
Cab Seat	Air suspension
Steering Column	Dual-tilt telescoping
Cab Instructional Seat	Standard
Cab Windshield Wiper	Single blade
Air Conditioner	Standard with manual temperature control
Air Conditioner Refrigerant	R134a
Air Conditioner Capacity	5.5 lb.
Air Conditioner Capacity	2.5 kg
Air Conditioner Filters	Dry type, reusable
Air Conditioner Compressor	Rotary
Air Conditioner Overload Protection	Low-pressure and high-pressure cut off

Lights

Front Lights	Six halogen
Side Lights	Four optional
Back Lights	Standard: Two halogen
Delayed Egress Lights	Yes

Display And Input

Display Type	Electronic touchscreen
Display Size	8.4 in.
Display Size	21.4 cm

Technology

Automatic Steering Technology

John Deere GreenStar™ with integrated AutoTrac™ system

Dimensions (With Platform Installed)

Overall Length Without Platform	225.5 in.
Overall Length Without Platform	590 cm
Overall Height	148 in.
Overall Height	376 cm
Under Frame Clearance	44 in.
Under Frame Clearance	112 cm
Wheelbase	146 in.
Wheelbase	371 cm
Track Width	133 in.
Track Width	340 cm

Weight

Front Axle Weight	9636 lb.
Front Axle Weight	4370 kg
Rear Axle Weight	5792 lb.
Real Axle Weight	2627 kg
Total Weight	15428 lb.
Total Weight	6998 kg

Warranty

Manufacturer's Warranty	Full machine: 1 year; Engine: 2 years or 2,000 hours
Service Plan (Extended Warranty)	PowerGard™ Protection Plan
