Self-Propelled Forage Harvesters

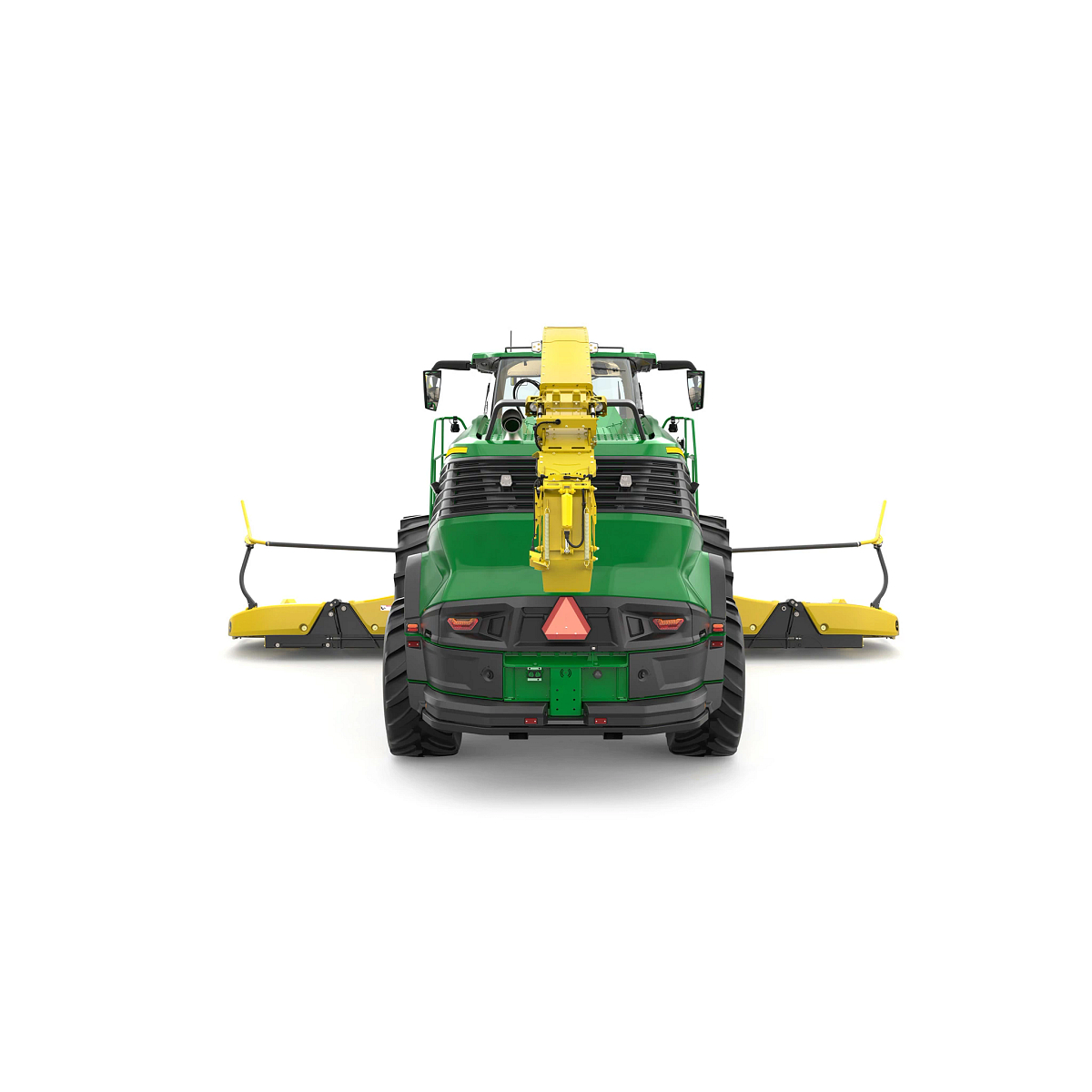

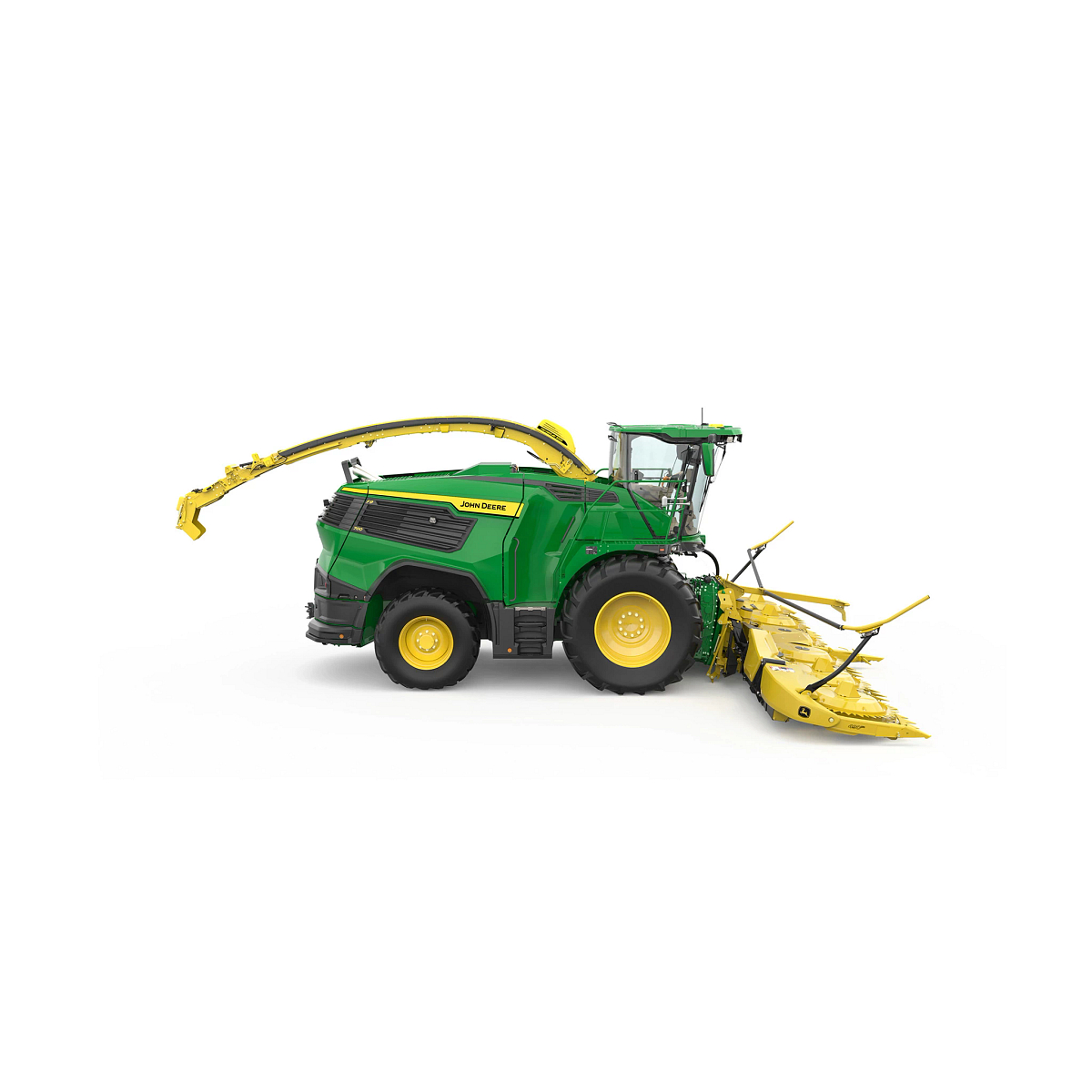

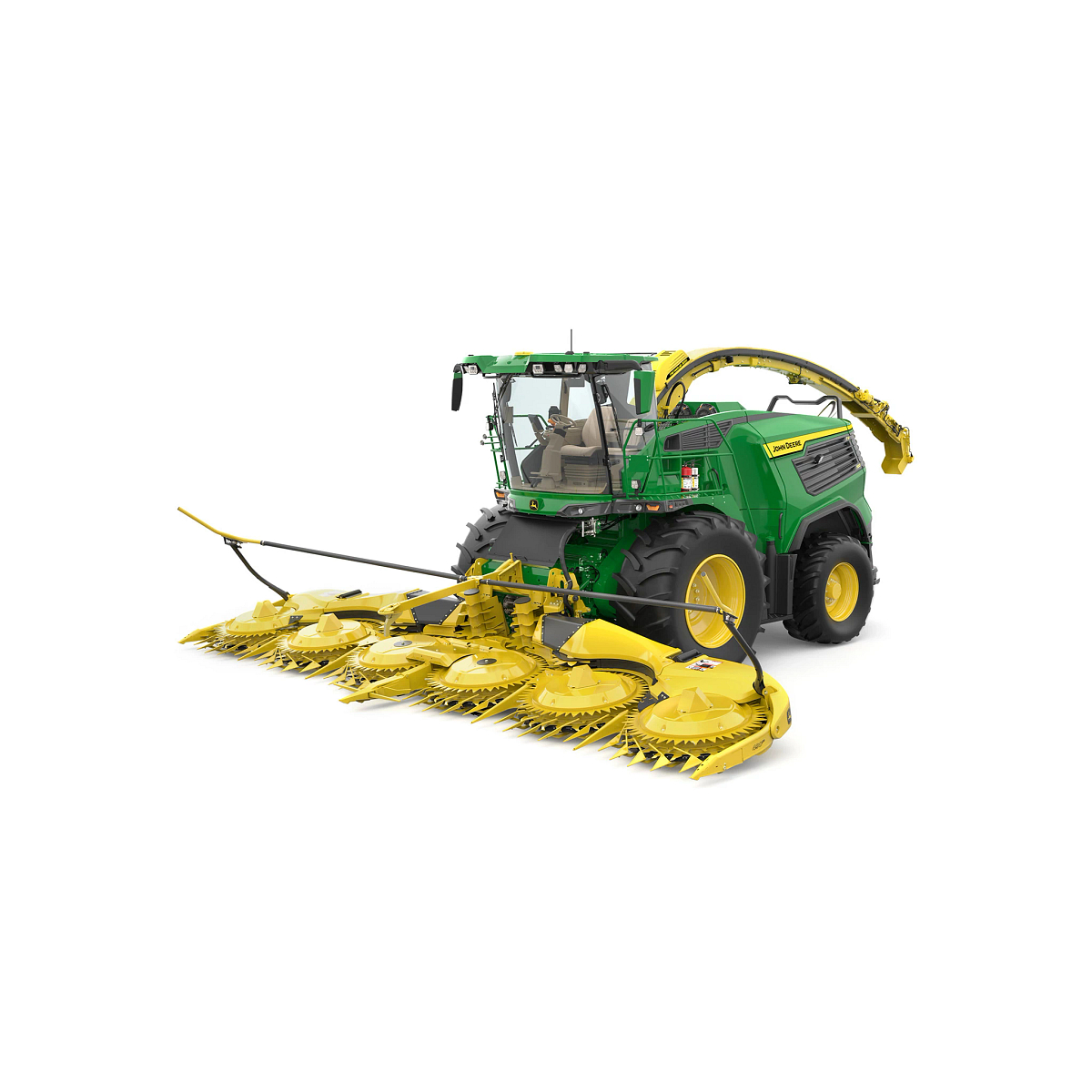

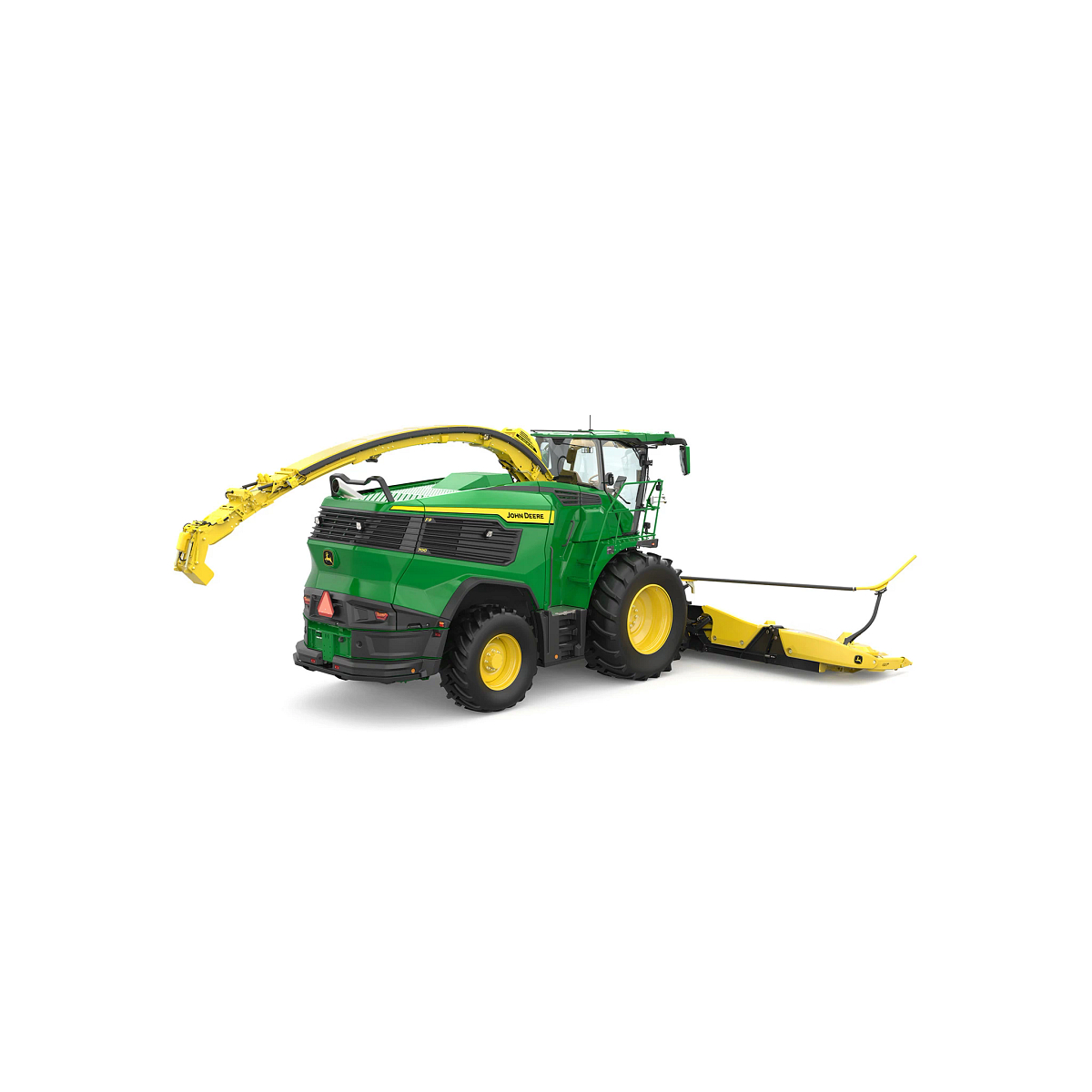

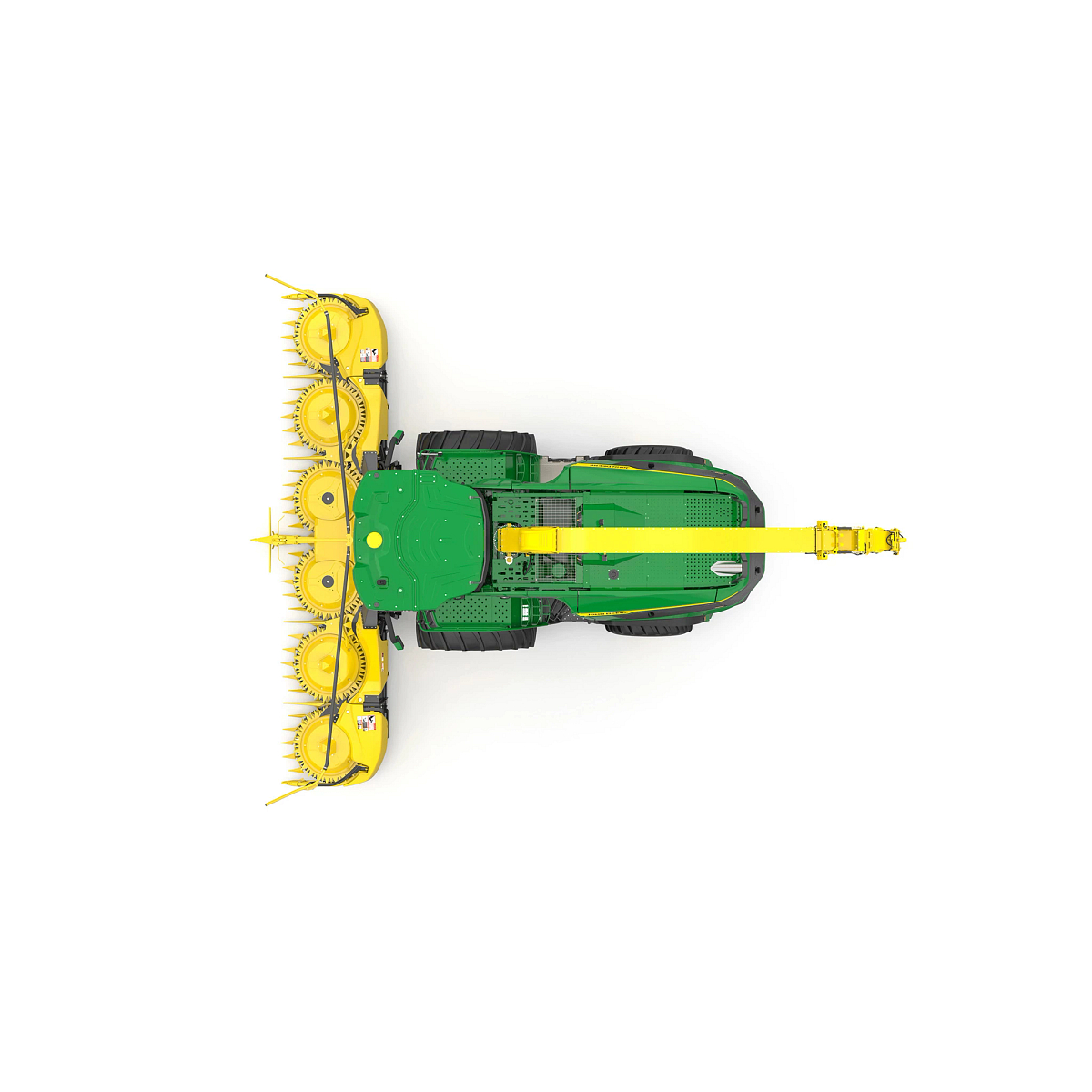

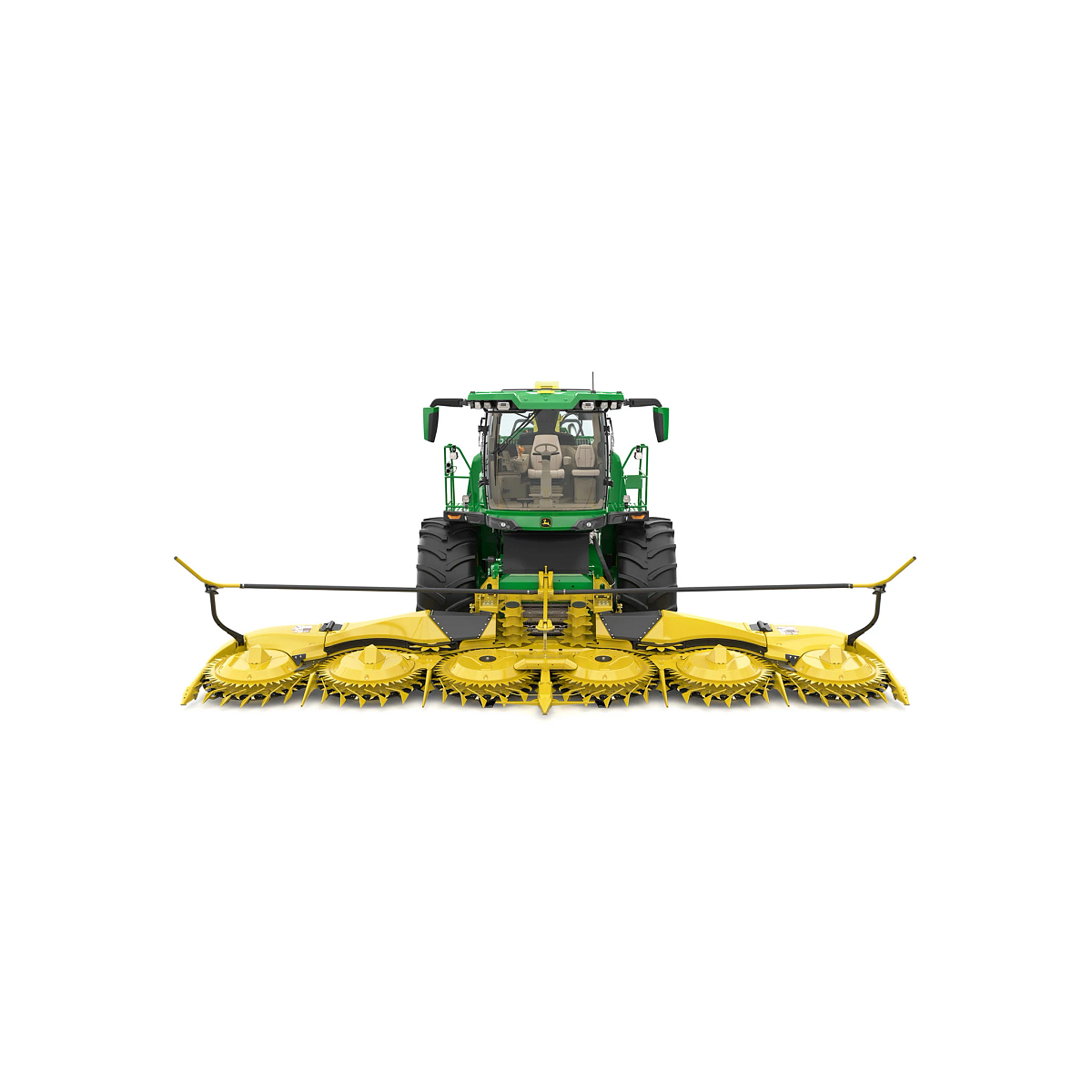

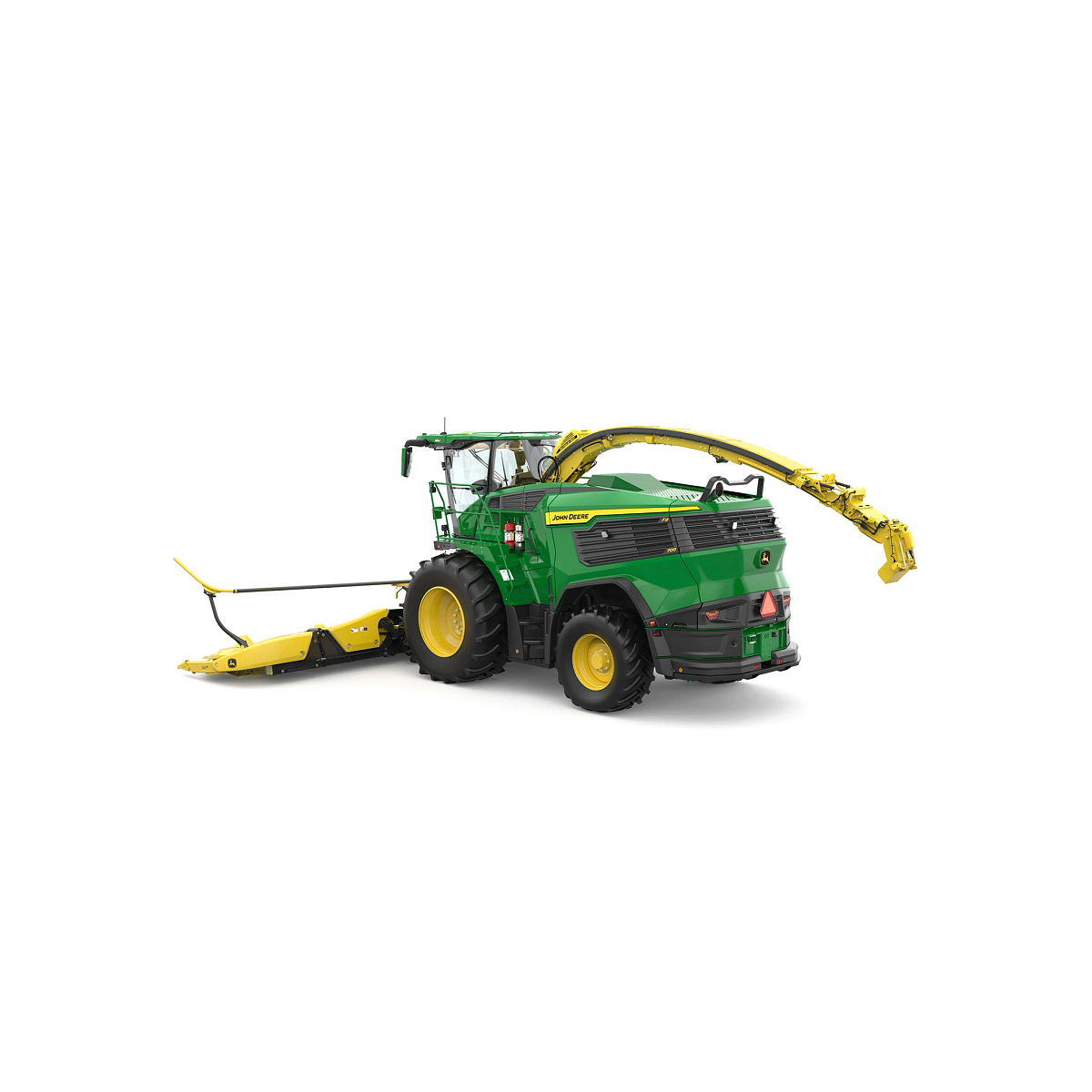

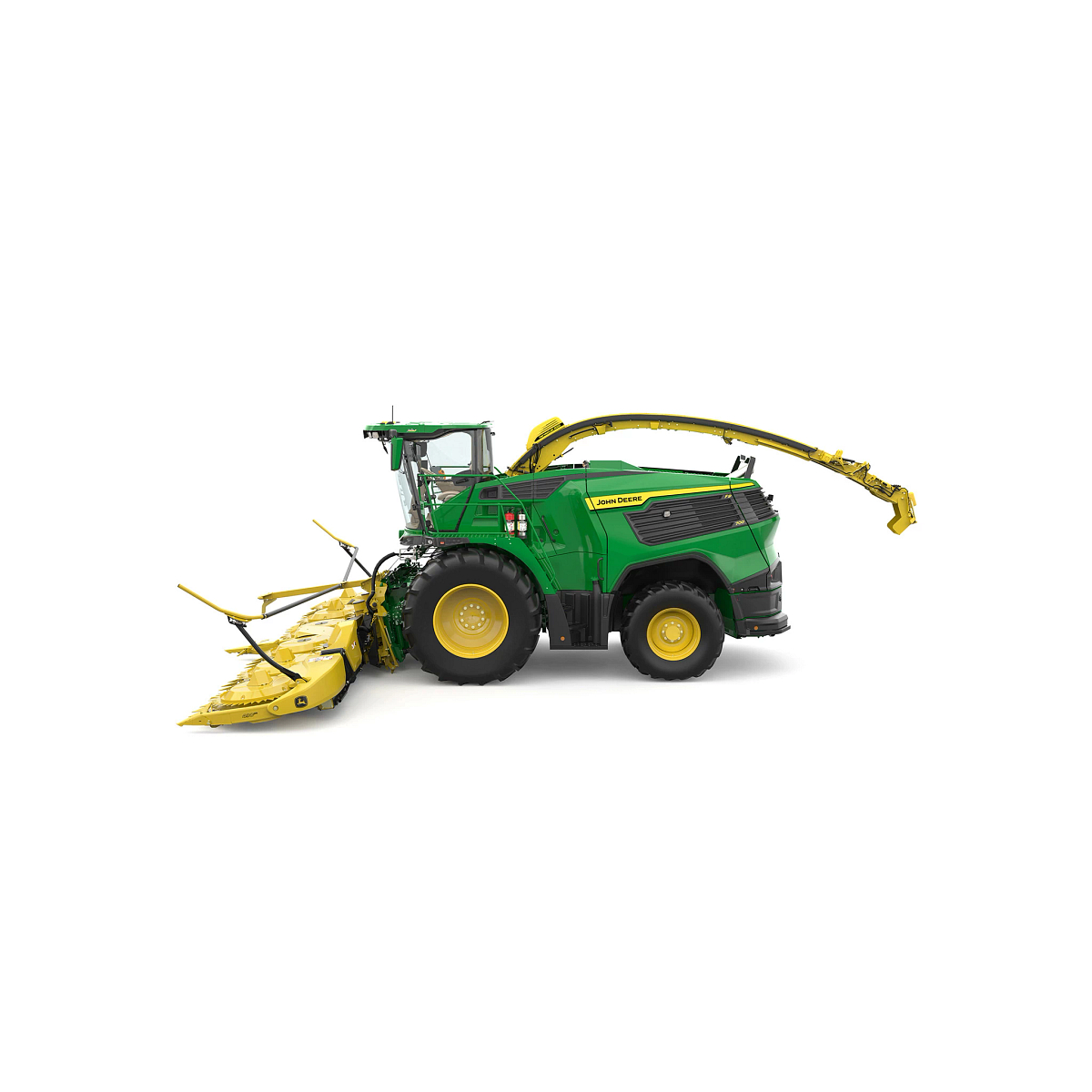

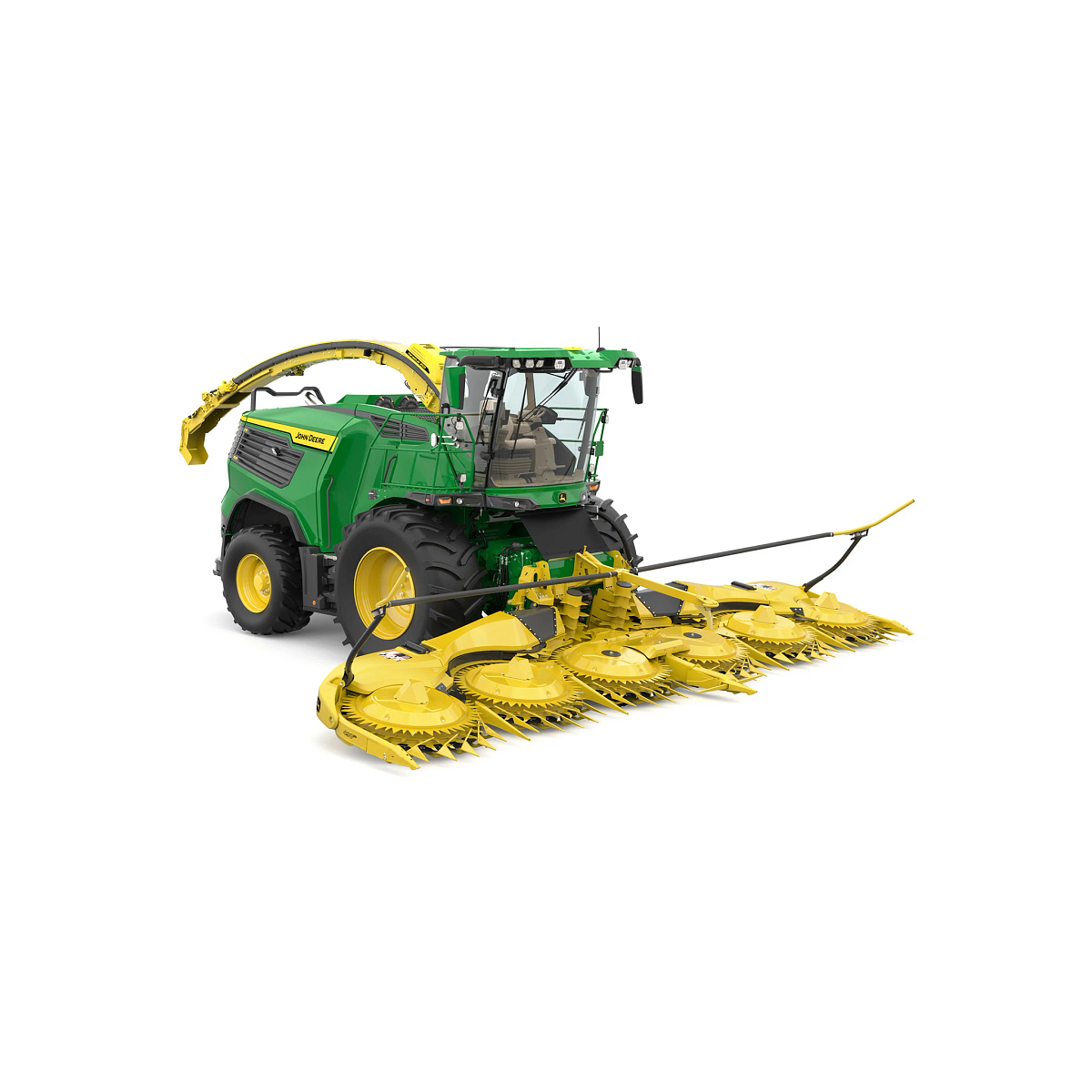

John Deere F9 700

Starting at

Key Features

CommandPRO™ Hydrohandle
JD18X Engine With 838 Max hp (850 Max PS)
HarvestMotion™ Power Management
Ground Speed Automation

ProTouch Harvest

Start harvesting faster than ever with ProTouch Harvest. Preconfigured for corn, grass, and whole crop silage, ProTouch Harvest uses just one click to engage six harvester functions in an adjustable sequence.

Interior of John Deere equipment cab with two beige seats, steering wheel, armrest controls, and multiple displays, viewed from the doorway with a header visible outside.

Engineered for Powerful Kernel Crushing and Crop Conditioning

Choose between the Ultimate250™ KP and XStream305™ KP advanced kernel processors that are designed to crush corn kernels and condition crop material for higher-quality silage. Both systems increase processing surface area and optimize crop flow to improve feed value and consistency.

Front view of a green kernel processor with rollers, belts, pulleys, hydraulic lines, and mounting brackets visible against a white background

Ground Speed Automation

Say goodbye to constantly adjusting your speed according to field conditions. Ground Speed Automation automatically adjusts harvester speed and engine RPM according to your preset limits on engine load. Automatically optimizing your speed helps to reduce fuel use and improve productivity.

Individual sitting in the cab of a combine with a steering wheel in front of them.

Engine

Engine Make	John Deere
Engine Model	JD18X 6180
Emissions Certifications	Final Tier 4 / Stufe V
Displacement	18 L
Displacement	1098 cu in.
Number of Cylinders	6
Rated Engine Speed	1800 rpm
Rated Engine Power	603 kW
Rated Engine Power	809 hp
Rated Engine Power	820 PS
Maximum Engine Power	625 kW
Maximum Engine Power	838 hp
Maximum Engine Power	850 PS
Cooling Fan Drive	Fixed fan drive
Air Compressor	Optional / 1 Cylinder 350cc, water cooled / 2 Cylinder 720cc, water cooled
Turbocharger	Dual-stage turbo (DST)

Driveline

Main Clutch	Hydraulically operated dry-type disk clutch with 3 clutch disks
Main Driveband	8 grooves
Belt Tensioning	Hydraulic

Transmission

Transmission Type	Two-speed transmission (ProDrive™)
Maximum Travel Speed	24.8 mph (40 km/h)

Electrical System

Battery Capacity	1x 154 Ah 2x 154 Ah (in series) amp-hr
Alternator Capacity	12 V, 200 A / 24 V, 140 A

Rear Axle

Rear Axle Type

Heavy-duty (11.5 t) four-wheel drive / Heavy-duty (11.5 t) two-wheel drive / Heavy-duty (11.5 t) two-wheel drive (4WD ready)

Operator Station

Tilt and Extend Steering Column	Standard
Air Conditioning and Heater	Standard
Cool Box	Optional
Instructional Seat	Standard
Primary Display	Standard
Seat Suspension	Optional
Side Window Wiper	Optional
Electric Adjust and Heated	Optional
Rearview Mirrors	Standard
Panoramic View Windows	Standard

Technology Integration

Yield Monitoring	Harvest Monitor™ - Optional
Documentation	Harvest Doc™ - Optional
Crop Analysis	Optional with HarvestLab™
Length-of-Cut Control Based on Crop Parameter	AutoLoc™ - Optional with HarvestLab™
Assisted Steering Systems	Optional: AutoTrac™ / Manual RowSense™ / AutoTrac™ RowSense™/Machine Sync

Harvest Channel

Harvest Channel Width	830 mm
Harvest Channel Width	32.68 in.

Header Connection

Infinitely Variable Header Drive	Standard
Lateral Pivoting Frame	Standard
Multicoupler	Standard
Auto PTO Coupler	Optional
Header Drive	Standard
Header Height Control	Optional Automatic Header Control (AHC)
Grass Pickups (Transport Width)	3.0, 3.49, 4.0, 4.5, 4.6 m
Grass Pickups (Transport Width)	9.84, 11.45, 13.12, 14.76, 15.09 ft
Maize Headers	6, 8, 10 or 12 row
Maize Headers Working Widths	4.5, 6.0, 7.5, 9.0 m
Maize Headers Working Widths	14.8, 19.7, 24.6, 29.5 ft

Length Of Cut

40 Knife Cutterhead	7-25 mm LOC in 1 mm steps/ 1,170 rpm
48 Knife Cutterhead	6-21 mm LOC in 1 mm steps/ 1,170 rpm
56 Knife Cutterhead	4-18 mm LOC in 1 mm steps/ 1,170 rpm
64 Knife Cutterhead	3-16 mm LOC in 1 mm steps/ 1,170 rpm

Feedrolls

Feedroll Frame Opening	Swing away, 37-45 degree (angle) / V-Opening
Number of Feedrolls	4
Stone Detector	Optional
Metal Detector	Standard
Feeding Channel Width, Front	830 mm
Feeding Channel Width, Front	32.7 in.
Standard Feedroll Drive	Variable

Cutterhead

Cutterhead Housing Width	850 / 670 mm
Cutterhead Housing Width	33.5 / 26.4 in.
Speed at Rated Engine Speed	1,170 / 1,350 (Option) rpm
Knife Types Available (Crop)	Straight (grass / universal), Curved (Maize)
Number of Knives	40 – 48 – 56 – 64
Shear Bar, Reversible	Yes
Shear Bar Adjust	Long Adjustment or Short Adjustment
Shear Bar Options	Grass, Corn, DuraLine

Knife Sharpening System

Reverse Rotation	Standard
Automatic from Cab	Remote from cab
Sharpening Modes	Grinding and finishing

Kernel Processor

Kernel Processor Type	Ultimate250™ KP, XStream305™ KP
Quick KP Removal	Crane with remote controlled electric hoist

John Deere Premium KP

Lubrication	John Deere Ultimate250 KP: Grease
Roll Diameter	250 mm
Roll Diameter	10 in.
Speed Differential / Roll Speed (Lower)	32%, 40%, or 50%
Available KP Rolls	Sawtooth or Xcut

John Deere XStream KP

Lubrication	John Deere XStream305 KP: Oil
Roll Diameter	305 mm
Roll Diameter	12 in.
Speed Differential / Roll Speed (Lower)	40%, 50%
Bearing Temperature Monitoring System	Standard
Available KP Rolls	Sawtooth, Xcut, Small Grains

Blower/Crop Accelerator

Rotor Diameter	620 mm
Rotor Diameter	24.4 in.
Housing Width	560 mm
Housing Width	22 in.
Number of Blades	10
Speed (Option)	1985 rpm

Spout

Rotation, Degrees

210 degree (angle)

Capacities

Fuel Tank Capacity	1500 L
Fuel Tank Capacity	396 gal.

Dimensions & Weights

Overall Length	6.87 m
Overall Length	22.53 ft
Transport Height	3.93 m
Transport Height	9.84 ft
Overall Height	3.8 m
Overall Height	12.46 ft
Base Machine Weight	18500 kg
Base Machine Weight	40785 lb.

Serviceability

Rotary Radiator Screen Cleaner	Rotary radiator screen with active suction blower
Automatic Lubrication System	Standard / Central Grease System
Interval for Engine Oil Change	750 hr

Additional Information

Date Collected

2025-08-01
