John Deere
D636
Windrower Draper Platforms

John Deere D636

Starting at

Interchangeable with Rotary Platforms

An interchangeable rotary platform can be swapped on W200M and R Series units in 30 minutes or less. Growers can use one traction unit for harvesting both small grains and hay.

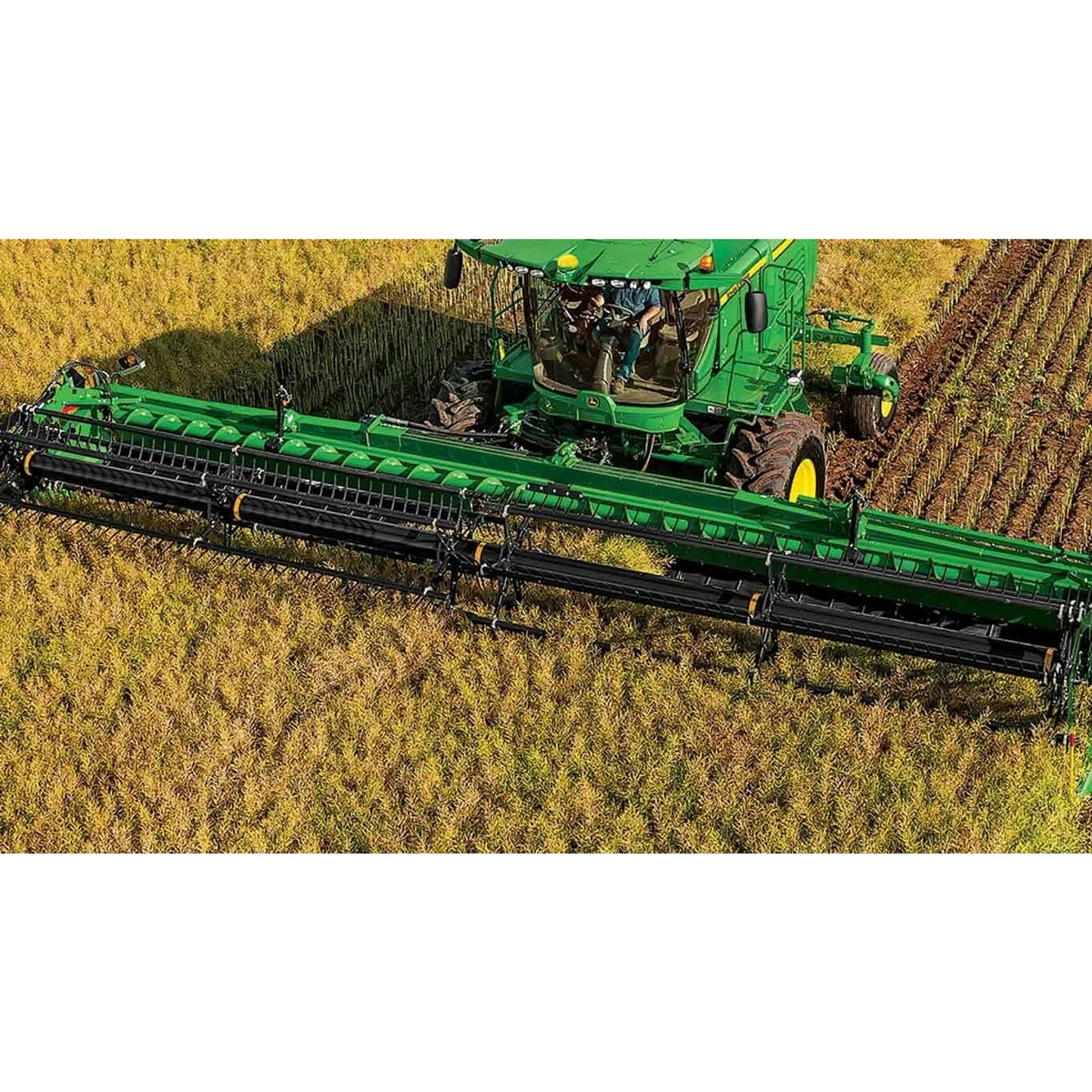

A self‑propelled windrower operating in a field of cut grain, showing its wide header collecting crop as it moves across the stubble
Center-Driven Belts

The center-driven draper belts deliver increased torque and belt performance, enabling greater productivity with minimal slippage and enhanced performance in heavy crop conditions.

A front view of a wide draper platform attached to a self‑propelled windrower, positioned in a cut wheat field
Positive-Feeding Reel Handles All Crop Conditions

An improved reel boosts durability in heavy crop conditions and a dual drive provides operators with greater versatility and increased reel torque. Additionally, the system can be quickly reconfigured for higher reel speeds to suit lighter crop conditions by changing quick couplers.

A wide draper platform attached to a self‑propelled windrower, viewed from a front angle while positioned in a cut wheat field
Question text goes here

Answer text goes here

Cutterbar
Cutterbar Type

John Deere double-cut knives: 10.2 cm, 4 in.

Cut Width (Length)

30 ft

Cut Width (Length)

9.1 m

Knife Drive

Two hydraulic motors and two knife drives; Optional: Two hydraulic motors and two knife drives

Knife Speed

520 rpm

Stroke Length

3.9 in.

Stroke Length

98 mm

Cutterbar Tilt

Hydraulic, adjustable from cab

Reel
Reel Type

Hydraulic

Number Of Bats

6

Fingers

Plastic

Diameter

44 in.

Diameter

111.8 cm

Height Control

Hydraulic, adjustable from cab

Speed Control

Multi-function lever, in cab

Reel Lift

Hydraulic, adjustable from cab

Reel Fore And Aft

Hydraulic, adjustable from cab

Draper And Decks
Belt Width

V-guided draper belt

Belt Width

42 in.

Belt Width

106.7 cm

Delivery Opening Width - Single Swath Opening

80 in.

Delivery Opening Width - Single Swath Opening

203.2 cm

Delivery Opening Width - Double Swath Opening

54 in.

Delivery Opening Width - Double Swath Opening

137.2 cm

Auxiliary Top Auger
Auxiliary Top Auger Type

Optional: Factory-installed cross-auger

Dimensions
Operating Width

30 ft

Operating Width

9.1 m

Transport Width - Reel Fully Retracted

8.5 ft

Transport Width - Reel Fully Retracted

2.6 m

Transport Height

29.6 ft

Transport Height

2.44 m

Transport Length - Hitch Extended

40.8 ft

Transport Length - Hitch Extended

12.5 m

Weight
Approximate Weight - Base Platform Without Reel

3513 lb.

Approximate Weight - Base Platform Without Reel

1232 kg

Approximate Weight - Base Platform With Reel

5975 lb.

Approximate Weight - Base Platform With Reel

2710 kg

Gauge Wheels And Transportation
Gauge Wheels

Optional: Adjustable castoring gauge wheel

Integrated Slow Speed Transport System

Self-contained transport, including hitch, jack and axle, is conveniently stored on the swather table
