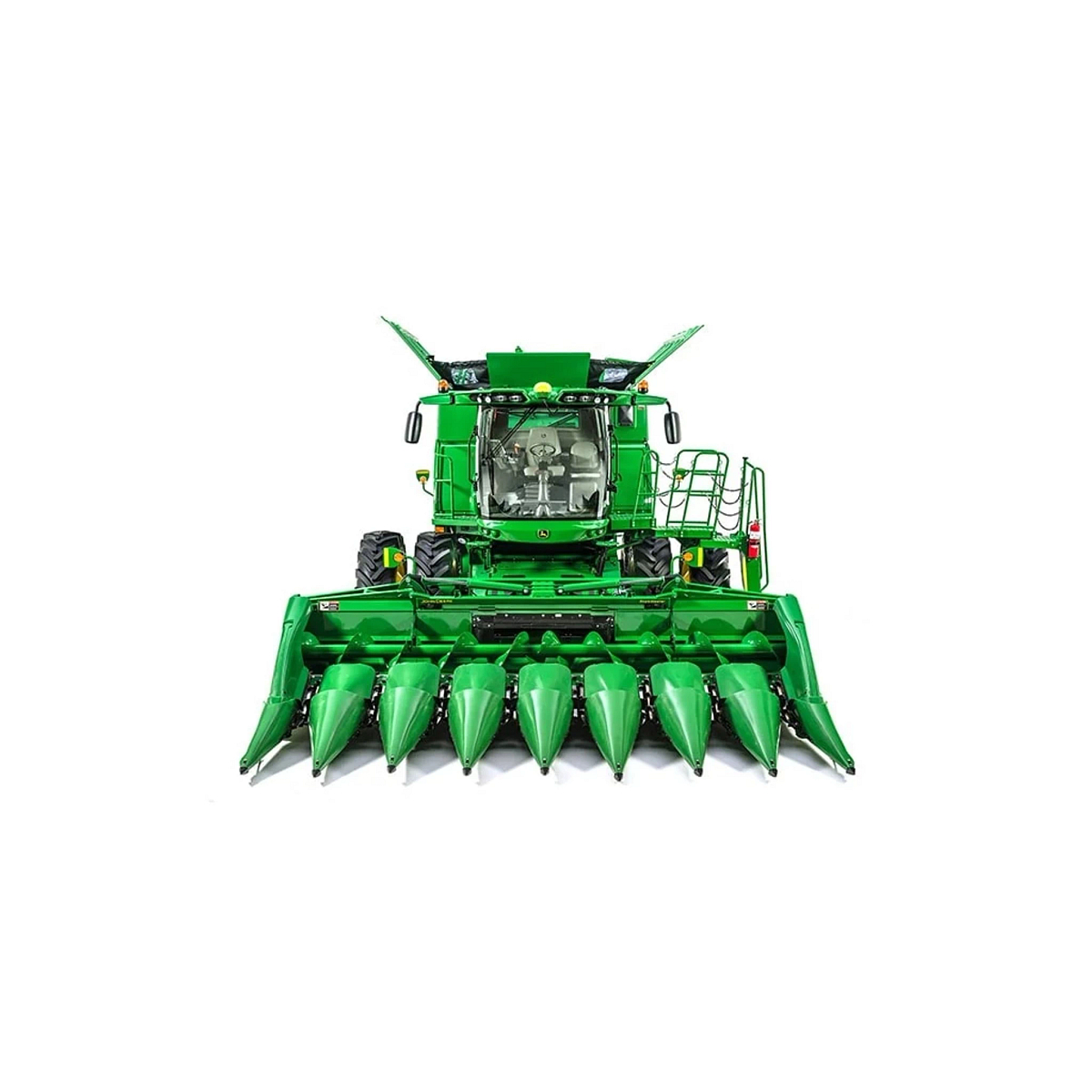

Corn Head |
| Gathering Points | Four-position, low-profile floating type hinged above gathering chains | Four-position, low-profile floating type hinged above gathering chains | Four-position, low-profile floating type hinged above gathering chains | Four-position, low-profile floating type hinged above gathering chains |
| Center And Outer Gatherings | Hinged, quickly removable | Hinged, quickly removable | Hinged, quickly removable | Hinged, quickly removable |
| Gathering Chains | Heavy-duty, 620, endless steel roller chain with chromed pins (no master connecting link) | Heavy-duty, 620, endless steel roller chain with chromed pins (no master connecting link) | Heavy-duty, 620, endless steel roller chain with chromed pins (no master connecting link) | Heavy-duty, 620, endless steel roller chain with chromed pins (no master connecting link) |
| Minimum Clearance Between Gathering Chains And Ground | 1.25 in. | 32 mm
1.25 in. | 32 mm
1.25 in. | 32 mm
1.25 in. |
| Minimum Clearance Between Gathering Chains And Ground | 32 mm | 32 mm
1.25 in. | 32 mm
1.25 in. | 32 mm
1.25 in. |
| Row Unit Drive | Enclosed, submerged-in-lubricant gearbox, driven by single input hexagon shaft | Enclosed, submerged-in-lubricant gearbox, driven by single input hexagon shaft | Enclosed, submerged-in-lubricant gearbox, driven by single input hexagon shaft | Enclosed, submerged-in-lubricant gearbox, driven by single input hexagon shaft |
| Gathering Chain Adjustment | Spring loaded, self-adjusting | Spring loaded, self-adjusting | Spring loaded, self-adjusting | Spring loaded, self-adjusting |
| Stalk Rolls | Opposed, intermeshing, and chopping (two per row-unit) | Opposed, intermeshing, and chopping (two per row-unit) | Opposed, intermeshing, and chopping (two per row-unit) | Opposed, intermeshing, and chopping (two per row-unit) |
| Deck Plate Adjustment | Hydraulic adjustment | Hydraulic adjustment | Hydraulic adjustment | Hydraulic adjustment |
| Slip Clutch | One per row-unit plus auger drive | One per row-unit plus auger drive | One per row-unit plus auger drive | One per row-unit plus auger drive |
| Trash Knives | Full-length, one-piece, heat-treated steel | Full-length, one-piece, heat-treated steel | Full-length, one-piece, heat-treated steel | Full-length, one-piece, heat-treated steel |
| Stalk Deflectors | Factory-installed option | Factory-installed option | Factory-installed option | Factory-installed option |
Dimensions |
| Approximate Overall Width - With 27.6-in. (70 cm) Row Spacing | 6.17 m (20.25 ft) | | | |
| Approximate Overall Width - With 29.5-in. (75 cm) Row Spacing | 6.1 m (20.01 ft) | | | |
| Approximate Overall Width - With 30-in. (76.2 cm) Row Spacing | 6.15 m (20.4 ft) | | | |
| Approximate Overall Width - With 36-in. (91.4 cm) Row Spacing | 7.7 m (25.2 ft) | | | |
| Approximate Overall Width - With 38-in. (96.5 cm) Row Spacing | 7.6 m (25 ft) | | | |
| Points In Operating Position (Lowered) | 3.2 m (10.58 ft) | | | |
| Points Folded Up - With 27.6-in. (70 cm) Row Spacing | 2.6 m (8.58 ft) | | | |
| Points Folded Up - With 29.5-in. (75 cm) Row Spacing | 2.6 m (8.58 ft) | | | |
| Points Folded Up - With 30-in. (76.2 cm) Row Spacing | 2.6 m (8.58 ft) | | | |
| Points Folded Up - With 36-in. (91.4 cm) Row Spacing | 3.2 m (10.58 ft) | | | |
| Points Folded Up - With 38-in. (96.5 cm) Row Spacing | 3.2 m (10.58 ft) | | | |
| Points In Operating Position (Lowered) | 3.2 m (10.58 ft) | | | |
| Approximate Shipping Weight (Includes Shipping Skid) - non StalkMaster | With 70-cm (27.6-in.) row spacing: 2667 kg (5880 lb); With 75-cm (29.5-in.) row spacing: 4275 kg (9425 lb); With 76.2-cm (30-in.) row spacing: 2917 kg (6431 lb); With 91.4-cm (36-in.) row spacing: 2764 kg (6094 lb); With 96.5-cm (38-in.) row spacing: 3965 kg (8741 lb) | Non StalkMaster™ 4566 kg
10,066 lb
StalkMaster 4897 kg
10,796 lb | With 50.8-cm (20-in.) row spacing: non StalkMaster™ 5123 or StalkMaster 5547 kg
11,294 or 12,227 lb
With 55.9-cm (22-in.) row spacing: non StalkMaster 5212 or StalkMaster 5598 kg
11,490 or 12,341 lb
With 76.2-cm (30-in.) row spacing: non StalkMaster 5627 or StalkMaster 6106 kg
12,405 or 13,462 lb | With 50.8-cm (20-in.) row spacing: non StalkMaster™ 5506 or StalkMaster 6038 kg
12,139 or 13,312 lb
With 55.9-cm (22-in.) row spacing: non StalkMaster 5593 or StalkMaster 6214 kg
12,330 or 13,700 lb |
| Approximate Shipping Weight (Includes Shipping Skid) - StalkMaster | With 70-cm (27.6-in.) row spacing: 2667 kg (5880 lb); With 75-cm (29.5-in.) row spacing: 4275 kg (9425 lb); With 76.2-cm (30-in.) row spacing: 2917 kg (6431 lb); With 91.4-cm (36-in.) row spacing: 2764 kg (6094 lb); With 96.5-cm (38-in.) row spacing: 3965 kg (8741 lb) | Non StalkMaster™ 4566 kg
10,066 lb
StalkMaster 4897 kg
10,796 lb | With 50.8-cm (20-in.) row spacing: non StalkMaster™ 5123 or StalkMaster 5547 kg
11,294 or 12,227 lb
With 55.9-cm (22-in.) row spacing: non StalkMaster 5212 or StalkMaster 5598 kg
11,490 or 12,341 lb
With 76.2-cm (30-in.) row spacing: non StalkMaster 5627 or StalkMaster 6106 kg
12,405 or 13,462 lb | With 50.8-cm (20-in.) row spacing: non StalkMaster™ 5506 or StalkMaster 6038 kg
12,139 or 13,312 lb
With 55.9-cm (22-in.) row spacing: non StalkMaster 5593 or StalkMaster 6214 kg
12,330 or 13,700 lb |
| Row Spacings | 70, 75, 76.2, 91.4, or 96.5 cm (27.6, 29.5, 30, 36, or 38 in.) | 76.2 cm
30 in. | 50.8, 55.9, or 76.2 cm
20, 22, or 30 in. | 50.8 or 55.9 cm
20 or 22 in. |
| Standard Weight - non StalkMaster | 27.6-in. (70-cm) row spacing: 5886 lb (2670 kg); 29.5-in. (75-cm): 5860 lb (2658 kg); 30-in. (76.2-cm): 5677 lb (2575 kg); 36-in. (91.4-cm): 6085 lb (2760 kg); 38-in. (96.5-cm): 5483 lb (2487 kg) | | | |
| Standard Weight - StalkMaster | 27.6-in. (70-cm) row spacing: 6431 lb (2917 kg); 29.5-in. (75-cm): 6094 lb (2764 kg); 30-in. (76.2-cm): 6237 lb (2829 kg); 36-in. (91.4-cm): 6777 lb (3074 kg); 38-in. (96.5-cm): 5880 lb (2667 kg) | | | |
Additional Information |
| Date Collected | 2020-06-15 | 15 June 2020 | 15 June 2020 | 15 June 2020 |
