John Deere
CF 16
Row Crop Headers

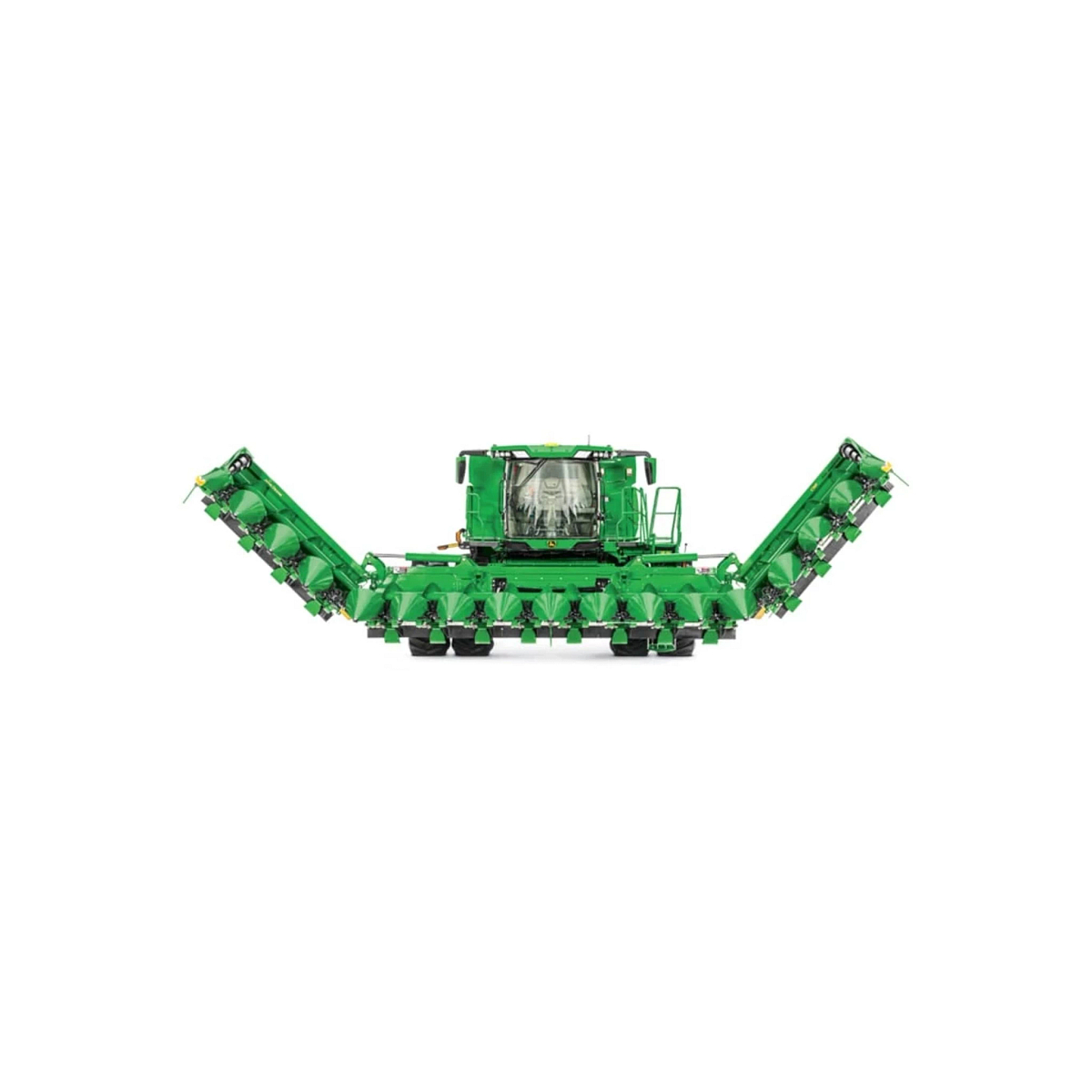

John Deere CF 16

Starting at

Helping You Harvest with Confidence

Changing harvest conditions can be overwhelming. John Deere automation takes the pressure off by optimizing combine settings, guiding precise turns, and managing unloads on the go—protecting yield, reducing grain loss, delivering clean samples, and keeping you focused on feeding the machine, and less on adjusting, steering, or unloading.

Close-up image of a tractor decal
Make Every Minute of the Harvest Window Count

John Deere delivers harvesting solutions matched to your operation, with a full portfolio of combines and front end equipment to hit your harvest window. Automation like Machine Sync, Auto Unload, and Predictive Ground Speed boost productivity, while integrated technology, parts, and Precision Upgrades help your combine adapt to changing crops and conditions—season after season.

Green combine harvester cutting through a mature field of dry grain with a wide header, leaving short stubble behind, as dust rises lightly under a pale sky with a distant, flat horizon
Analyze Key Insights for Better Decisions Next Year

Harvest data becomes next season’s advantage. Yield maps, grain quality, and machine analytics in John Deere Operations Center help refine seed placement, fertility plans, and hybrid selections. Combined with precision upgrades and automation, insights turn into consistent execution—setting the stage for better results next year.

A hand and arm reaches from the right side of the shot to touch a display in an X9 1100 combine's operator station
Question text goes here

Answer text goes here

Corn Head
Gathering Points

Four-position, low-profile floating type hinged above gathering chains

Center And Outer Gatherings

Hinged, quickly removable

Gathering Chains

Heavy-duty, 620, endless steel roller chain with chromed pins (no master connecting link)

Minimum Clearance Between Gathering Chains And Ground

1.25 in.

Minimum Clearance Between Gathering Chains And Ground

32 mm

Row Unit Drive

Enclosed, submerged-in-lubricant gearbox, driven by single input hexagon shaft

Gathering Chain Adjustment

Spring loaded, self-adjusting

Stalk Rolls

Opposed, intermeshing, and chopping (two per row-unit)

Deck Plate Adjustment

Hydraulic adjustment

Slip Clutch

One per row-unit plus auger drive

Trash Knives

Full-length, one-piece, heat-treated steel

Stalk Deflectors

Factory-installed option

Dimensions
Approximate Overall Width

With 50.8-cm (20-in.) row spacing: 8.5 m (27.75 ft); With 55.9-cm (22-in.) row spacing: 9.24 m (30.33 ft)

Approximate Overall Width - With 30-in. (76.2 cm) Row Spacing

12.3 m (40.33 ft)

Approximate Folded Width

With 50.8-cm (20-in.) row spacing: 5.3 m (17.5 ft); With 55.9-cm (22-in.) row spacing: 5.87 m (19.25 ft); With 76.2-cm (30-in.) row spacing: 6.3 m (20.75 ft)

Points In Operating Position (Lowered)

With 50.8-cm (20-in.) row spacing: 2.9 m (9.67 ft); With 55.9-cm (22-in.) row spacing: 2.9 m; With 76.2-cm (30-in.) row spacing: 3 m (10 ft)

Points Folded Up (Service Position)

With 50.8-cm (20-in.) row spacing: 2.3 m (7.5 ft); With 55.9-cm (22-in.) row spacing: 2.3 m

Points Folded Up - With 30-in. (76.2 cm) Row Spacing

2.6 m (8.58 ft)

Points In Operating Position (Lowered)

With 50.8-cm (20-in.) row spacing: 2.9 m (9.67 ft); With 55.9-cm (22-in.) row spacing: 2.9 m; With 76.2-cm (30-in.) row spacing: 3 m (10 ft)

Approximate Shipping Weight (Includes Shipping Skid) - non StalkMaster

With 50.8-cm (20-in.) row spacing: 5123 kg (11,294 lb); With 55.9-cm (22-in.) row spacing: 5212 kg (11,490 lb); With 76.2-cm (30-in.) row spacing: 5627 kg (12,405 lb)

Approximate Shipping Weight (Includes Shipping Skid) - StalkMaster

With 50.8-cm (20-in.) row spacing: 5547 kg (12,227 lb); With 55.9-cm (22-in.) row spacing: 5598 kg (12,341 lb); With 76.2-cm (30-in.) row spacing: 6106 kg (13,462 lb)

Row Spacings

50.8, 55.9, or 76.2 cm (20, 22, or 30 in.)

Standard Weight - non StalkMaster

With 50.8-cm (20-in.) row spacing: 5123 kg (11,294 lb); With 55.9-cm (22-in.) row spacing: 5212 kg (11,490 lb); With 76.2-cm (30-in.) row spacing: 5627 kg (12,405 lb)

Standard Weight - StalkMaster

With 50.8-cm (20-in.) row spacing: 5547 kg (12,227 lb); With 55.9-cm (22-in.) row spacing: 5598 kg (12,341 lb); With 76.2-cm (30-in.) row spacing: 6106 kg (13,462 lb)

Additional Information
Date Collected

2020-06-15
