John Deere
HDF 35
Draper Platforms

John Deere HDF 35

Starting at

Helping You Harvest with Confidence

Changing harvest conditions can be overwhelming. John Deere automation takes the pressure off by optimizing combine settings, guiding precise turns, and managing unloads on the go—protecting yield, reducing grain loss, delivering clean samples, and keeping you focused on feeding the machine, and less on adjusting, steering, or unloading.

Close-up image of a tractor decal
Make Every Minute of the Harvest Window Count

John Deere delivers harvesting solutions matched to your operation, with a full portfolio of combines and front end equipment to hit your harvest window. Automation like Machine Sync, Auto Unload, and Predictive Ground Speed boost productivity, while integrated technology, parts, and Precision Upgrades help your combine adapt to changing crops and conditions—season after season.

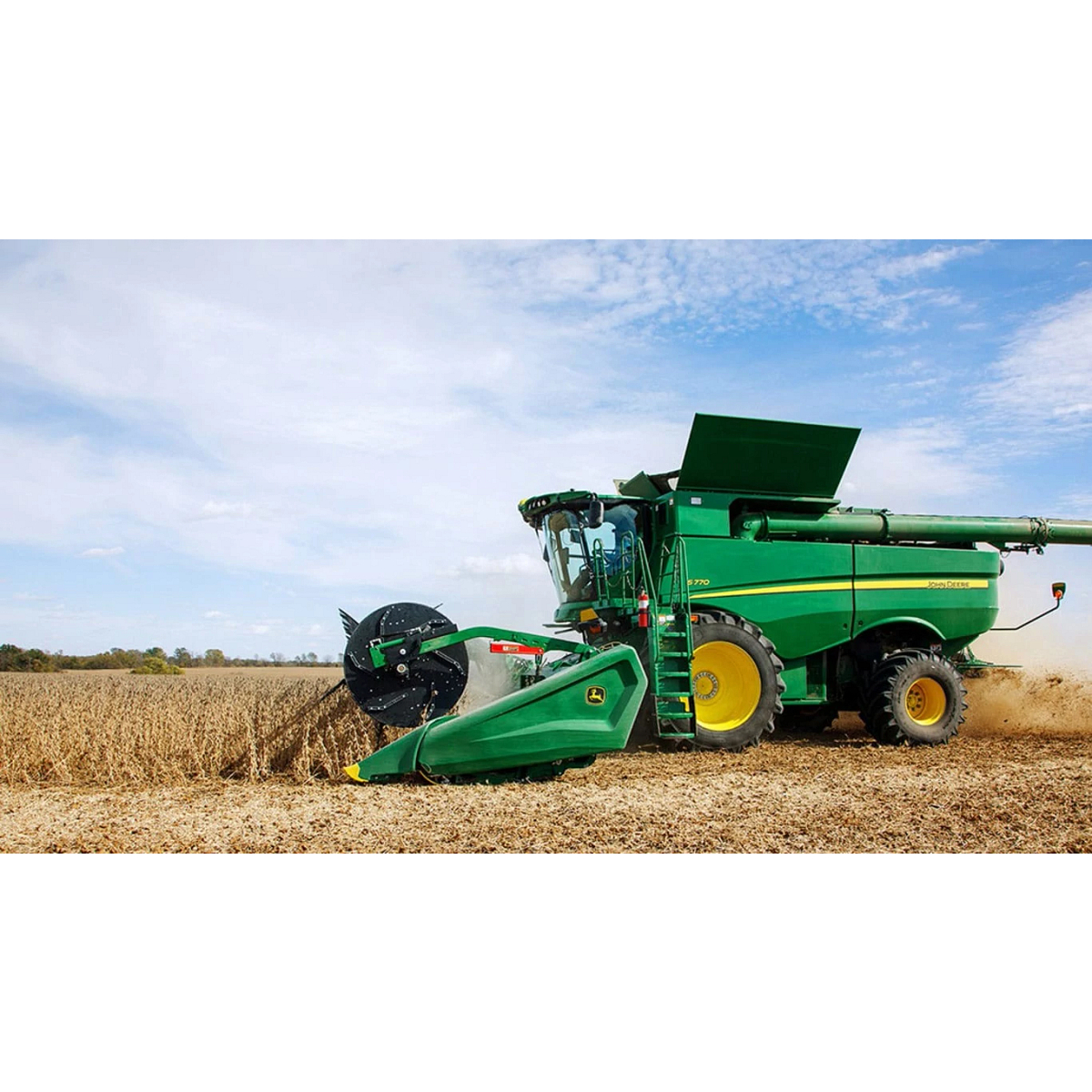

Green combine harvester cutting through a mature field of dry grain with a wide header, leaving short stubble behind, as dust rises lightly under a pale sky with a distant, flat horizon
Analyze Key Insights for Better Decisions Next Year

Harvest data becomes next season’s advantage. Yield maps, grain quality, and machine analytics in John Deere Operations Center help refine seed placement, fertility plans, and hybrid selections. Combined with precision upgrades and automation, insights turn into consistent execution—setting the stage for better results next year.

A hand and arm reaches from the right side of the shot to touch a display in an X9 1100 combine's operator station
Question text goes here

Answer text goes here

Platform
Type

Hinged frame flexible cutterbar

Cutterbar
Cutterbar Type

Straight-line knife drive system

Cutterbar Length

10.7 m

Cutterbar Length

35 ft

Knife Drive

Double-cut, dual-drive, shaft-driven cutterbar

Knife Drive

10.2 cm

Knife Drive

4 in.

Knife Speed

X Series Combine: 520 cycles/min; S-Series Combine: 490 cycles/min

Base Skid Shoe Height

3.8 cm

Base Skid Shoe Height

1.5 in.

Pickup Reel
Fingers

Base: nylon; Optional: steel

Number Of Slats

6

Reel Diameter

106.7 cm

Reel Diameter

42 in.

Height Control

Hydraulic

Speed Control

Hydraulic rpm

Reel Lift

100.6 cm

Reel Lift

39.6 in.

Reel Fore And Aft

26.4 cm

Reel Fore And Aft

10.4 in.

Reel Resume

Base

Reel Reverse

Base

Operating Speeds - Minimum

8 rpm

Operating Speeds - Maximum

70 rpm

Draper Belts
Draper Belt Width - Side Belts

4.4 m

Draper Belt Width - Side Belts

14.3 ft

Draper Belt Width - Center Belts

2 m

Draper Belt Width - Center Belts

6.6 ft

Belt Depth

100 cm

Belt Depth

39.8 in.

Cleat Height

1.9 cm

Cleat Height

0.75 in.

Speed Control

Hydraulic from cab (side belts only)

Center Belt Reverse

Base

Feed Drum
Diameter

40.6 cm

Diameter

16 in.

Feed Drum Fingers

Heavy-duty and round with breakaway notch and retainer

Feed Drum Fingers

16 mm

Feed Drum Fingers

0.625 in.

Number Of Fingers

18

Auger Finger Platform

Triple chevron, retracting

Finger Reach

15.2 cm

Finger Reach

6 in.

Drum/Auger Reverse

Base

Operating Speed, RPM - Minimum

200 rpm

Operating Speed, RPM - Maximum

240 rpm

Center Cleanout Door

Base

Header Height Sensing
Type

Electrohydraulic

Header Height Sensing On The Ground

Base

Header Height Sensing Off The Ground

Base

Top Auger
Type

Optional: hydraulic drive

Type

250-350 rpm

Fingered Augers

Optional

Size

43.2 cm

Size

17 in.

Dimensions
Platform Length

11.5 m

Platform Length

37.8 ft

Overall Operating Depth

3.2 m

Overall Operating Depth

10.6 ft

Additional Information
Date Collected

2021-03-24
