John Deere
CS770
Cotton Harvesting

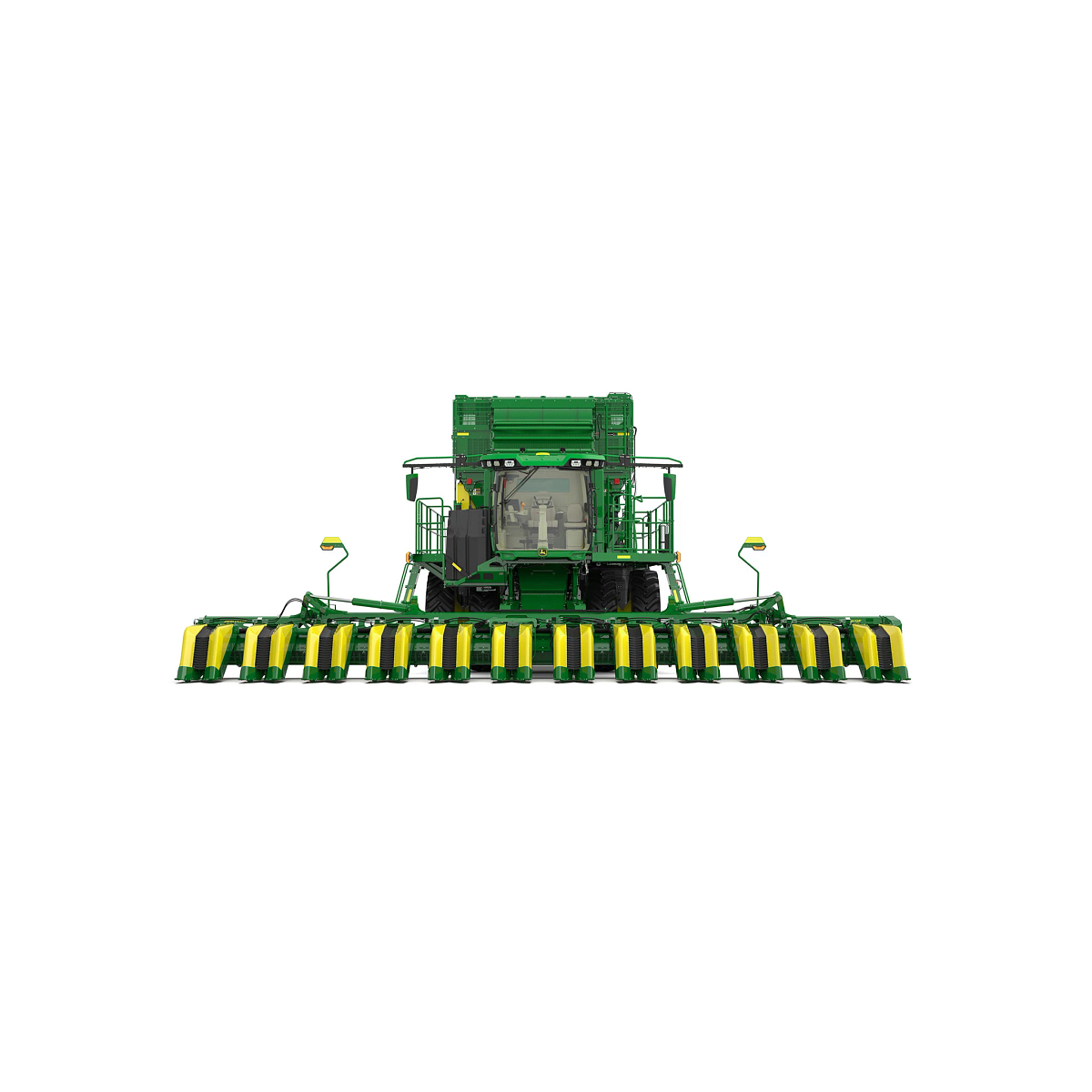

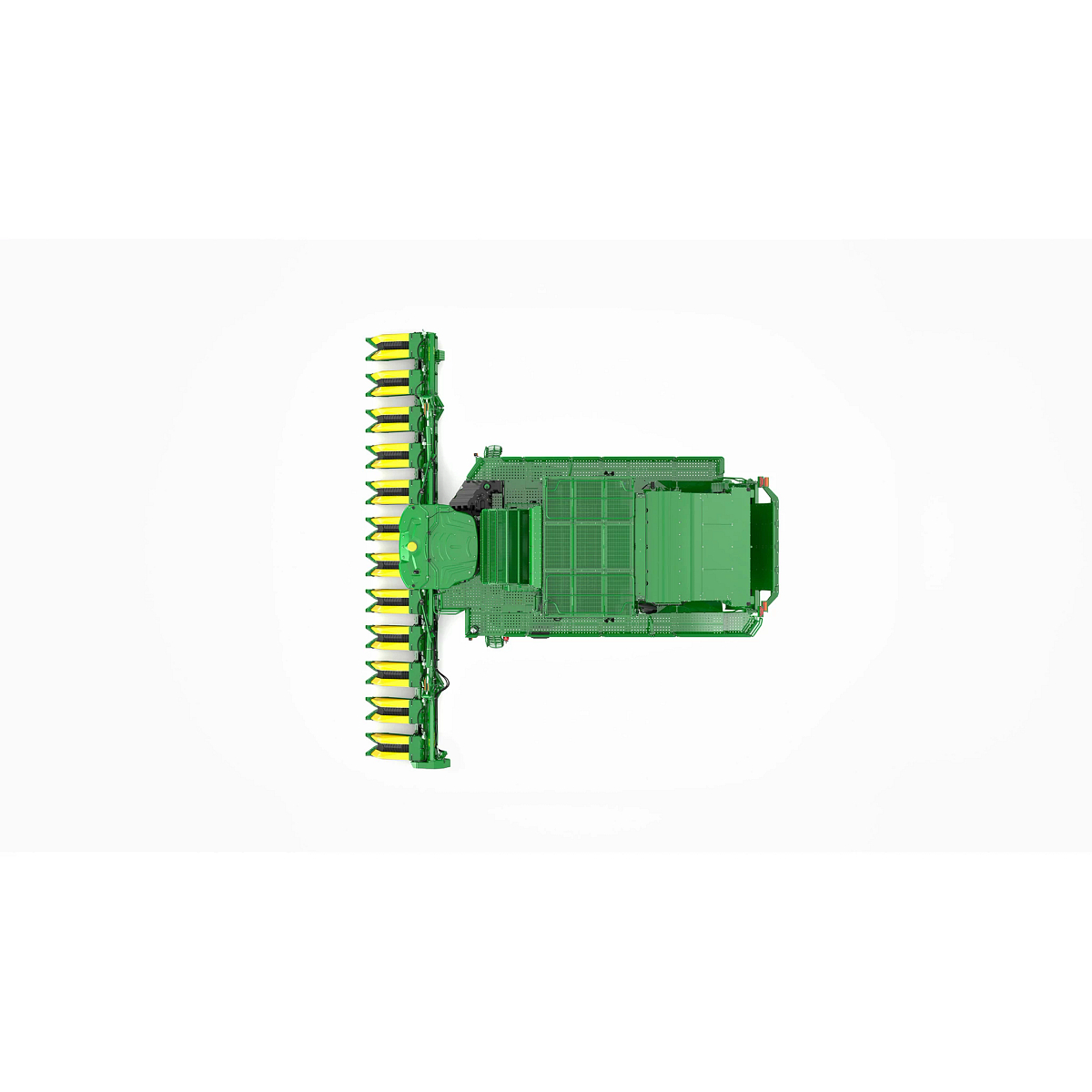

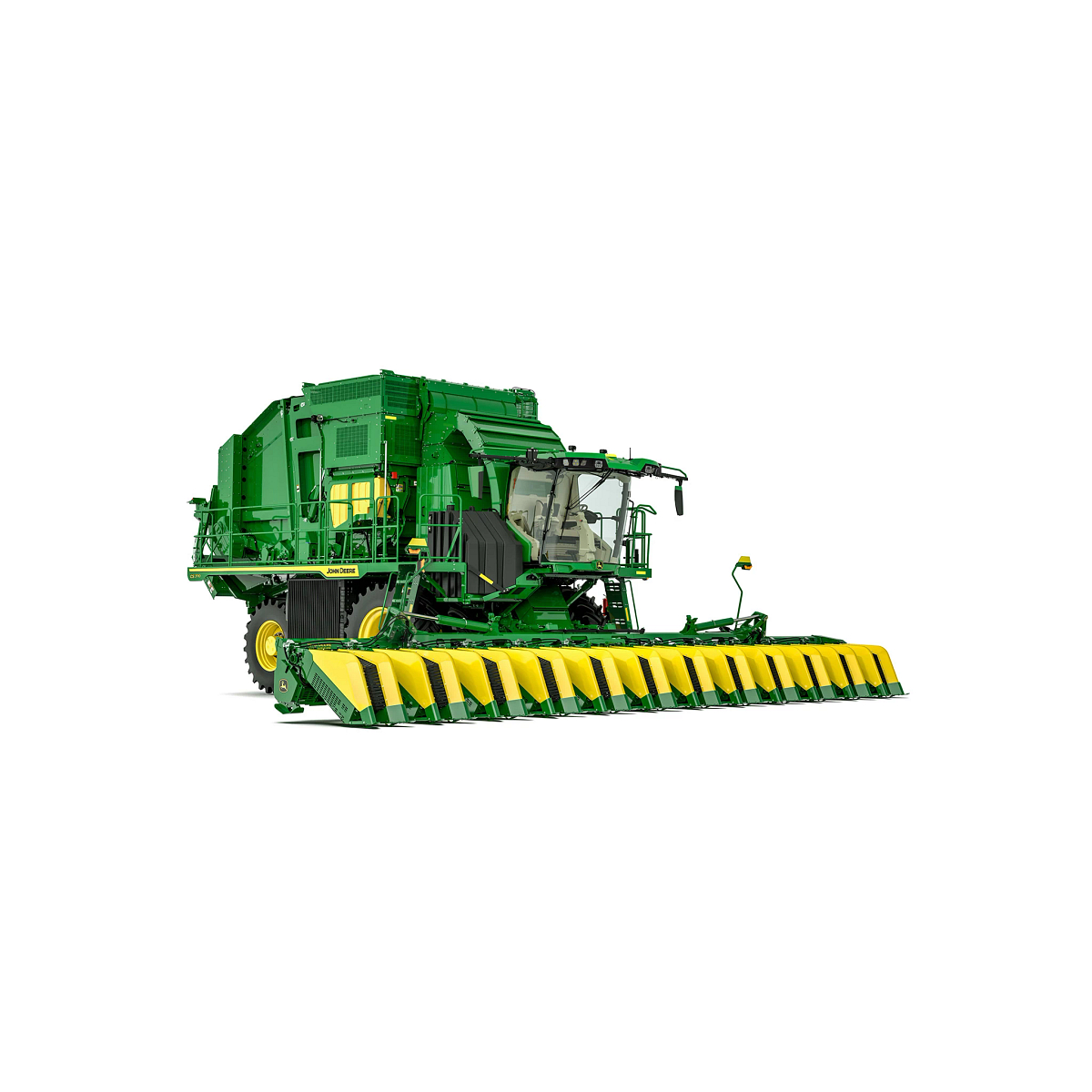

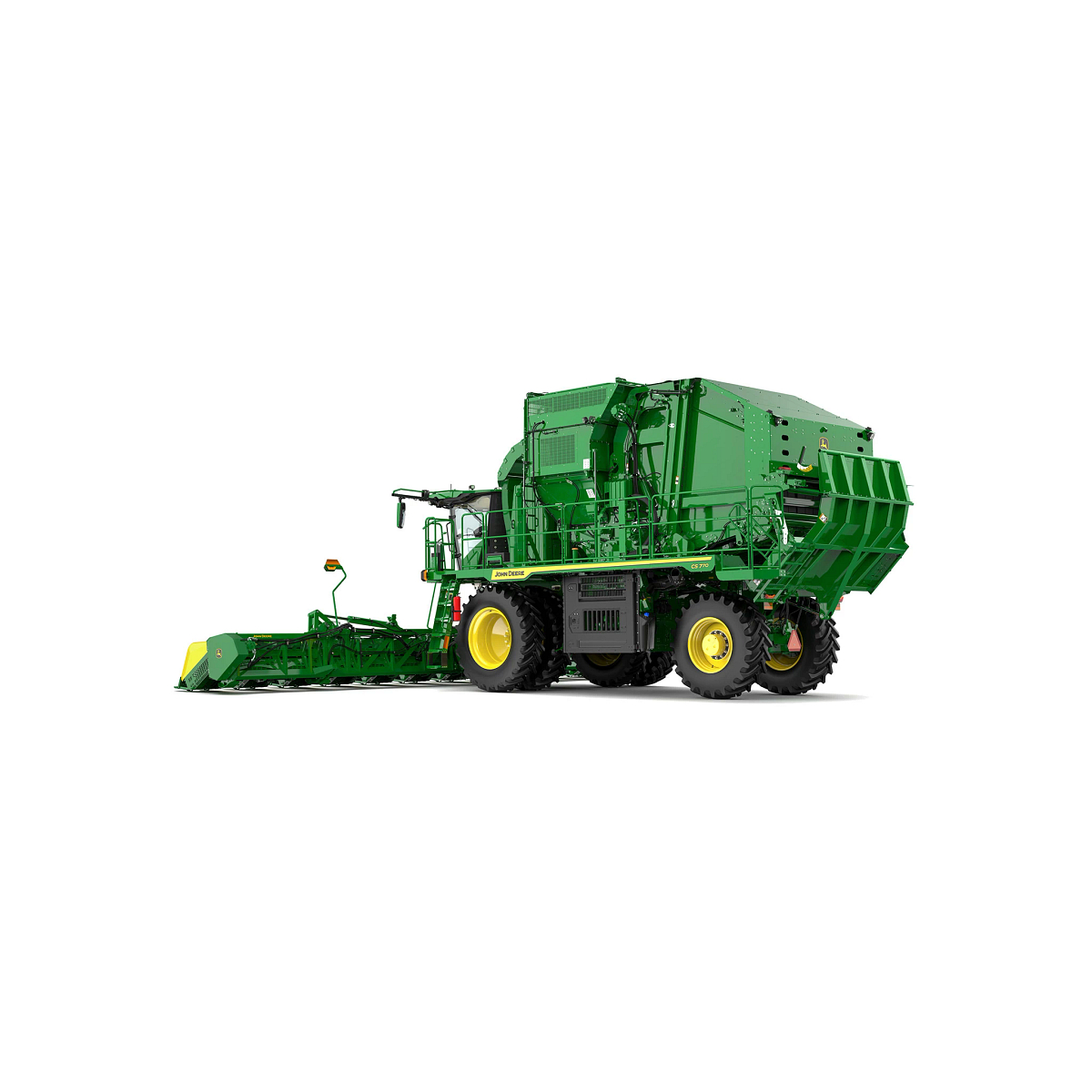

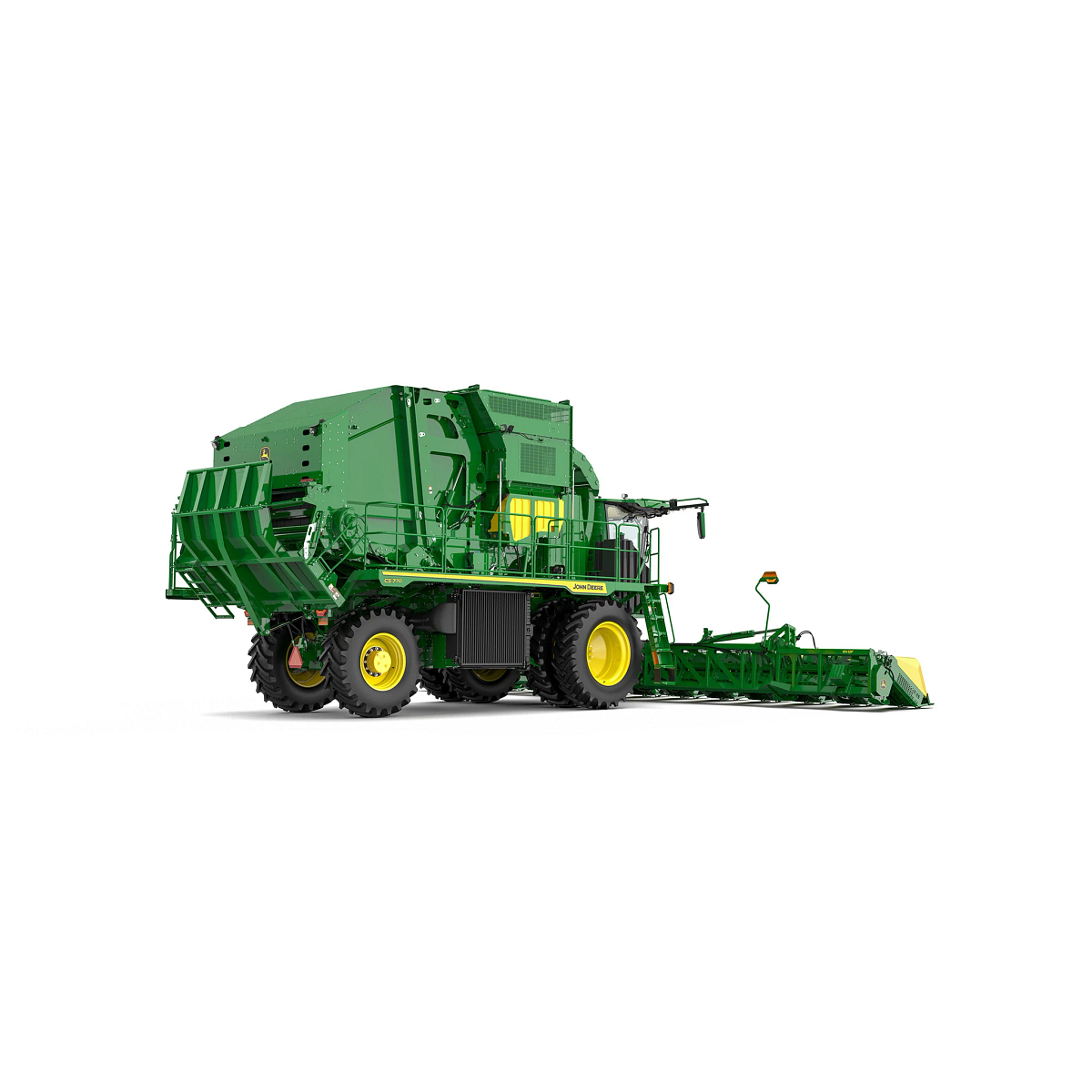

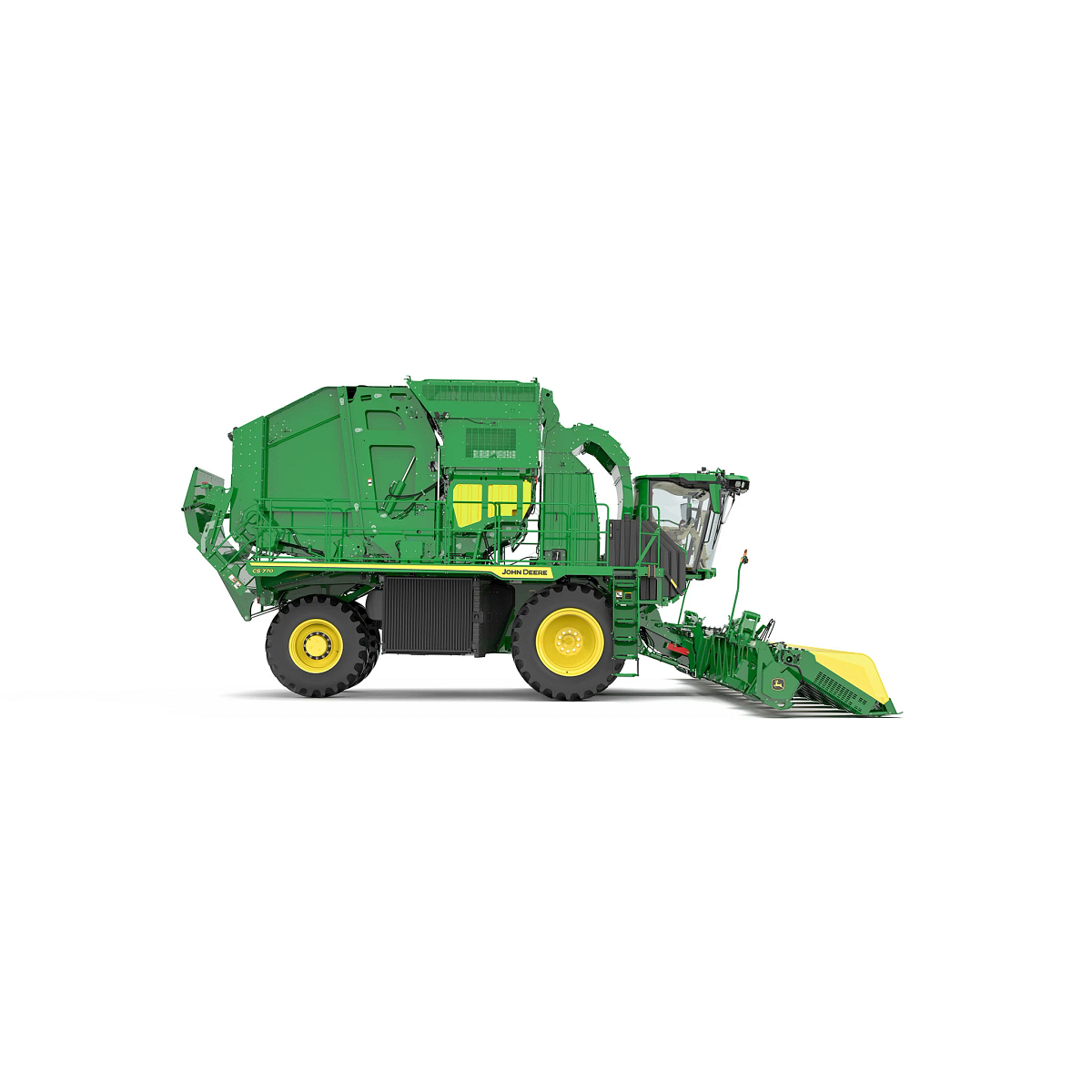

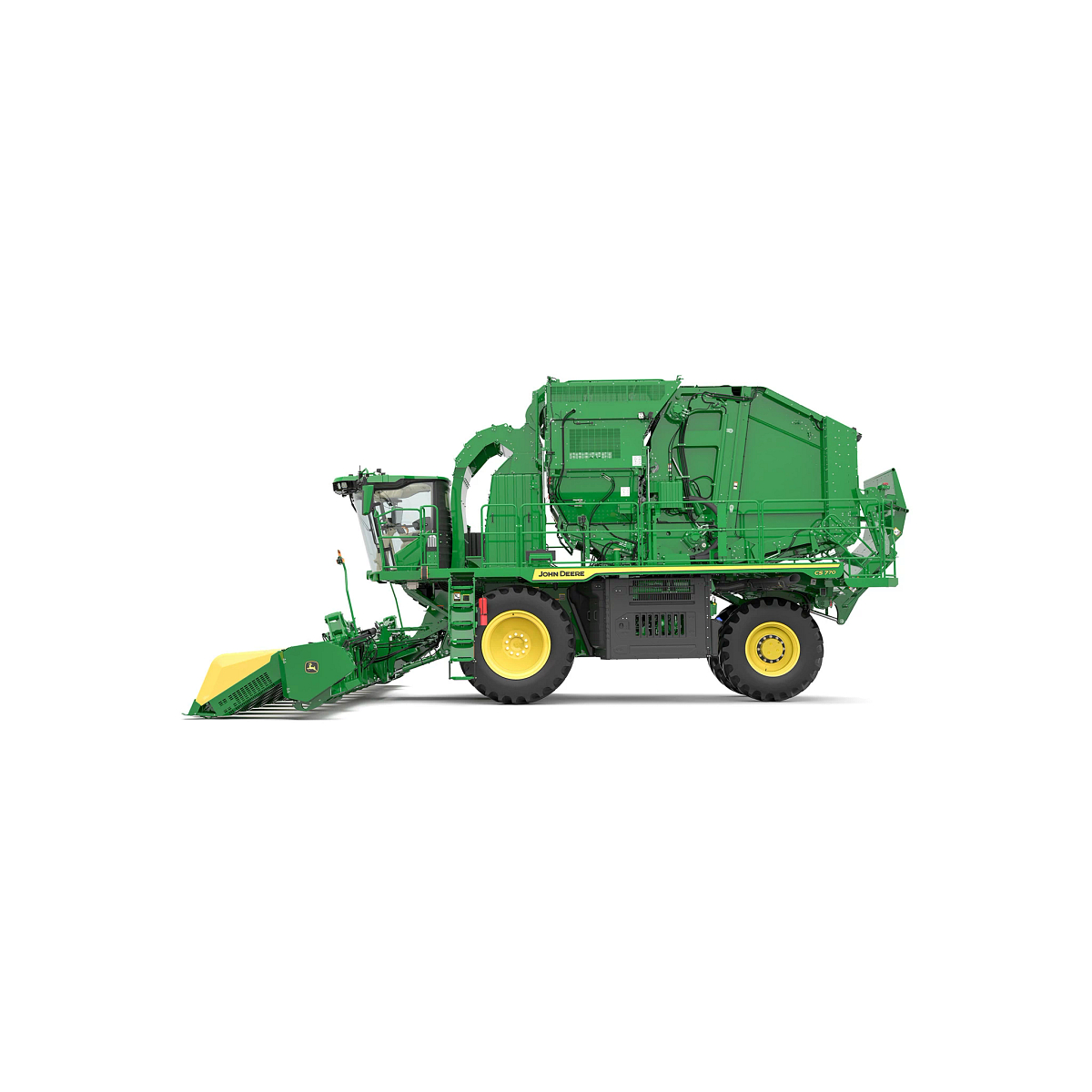

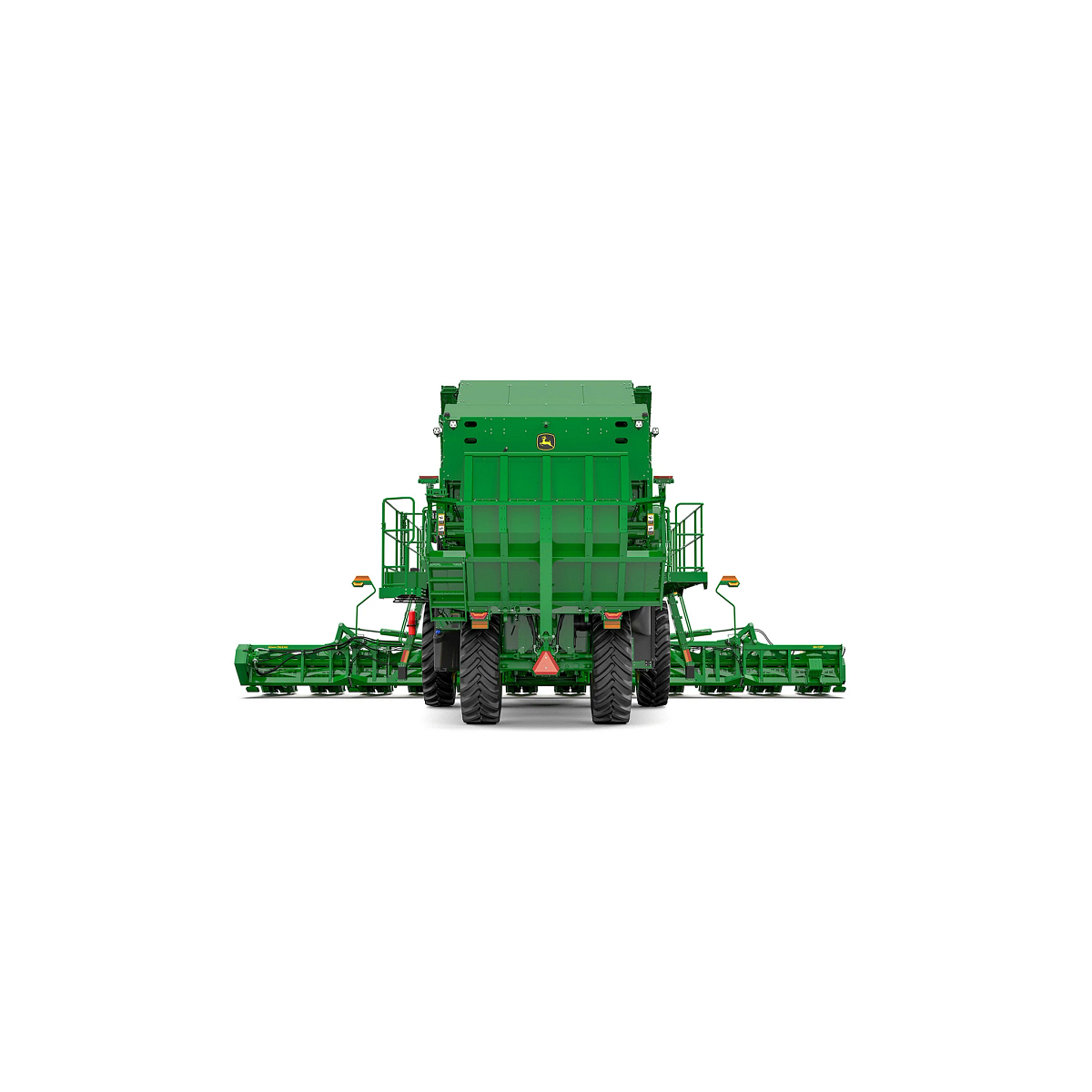

John Deere CS770

Starting at

Capture More From Every Acre with Confidence

Cotton harvest is where yield turns into profit, and every pass matters. John Deere cotton pickers, strippers, and headers are designed to maximize cotton capture while protecting fiber quality - helping you reduce losses, maintain consistency, and harvest a cleaner crop so you can protect both yield potential and market value.

Large green cotton harvester moving through a field of mature cotton plants, with multiple yellow picking units at the front collecting white cotton bolls under an overcast sky
Keep Harvest Moving When Timing Matters

Cotton doesn’t wait for perfect conditions, and neither can your operation. With high-capacity machines, reliable harvesting components, and efficient crop flow from row unit to module, John Deere cotton solutions help you maintain productivity, reduce downtime, and keep harvest moving - so you can finish in the optimal window and avoid costly delays.

Green agriculture machinery harvesting cotton in a field, featuring multiple yellow picking heads collecting white cotton bolls under a clear sky
Turn Every Pass into Better Decisions

Cotton harvest generates more than bales - it generates insight. With integrated technology and connectivity, John Deere cotton pickers and strippers capture key data on yield, moisture, and module performance. That information flows into John Deere Operations Center™, helping you track results, improve decisions, and better manage your crop from harvest through ginning.

Person working at a desk using a keyboard and mouse while viewing a large monitor displaying a detailed map interface; a laptop and desk lamp sit nearby in a bright workspace
Question text goes here

Answer text goes here

Powertrain
Engine

John Deere JD14P 13.6 L

Emission Level

Stage IIIA and Final Tier 4 (FT4)

Rated Engine Speed

1900 rpm

Rated Engine Power

515 hp

Rated Engine Power

384 kW

Maximum Power

566 hp

Maximum Power

422 kW

Power Boost

33 hp

Power Boost

24.6 kW

Displacement

830 cu in.

Displacement

13.6 L

Cylinders

6

Turbocharged/Aftercooled

Yes

Alternator

Single 330 amp

Cooling System

Variable pitch reversible fan

Variable Pitch Reversible Fan

Yes

Ground-Level Access To Coolers

Yes

Fuel System Type

Electronic unit direct injection

Governor

Electronic

On-Board Diagnostics

Yes

Transmission

ProDrive™ automatic-shift (AST)

Gears

Two range

Field Range 1 (4WD)

0 - 5 mph

Field Range 1 (4WD)

0 - 8.1 km/h

Field Range 2 (4WD)

0 - 9 mph

Field Range 2 (4WD)

0 - 14.5 km/h

Field Mode 1 (4WD)

0 - 5 mph

Field Mode 1 (4WD)

0 - 8.1 km/h

Field Mode 2 (4WD)

0 - 9 mph

Field Mode 2 (4WD)

0 - 14.5 km/h

Field Transport Mode 3 (4WD)

0 - 9 mph

Field Transport Mode 3 (4WD)

0 - 14.5 km/h

Road Transport Mode 4 (4WD)

0 - 20 mph

Road Transport Mode 4 (4WD)

0 - 32.2 km/h

Hydrostatic System Type

Hydrostatic/mechanical drive

Brake Type

Wet, multiple disc

Standard Drive Tire

520/85R42 (20.8R42) R1W

Dual Wheels

Yes

Dual Tire Size (Standard)

520/85R42 (20.8R42) R1W

Standard Steering Tire

IF580/80R34 R1W

Rear Wheel Drive

Yes (full time)

On-Board Module Builder
Module Shape

Round/cylindrical

Module Dimensions

Diameter up to 96 in. (244) cm, Width up to 94 in. (239 cm)

Module Weight

4,900 - 5,900 lb.

Module Weight

2222 - 2676 kg

Unload On-The-Go

Yes

Wrap System Carrying Capacity

120 portions

Row Units
Configurations

SH8R, SH12R, SH12F

Number Of Rows

Eight or twelve

Spacings

30, 32, 36, 38, 40 in.

Spacings

76.2, 81.3, 91.4, 96.5, 101.6 cm

Stripping Units Style

Bat/brush stripping units

Stripping Unit Drive Protection

Slip clutch – one per unit

Row Guidance

Manual RowSense™ system / AutoTrac™ RowSense system

On-Board Cleaner

Yes

On-Board Cleaner Type

Three drum

Drum Diameter

33.7 in.

Drum Diameter

13.25 cm

Drum Width

190.5 in.

Drum Width

75 cm

Bypass System

Yes

Tank Capacities
Fuel Tank Capacity

270 gal.

Fuel Tank Capacity

1022 L

Water Solution Tank Capacity

68 gal.

Water Solution Tank Capacity

257 L

Diesel Exhaust Fluid Tank Capacity

27.5 gal.

Diesel Exhaust Fluid Tank Capacity

104.4 L

Hydraulic System
Hydraulic Pump Type

Pressure/flow compensated

Hydraulic Pressure

3050 psi

Hydraulic Pressure

210 bar

Hydraulic Flow

59 gpm

Hydraulic Flow

223 L/min

Dimensions
Overall Length

36.5 ft

Overall Length

11.1 m

Wheelbase

14.2 ft

Wheelbase

4.3 m

Transport Position Height

15.7 ft

Transport Position Height

4.8 m

Full Height Position

17.5 ft

Full Height Position

5.3 m

Less Header Weight

60200 lb.

Less Header Weight

27300 kg

SH8R - 8-Row Rigid (8-Row, 101.6 cm [40 in.])

67200 lb.

SH8R - 8-Row Rigid (8-Row, 101.6 cm [40 in.])

30481 kg

SH12R - 12-Row Rigid (12-Row, 76.2 cm [30 in.])

70000 lb.

SH12R - 12-Row Rigid (12-Row, 76.2 cm [30 in.])

31797 kg

SH12F - 12-Row Folding (12-Row, 101.6 cm [40 in.])

71600 lb.

SH12F - 12-Row Folding (12-Row, 101.6 cm [40 in.])

32477 kg
