new
John Deere
CP770
Cotton Harvesting

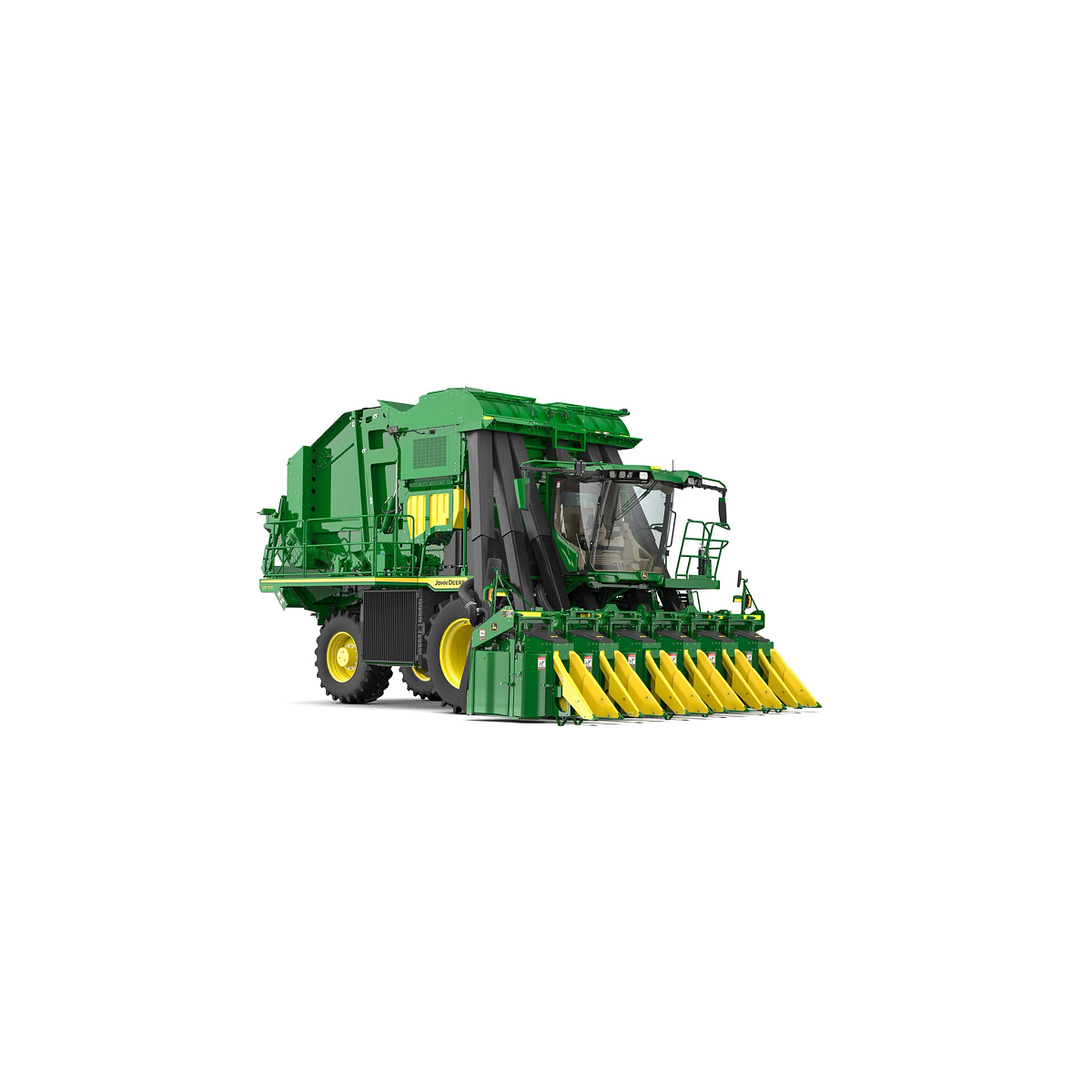

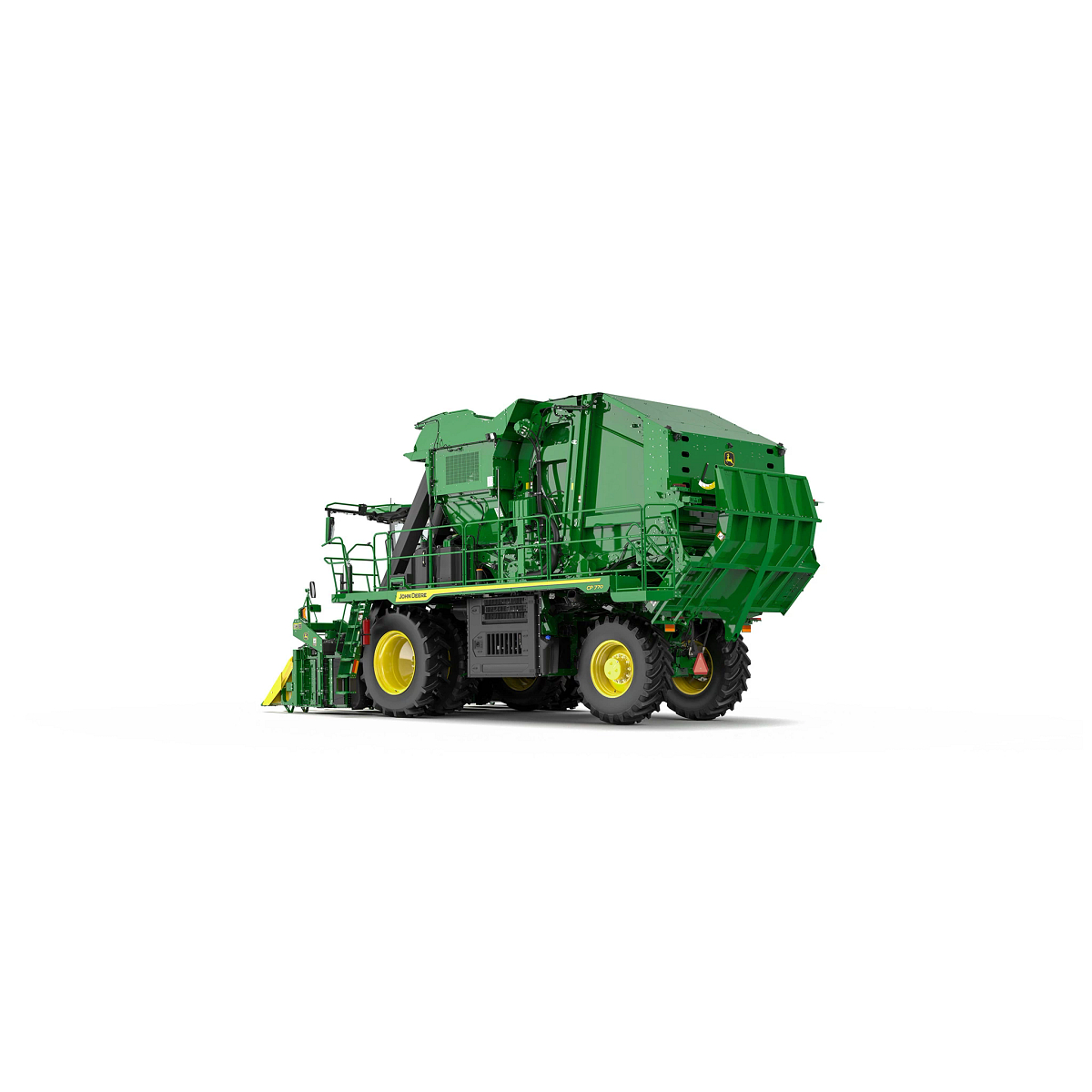

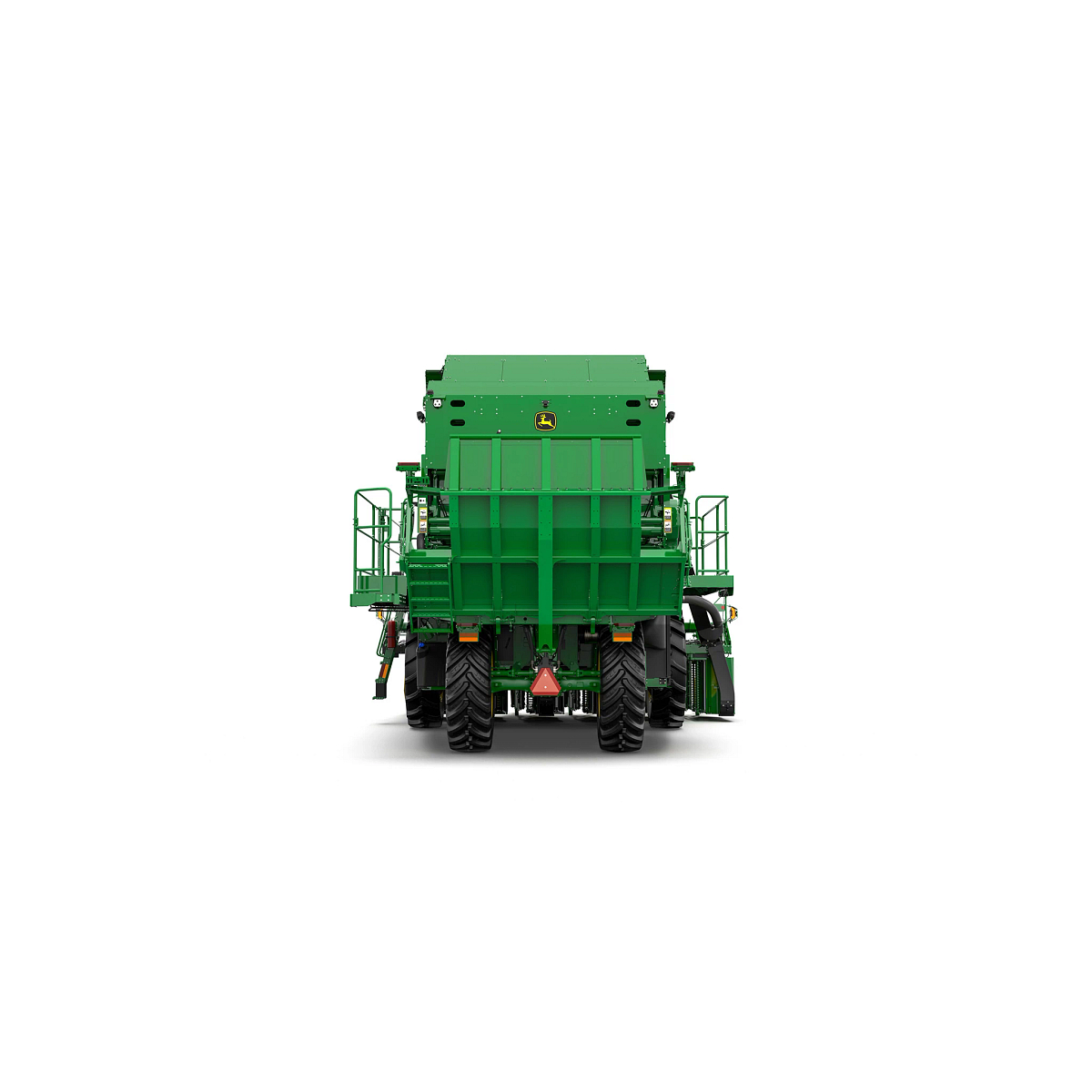

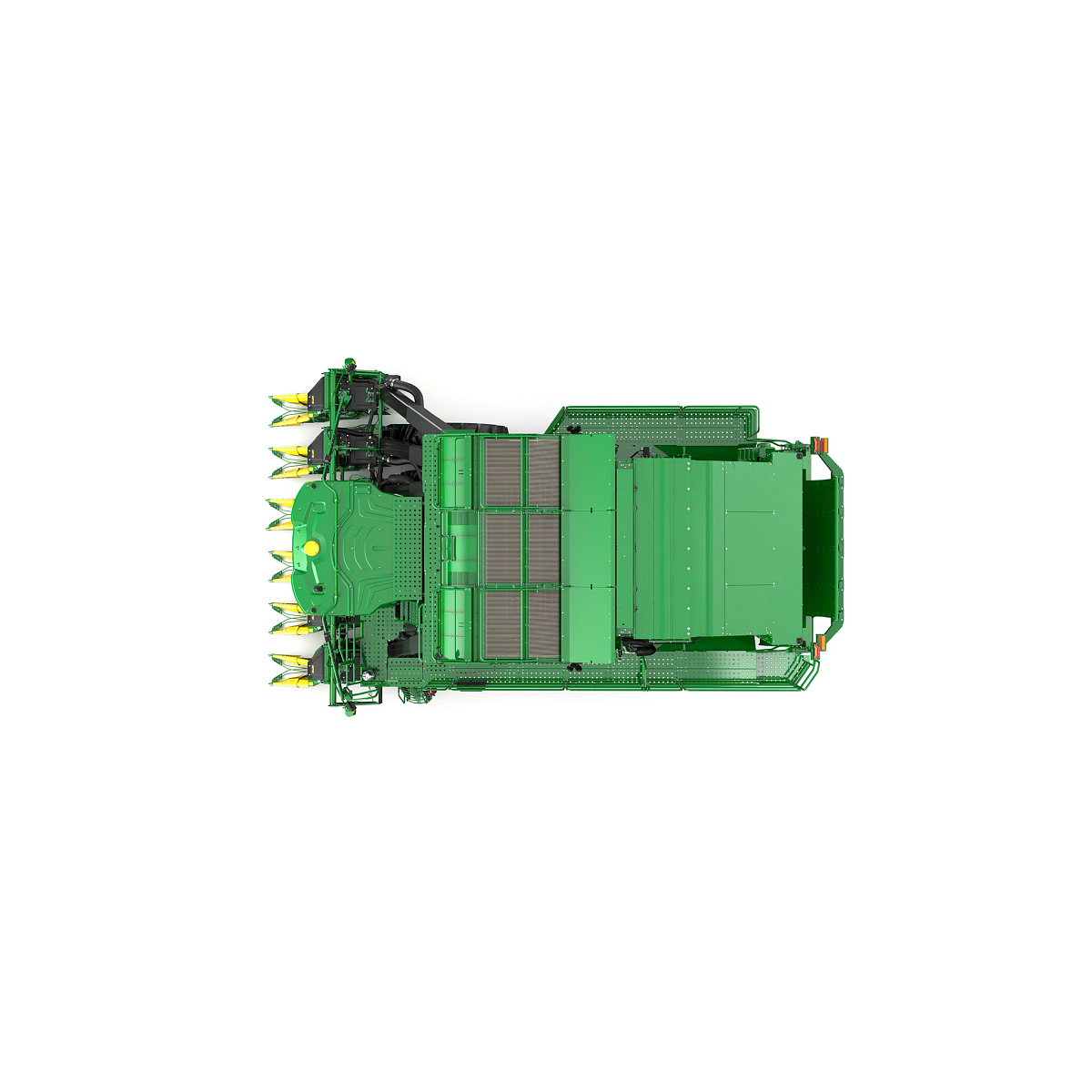

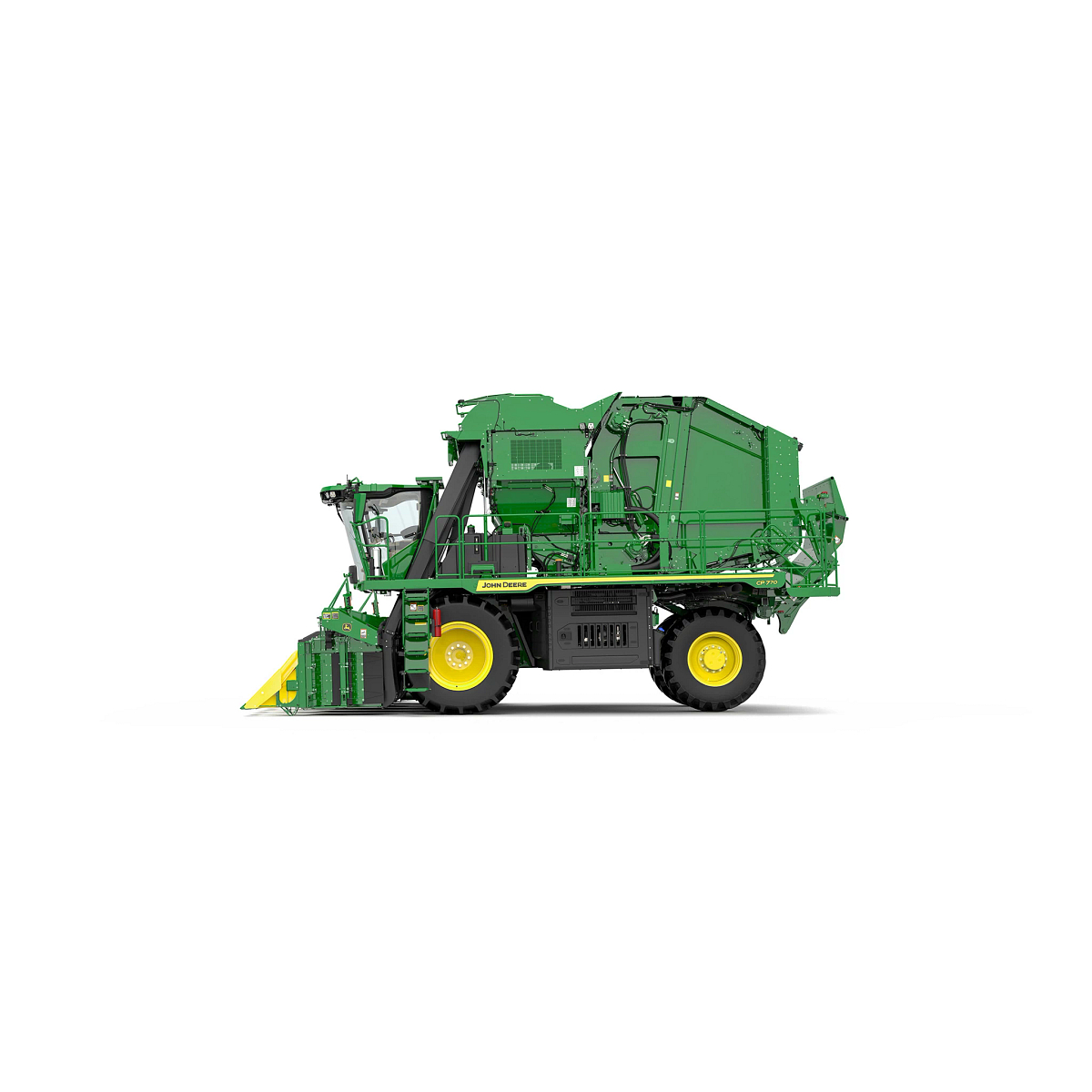

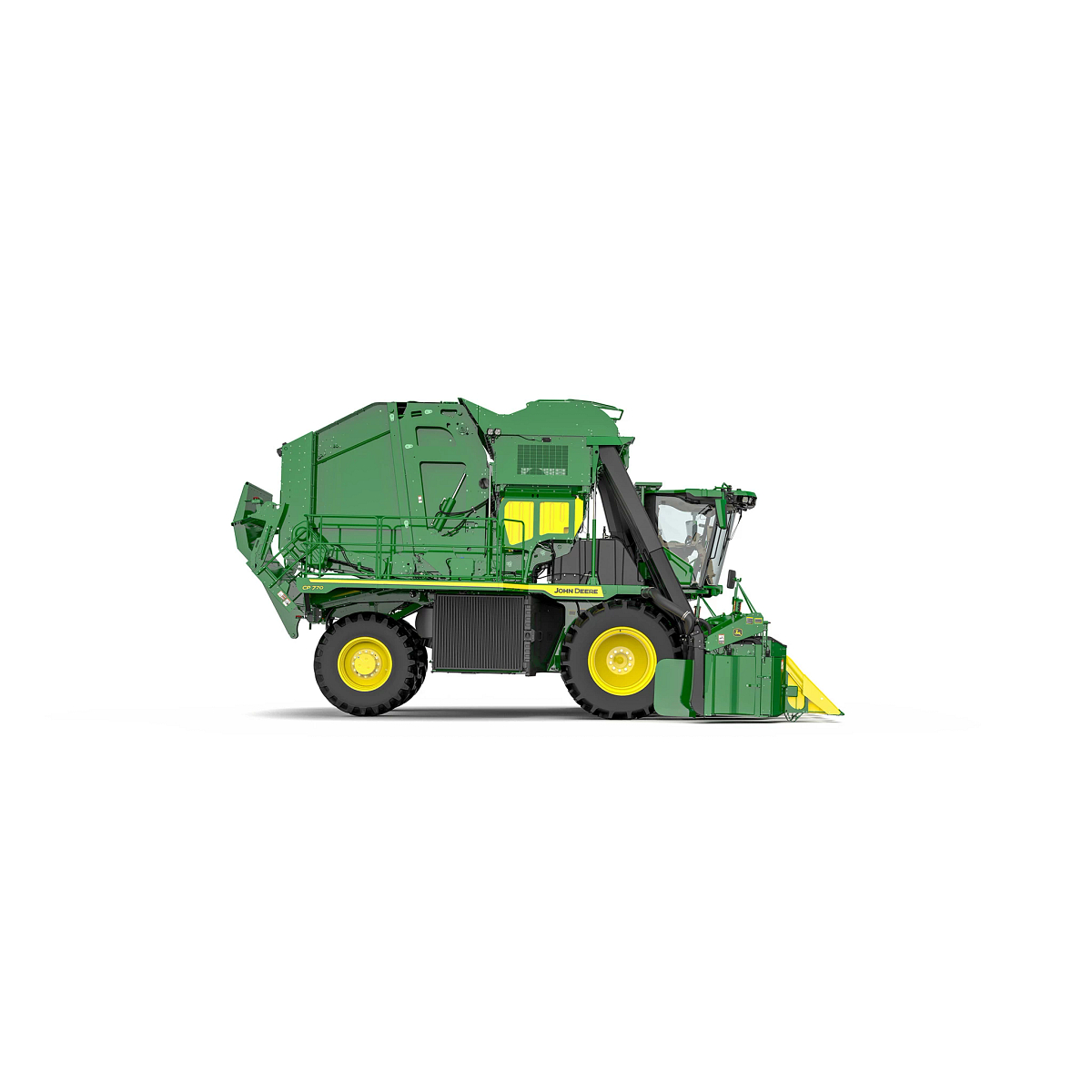

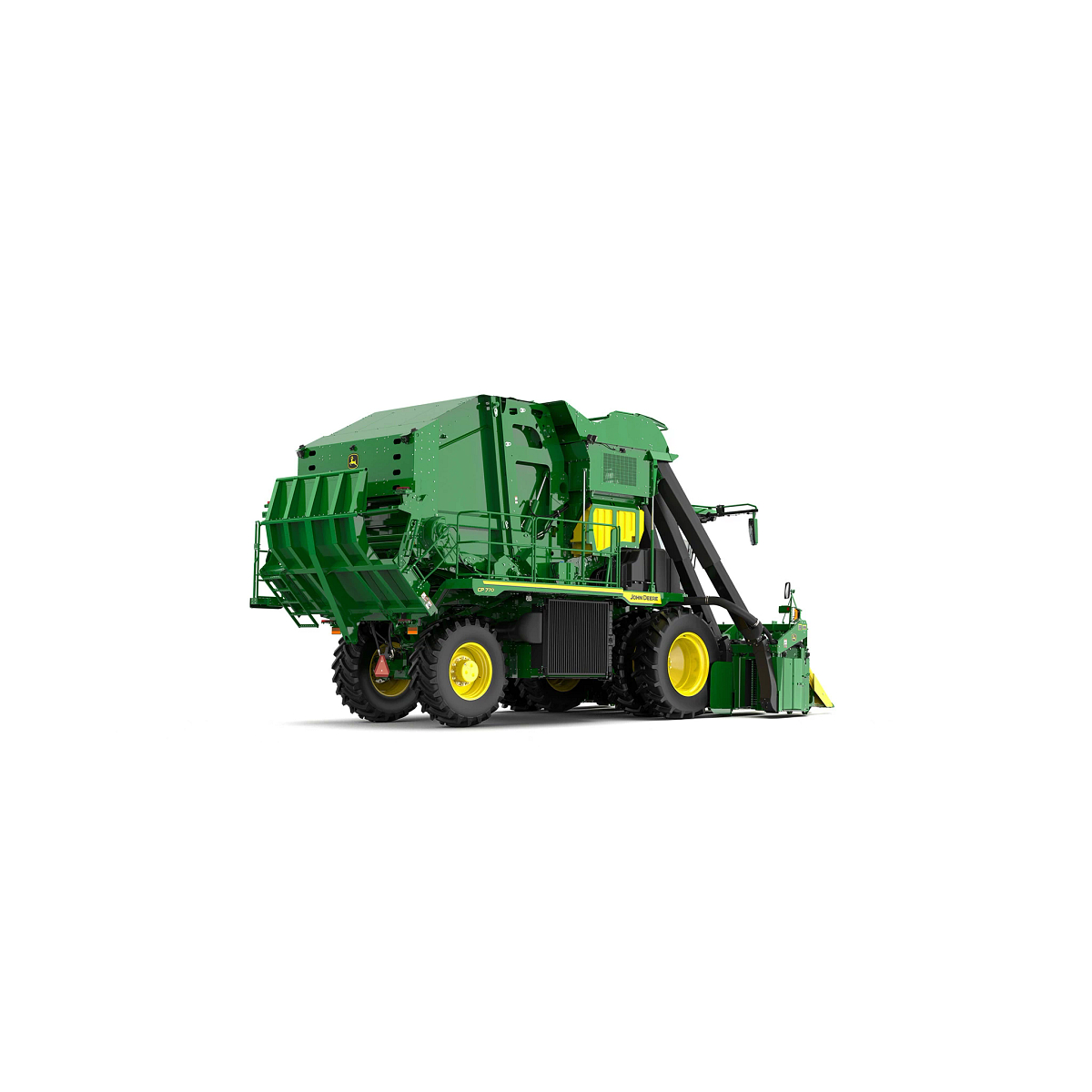

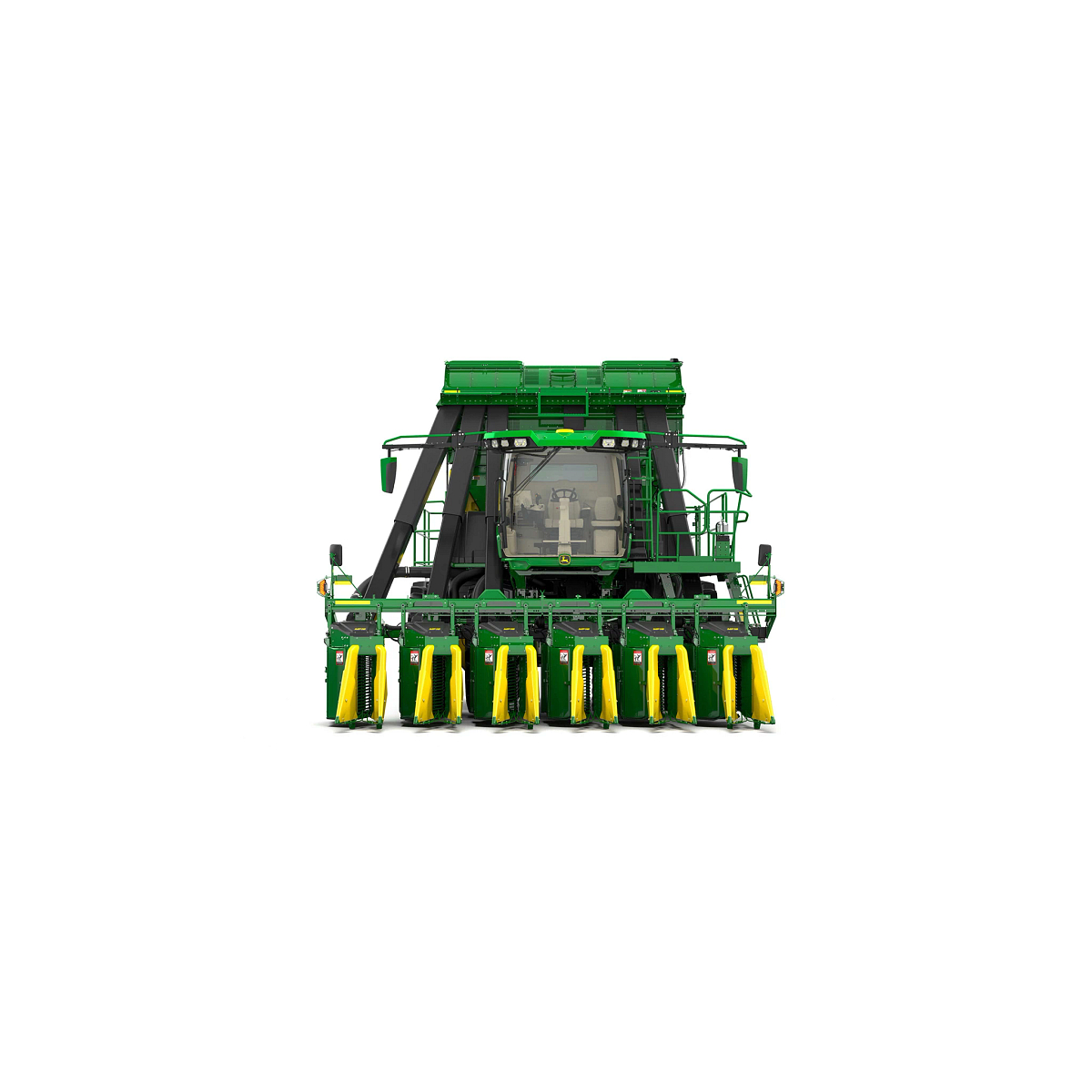

John Deere CP770

Starting at

Capture More From Every Acre with Confidence

Cotton harvest is where yield turns into profit, and every pass matters. John Deere cotton pickers, strippers, and headers are designed to maximize cotton capture while protecting fiber quality - helping you reduce losses, maintain consistency, and harvest a cleaner crop so you can protect both yield potential and market value.

Large green cotton harvester moving through a field of mature cotton plants, with multiple yellow picking units at the front collecting white cotton bolls under an overcast sky
Keep Harvest Moving When Timing Matters

Cotton doesn’t wait for perfect conditions, and neither can your operation. With high-capacity machines, reliable harvesting components, and efficient crop flow from row unit to module, John Deere cotton solutions help you maintain productivity, reduce downtime, and keep harvest moving - so you can finish in the optimal window and avoid costly delays.

Green agriculture machinery harvesting cotton in a field, featuring multiple yellow picking heads collecting white cotton bolls under a clear sky
Turn Every Pass into Better Decisions

Cotton harvest generates more than bales - it generates insight. With integrated technology and connectivity, John Deere cotton pickers and strippers capture key data on yield, moisture, and module performance. That information flows into John Deere Operations Center™, helping you track results, improve decisions, and better manage your crop from harvest through ginning.

Person working at a desk using a keyboard and mouse while viewing a large monitor displaying a detailed map interface; a laptop and desk lamp sit nearby in a bright workspace
Question text goes here

Answer text goes here

Powertrain
Engine

John Deere JD14P 13.6 L

Emission Level

Stage II, Stage IIIA, Final Tier 4 (FT4), and Stage V

Rated Engine Speed

1900 rpm

Rated Engine Power

555 hp

Rated Engine Power

414 kW

Maximum Power

610 hp

Maximum Power

455 kW

Power Boost

25 kW / 34 hp

Displacement

824 cu in.

Displacement

13.6 L

Cylinders

6

Turbocharged/Aftercooled

Yes

Alternator

Single 330 amp

Variable Pitch Reversible Fan

Yes

Rotary Screen

Yes

Ground Level Access To Coolers

Yes

Fuel System Type

High-pressure common rail

Governor

Electronic

On Board Diagnostics

Yes

Transmission

ProDrive™ automatic shift (AST)

Gears

Two range

Sync Mode 1 (4WD)

0 - 4.6 mph

Sync Mode 1 (4WD)

0 - 7.4 km/h

Scrapping Mode 2 (4WD)

0 - 5.5 mph

Scrapping Mode 2 (4WD)

0 - 9 km/h

Field Transport Mode 3 (4WD)

0 - 9 mph

Field Transport Mode 3 (4WD)

0 - 14.5 km/h

Road Transport Mode 4 (4WD)

0 - 20 mph

Road Transport Mode 4 (4WD)

0 - 32.2 km/h

Unit Configuration

Hydrostatic/mechanical drive

Hydrostatic System Type

Hydrostatic/mechanical drive

Brake Type

Wet, multiple disc

Tires

Standard Drive Tire

Standard Drive Tires

520/85R42 (20.8R42) R1W

Optional Drive Tires

VF520/85R42 (20.8R42) R2

Dual Wheels

Yes

Standard Dual Tire Size

520/85R42 (20.8R42) R1W

Optional Dual Tire Size

VF520/85R42 (20.8R42) R2

Standard Steering Tire

IF580/80R34 (R1W)

Optional Steering Tire

VF520/85R42 (20.8R42) R1W

Rear Wheel Drive

Yes (full time)

Tire Size

520/85R42 (20.8R42) R1W

On-Board Module Builder
Module Shape

Round/cylindrical

Module Dimensions

Diameter up to 96 in. (244) cm, Width up to 94 in. (239 cm)

Module Weight

4,900-5,900 lb.

Module Weight

2,222-2,676 kg

Unload On-The-Go

Yes

Wrap System Carrying Capacity

120 portions

Row Units
Number Of Rows

Six

Row Spacings

30, 36, 38, 40 in.

Row Spacings

76.2, 91.4, 96.5, 101.6 cm

Picking Units Style

In-line spindle-type picking units

Picking Units Available

MP16

Drums

2

Bars Front And Rear

16 front drum, 12 rear drum

Spindles Per Bar

20 (MP16)

Doffer Pads

Urethane

Moistener Pads

20

Unit Drive Protection

Slip clutch

Lubrication

High-pressure common rail

Bars

16 front drum, 12 rear drum

Upper Gears

20 (MP16)

Row Guidance

Manual RowSense™ / AutoTrac™ RowSense

Tank Capacities
Fuel Tank

330 gal.

Fuel Tank

1250 L

Moistener System

360 gal.

Moistener System

1363 L

Quick Fill

Yes

Lube

68 gal.

Lube

257 L

Diesel Exhaust Fluid Tank

27.5 gal.

Diesel Exhaust Fluid Tank

104.4 L

Hydraulic System
Pump Type

Pressure/flow compensated

Pressure

3050 psi

Pressure

210 bar

Flow

59 gpm

Flow

223 L/min

Dimensions
Lengths

33.4 ft

Lengths

10.2 m

Overall Length

33.4 ft

Overall Length

10.2 m

Wheel Base

14.2 ft

Wheel Base

4.3 m

Transport Position Height

4.4 ft

Transport Position Height

14.5 m

Full Height Position

5.2 ft

Full Height Position

17.2 m

Weights

31257 lb.

Weights

68900 kg

6-Row Weight

31257 lb.

6-Row Weight

44410 kg
