John Deere
FA 20
Auger Platforms

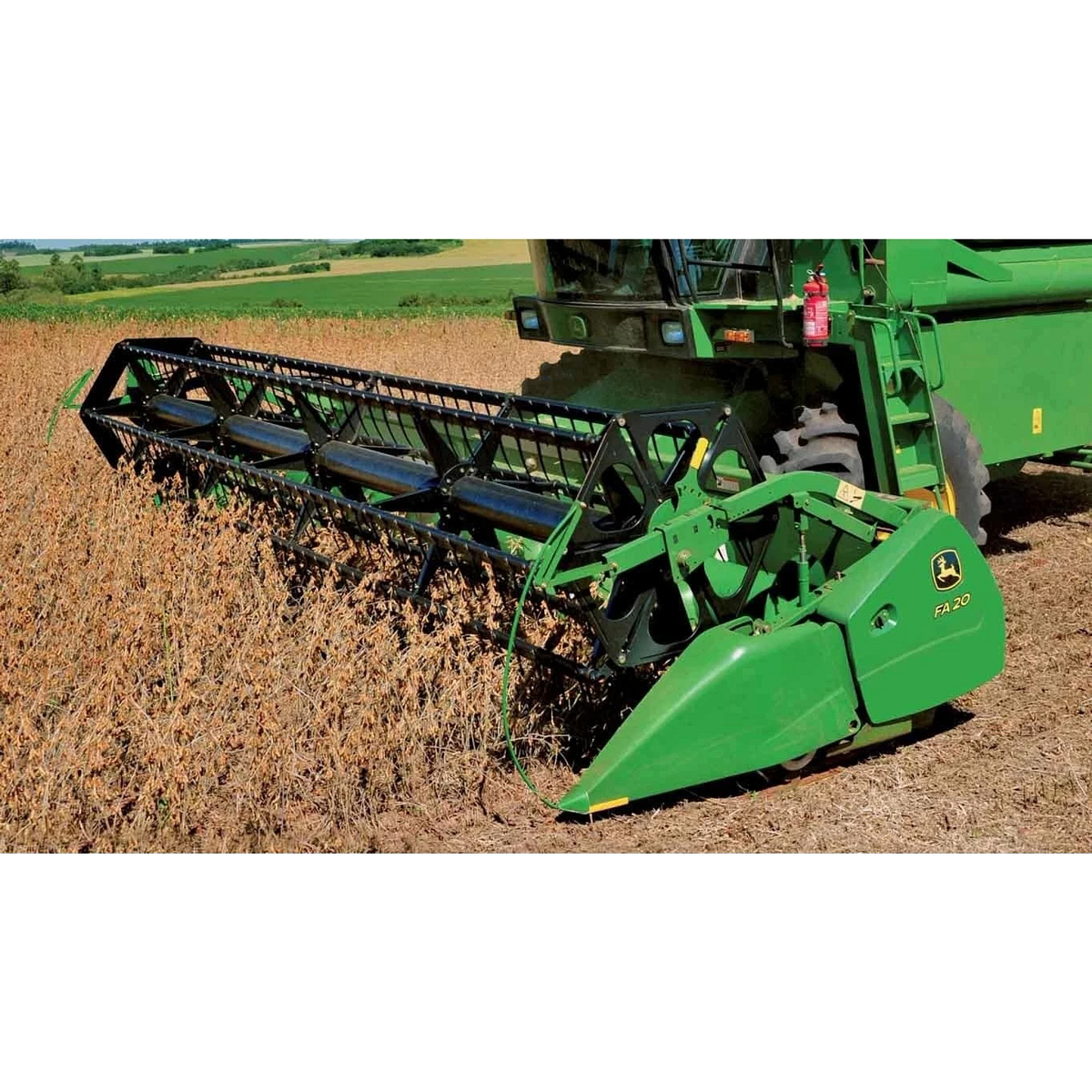

John Deere FA 20

Starting at

Helping You Harvest with Confidence

Changing harvest conditions can be overwhelming. John Deere automation takes the pressure off by optimizing combine settings, guiding precise turns, and managing unloads on the go—protecting yield, reducing grain loss, delivering clean samples, and keeping you focused on feeding the machine, and less on adjusting, steering, or unloading.

Close-up image of a tractor decal
Make Every Minute of the Harvest Window Count

John Deere delivers harvesting solutions matched to your operation, with a full portfolio of combines and front end equipment to hit your harvest window. Automation like Machine Sync, Auto Unload, and Predictive Ground Speed boost productivity, while integrated technology, parts, and Precision Upgrades help your combine adapt to changing crops and conditions—season after season.

Green combine harvester cutting through a mature field of dry grain with a wide header, leaving short stubble behind, as dust rises lightly under a pale sky with a distant, flat horizon
Analyze Key Insights for Better Decisions Next Year

Harvest data becomes next season’s advantage. Yield maps, grain quality, and machine analytics in John Deere Operations Center help refine seed placement, fertility plans, and hybrid selections. Combined with precision upgrades and automation, insights turn into consistent execution—setting the stage for better results next year.

A hand and arm reaches from the right side of the shot to touch a display in an X9 1100 combine's operator station
Question text goes here

Answer text goes here

Platform
Type

Auger

Cutterbar
Cutterbar Type

Knife system with in-line gearbox

Type

102 mm

Type

4 in.

Cutterbar Angle

10 degree (angle)

Cutterbar Length

6.1 m

Cutterbar Length

20 ft

Flex Cutterbar Float Range

152 mm

Flex Cutterbar Float Range

6 in.

Tilt Adjustment

17 degree (angle)

Knife Sections

Heavy-duty, over-serrated

Guards

Forged steel, heat-treated

Backshaft Speed

490 rpm

Knife Speed

520 rpm

Knife Speed

490 cycles/min

Platform Auger
Diameter

66 cm

Diameter

26 in.

Operating Speed - Minimum

135 rpm

Operating Speed - Maximum

170 rpm

Reel
Number Of Slats

6

Diameter

1.067 m

Diameter

3.5 ft

Reel Controls
Height Control

Hydraulic

Speed Control

Hydraulic

Operating Speeds - Minimum

6 rpm

Operating Speeds - Maximum

44 rpm

Hydraulics
Reel Fore/Aft Stroke

359 mm

Reel Fore/Aft Stroke

14.1 in.

Dimensions
Cutting Width

6.1 m

Cutting Width

20 ft

Gathering Width

6.2 m

Gathering Width

20.1 ft

Overall Width

6.6 m

Overall Width

21.7 ft

Approximate Weight

1788 kg

Approximate Weight

3942 lb.
