John Deere
RC2084
Rotary Cutters

John Deere RC2084

Starting at

Easy-to-maneuver deck

The round-back deck design on the RC20 Series Rotary Cutter enables easy maneuvering into tight corners and around trees, fences, and other hard-to-reach areas.

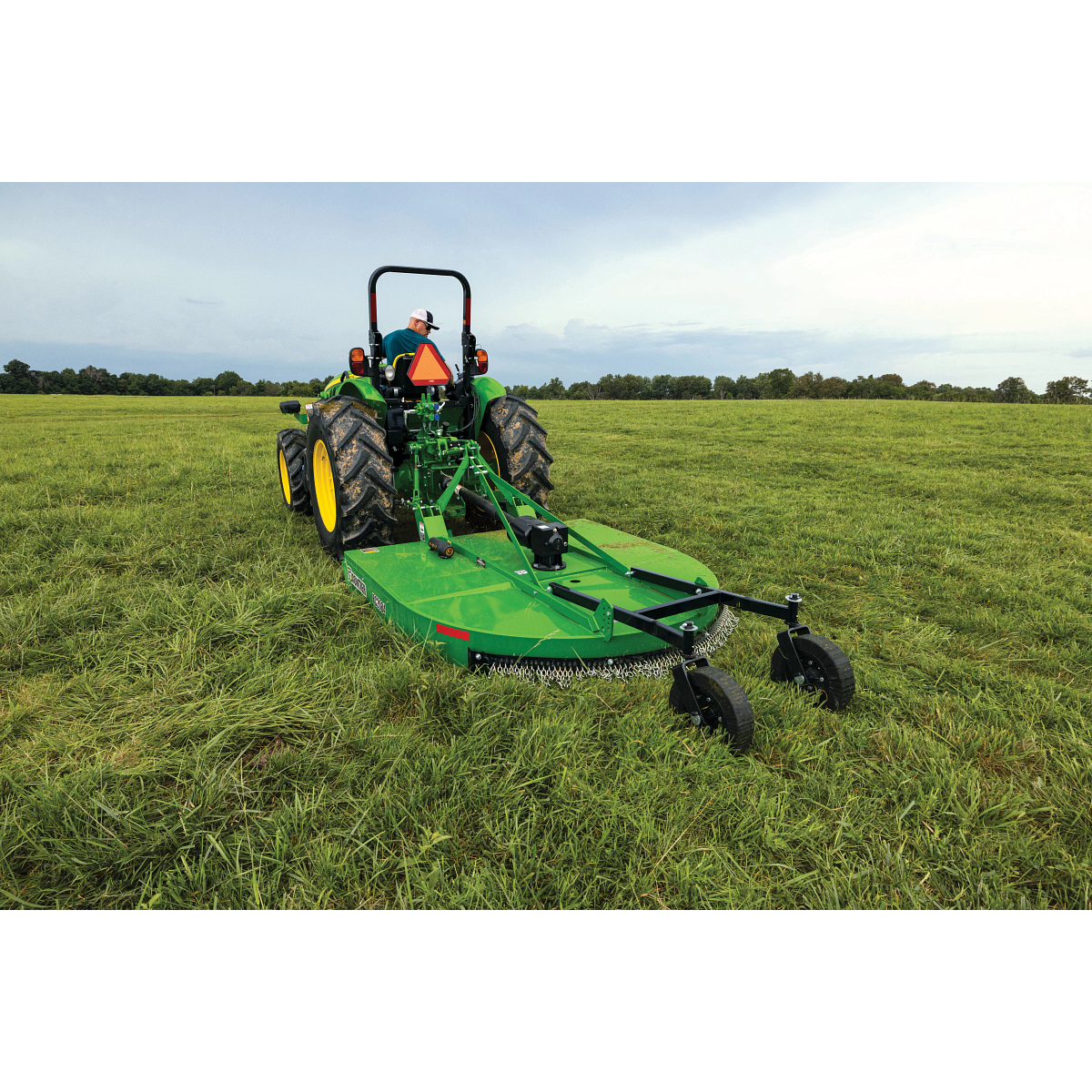

RC2048 Rotary Cutter on utility tractor in grassy field
Adjustable Cutting Height of 1.5 to 9 in. (3.8 to 22.9 cm)

Adjusting the cutting height is easy. Along with adjusting a tractor's three-point linkage, simply move the support bar to the desired cutting height. The RC20 Series Rotary Cutters go as low as 1.5 in. (3.8 cm) or as high as 9 in. (22.9 cm).

Studio view of three-point linkage with support bar on RC20 Rotary Cutter for cutting height adjustment
Standard Front and Rear Chain Shields

The RC2084 features front and rear chain shields in standard equipment. The front deck and deflector support are flush with the deck. This allows water and debris an unrestricted exit off the top of the deck.

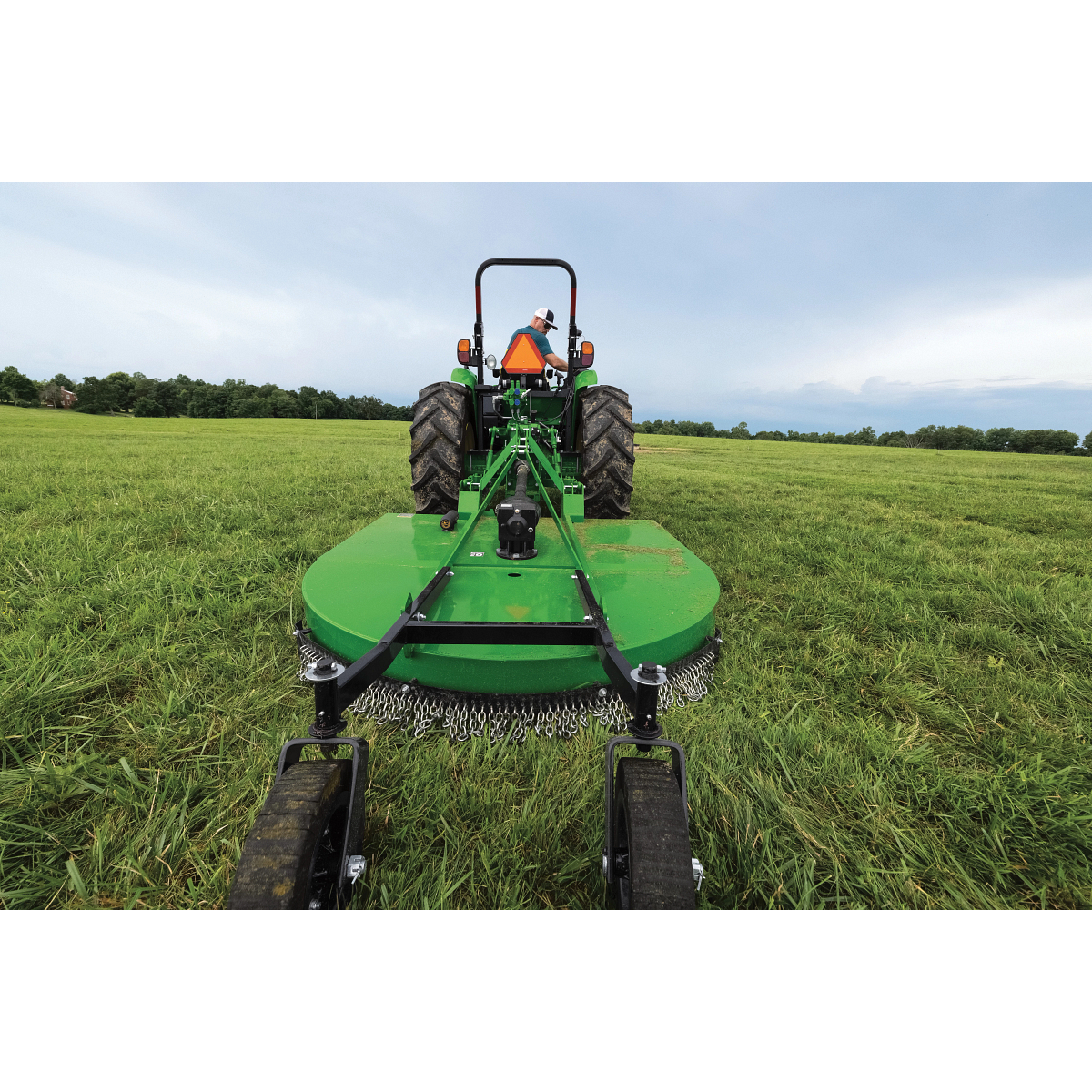

Rear field view of the RC2084 Rotary Cutter on 5 Series Tractor in a grassy field
Question text goes here

Answer text goes here

Dimensions
Overall Width

88 in.

Overall Width

224 cm

Overall Length

124 in.

Overall Length

315 cm

Weight
Operating

1100 lb.

Operating

499 kg

Tractor Compatibility
PTO Power

90 hp

PTO Power

67 kW

Tractor PTO

540 rpm

PTO Category

ASAE 4

Gear Case
Horsepower

90 hp

Horsepower

67 kW

Driveline
Type

Slip clutch

Hitch
Type

Lift-type

Hitch Category

Category 2 and Category 2 quick hitch compatible

Deck
Thickness

0.135 in.

Thickness

3.4 mm

Thickness

10 gauge

Shape

Flat-open round back

Type

Single

Skirt
Thickness

0.135 in.

Thickness

3.4 mm

Thickness

10 gauge

Capacity
Cutting Width

84 in.

Cutting Width

213 cm

Cutting Height

1.5-9 in.

Cutting Height

4-23 cm

Cutting Diameter

0-1 in.

Cutting Diameter

0-2.5 cm

Cutting Chamber Depth

9.75 in.

Cutting Chamber Depth

24.8 cm

Blades
Tip Speed

14380 fpm

Tip Speed

73 m/s

Type

Heat treated, suction

Thickness

0.5 in.

Thickness

13 mm

Width

4 in.

Width

102 mm

Blade Holder
Type

Round pan-type

Diameter

32.5 in.

Diameter

826 mm

Wheels
Type

Laminated

Diameter Laminated

15 in.

Diameter Laminated

381 mm

Width Laminated

3.75 in.

Width Laminated

95 mm

Diameter Rubber

15 in.

Diameter Rubber

381 mm

Width Rubber

3.75 in.

Width Rubber

95 mm

Safety
Markings

Standard

Front Deflector

Standard

Rear Deflector

Standard

Setup Time
Labor Hours

1 hr

Warranty
Time Period

1 year

Gearbox

1 year
