Home   >All Products   >
Cutters & Shredders
>
Rotary Cutters
>
John Deere RC10R Pull-Type

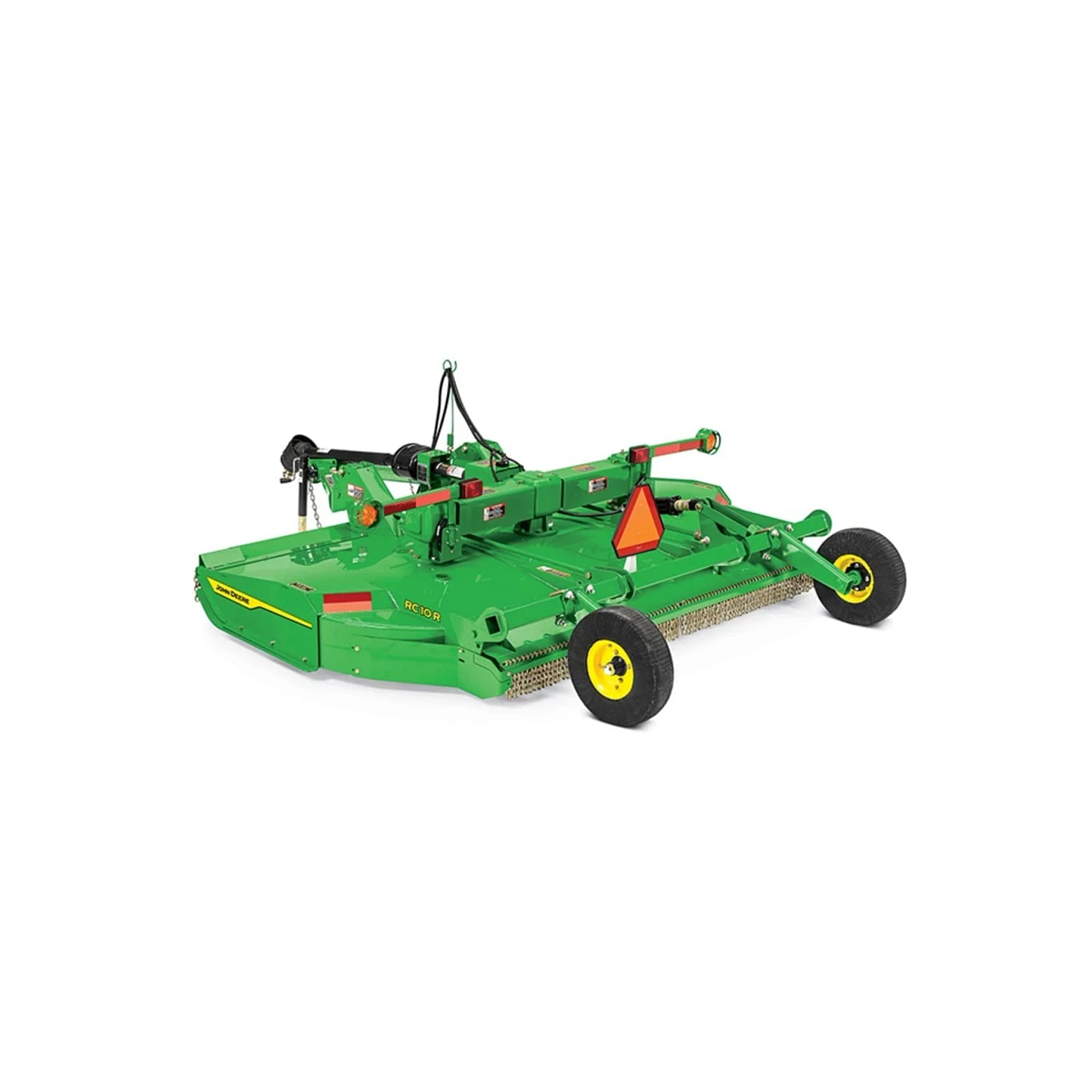

RC10R Rotary Cutter Studio Image
No items found.
new
John Deere
RC10R
Rotary Cutters

John Deere RC10R Pull-Type

Starting at

Key Features

  • Larger, More Durable Gearboxes
  • Large-Diameter, Round-Pan Blade Holders
  • Tractor Hookup Available
  • Max Flow Cutting Chamber for a Clean Cut
Request a Quote
Order Now
Apply for financing
Apply for financing
Print Page
Loan Calculator
Product Brochure
Features
Specifications
Suction Blades Provide Additional Blade Lift

Suction blades, measuring 1.3 cm x 10.2 cm (0.5 in. x 4 in.) and heat-treated for durability, provide additional lift for picking up downed material, while their fast blade-tip speed promotes clean cutting and fine shredding.

Green metal rotary cutter blade with a curved profile and a mounting hole on one end
5-Year Limited Gearbox Warranty

Our rotary cutters are engineered for long-lasting performance and are backed by a 5-year limited gearbox warranty.

Close-up of a green mechanical gearbox and driveline assembly on a John Deere rotary cutter
Superior Frame Strength

The patented John Deere Double-Decker™ design enhances frame strength and cutting performance, reducing rust on the top deck. It incorporates two welded decks with internal stiffeners, providing added strength and a sturdy base to support the gearcases.

A side-view illustration of a green rotary cutter with a gearbox mounted on top and cutting components shown underneath
Question text goes here

Answer text goes here

Specs & Compare
Select up to 4 models to compare specifications
John Deere
RC10R
Rotary Cutter
Bush Hog
3210 and 3210 Offset
Rhino
TR120
Woods
DS1260
ADD MODEL

Capacity

Cutting Width126 in.3,200 mm
126 in.		3,048 mm
120 in.		3,200 mm
126 in.
Cutting Width320 cm3,200 mm
126 in.		3,048 mm
120 in.		3,200 mm
126 in.
Cutting Height1-12 in.51 to 330 mm
2 to 13 in.		38.1 to 305 mm
1.5 to 12 in.		50 to 330 mm
2 to 13 in.
Cutting Height2.5-30.5 cm51 to 330 mm
2 to 13 in.		38.1 to 305 mm
1.5 to 12 in.		50 to 330 mm
2 to 13 in.
Cutting Capacity3 in.63.5 mm
2.5 in.		76.2 mm
3 in.		76.2 mm
3 in.
Cutting Capacity7.62 cm63.5 mm
2.5 in.		76.2 mm
3 in.		76.2 mm
3 in.
Cutting Chamber Depth10.5 in.254 mm
10 in.		254 mm
10 in.		305 mm
12 in.
Cutting Chamber Depth26.7 cm254 mm
10 in.		254 mm
10 in.		305 mm
12 in.

Tractor Compatibility

Tractor PTO HP Minimum50 hp
Tractor PTO HP Minimum37 kW
Tractor PTO540 rpm3210: Minimum PTO pull-type; 37, lift-type; 45 kW
50, 60 hp
3210 Offset: Minimum PTO pull-type; 37, semi-mount; 41 kW
50, 55 hp		Minimum PTO lift-type 60 kW
80 hp
Minimum PTO pull-type 41 kW
55 hp
Minimum PTO semi-mount 41 kW		Pull-type, semi-mounted 37 kW
50 hp
Lift-type 48 kW
65 hp

Hitch

Hitch TypePull-type (has standard 10,000 lb [4,539 kg] safety tow chain) Pull-type, lift-type, semi-mountLift-type, pull-type, semi-mountPull-type, lift-type, semi-mounted
Hitch Category2, 3, 3N2, 32, 3 (Lift-Type), Clevis (Pull-Type), 2 (Semi-Mount)2, 3

Dimensions

Transport Width132 in.Lift-type, pull-type; 3227 mm
131 in.		3,226 mm
127 in.		3,404 mm
134 in.
Transport Width335 cmLift-type, pull-type; 3227 mm
131 in.		3,226 mm
127 in.		3,404 mm
134 in.
Overall Width132 in.Lift-type, pull-type; 3227 mm
133 in.		3,226 mm
127 in.		3,404 mm
134 in.
Overall Width335 cmLift-type, pull-type; 3227 mm
133 in.		3,226 mm
127 in.		3,404 mm
134 in.
Overall Length159 in.3210; lift-type 2997 mm
118 in.
3210 Offset; pull-type 4,089 mm
161 in.		Lift-type, semi-mount; 2,946 mm
116 in.
Pull-type; 3,962 mm
156 in.		Lift-type, semi-mounted 2,921 mm
115 in.
Pull-type 4,191 mm
165 in.
Overall Length404 cm3210; lift-type 2997 mm
118 in.
3210 Offset; pull-type 4,089 mm
161 in.		Lift-type, semi-mount; 2,946 mm
116 in.
Pull-type; 3,962 mm
156 in.		Lift-type, semi-mounted 2,921 mm
115 in.
Pull-type 4,191 mm
165 in.
Deck ShapeDomedFlatDomedSloped-top
Deck TypeDouble deckerSingleDoubleSingle
Upper Deck Thickness0.141 in.
Upper Deck Thickness3.5 mm
Upper Deck Thickness10 gauge
Lower Deck Thickness0.141 in.
Lower Deck Thickness3.5 mm
Lower Deck Thickness10 gauge
Side Skirt Thickness0.25 in.6.1 (3) mm
0.25 (3) in.		6.3 (3) mm
0.25 (3) in.		6.1 (3) mm
0.25 (3) in.
Side Skirt Thickness6 mm6.1 (3) mm
0.25 (3) in.		6.3 (3) mm
0.25 (3) in.		6.1 (3) mm
0.25 (3) in.
Side Skirt Thickness3 gauge6.1 (3) mm
0.25 (3) in.		6.3 (3) mm
0.25 (3) in.		6.1 (3) mm
0.25 (3) in.
Approximate Weight2326 lb.
Approximate Weight1057 kg

Drivelines

Main Driveline ProtectionEqual-angle Category 4 driveline
Connecting Driveline ProtectionShock absorbing shafts

Gearcases

Number3333
Transfer Horsepower Rating - Continuous120 hp
Transfer Horsepower Rating - Continuous89 kW
Transfer Horsepower Rating - Peak180 hp
Transfer Horsepower Rating - Peak134 kW
Outer Horsepower Rating - Continuous100 hp
Outer Horsepower Rating - Continuous75 kW
Outer Horsepower Rating - Peak140 hp
Outer Horsepower Rating - Peak104 kW

Blades

Thickness0.5 in.Upper
3.4 (10) mm
0.134 (10) in.
Upper
3.4 (10) mm
0.134 (10) in.
Lower
3.4 (10) mm
0.134 (10) in.
Upper
3.4 (10) mm
0.134 (10) in.
Thickness13 mmUpper
3.4 (10) mm
0.134 (10) in.
Upper
3.4 (10) mm
0.134 (10) in.
Lower
3.4 (10) mm
0.134 (10) in.
Upper
3.4 (10) mm
0.134 (10) in.
Width4 in.3,200 mm
126 in.		3,048 mm
120 in.		3,200 mm
126 in.
Width102 mm3,200 mm
126 in.		3,048 mm
120 in.		3,200 mm
126 in.
Overlap2.8 in.102 mm
4 in.		102 mm
4 in.
Overlap72 mm102 mm
4 in.		102 mm
4 in.
Blade Tip Speed - 540 RPM16889 fpm
Blade Tip Speed - 540 RPM5148 m/min
Material Flow SystemMax flow
Holder TypeRound stump jumper

Wheels

TypeLaminated; Optional: Severe-duty Ag tirePull-type, lift-type, semi-mountLift-type, pull-type, semi-mountPull-type, lift-type, semi-mounted
Row Width AdjustmentYes

Shielding

Front ShieldingChain
Rear ShieldingChain
