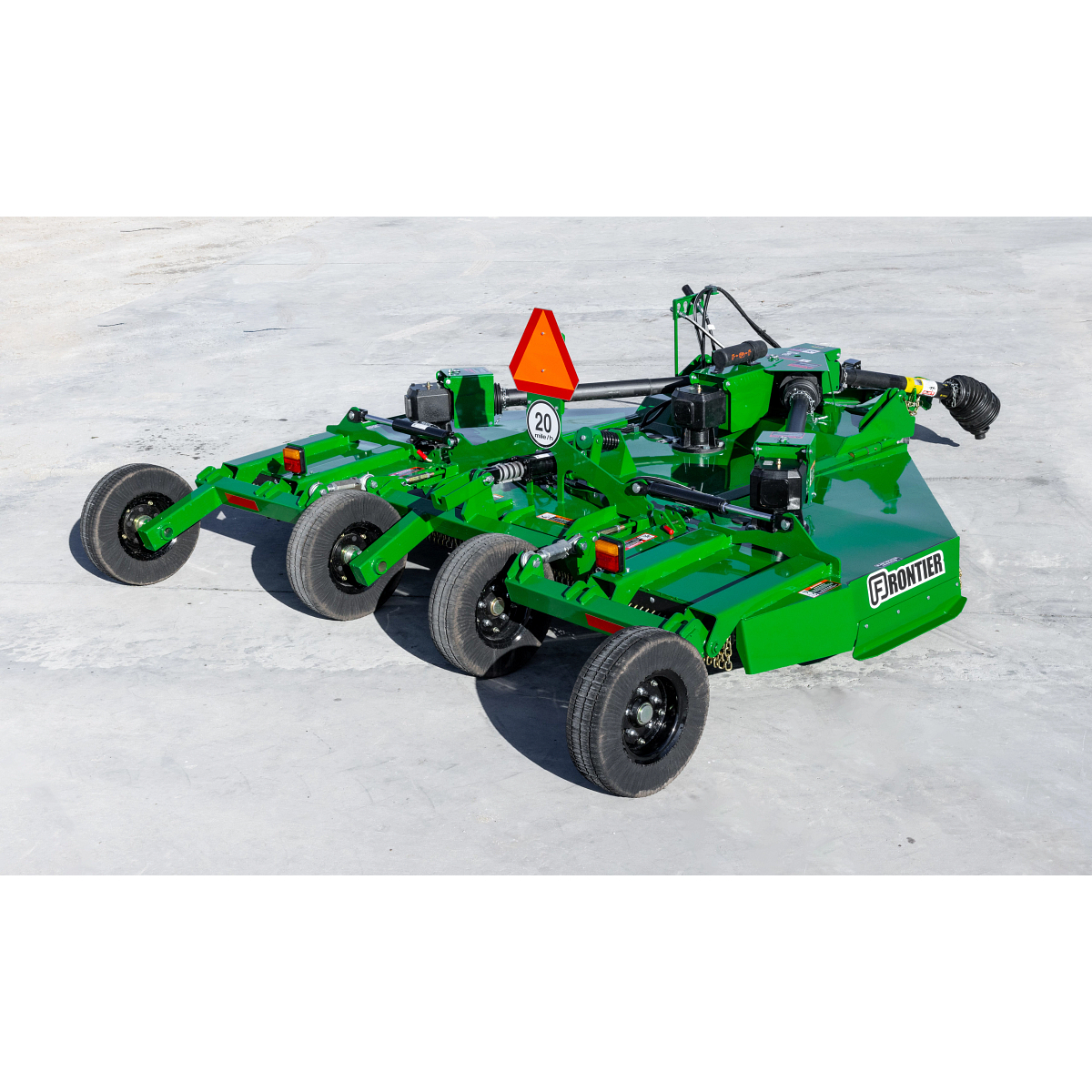

Rear three-quarter view of a green Frontier rotary cutter with four transport wheels, PTO driveline, hydraulic components, safety chain shielding, and a slow-moving vehicle emblem, parked on a concrete surface outdoors

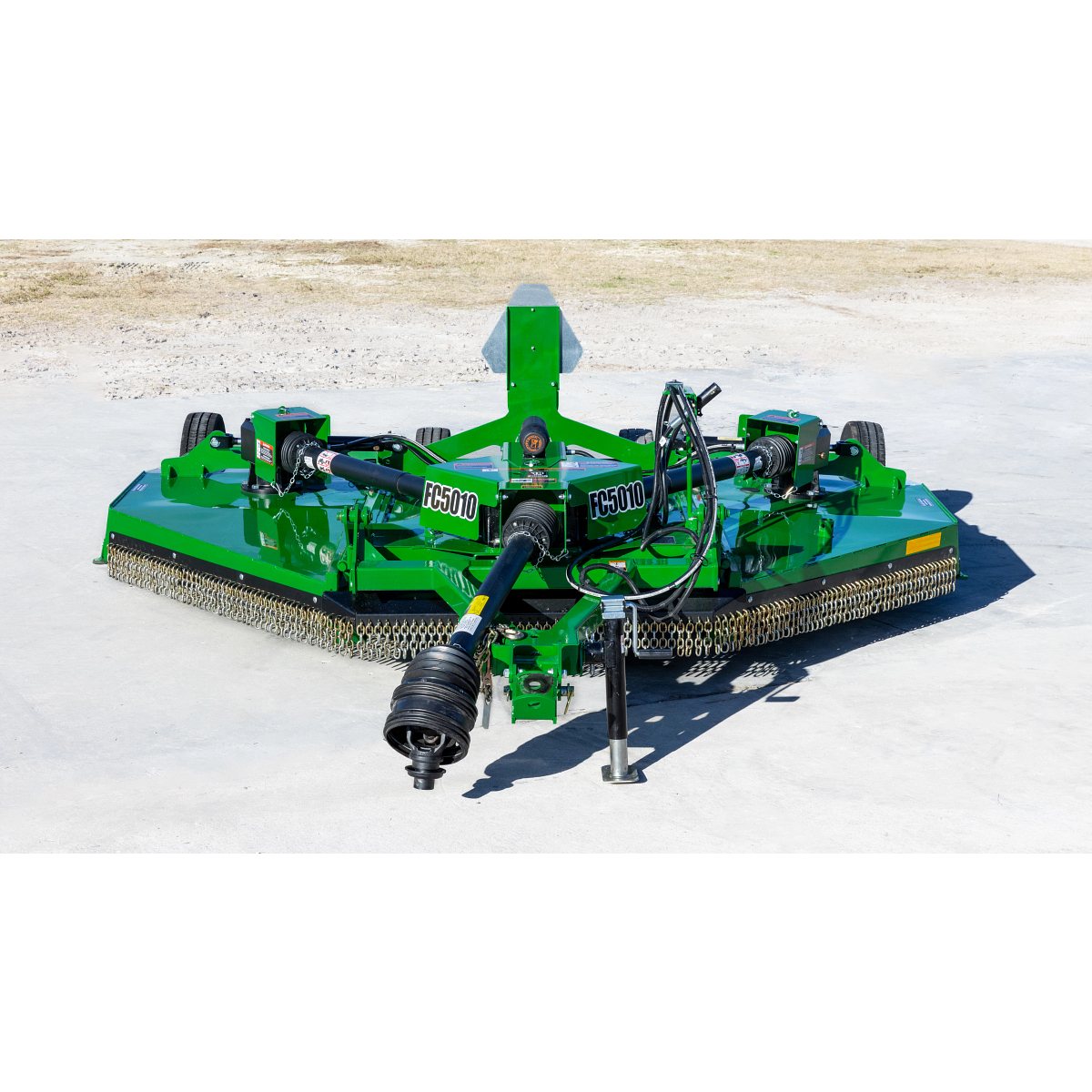

Front view of a green Frontier FC5010 dual-spindle rotary cutter with a PTO driveline, hydraulic hoses, safety chain shielding, and transport wheels, positioned on a concrete surface outdoors

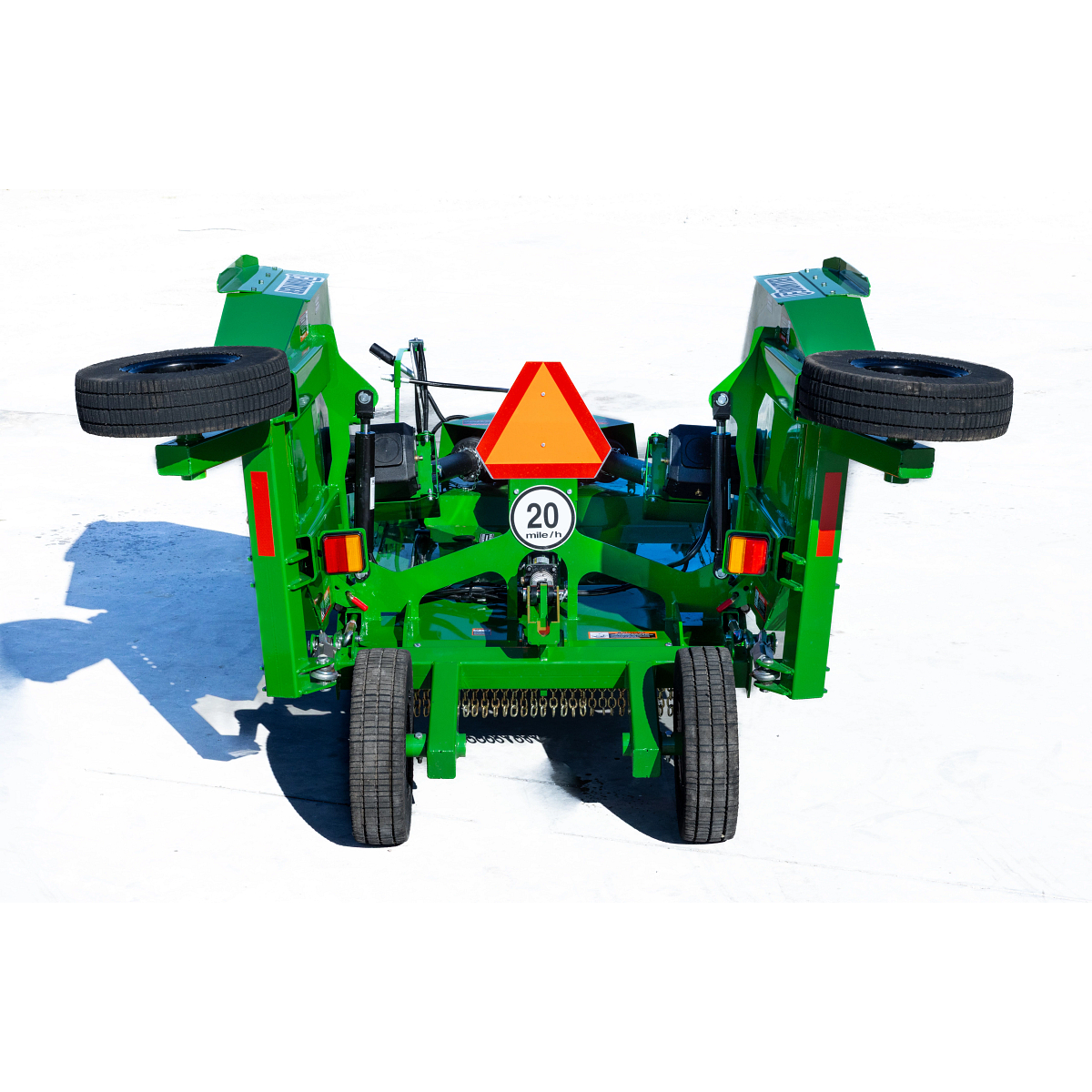

Rear view of a green Frontier rotary cutter in transport position, showing raised wing decks, transport wheels, lights, safety chain shielding, a 20 mph sign, and a slow-moving vehicle emblem on a concrete surface

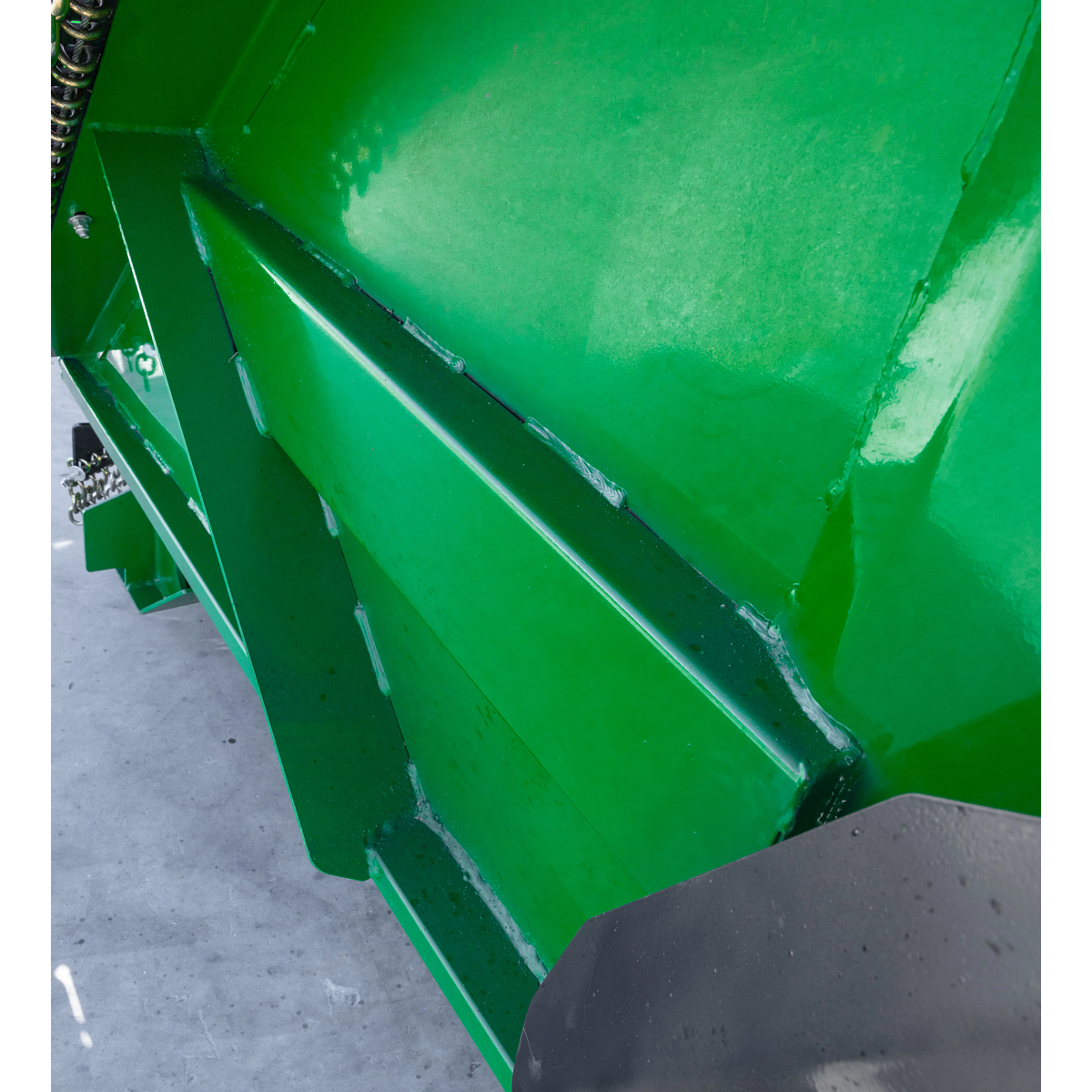

Close-up of a green steel mower deck showing reinforced welded panels and smooth painted surfaces on a rotary cutter attachment

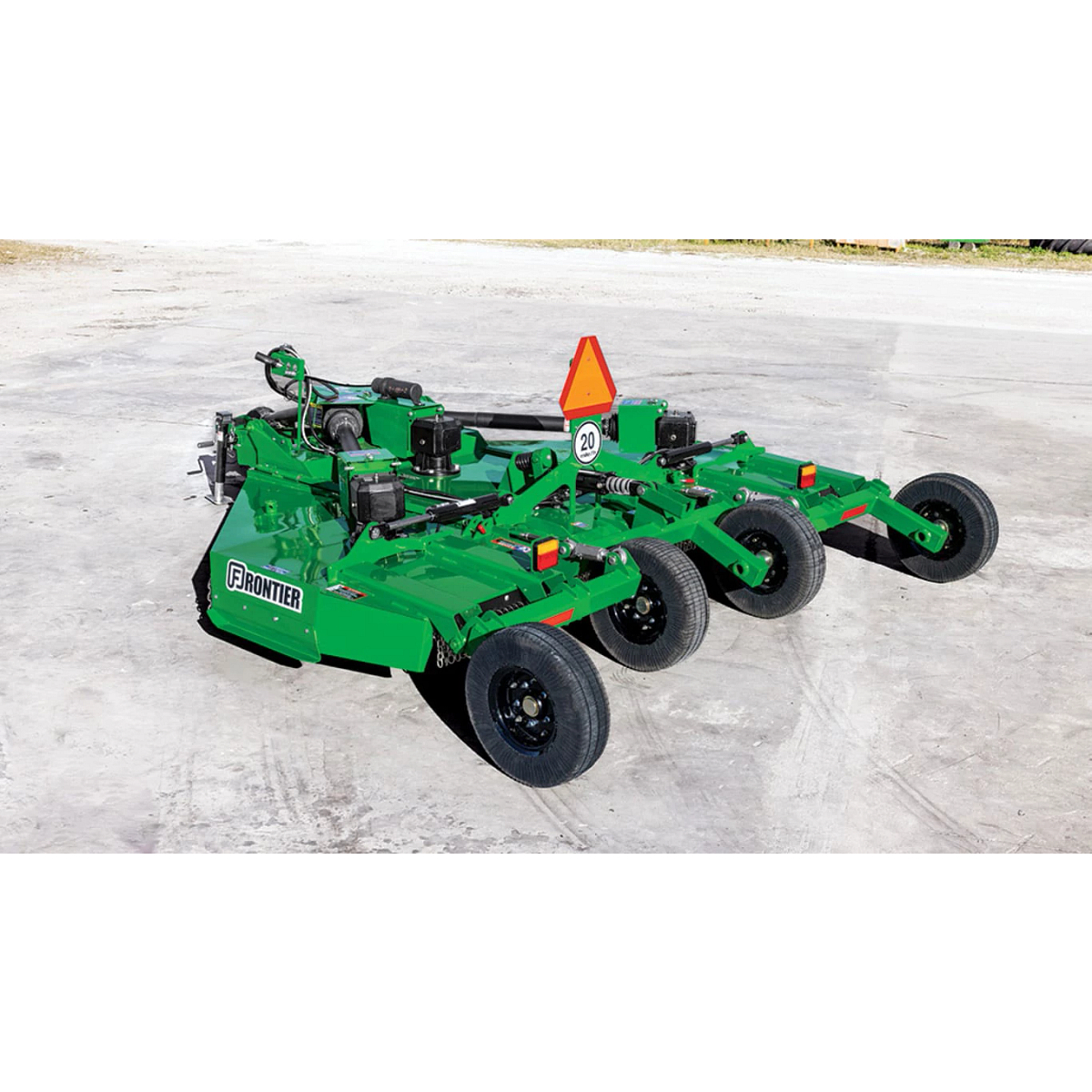

Green multi-spindle rotary mower attachment with four tires, a slow-moving vehicle triangle, and multiple cutting decks, parked on a concrete surface in an outdoor setting
No items found.
new
John Deere
FC5012
Flex-Wing Rotary Cutters

John Deere FC5012

Starting at

Tractor-Matched Cutting Solution

Available in 10‑ and 12‑foot cutting widths, the FC50 responds to growing demand for wider mowing options that better match smaller‑chassis tractors while making efficient use of available horsepower.

Rear three-quarter view of a green Frontier rotary cutter in transport mode, featuring four transport wheels, PTO driveline, hydraulic components, warning lights, safety chain shielding, and a slow-moving vehicle emblem on a concrete surface
Welded Hitch for Reduced Tongue Weight

The FC50 features a welded hitch frame designed to reduce overall weight and lower vertical drawbar load, improving tractor compatibility.

Front view of a green Frontier FC5010 rotary cutter with dual spindles, PTO driveline, hydraulic hoses, transport wheels, and full-width safety chain shielding, positioned on a concrete surface outdoors
Adjustable Center Deck and Outer Wings

The center deck uses an adjustable lift‑cylinder suspension to deliver a smoother ride and improved cut quality. Outer wings are easily leveled fore and aft using adjustable turnbuckles, and wing leveling is tied to the main deck for consistent alignment across all three decks. A spring‑suspended main frame helps maintain an even cutting profile.

Front three-quarter view of a green Frontier FC5010 rotary cutter in folded transport position, showing raised wing decks, PTO driveline, hydraulic hoses, transport wheels, and safety chain shielding on a concrete surface
Question text goes here

Answer text goes here

Dimensions
Overall Width

168 in.

Overall Width

427 cm

Overall Length

160 in.

Overall Length

406 cm

Weight
Operating

2820 lb.

Operating

1279 kg

Tractor Compatibility
PTO Power

50-90 hp

PTO Power

37-67 kW

Tractor PTO

540 rpm

PTO Category

G8 constant velocity

Gear Case
Horsepower

175 hp

Horsepower

131 kW

Driveline
Type

G8 constant velocity

Quick-Knect™ Compatible

No

Hitch
Type

Pull-type, self-leveling swivel clevis

Hitch Category

Category 1

iMatch™ Compatible

No

AutoHitch™ Compatible

No

Deck
Thickness

0.1345 in.

Thickness

3.416 mm

Thickness

10 gauge

Skirt
Thickness

0.1875 in.

Thickness

4.7625 mm

Capacity
Cutting Width

144 in.

Cutting Width

366 cm

Cutting Height

1.5-12 in.

Cutting Height

4-31 cm

Cutting Diameter

2 in.

Cutting Diameter

5 cm

Blades
Tip Speed

14490 fpm

Tip Speed

74 m/s

Type

1/2 x 3 in. (1.3 x 7.6 cm) with suction lift

Thickness

0.5 in.

Thickness

12.7 mm

Width

3 in.

Width

76.2 mm

Blade Holder
Type

3/16-in. (0.5-cm) formed plate with 0.75-in. (1.9-cm) bar

Wheels
Quantity

4

Type

Laminated standard; Aircraft optional

Diameter Laminated

21 in.

Diameter Laminated

533 mm

Setup Time
Labor Hours

1 hr

Warranty
Time Period

2 year

Gearbox

10 year
Warranties apply to products purchased as of November 1, 2025. Contact your local dealer or see JohnDeere.com/TUWarranty or JohnDeere.ca/TUWarranty.

Additional Information
Country of Manufacture

United States
