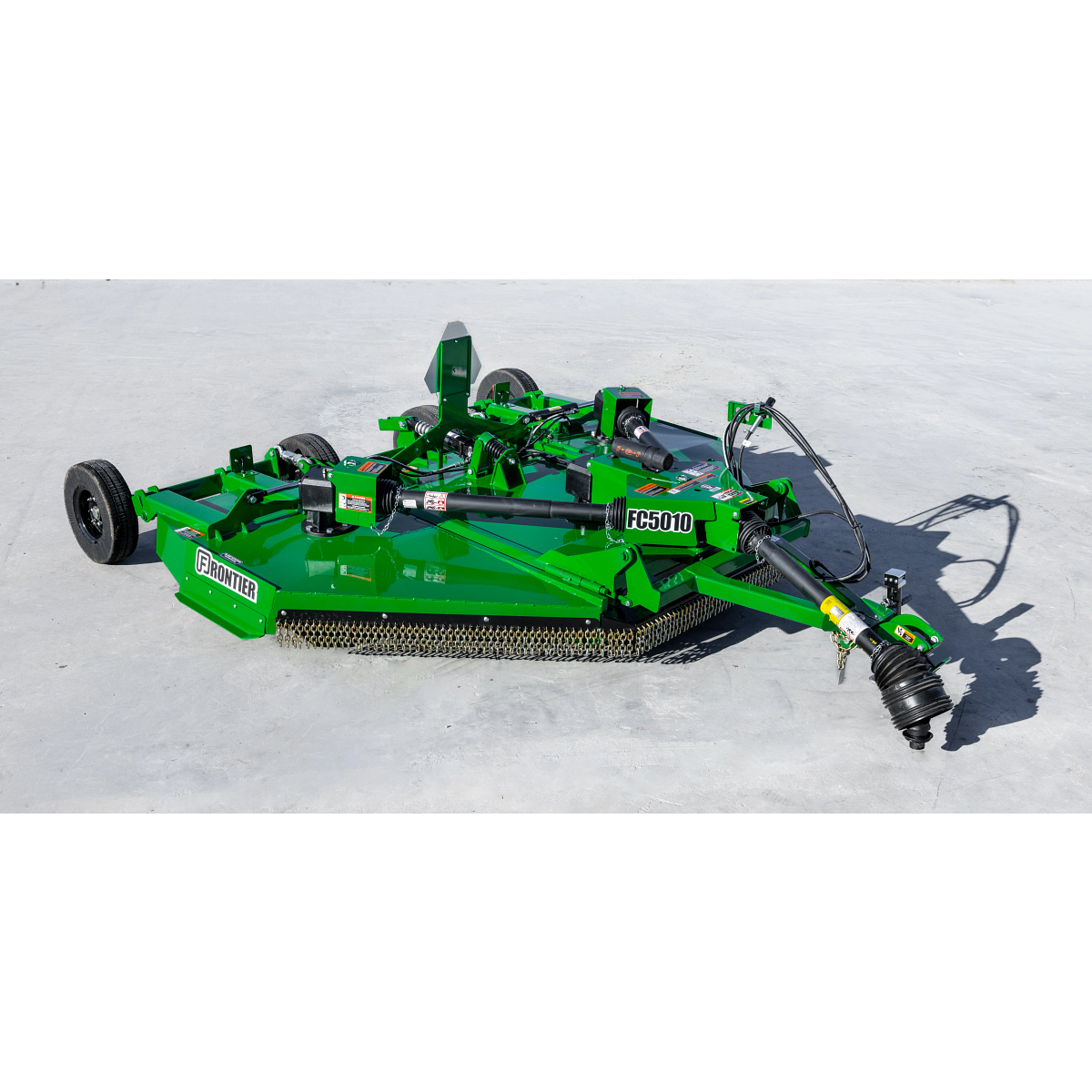

Available in 10‑ and 12‑foot cutting widths, the FC50 responds to growing demand for wider mowing options that better match smaller‑chassis tractors while making efficient use of available horsepower.

The FC50 features a welded hitch frame designed to reduce overall weight and lower vertical drawbar load, improving tractor compatibility.

The center deck uses an adjustable lift‑cylinder suspension to deliver a smoother ride and improved cut quality. Outer wings are easily leveled fore and aft using adjustable turnbuckles, and wing leveling is tied to the main deck for consistent alignment across all three decks. A spring‑suspended main frame helps maintain an even cutting profile.

Answer text goes here
Overall Width | 144 in. |
Overall Width | 366 cm |
Overall Length | 160 in. |
Overall Length | 406 cm |
Operating | 2590 lb. |
Operating | 1175 kg |
PTO Power | 40-95 hp |
PTO Power | 30-48 kW |
Tractor PTO | 540 rpm |
PTO Category | G8 constant velocity |
Horsepower | 175 hp |
Horsepower | 131 kW |
Type | G8 constant velocity |
Quick-Knect™ Compatible | No |
Type | Pull-type, self-leveling swivel clevis |
Hitch Category | Category 1 |
iMatch™ Compatible | No |
AutoHitch™ Compatible | No |
Thickness | 0.1345 in. |
Thickness | 3.416 mm |
Thickness | 10 gauge |
Thickness | 0.1875 in. |
Thickness | 4.7625 mm |
Cutting Width | 120 in. |
Cutting Width | 305 cm |
Cutting Height | 1.5-12 in. |
Cutting Height | 4-31 cm |
Cutting Diameter | 2 in. |
Cutting Diameter | 5 cm |
Tip Speed | 14490 fpm |
Tip Speed | 74 m/s |
Type | 1/2 x 3 in. (1.3 x 7.6 cm) with suction lift |
Thickness | 0.5 in. |
Thickness | 12.7 mm |
Width | 3 in. |
Width | 76.2 mm |
Type | 3/16-in. (0.5-cm) formed plate with 0.75-in. (1.9-cm) bar |
Quantity | 4 |
Type | Laminated, standard; Aircraft, optional |
Diameter Laminated | 21 in. |
Diameter Laminated | 533 mm |
Labor Hours | 1 hr |
Time Period | 2 year |
Gearbox | 10 year |
Country of Manufacture | United States |
