Flex-Wing Rotary Cutters

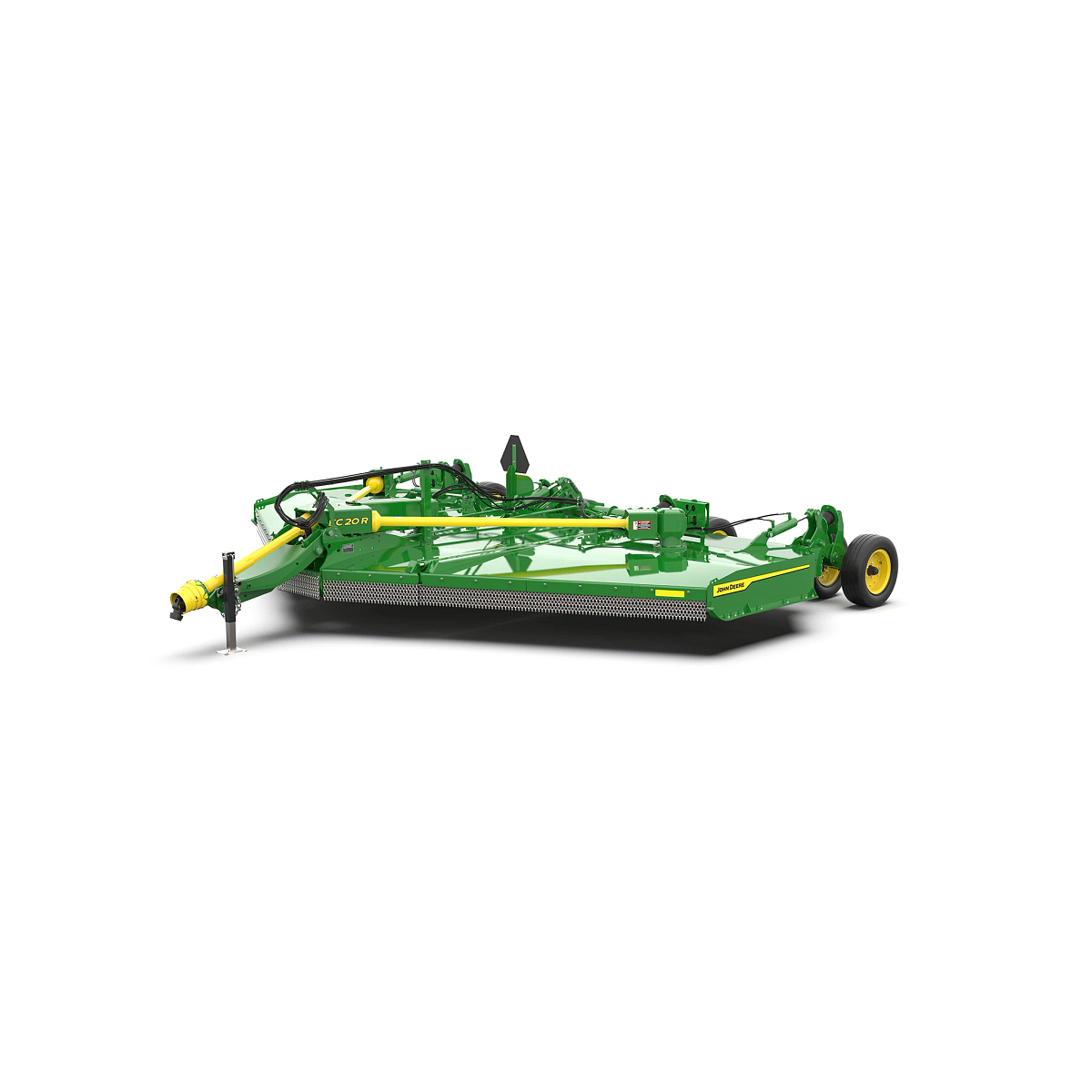

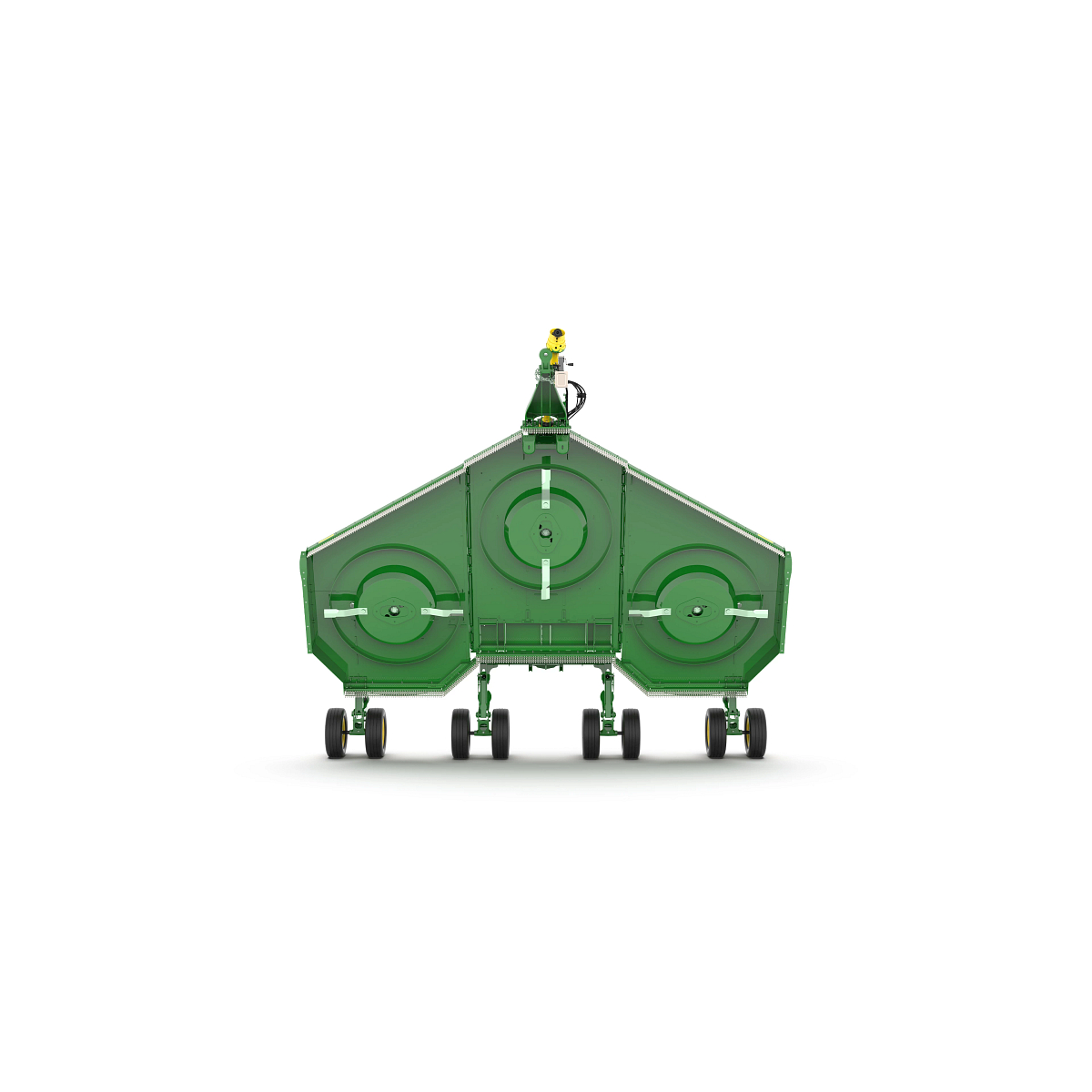

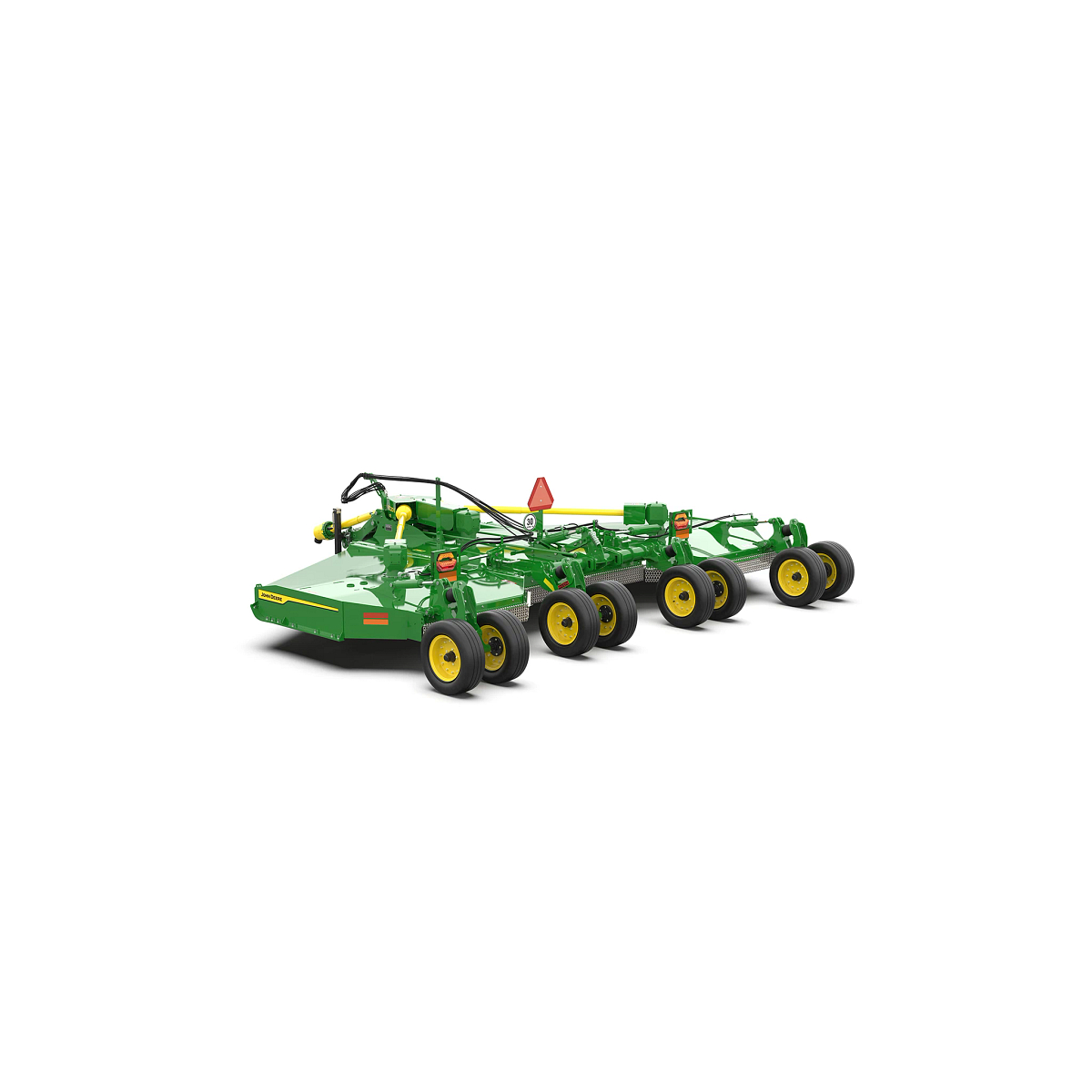

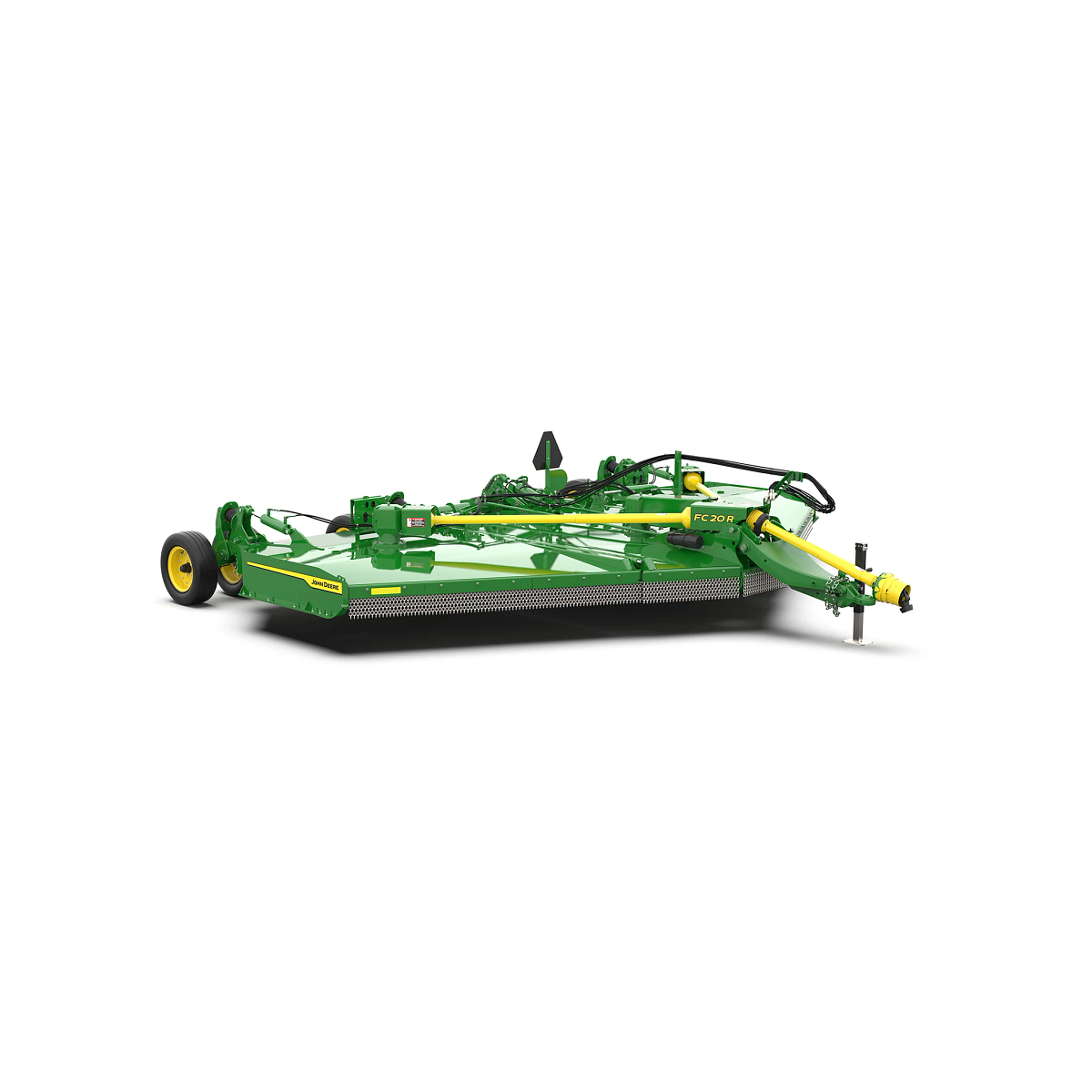

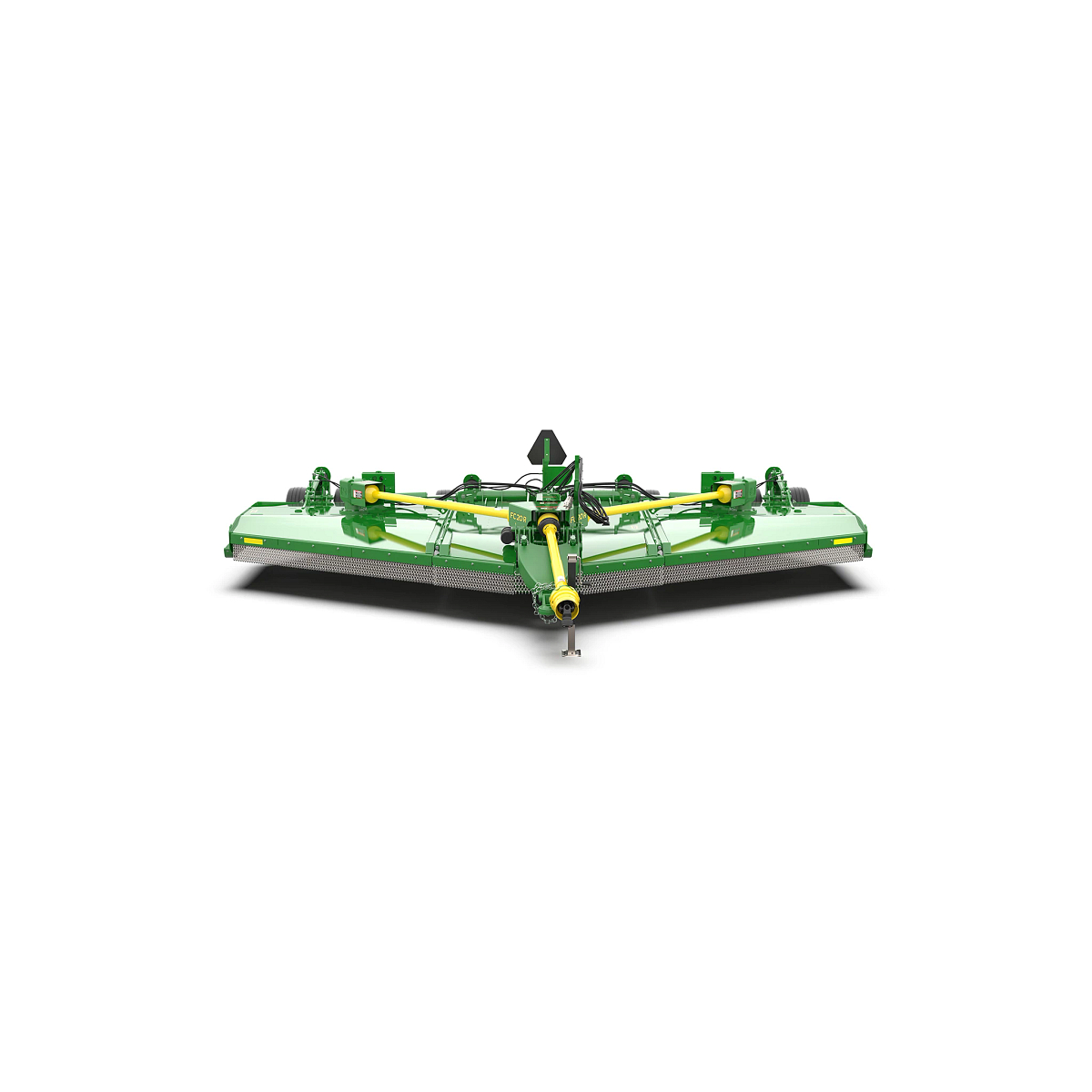

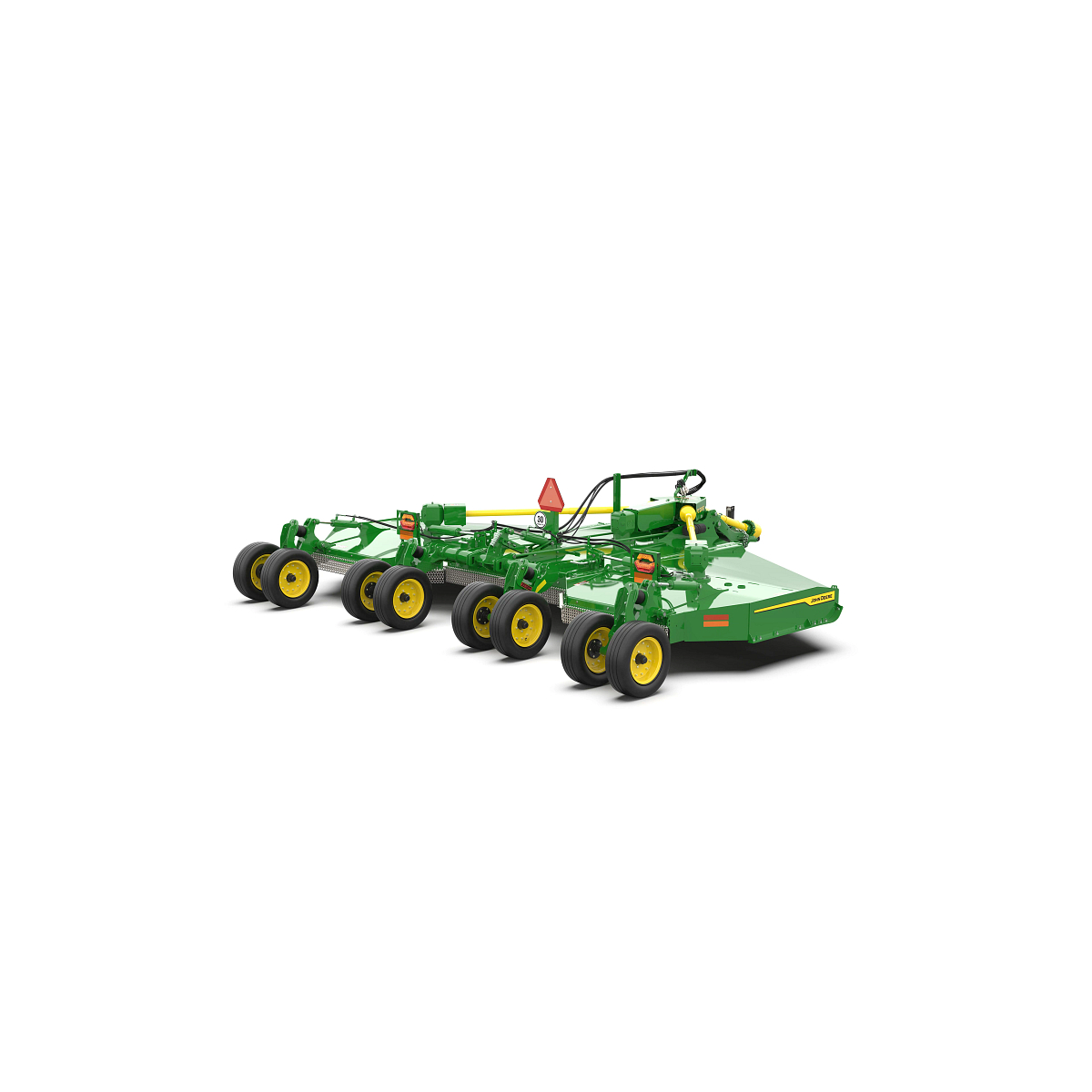

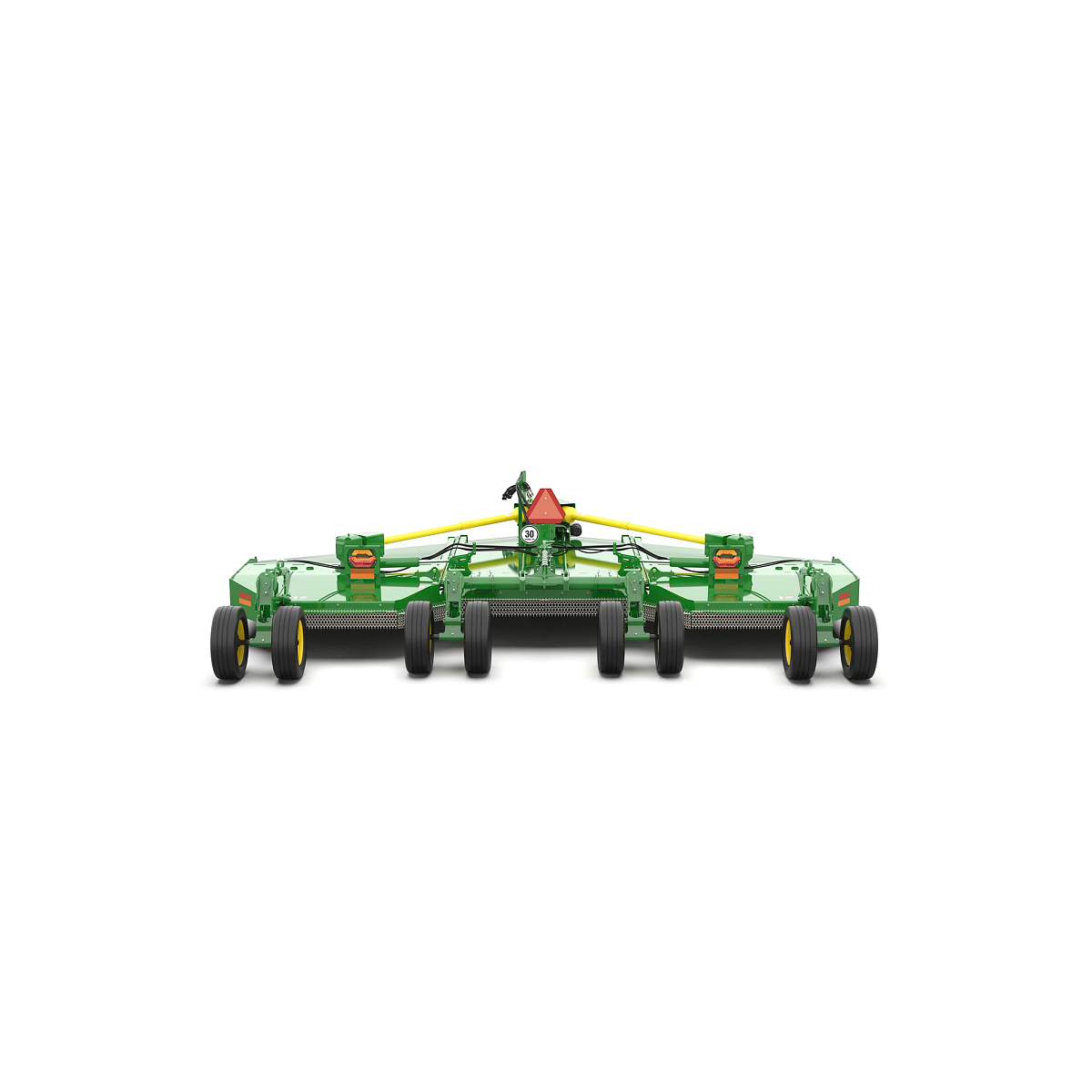

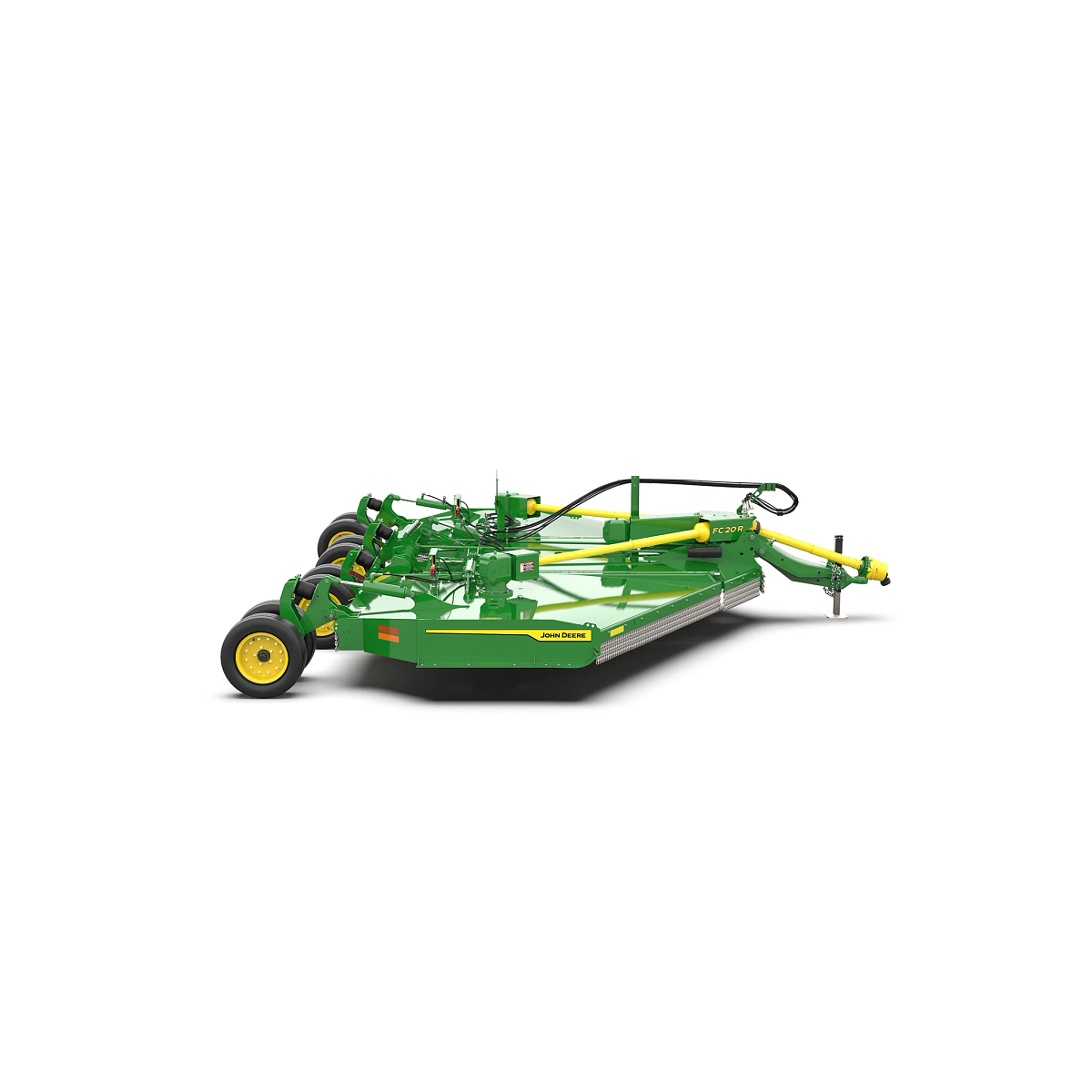

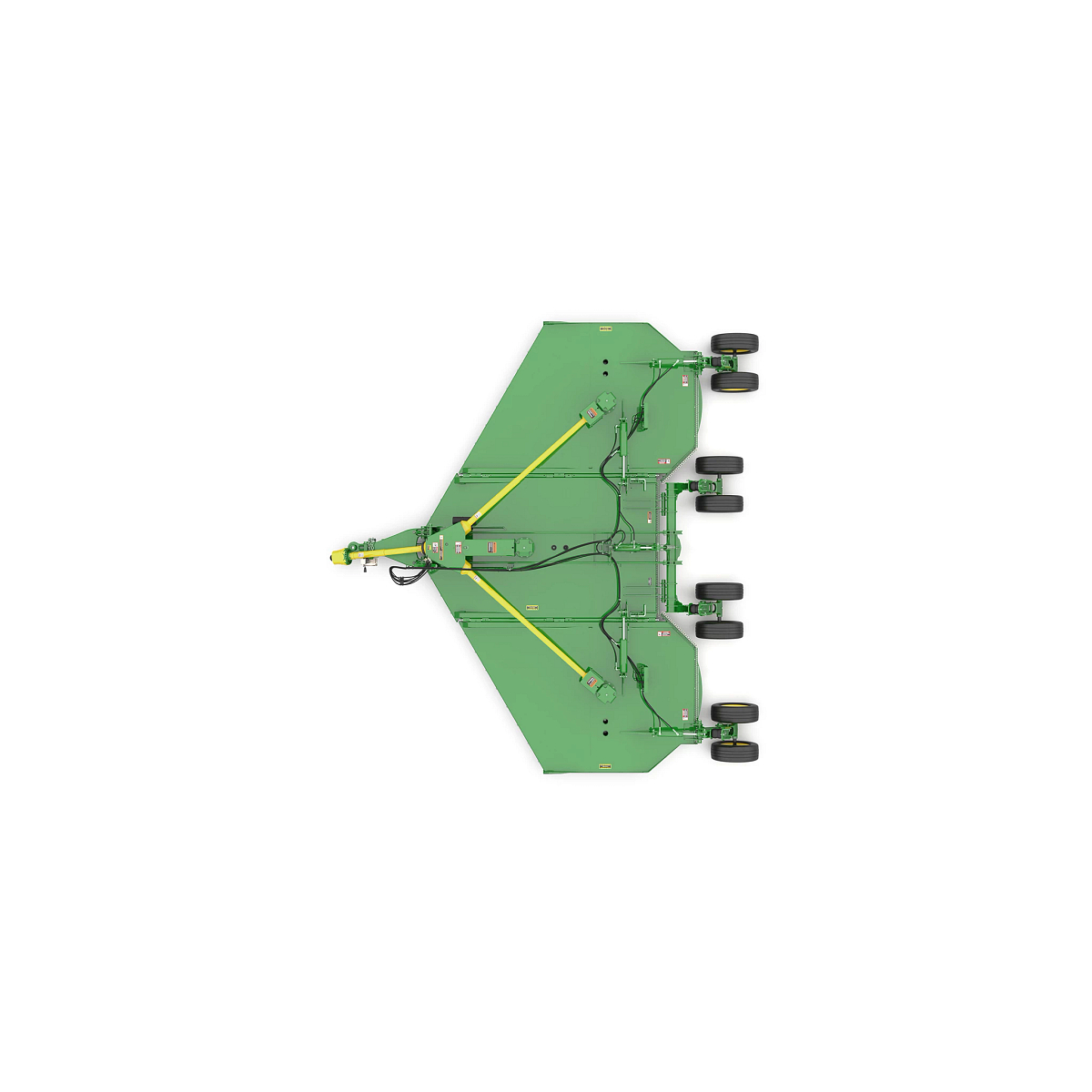

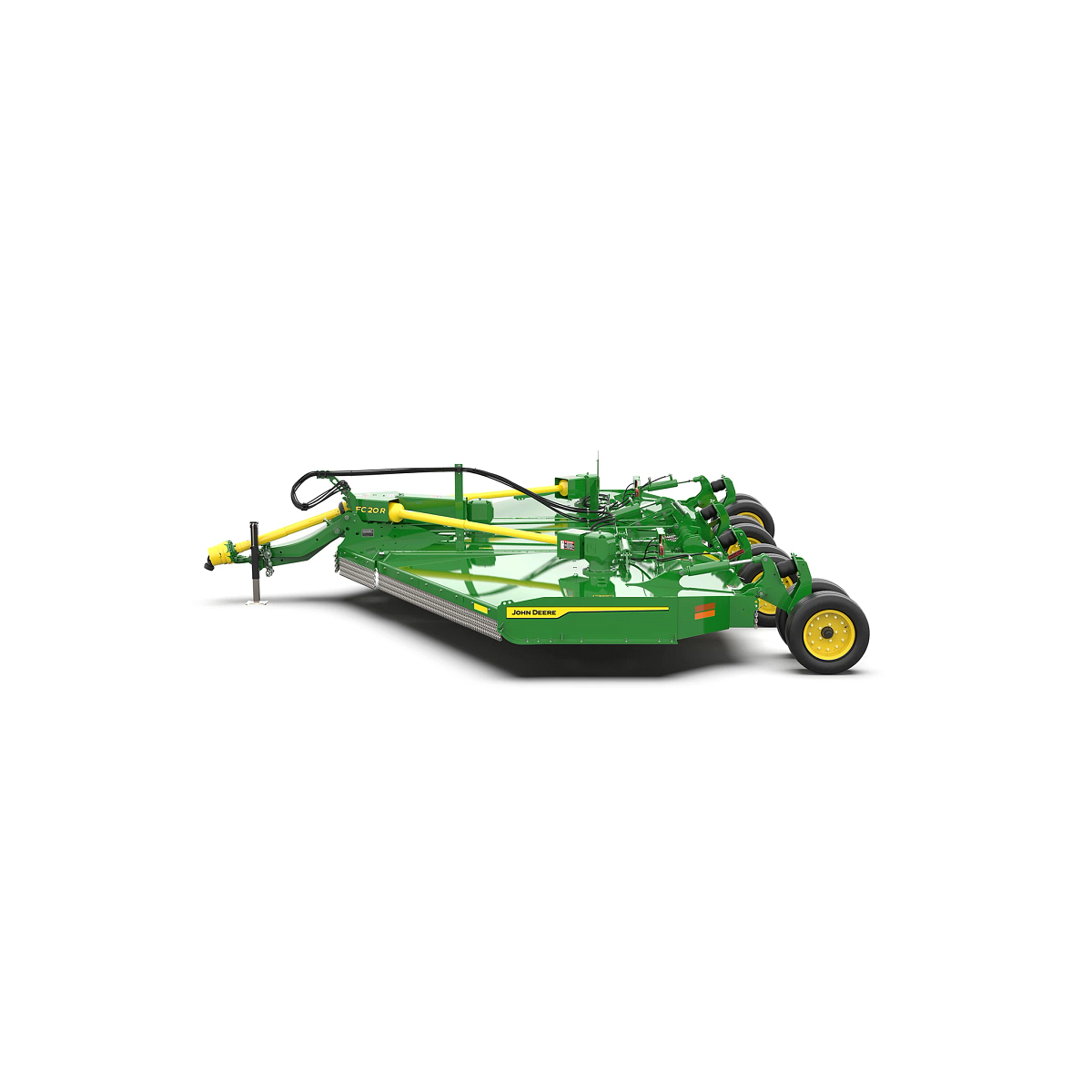

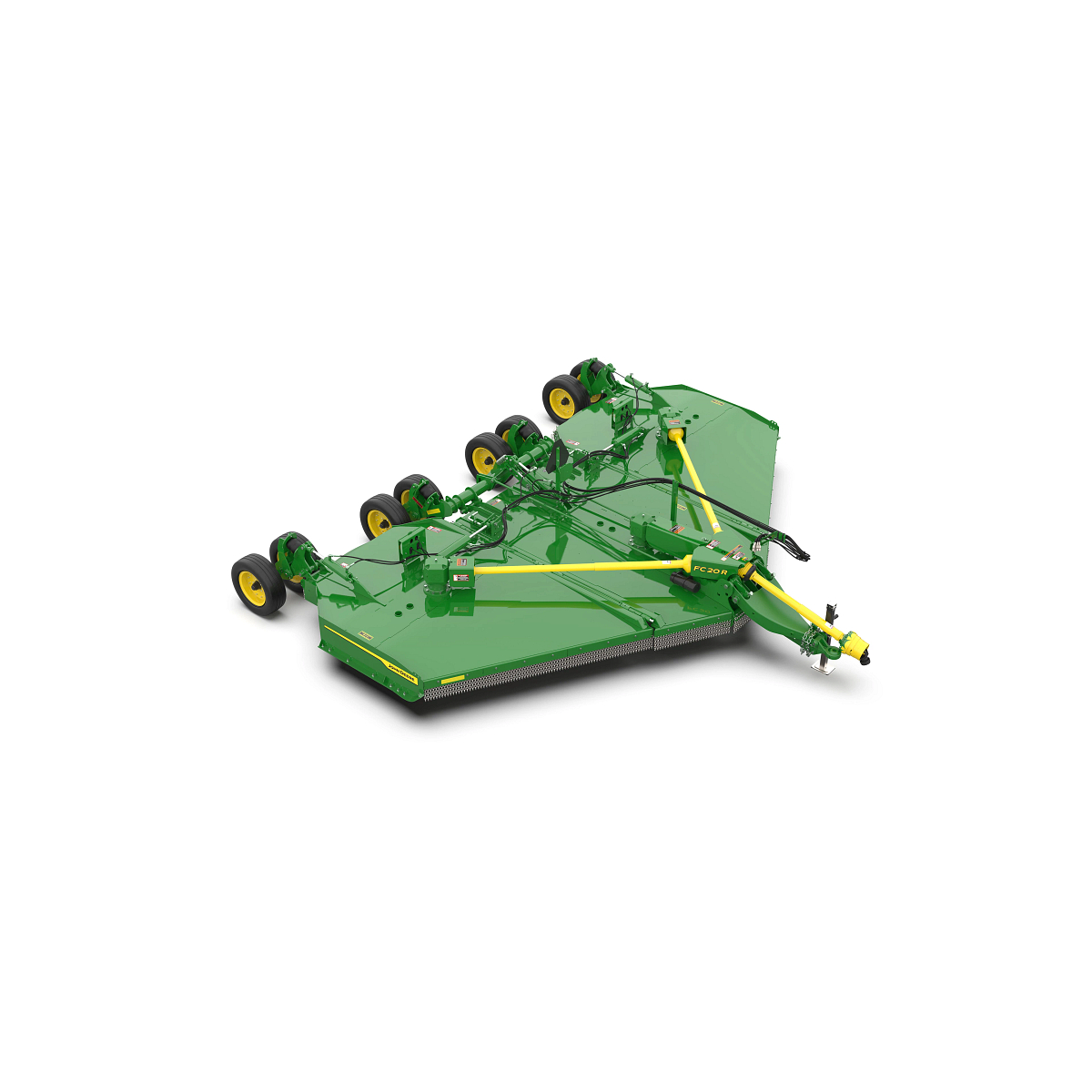

John Deere FC20R

Starting at

Key Features

20-ft Cutting Width
540 or 1000 PTO rpm
4-in. Cutting Capacity
Inward or Outward Rotation

Easy-Clean Deck Top

John Deere flex-wing rotary cutters are equipped with an easy to clean, smooth-top deck that allows material, debris, and water to be easily cleared from the top of the machine.

Advanced Safety Features

Equipped with front and rear safety-chain shields and lighting kits, the John Deere flex-wing rotary cutters are designed for safe operation and compliance with U.S. regulations.

Close-up of a green flail mower showing the rear discharge area with rows of hanging metal chains beneath the cutting housing, designed to control debris.

5-Year Limited Gearbox Warranty

Our rotary cutters are engineered for long-lasting performance and are backed by a 5-year limited gearbox warranty.

Close-up of a green mechanical gearbox and driveline assembly on a John Deere rotary cutter

Capacity

Cutting Width	20 ft
Cutting Width	6.1 m
Cutting Height	1-18 in.
Cutting Height	2.54-45.5 cm
Cutting Capacity (Diameter)	4 in.
Cutting Capacity (Diameter)	10.2 cm
Cutting Chamber Depth	10 in.
Cutting Chamber Depth	25.4 cm

Tractor Compatibility

Tractor PTO HP Range	75 hp
Tractor PTO HP Range	56 kW
Tractor PTO	540, 1000 rpm

Hitch

Type	Standard self-level tongue with 57.2-cm (22.5-in.) narrow-profile with clevis hitch, Ball-type self-level hitch, or Articulated Ring hitch
Jack Stand	Mechanical jack stand in base for all machines with hydraulically operated height, stays vertical while raising/lowering

Dimensions

Transport Width (At Wing Wheels)	9.2 ft
Transport Width (At Wing Wheels)	2.8 m
Overall Width	20.7 ft
Overall Width	6.3 m
Overall Length	18.9 ft
Overall Length	5.8 m
Deck Shape	Smooth top deck
Deck Type	Full double deck
Upper Deck Thickness	0.12 in.
Upper Deck Thickness	3 mm
Upper Deck Thickness	11 gauge
Lower Deck Thickness	0.17 in.
Lower Deck Thickness	4.5 mm
Lower Deck Thickness	7 gauge
Side Skirt Thickness	0.24 in.
Side Skirt Thickness	6 mm
Side Skirt Thickness	3 gauge
Hinges	Intermittent cast segments with segmented 3.1-cm (1.25-in.) diameter hinge pins
Approximate Weight	8084 lb.
Approximate Weight	3666 kg

Drivelines

Main Driveline Size	CV ASAE Category 6, splined telescoping profiles
Connecting Driveline Size	ASAE Category 5, splined telescoping profiles
Connecting Driveline Protection	No-seize, slip-clutch driveline

Gearcases

Number	4
Transfer Horsepower Rating - Continuous	250 hp
Transfer Horsepower Rating - Continuous	186 kW
Transfer Horsepower Rating - Peak	300 hp
Transfer Horsepower Rating - Peak	224 kW
Center Horsepower Rating - Continuous	250 hp
Center Horsepower Rating - Continuous	186 kW
Center Horsepower Rating - Peak	275 hp
Center Horsepower Rating - Peak	205 kW
Outer Horsepower Rating - Continuous	250 hp
Outer Horsepower Rating - Continuous	186 kW
Outer Horsepower Rating - Peak	275 hp
Outer Horsepower Rating - Peak	205 kW

Blades

Thickness	0.5 in.
Thickness	13 mm
Width	4 in.
Width	102 mm
Type	Suction
Overlap	6 in.
Overlap	152 mm
Blade Tip Speed - 540 RPM	268.044628 fps
Blade Tip Speed - 540 RPM	81.7 m/s
Blade Tip Speed - 1000 RPM	272.30972 fps
Blade Tip Speed - 1000 RPM	83 m/s
Blade Holder Type	Round pan stump jumper for blade carrier protection against obstruction damage, Option of double blade bar for extra shredding

Hydraulics

Wing Lift	Three SCV connected to the tractor (machine height and wing lift) Independent wing operation
Wing Flex	For transport: upward 90 degree (angle) Upward working angle: 45 degree (angle) Downward working angle: 22 degree (angle)

Wheels

Type - Option 1	5-bolt, laminated: 21x5.25x9
Type - Option 2	5-bolt, 24PR severe-duty ag: 26x9x14.5 5-bolt, 24PR severe-duty ag foam filled: 26x9x14.5
Suspension	Rubber spring suspension
Row Width Adjustment	Yes
Wing-Leveling Adjustment	Adjustable threaded clevis on wing lift cylinders

Shielding

Front	Single-row chain guard; Optional: double row
Rear	Single-row chain guard; Optional: double row

Warranty

Gearbox Warranty

5 years
