Flex-Wing Rotary Cutters

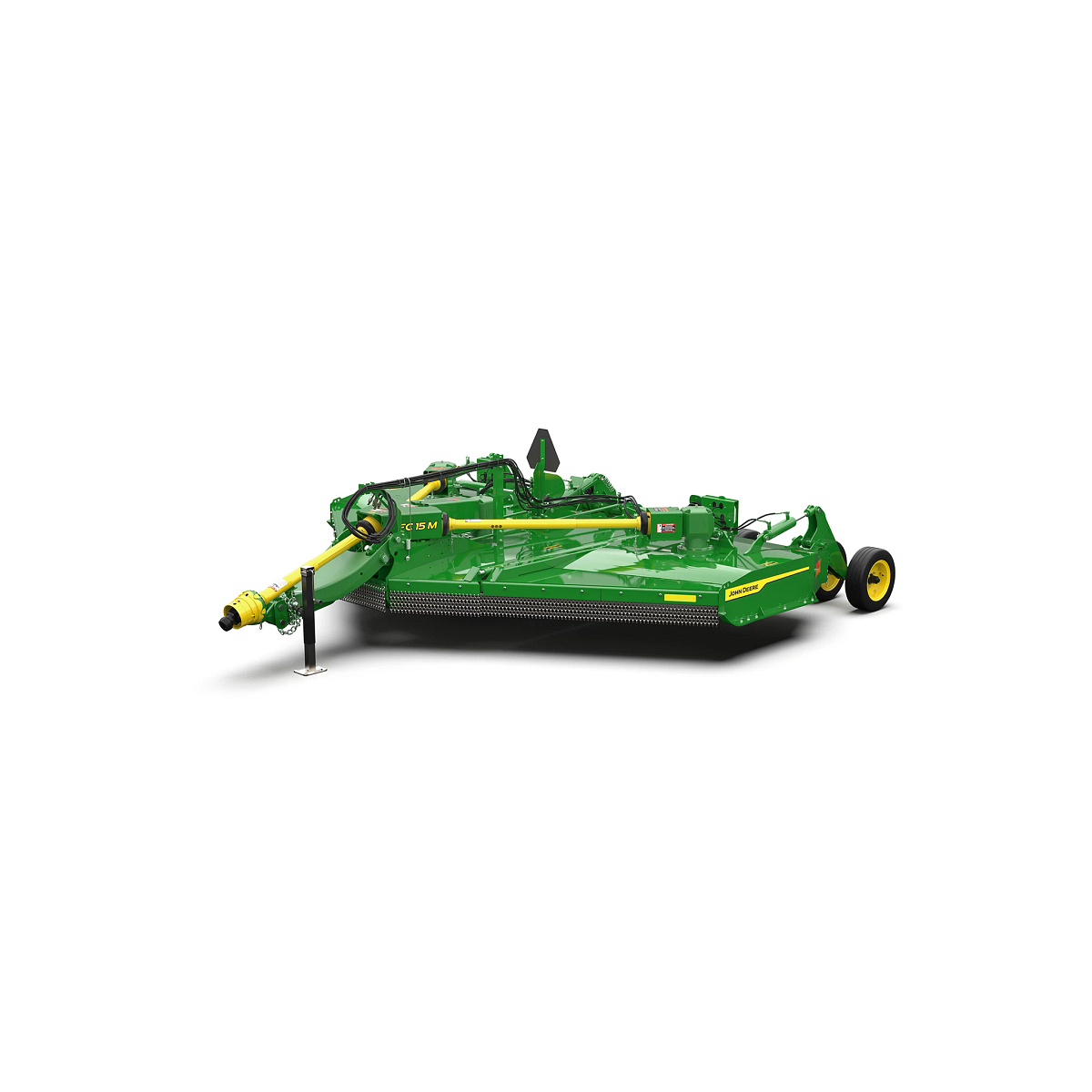

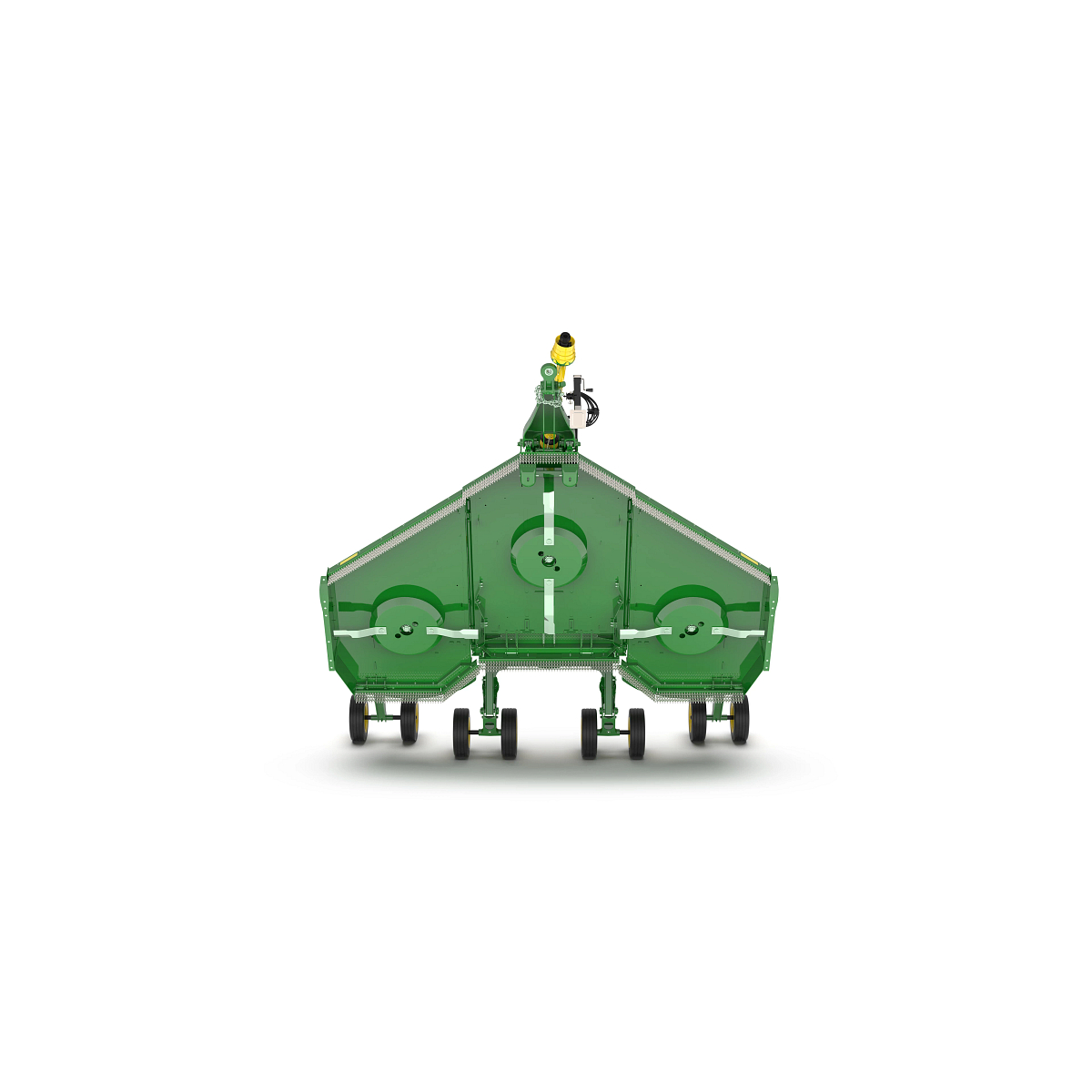

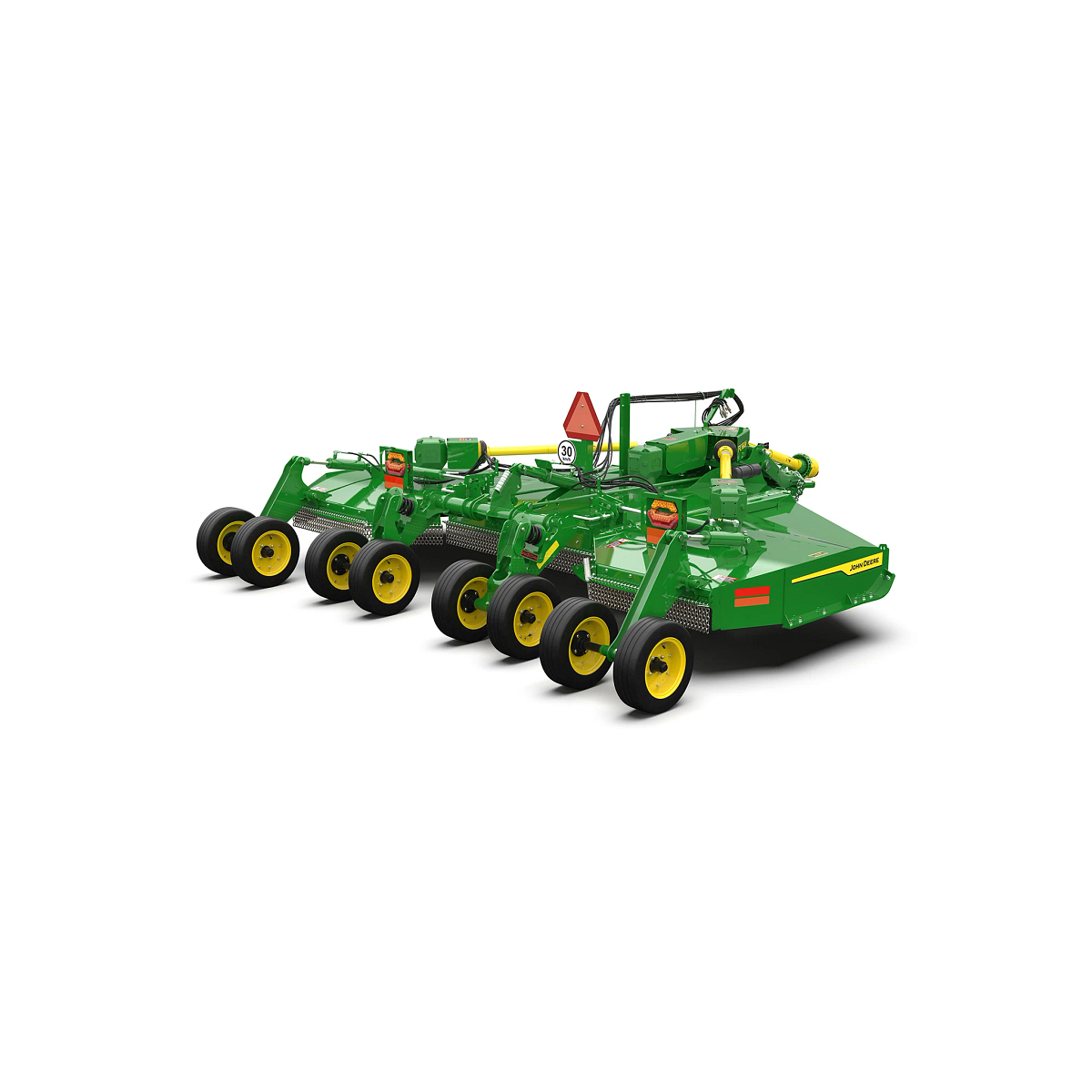

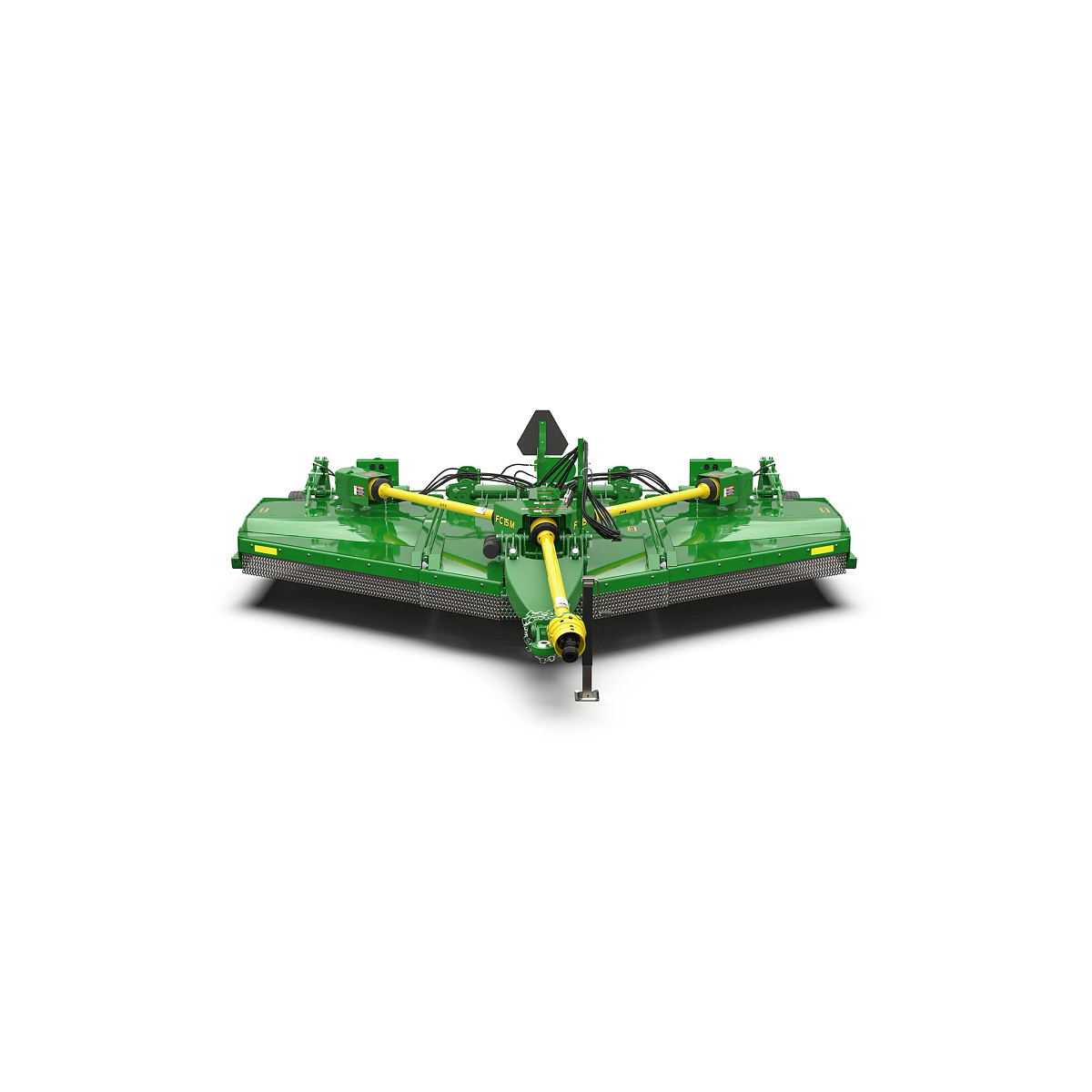

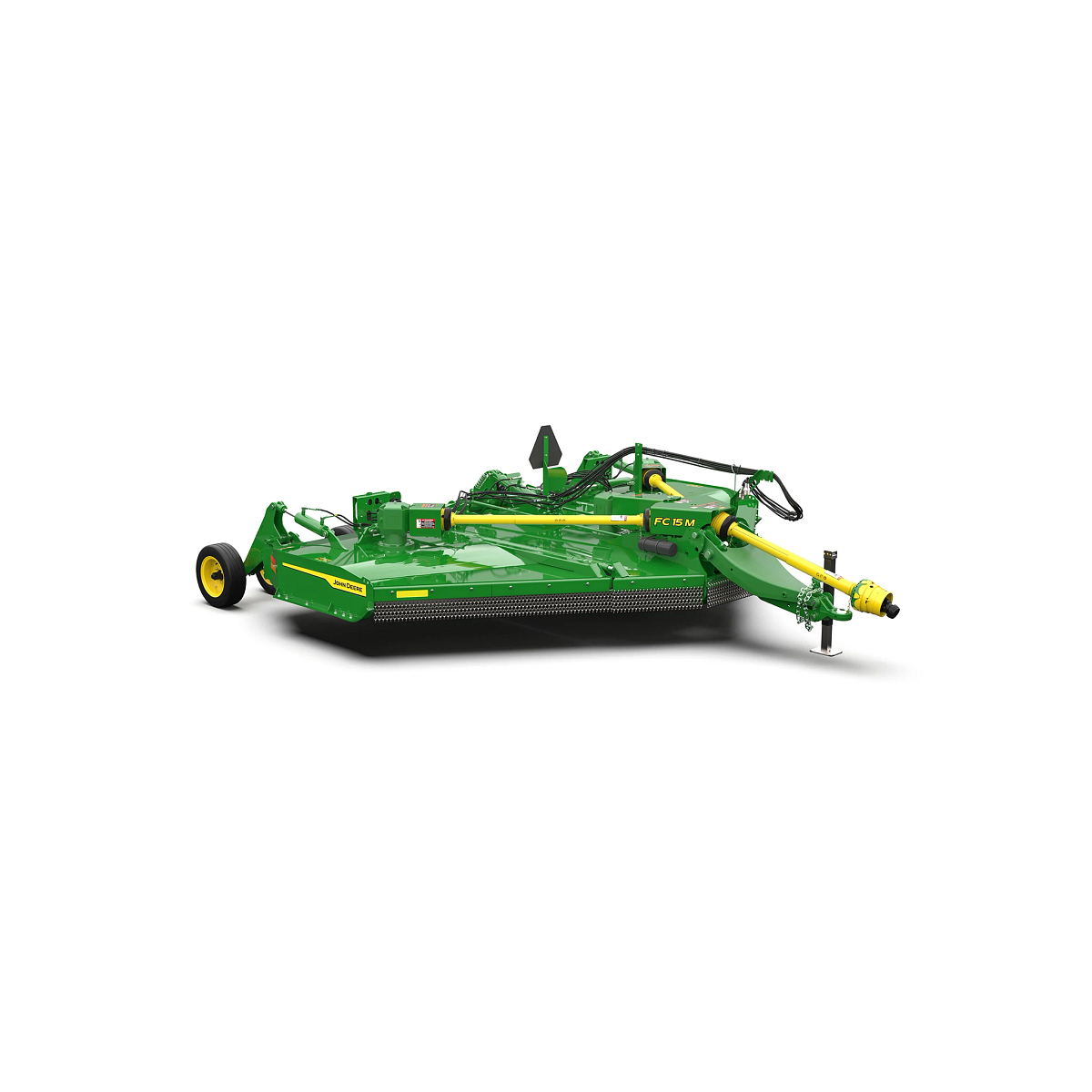

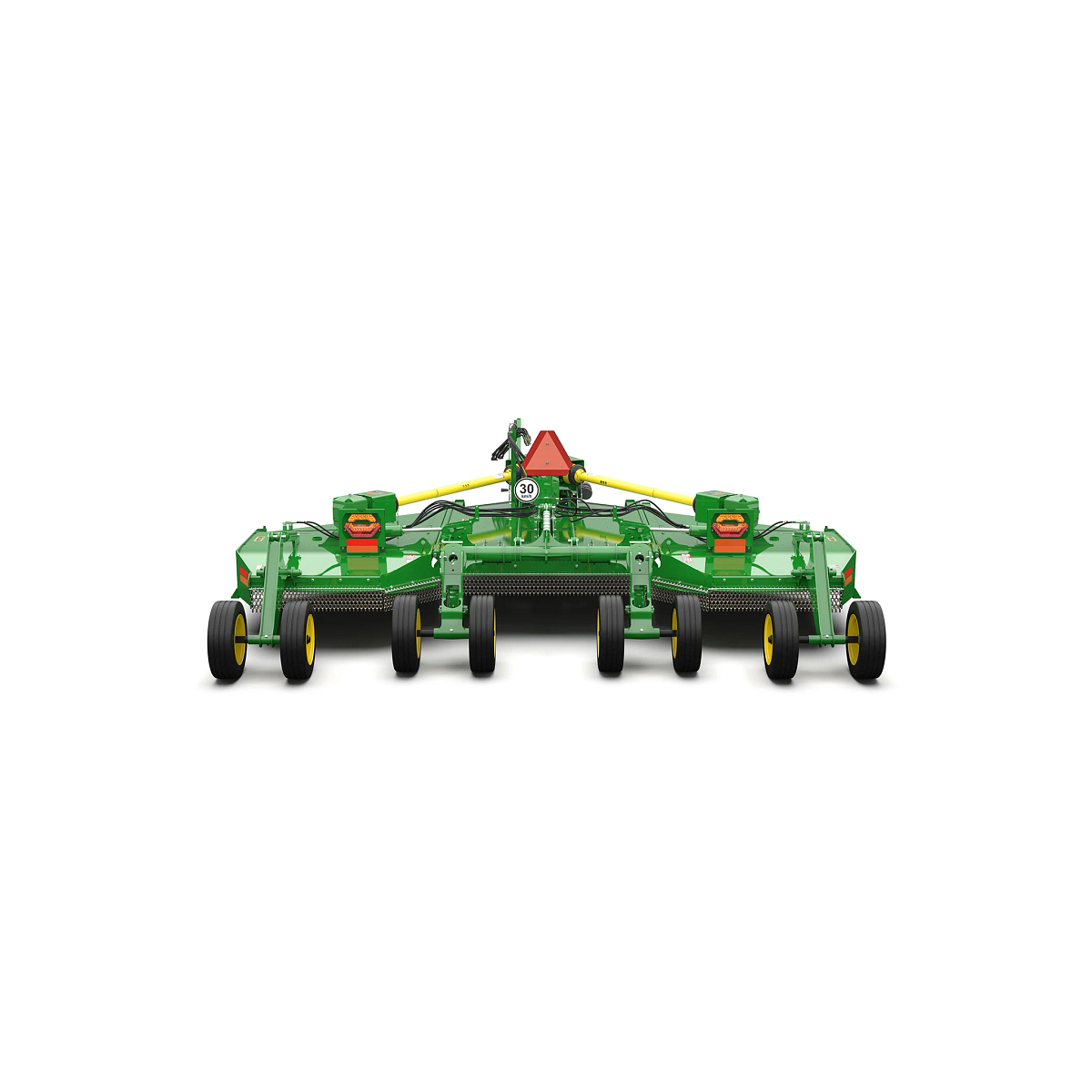

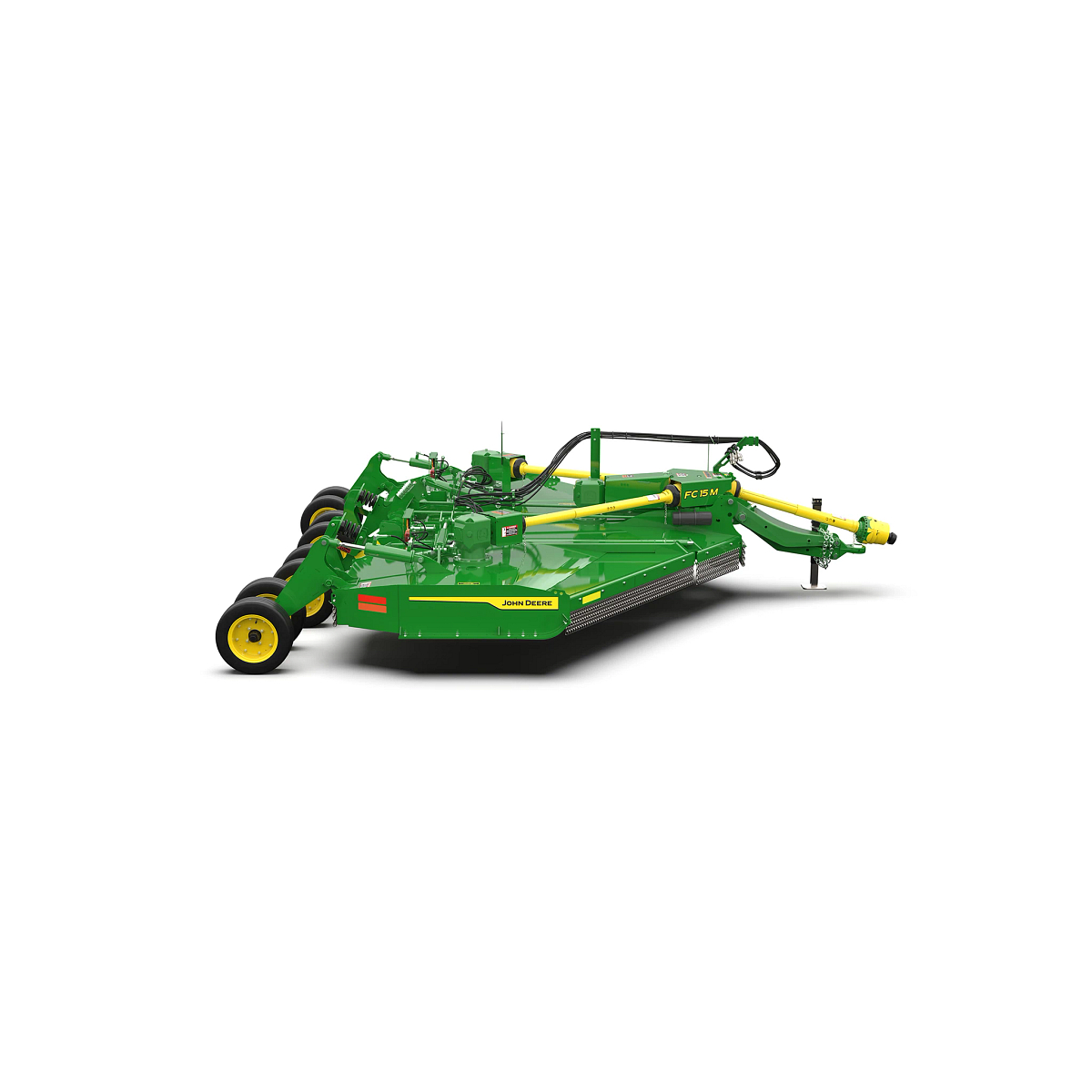

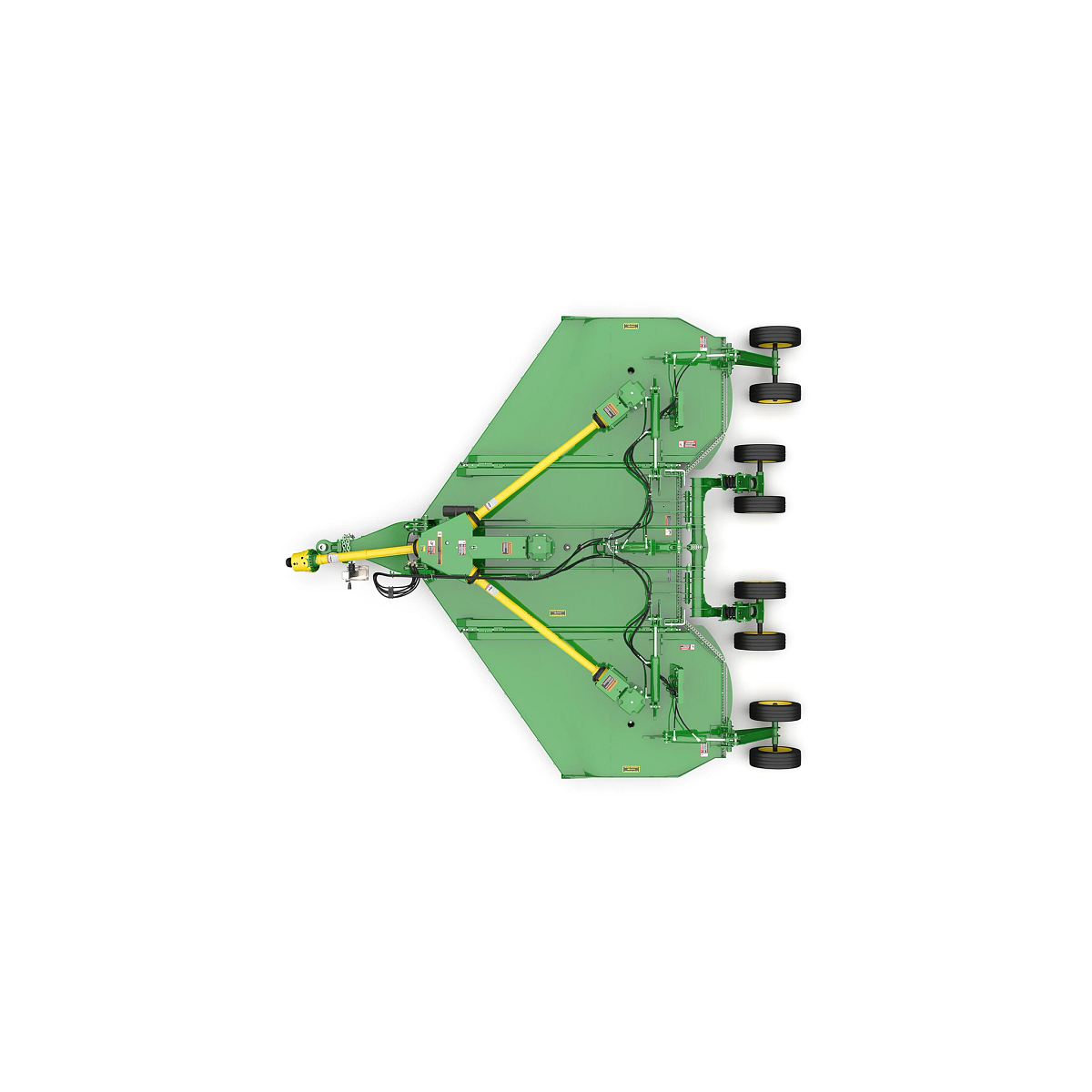

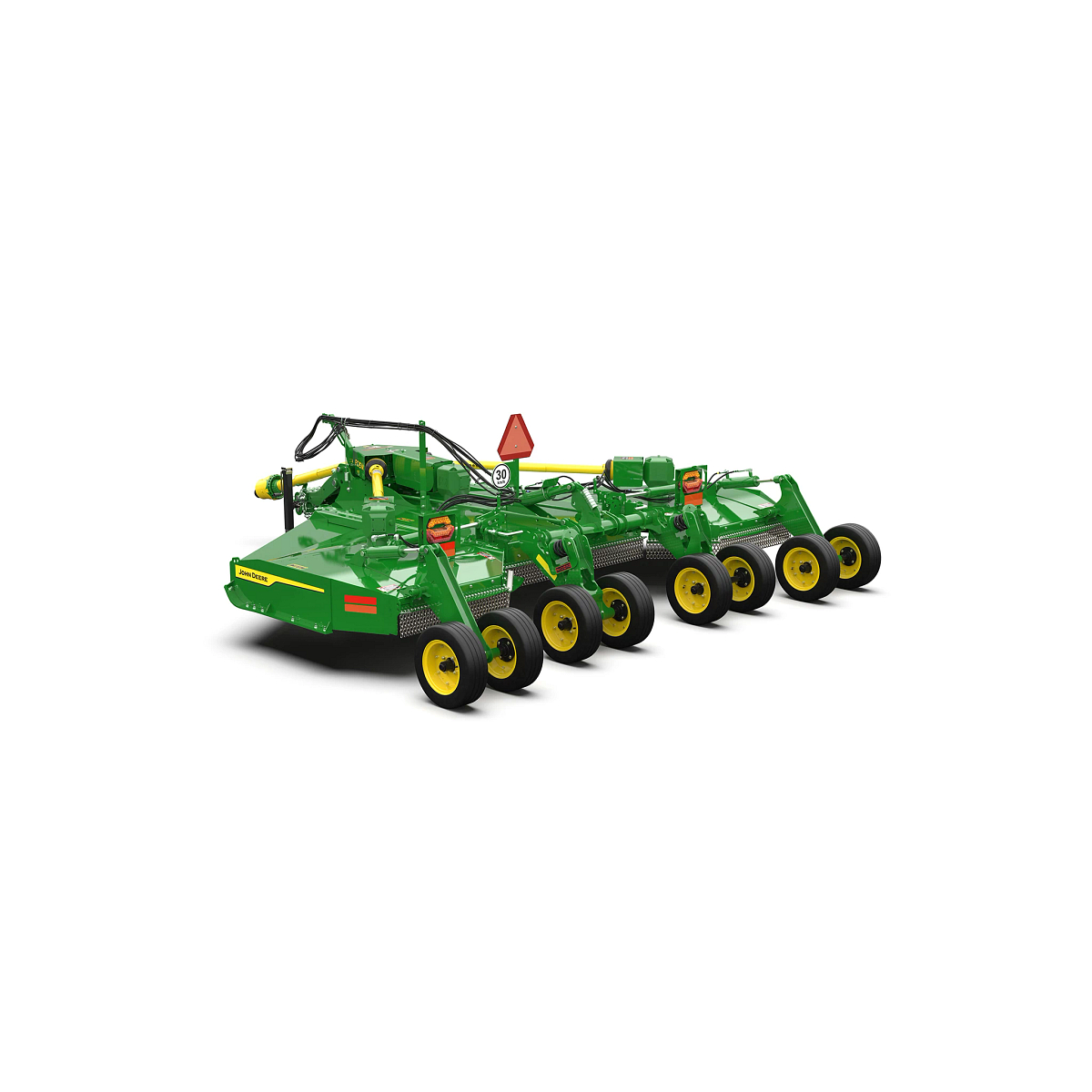

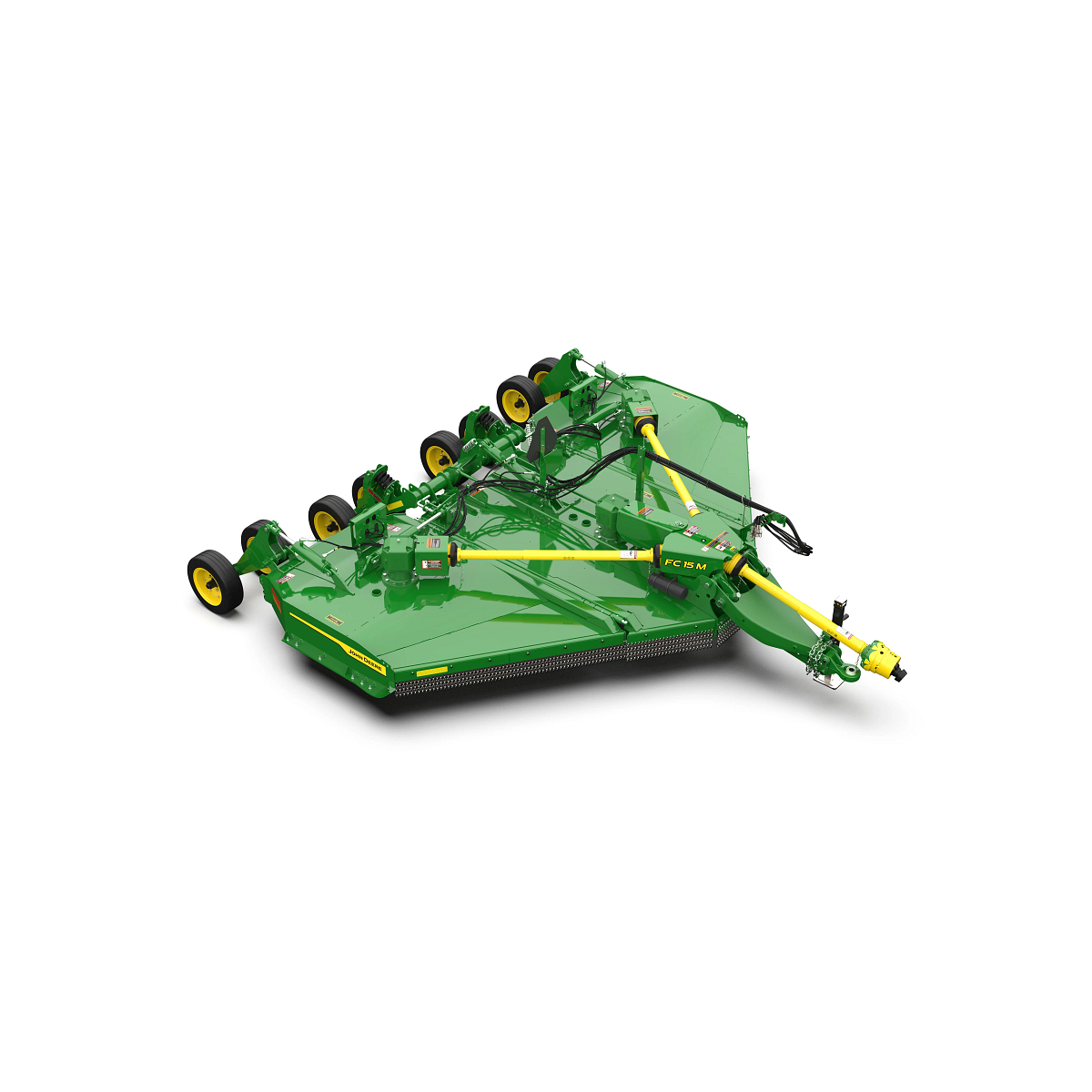

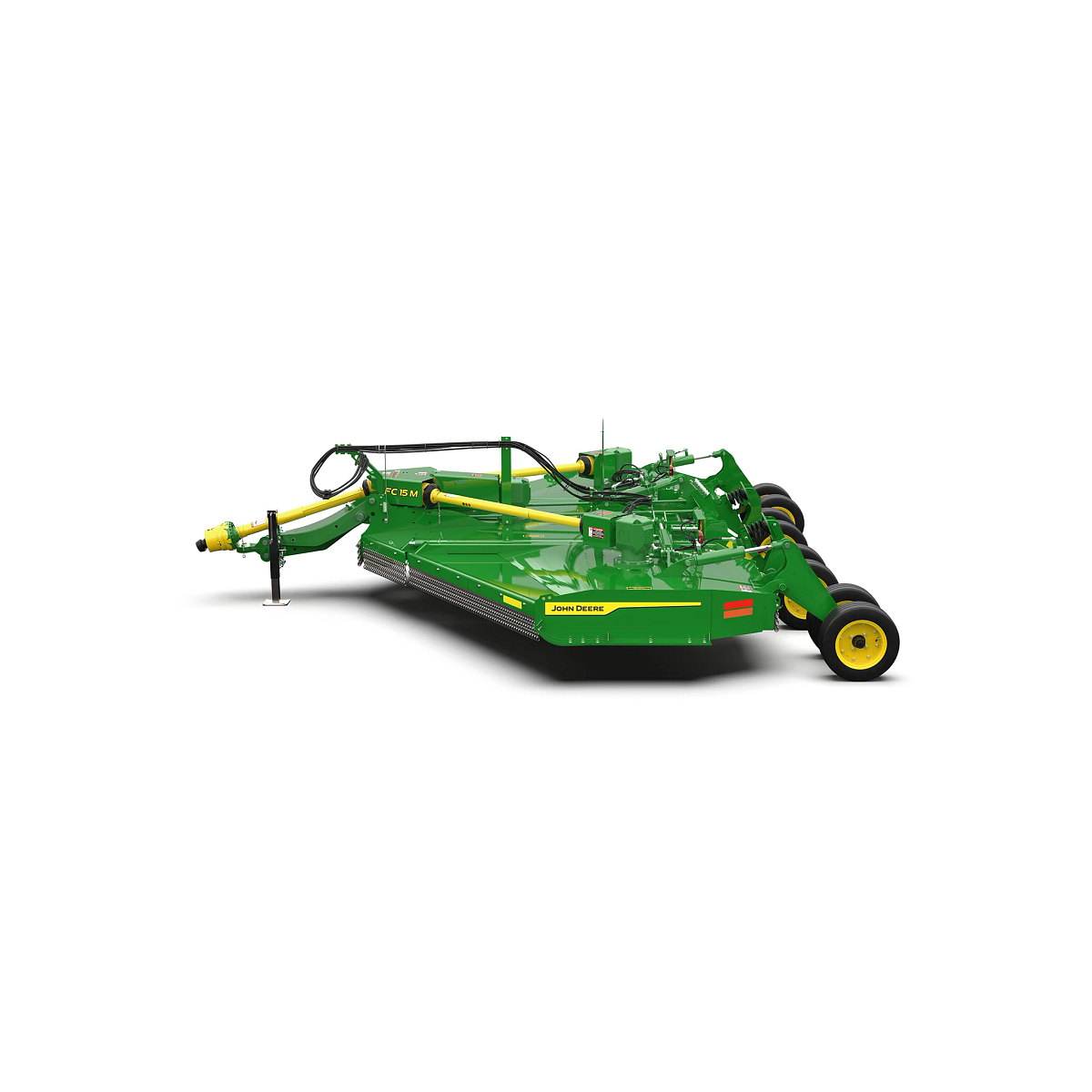

John Deere FC15M

Starting at

Key Features

15-ft Cutting Width
540 or 1000 PTO rpm
3-in. Cutting Capacity
Coil Spring Suspension

Easy-Clean Deck Top

John Deere flex-wing rotary cutters are equipped with an easy to clean, smooth-top deck that allows material, debris, and water to be easily cleared from the top of the machine.

Advanced Safety Features

Equipped with front and rear safety-chain shields and lighting kits, the John Deere flex-wing rotary cutters are designed for safe operation and compliance with U.S. regulations.

Close-up of a green flail mower showing the rear discharge area with rows of hanging metal chains beneath the cutting housing, designed to control debris.

5-Year Limited Gearbox Warranty

Our rotary cutters are engineered for long-lasting performance and are backed by a 5-year limited gearbox warranty.

Close-up of a green mechanical gearbox and driveline assembly on a John Deere rotary cutter

Capacity

Cutting Width	15 ft
Cutting Width	4.6 m
Cutting Height	1-18 in.
Cutting Height	2.54-45.5 cm
Cutting Capacity (Diameter)	3 in.
Cutting Capacity (Diameter)	7.6 cm
Cutting Chamber Depth	10 in.
Cutting Chamber Depth	25.4 cm

Tractor Compatibility

Tractor PTO HP Range	55 hp
Tractor PTO HP Range	41 kW
Tractor PTO	540, 1000 rpm

Hitch

Type	Standard self-level tongue with 57.2-cm (22.5-in.) narrow-profile with clevis hitch, Ball-type self-level hitch, Swivel hitch, or Articulated Ring hitch
Jack Stand	Mechanical jack stand in base for all machines with hydraulically operated height, stays vertical while raising/lowering

Dimensions

Transport Width (At Wing Wheels)	9.8 ft
Transport Width (At Wing Wheels)	3 m
Overall Width	15.6 ft
Overall Width	4.8 m
Overall Length	16.5 ft
Overall Length	5 m
Deck Shape	Smooth top deck
Deck Type	Double deck in cutting chamber
Upper Deck Thickness	0.12 in.
Upper Deck Thickness	3 mm
Upper Deck Thickness	11 gauge
Lower Deck Thickness	0.135 in.
Lower Deck Thickness	3.4 mm
Lower Deck Thickness	10 gauge
Side Skirt Thickness	0.24 in.
Side Skirt Thickness	6 mm
Side Skirt Thickness	3 gauge
Hinges	Intermittent cast segments with segmented 3.1-cm (1.25-in.) diameter hinge pins
Approximate Weight	5185 lb.
Approximate Weight	2352 kg

Drivelines

Main Driveline Size	CV ASAE Category 5, splined telescoping profiles
Connecting Driveline Size	ASAE Category 4, splined telescoping profiles
Connecting Driveline Protection	No-seize, slip-clutch driveline

Gearcases

Number	4
Transfer Horsepower Rating - Continuous	250 hp
Transfer Horsepower Rating - Continuous	186 kW
Transfer Horsepower Rating - Peak	300 hp
Transfer Horsepower Rating - Peak	224 kW
Center Horsepower Rating - Continuous	100 hp
Center Horsepower Rating - Continuous	75 kW
Center Horsepower Rating - Peak	216 hp
Center Horsepower Rating - Peak	161 kW
Outer Horsepower Rating - Continuous	100 hp
Outer Horsepower Rating - Continuous	75 kW
Outer Horsepower Rating - Peak	216 hp
Outer Horsepower Rating - Peak	161 kW

Blades

Thickness	0.5 in.
Thickness	13 mm
Width	4 in.
Width	102 mm
Type	Suction
Overlap	6 in.
Overlap	152 mm
Blade Tip Speed - 540 RPM	259.514444 fps
Blade Tip Speed - 540 RPM	79.1 m/s
Blade Tip Speed - 1000 RPM	263.779536 fps
Blade Tip Speed - 1000 RPM	80.4 m/s
Blade Holder Type	Round pan stump jumper for blade carrier protection against obstruction damage: 7 gauge 4.55 mm 0.18 in. Blade bar: 2.5 x 12 cm 1 x 4.7 in.

Hydraulics

Wing Lift	Two SCV connected to the tractor (machine height and wing lift) Simultaneous wing operation
Wing Flex	For transport: upward 90 degree (angle) Upward working angle: 45 degree (angle) Downward working angle: 22 degree (angle)

Wheels

Type - Option 1	4-bolt, laminated: 21x5.25x9
Type - Option 2	4-bolt, 16PR severe-duty ag: 21x7x12 4-bolt, 16PR severe-duty ag foam filled: 21x7x12
Suspension	Coil Spring suspension in center axle
Row Width Adjustment	Yes
Wing-Leveling Adjustment	Adjustable threaded clevis on wing lift cylinders

Shielding

Front	Single-row chain guard
Rear	Single-row chain guard

Warranty

Gearbox Warranty

5 years
