Flex-Wing Rotary Cutters

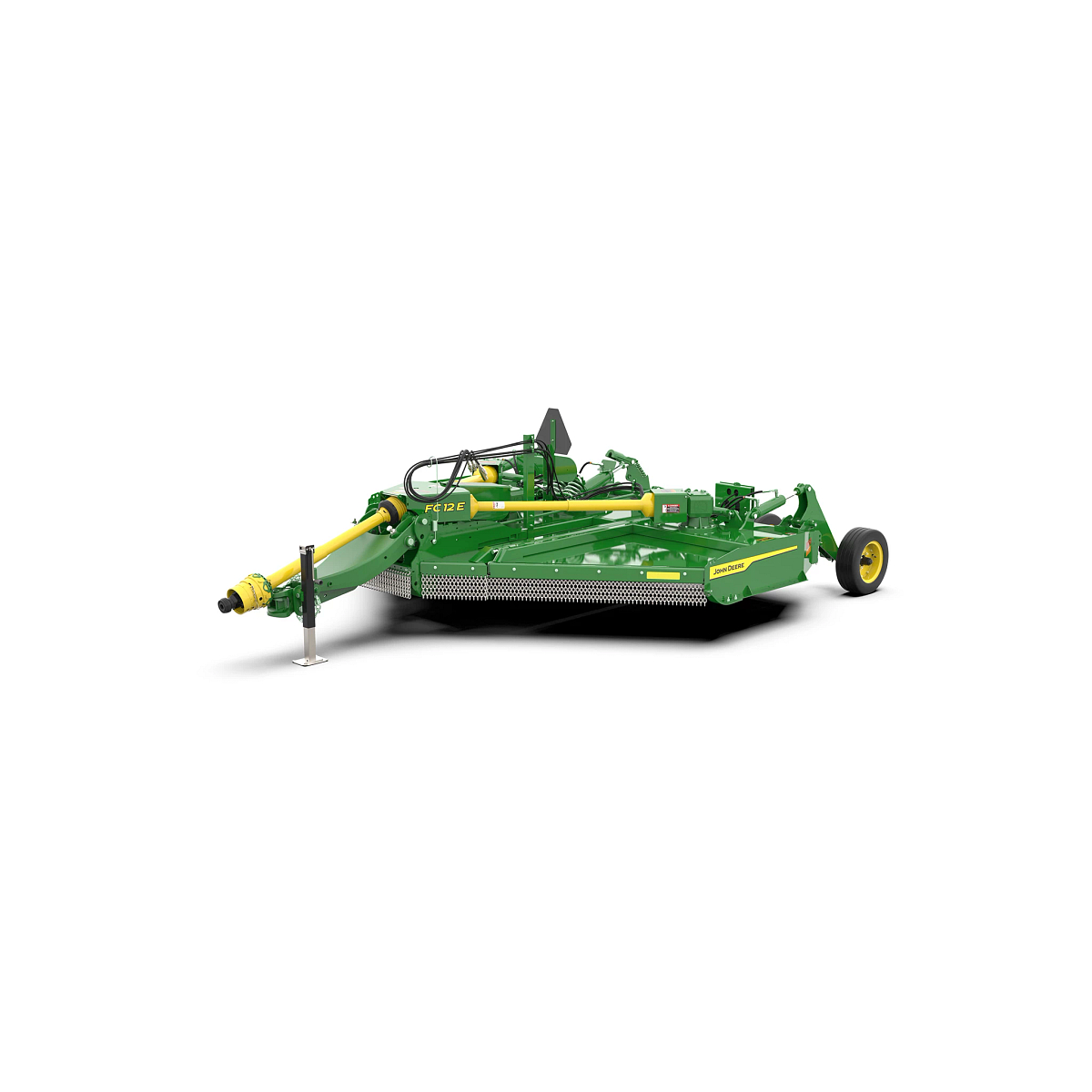

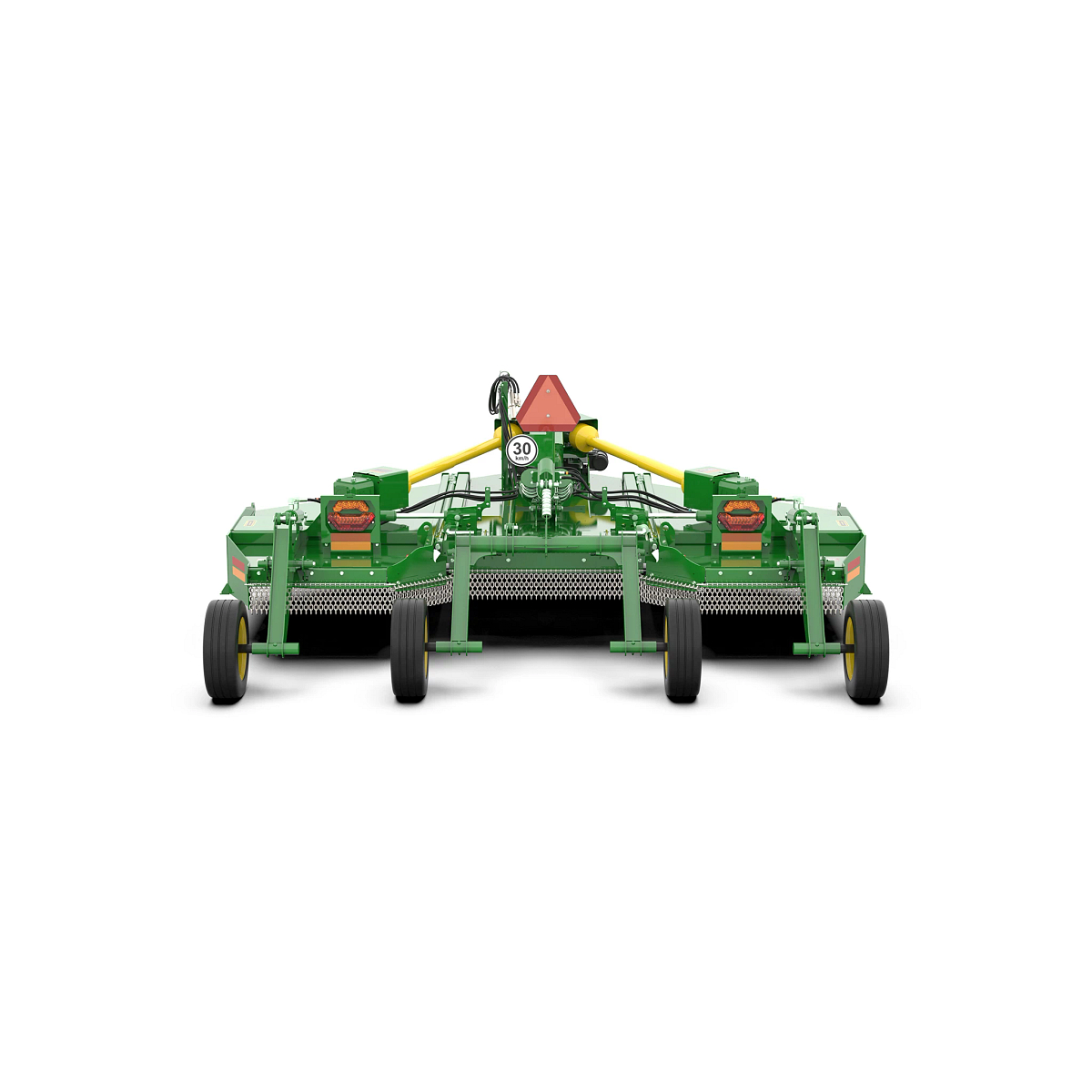

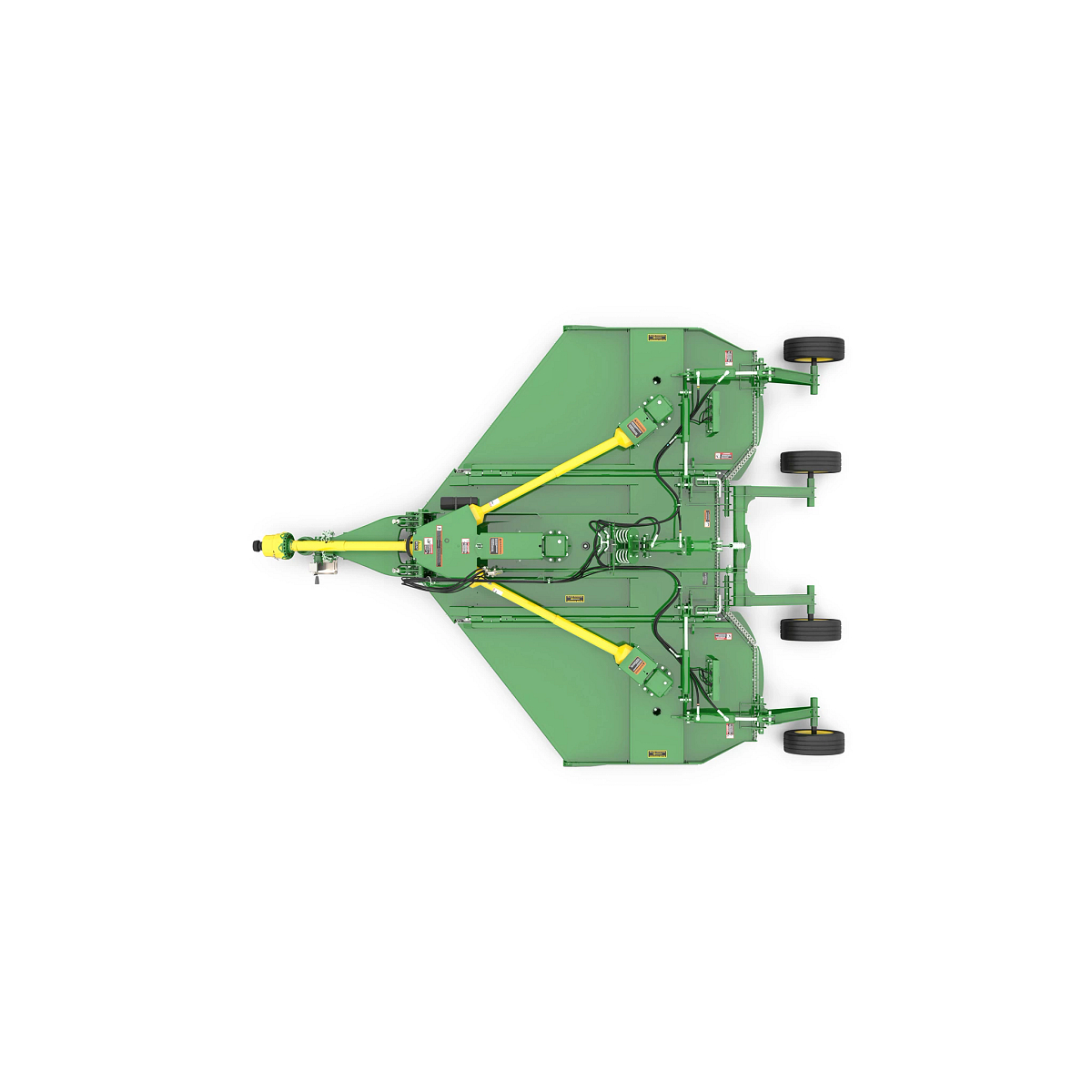

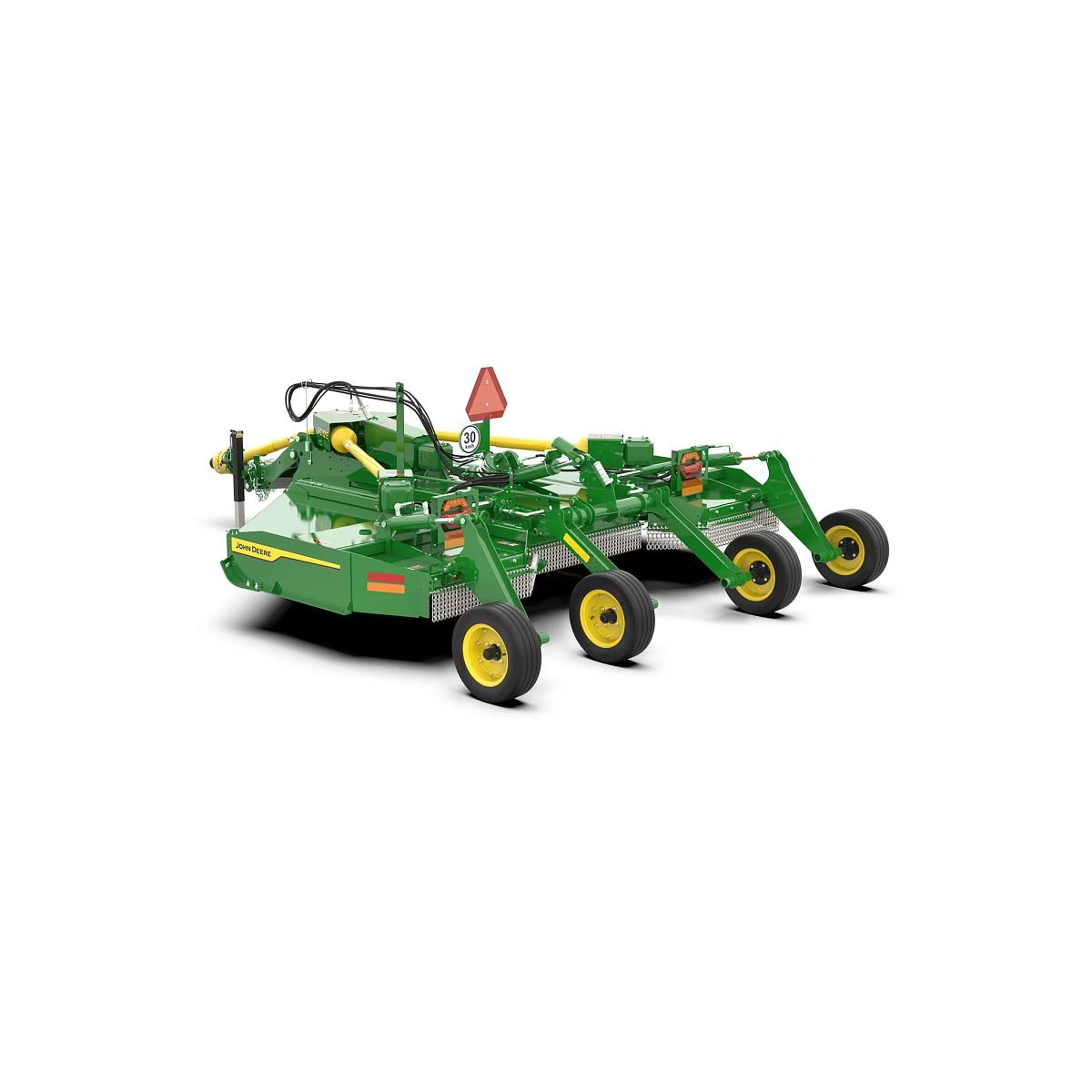

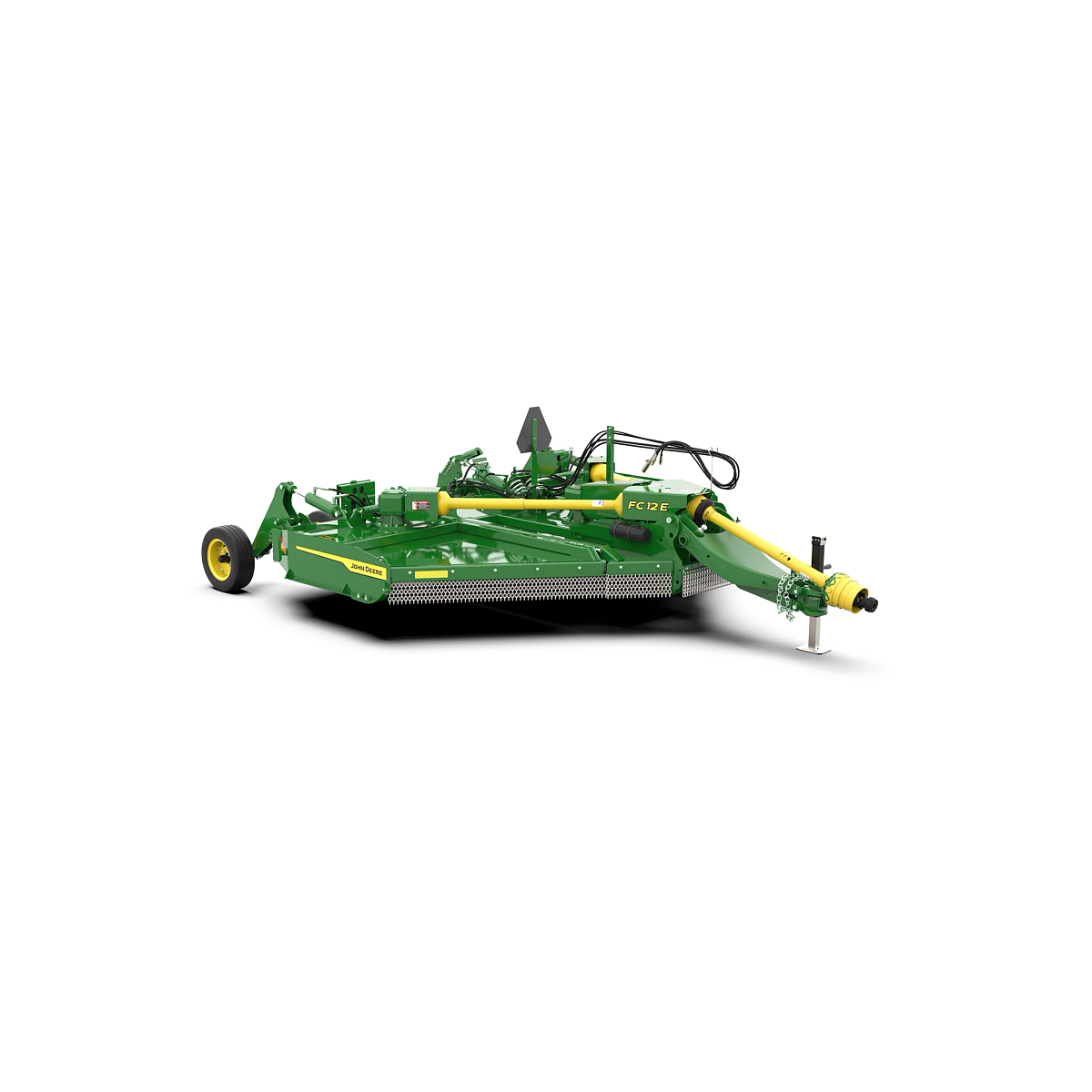

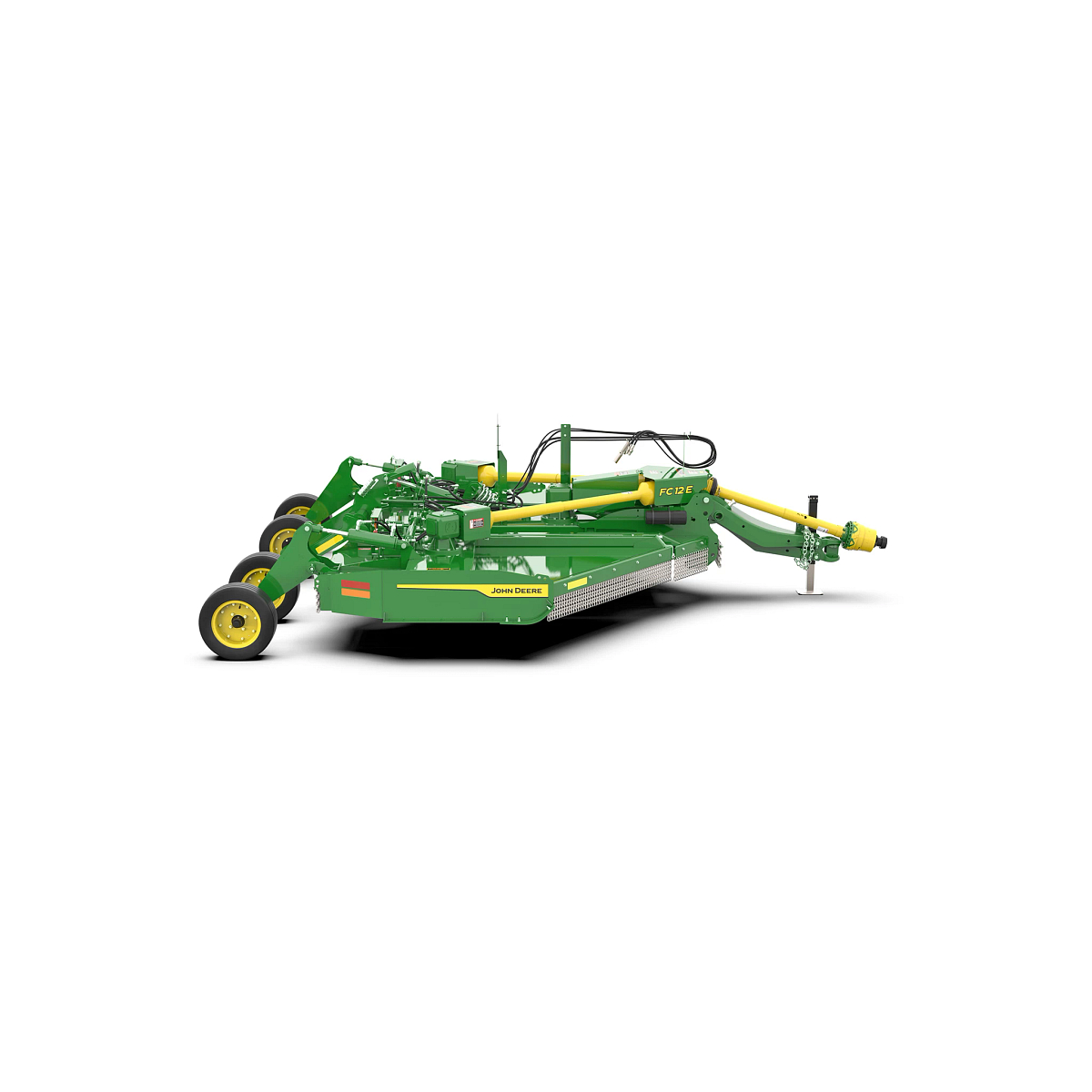

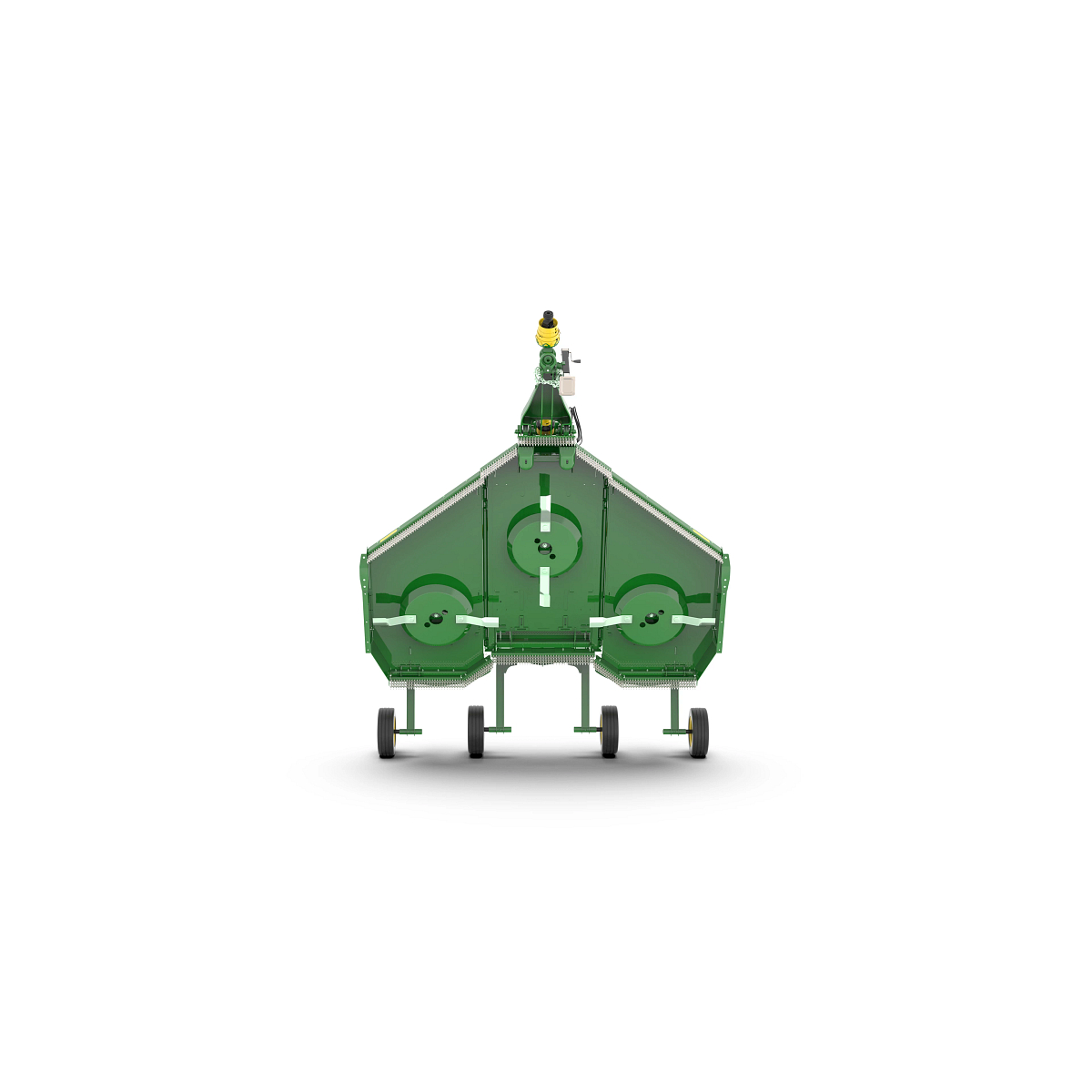

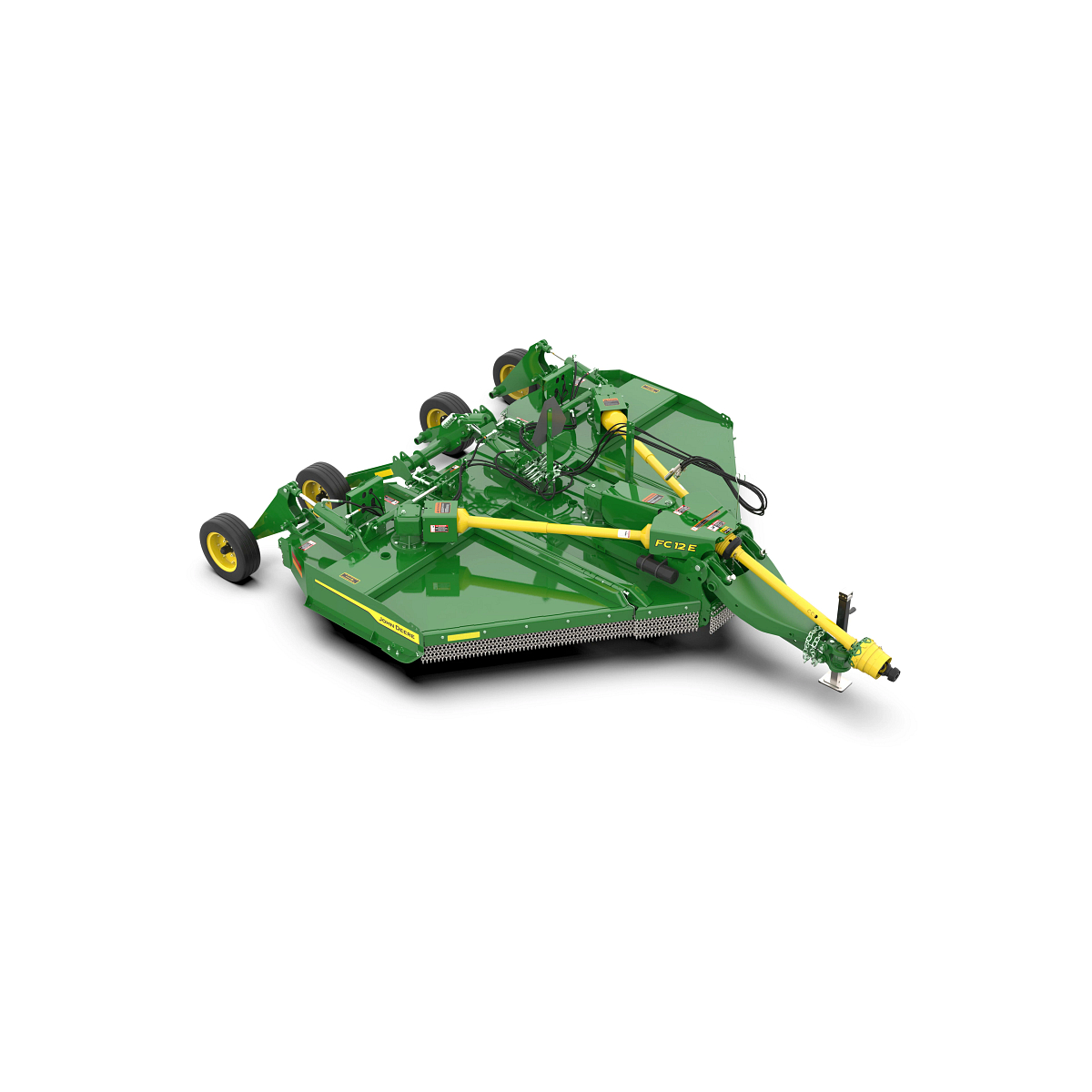

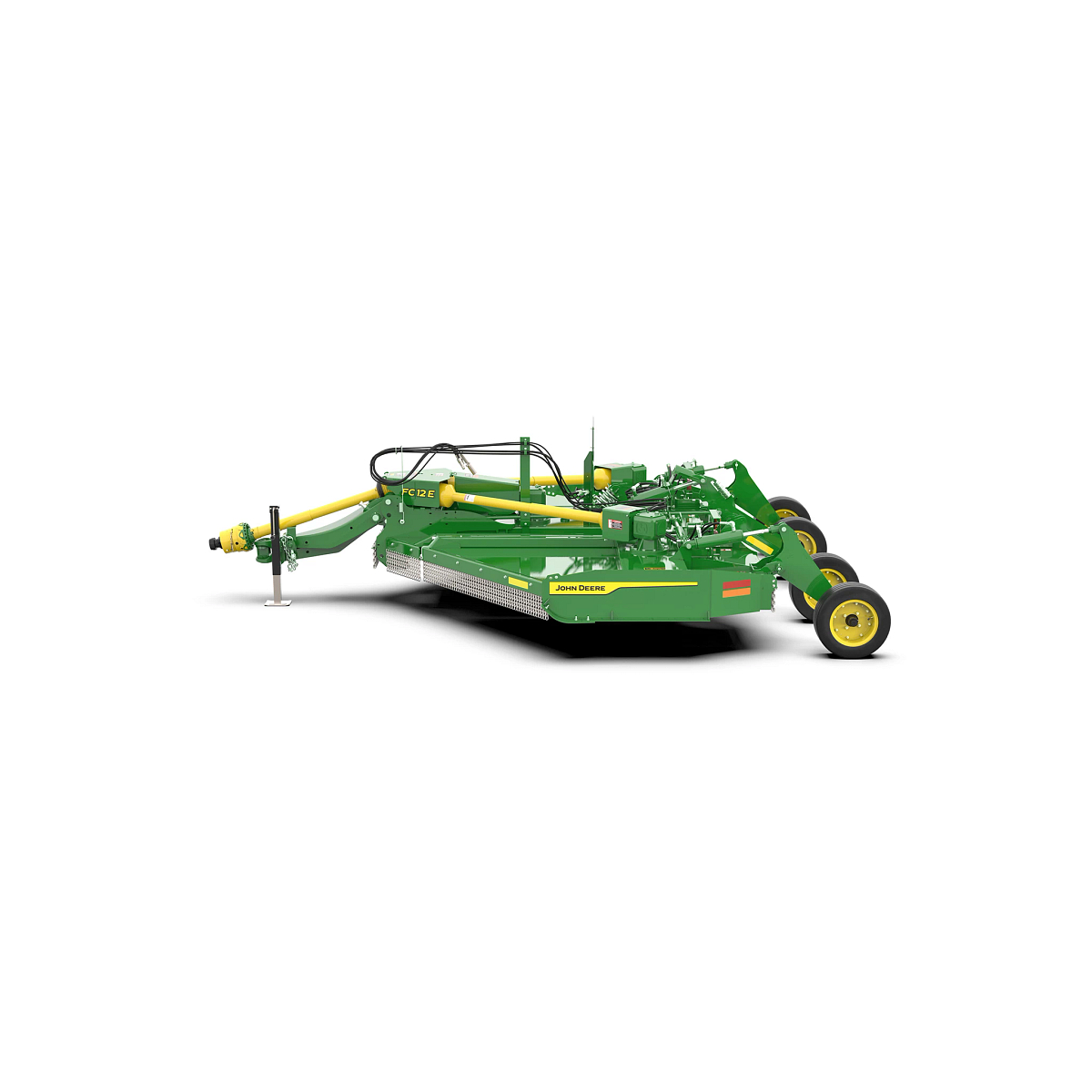

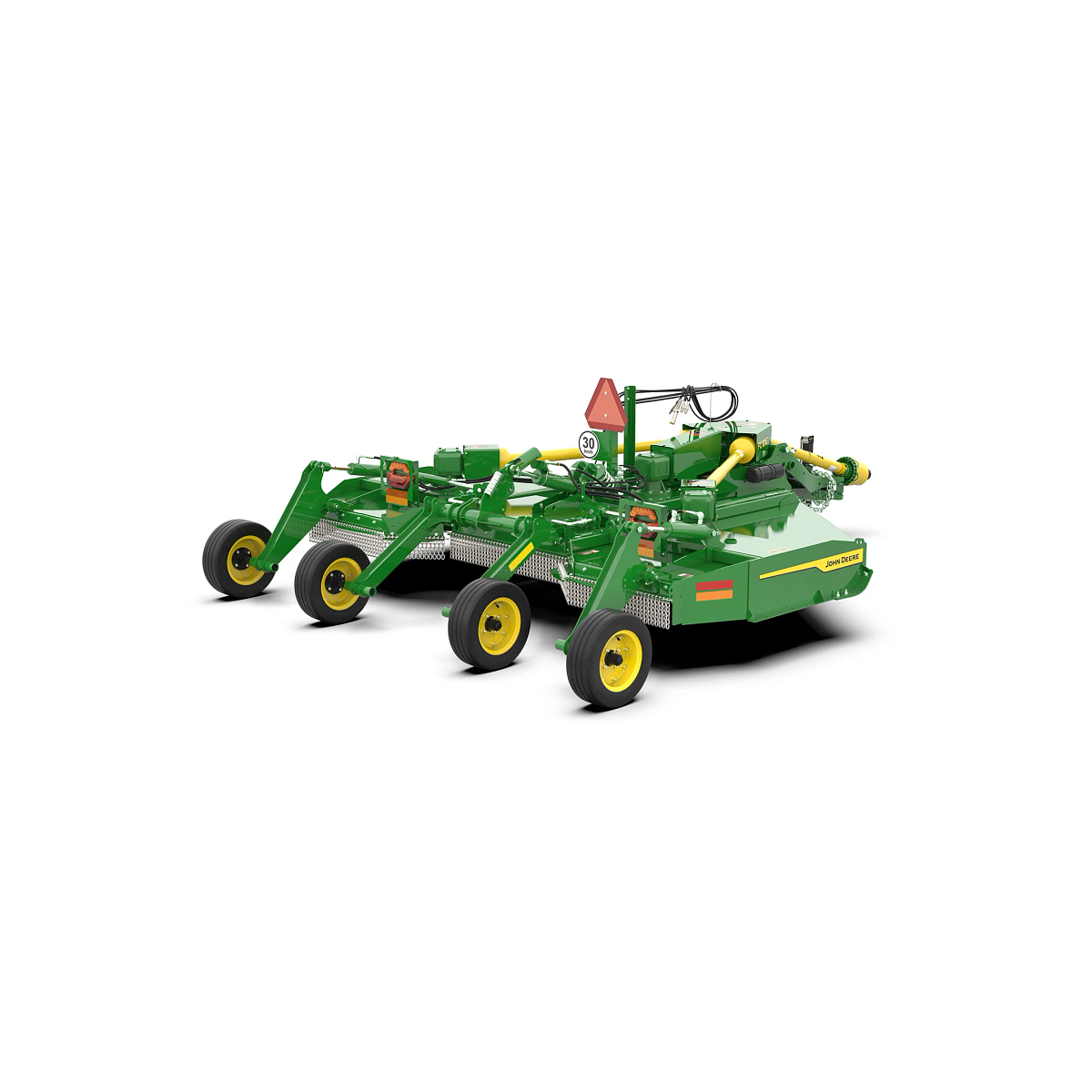

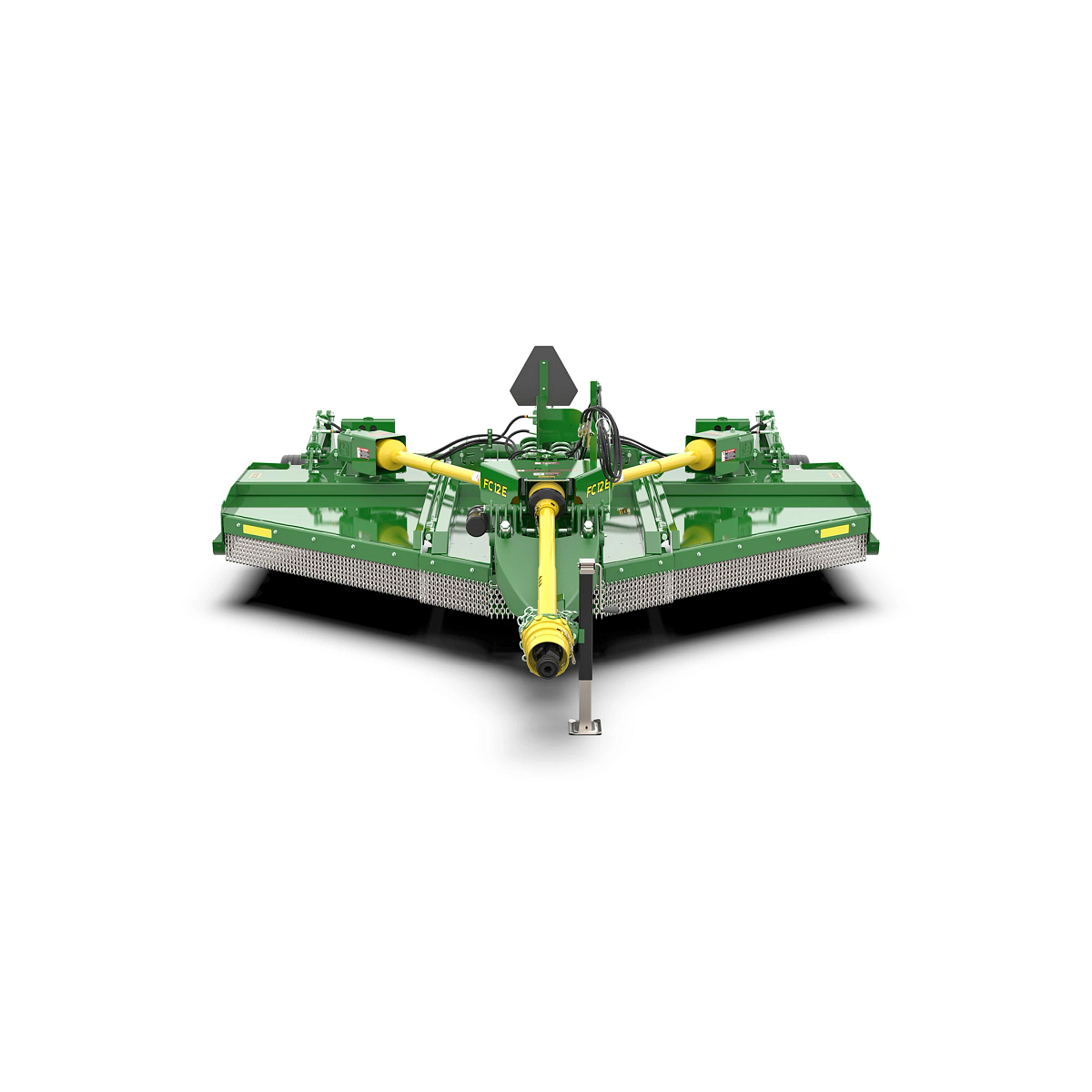

John Deere FC12E

Starting at

Key Features

12-ft Cutting Width
540 PTO rpm
40-Plus hp Tractor PTO Compatibility
1 SCV Connection, Optional 2 SCVs

Easy-Clean Deck Top

John Deere flex-wing rotary cutters are equipped with an easy to clean, smooth-top deck that allows material, debris, and water to be easily cleared from the top of the machine.

Advanced Safety Features

Equipped with front and rear safety-chain shields and lighting kits, the John Deere flex-wing rotary cutters are designed for safe operation and compliance with U.S. regulations.

Close-up of a green flail mower showing the rear discharge area with rows of hanging metal chains beneath the cutting housing, designed to control debris.

5-Year Limited Gearbox Warranty

Our rotary cutters are engineered for long-lasting performance and are backed by a 5-year limited gearbox warranty.

Close-up of a green mechanical gearbox and driveline assembly on a John Deere rotary cutter

Capacity

Cutting Width	12 ft
Cutting Width	3.7 m
Cutting Height	1-18 in.
Cutting Height	2.54-45.5 cm
Cutting Capacity (Diameter)	2 in.
Cutting Capacity (Diameter)	5.1 cm
Cutting Chamber Depth	10 in.
Cutting Chamber Depth	25.4 cm

Tractor Compatibility

Tractor PTO HP Range	40 hp
Tractor PTO HP Range	30 kW
Tractor PTO	540 rpm

Hitch

Type	Standard self-level tongue with 57.2-cm (22.5-in.) narrow-profile with clevis hitch, Option to Ball-type self-level hitch
Jack Stand	Mechanical jack stand in base for all machines with hydraulically operated height, stays vertical while raising/lowering

Dimensions

Transport Width (At Wing Wheels)	8.5 ft
Transport Width (At Wing Wheels)	2.6 m
Overall Width	12.7 ft
Overall Width	3.8 m
Overall Length	16 ft
Overall Length	4.9 m
Deck Shape	Flat
Deck Type	Single
Deck Thickness	0.12 in.
Deck Thickness	3 mm
Deck Thickness	11 gauge
Side Skirt Thickness	0.24 in.
Side Skirt Thickness	6 mm
Side Skirt Thickness	3 gauge
Hinges	Intermittent cast segments with segmented 3.1-cm (1.25-in.) diameter hinge pins
Approximate Weight	3955 lb.
Approximate Weight	1794 kg

Drivelines

Main Driveline Size	CV ASAE Category 4, splined telescoping profiles
Connecting Driveline Size	ASAE Category 3, splined telescoping profiles
Connecting Driveline Protection	No-seize, slip-clutch driveline

Gearcases

Number	4
Transfer Horsepower Rating - Continuous	250 hp
Transfer Horsepower Rating - Continuous	186 kW
Transfer Horsepower Rating - Peak	300 hp
Transfer Horsepower Rating - Peak	224 kW
Center Horsepower Rating - Continuous	75 hp
Center Horsepower Rating - Continuous	56 kW
Center Horsepower Rating - Peak	100 hp
Center Horsepower Rating - Peak	75 kW
Outer Horsepower Rating - Continuous	75 hp
Outer Horsepower Rating - Continuous	56 kW
Outer Horsepower Rating - Peak	100 hp
Outer Horsepower Rating - Peak	75 kW

Blades

Thickness	0.5 in.
Thickness	13 mm
Width	4 in.
Width	102 mm
Type	Suction
Overlap	6 in.
Overlap	152 mm
Blade Tip Speed - 540 RPM	253.608932 fps
Blade Tip Speed - 540 RPM	77.3 m/s
Blade Holder Type	Round pan stump jumper for blade carrier protection against obstruction damage: 7 gauge 4.55 mm 0.18 in. Blade bar: 2.5 x 12 cm 1 x 4.7 in.

Hydraulics

Wing Lift	One SCV connected to the tractor (machine height plus wing lift) , Option for 2 SCV for simultaneous operation
Wing Flex	For transport: upward 90 degree (angle) Upward working angle: 45 degree (angle) Downward working angle: 22 degree (angle)

Wheels

Type - Option 1	4-bolt, laminated: 21x5.25x9
Type - Option 2	4-bolt, 16PR severe-duty ag: 21x7x12
Suspension	Center deck coil spring suspension
Row Width Adjustment	No
Wing-Leveling Adjustment	Adjustable threaded clevis on wing lift cylinders

Shielding

Front	Single-row chain guard
Rear	Single-row chain guard

Warranty

Gearbox Warranty

5 years
