John Deere
FL1262
Flail Mowers and Shredders

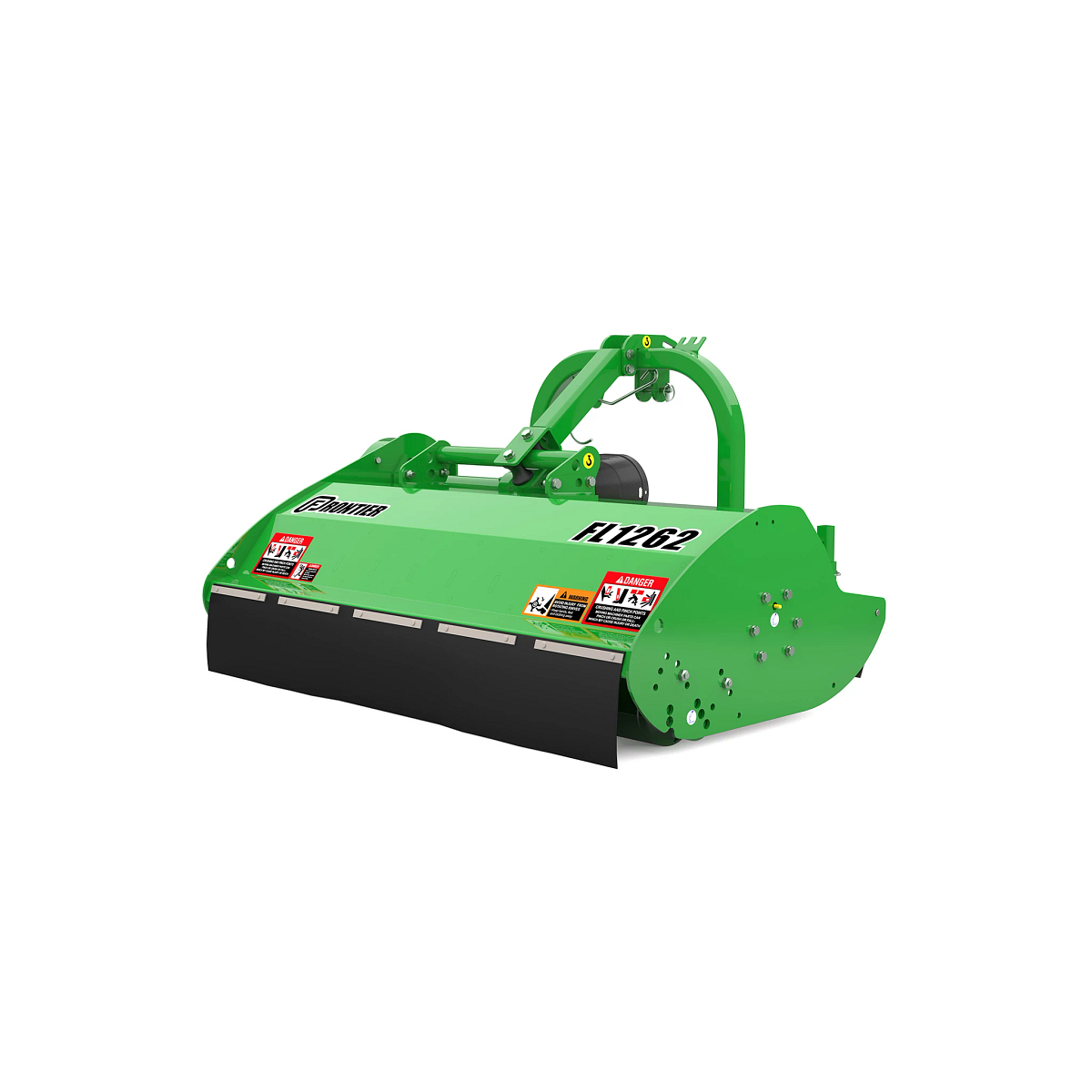

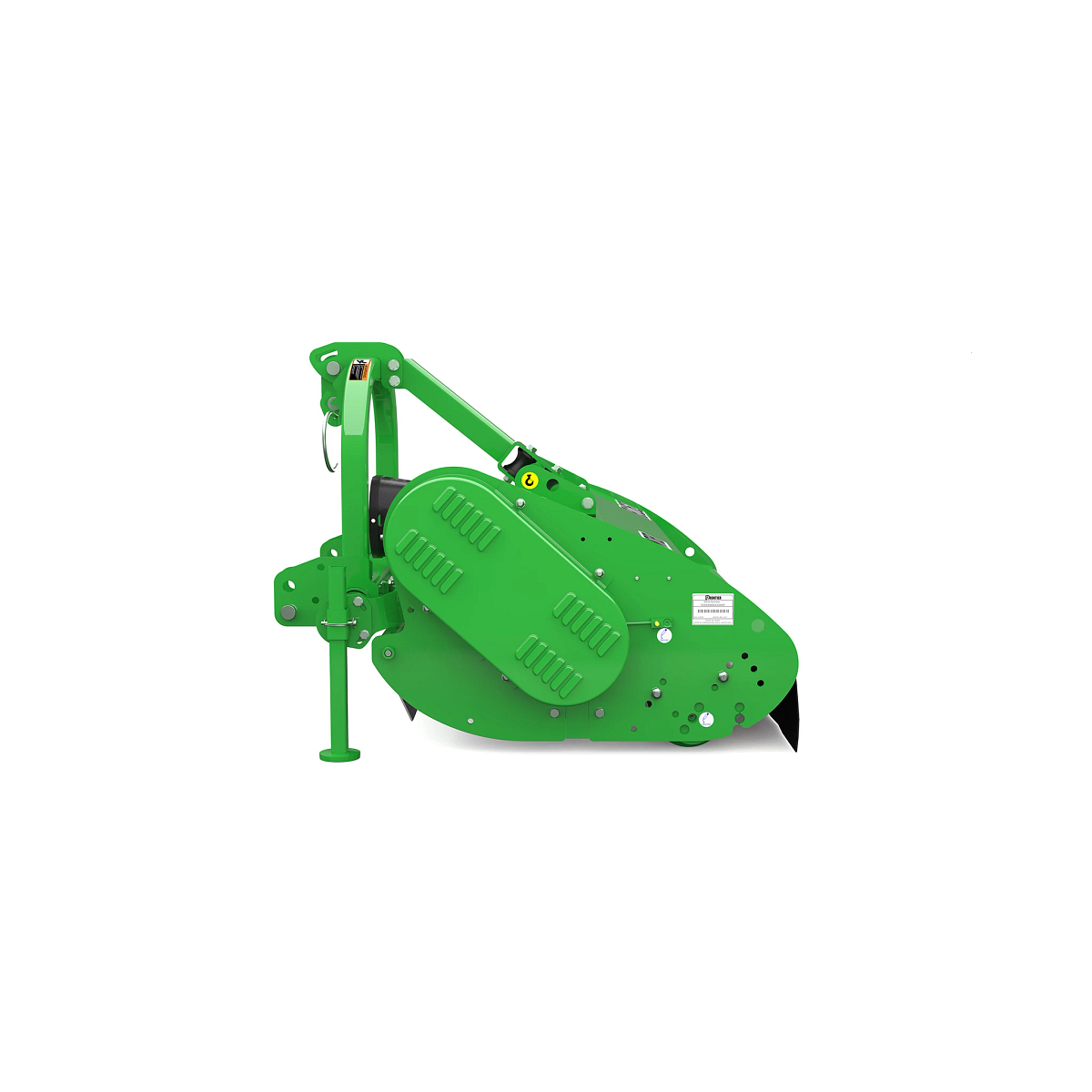

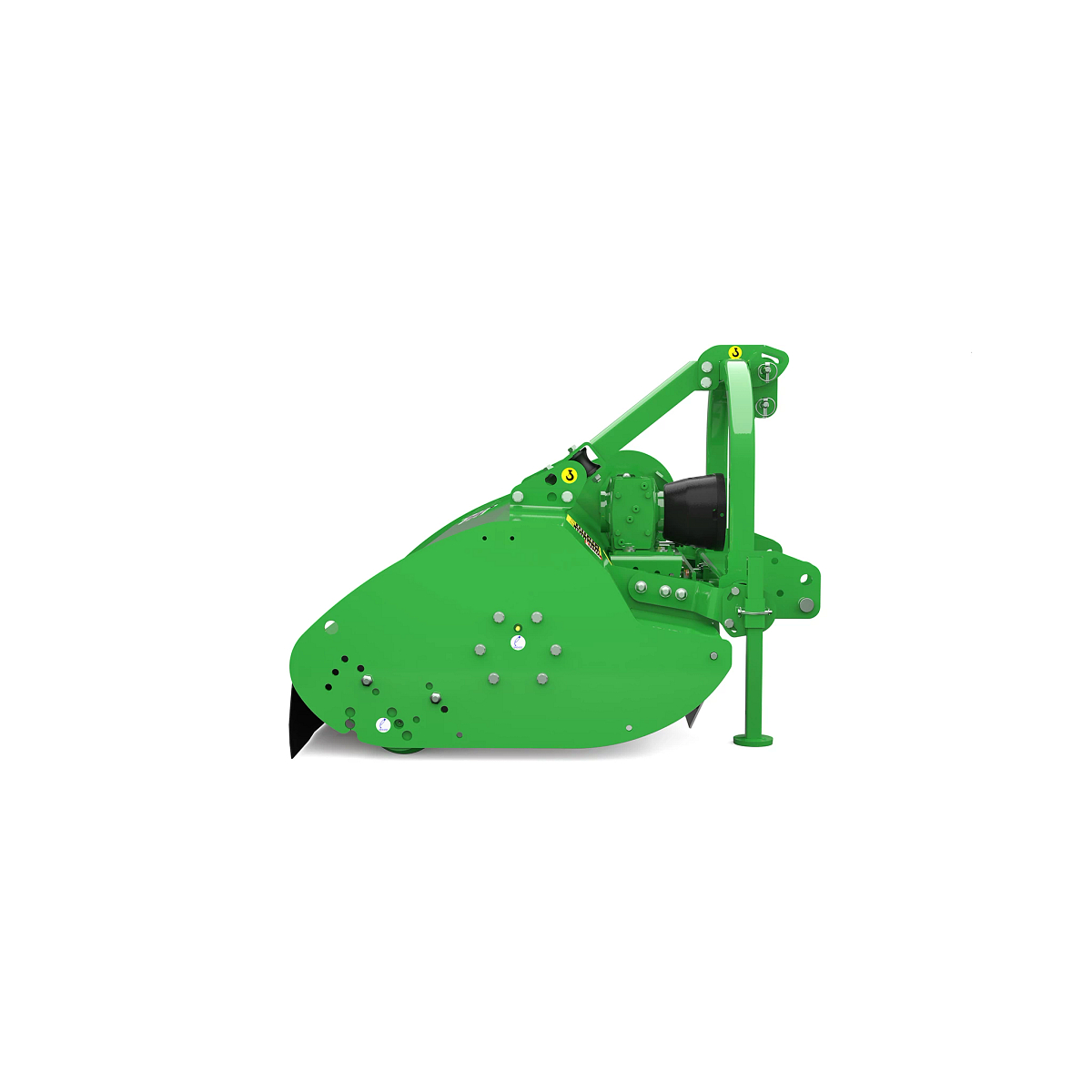

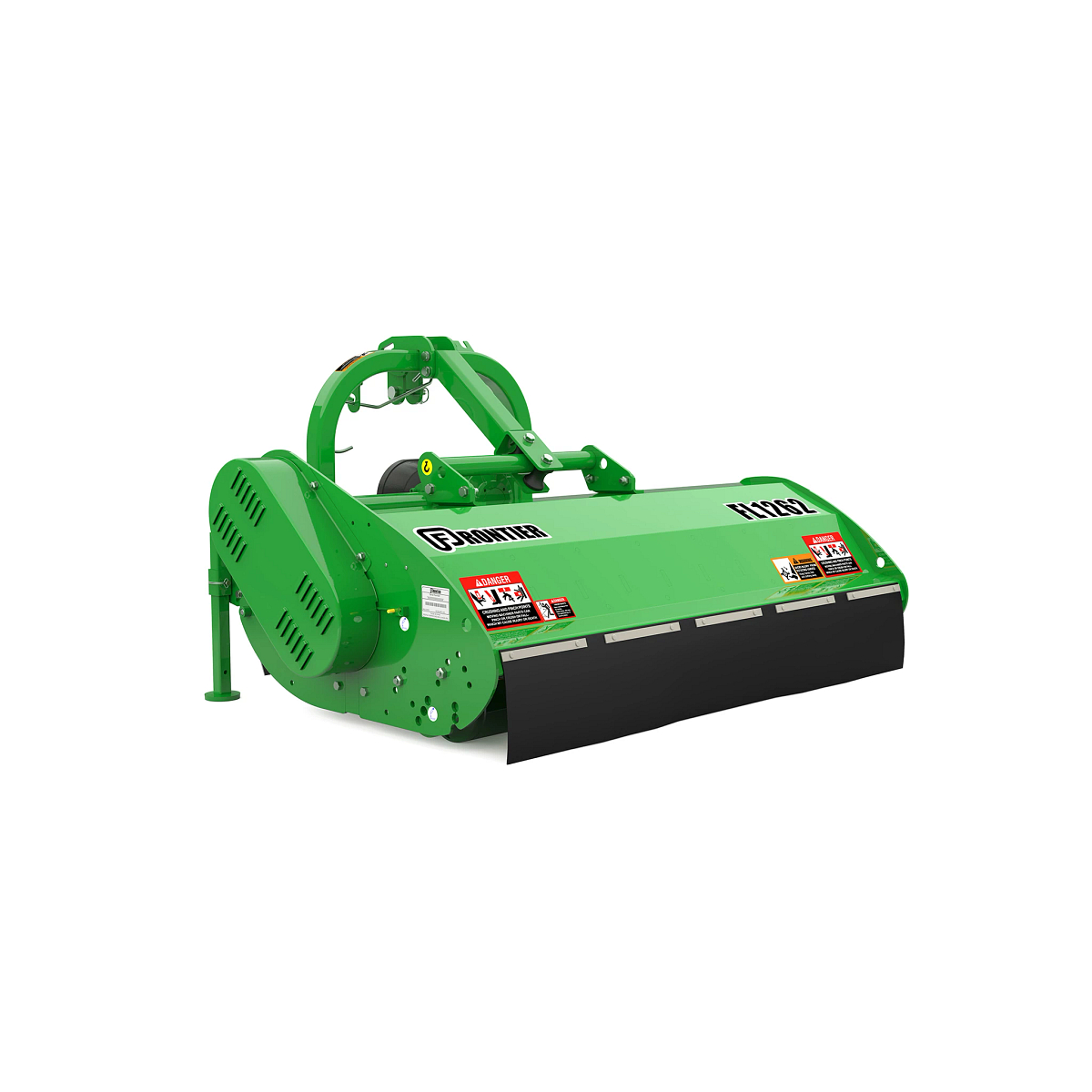

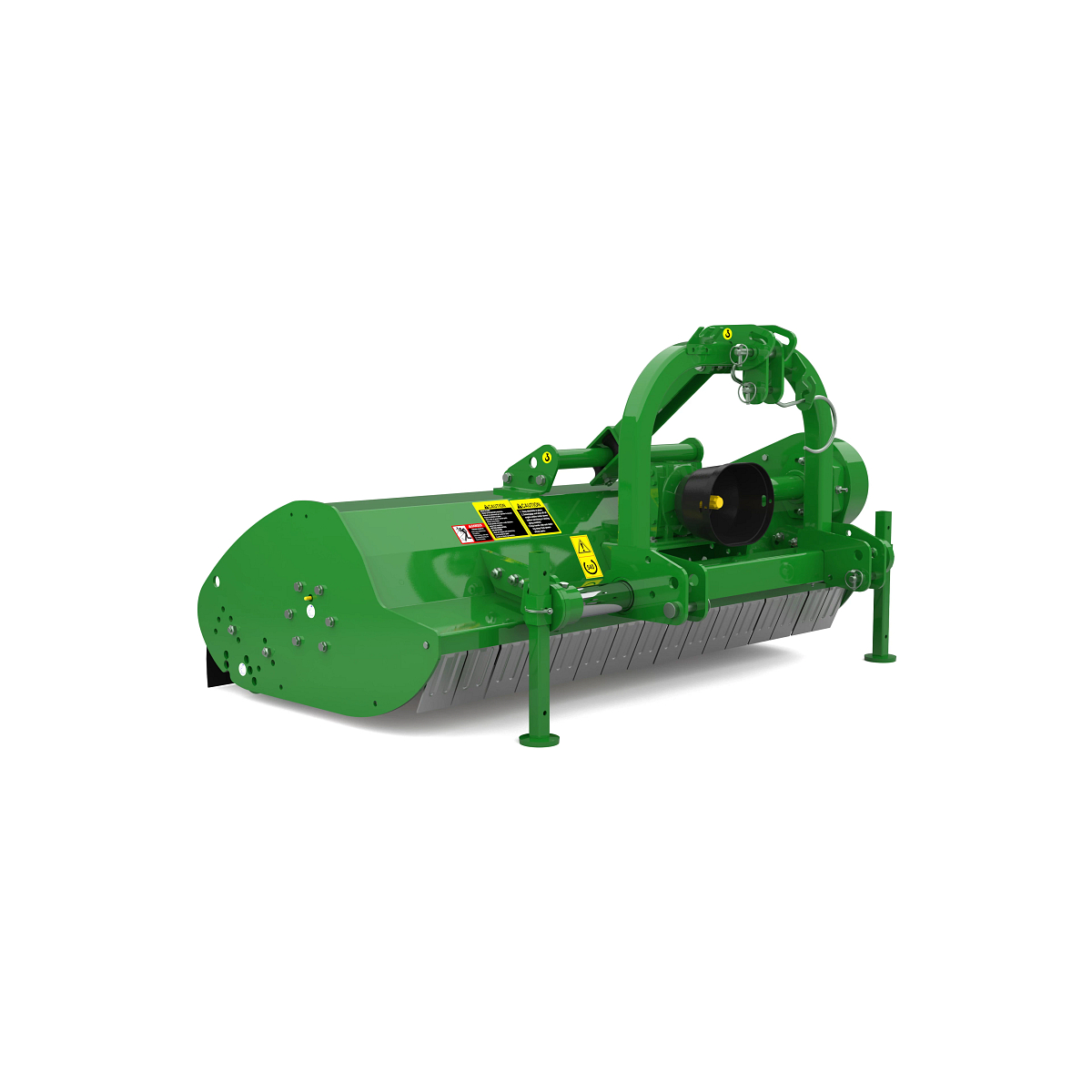

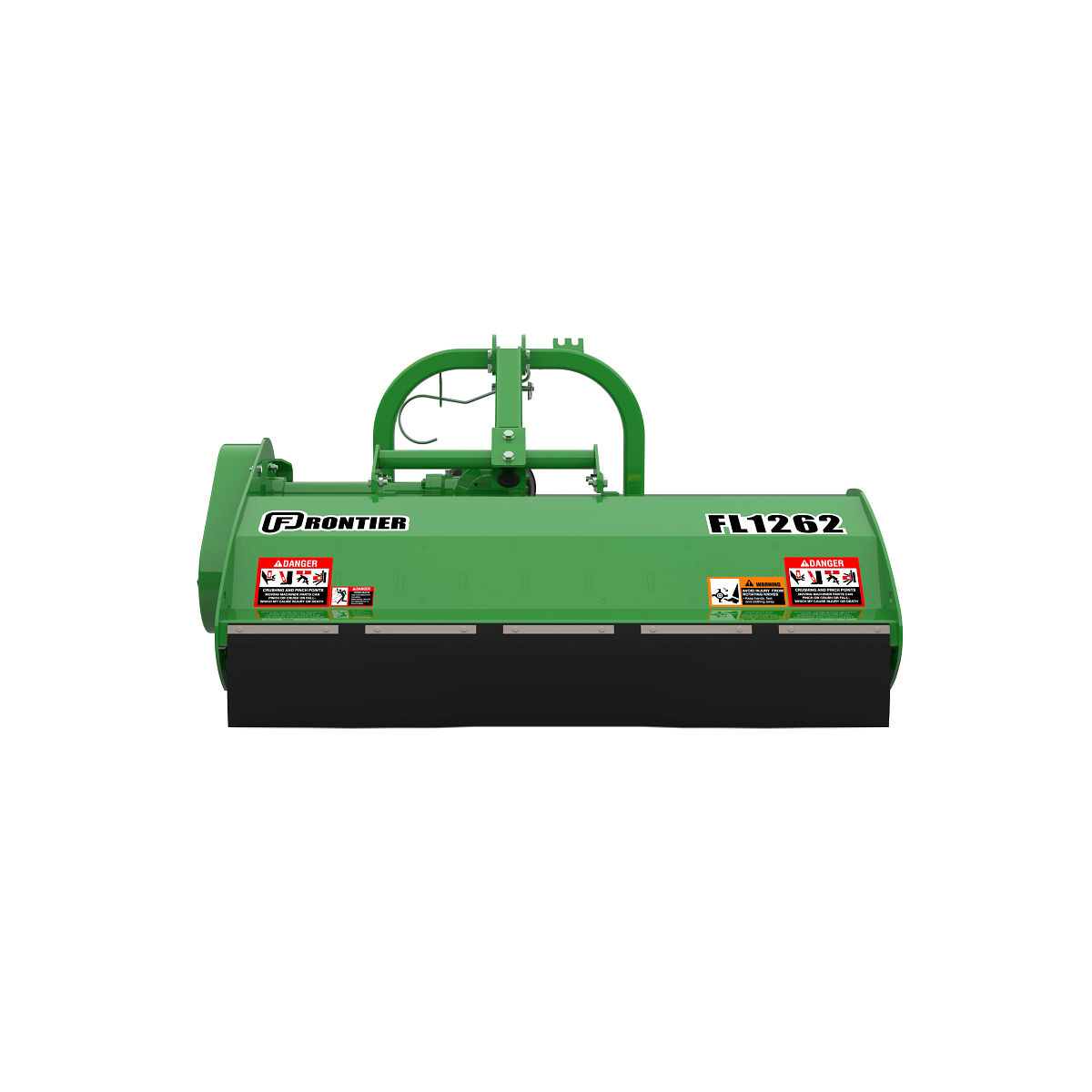

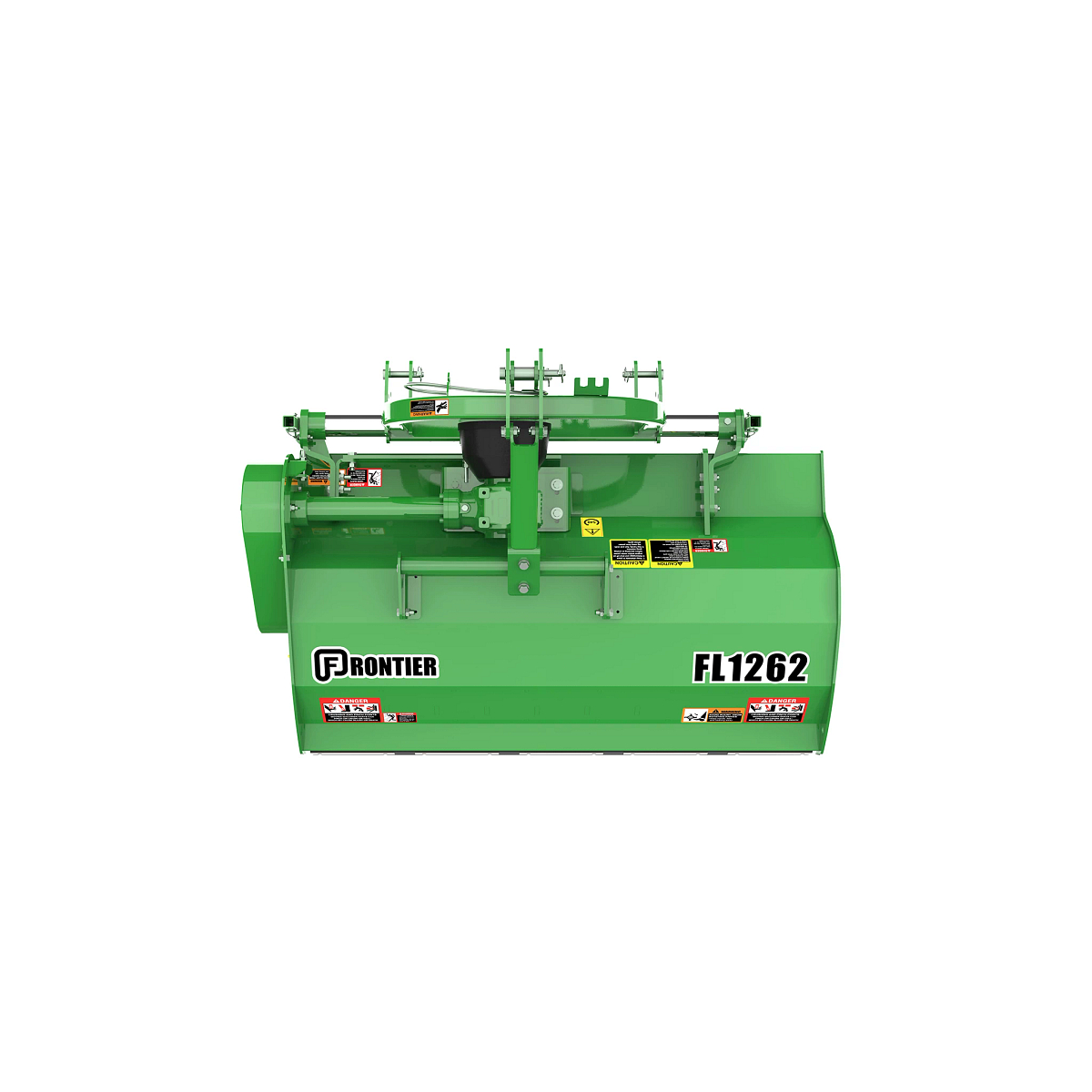

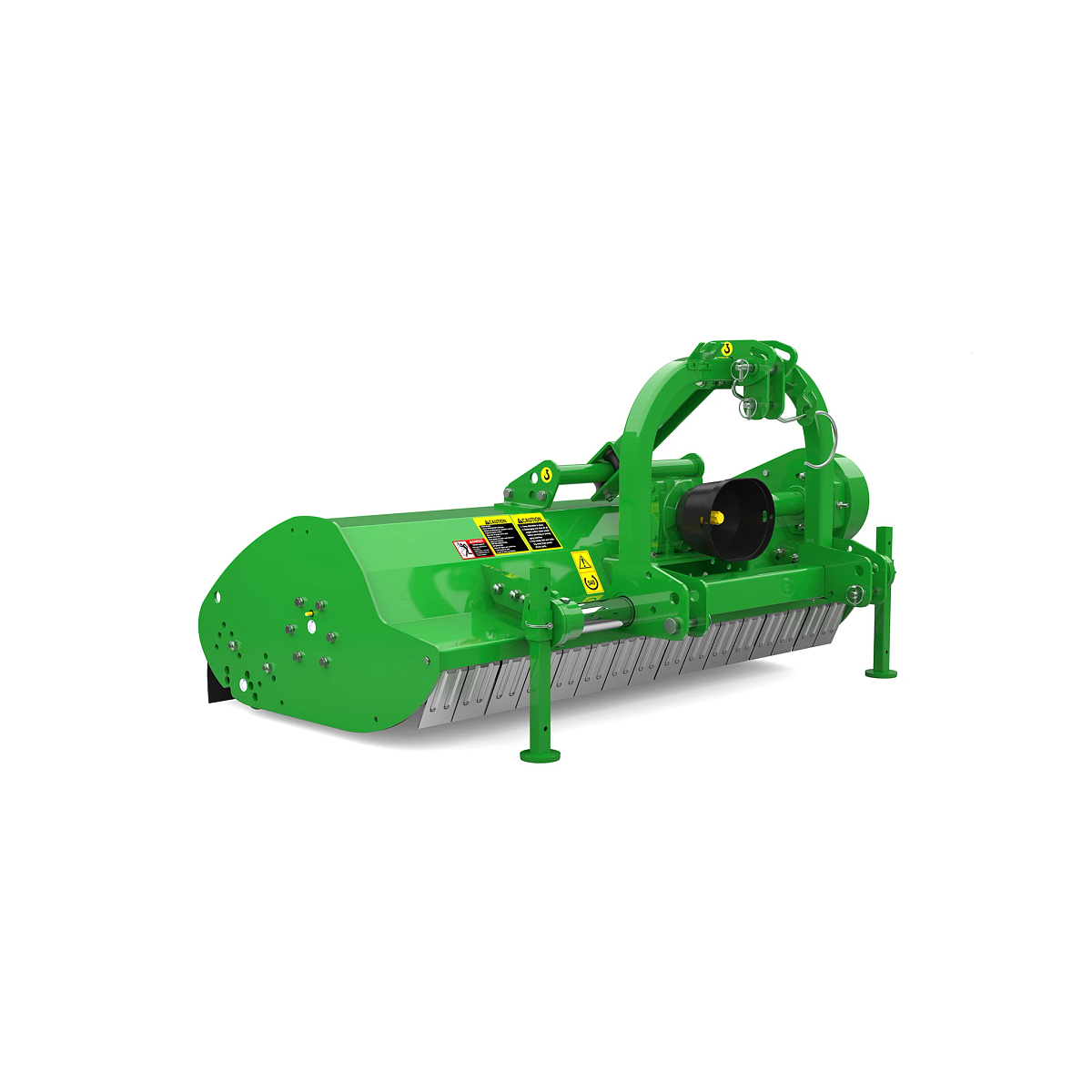

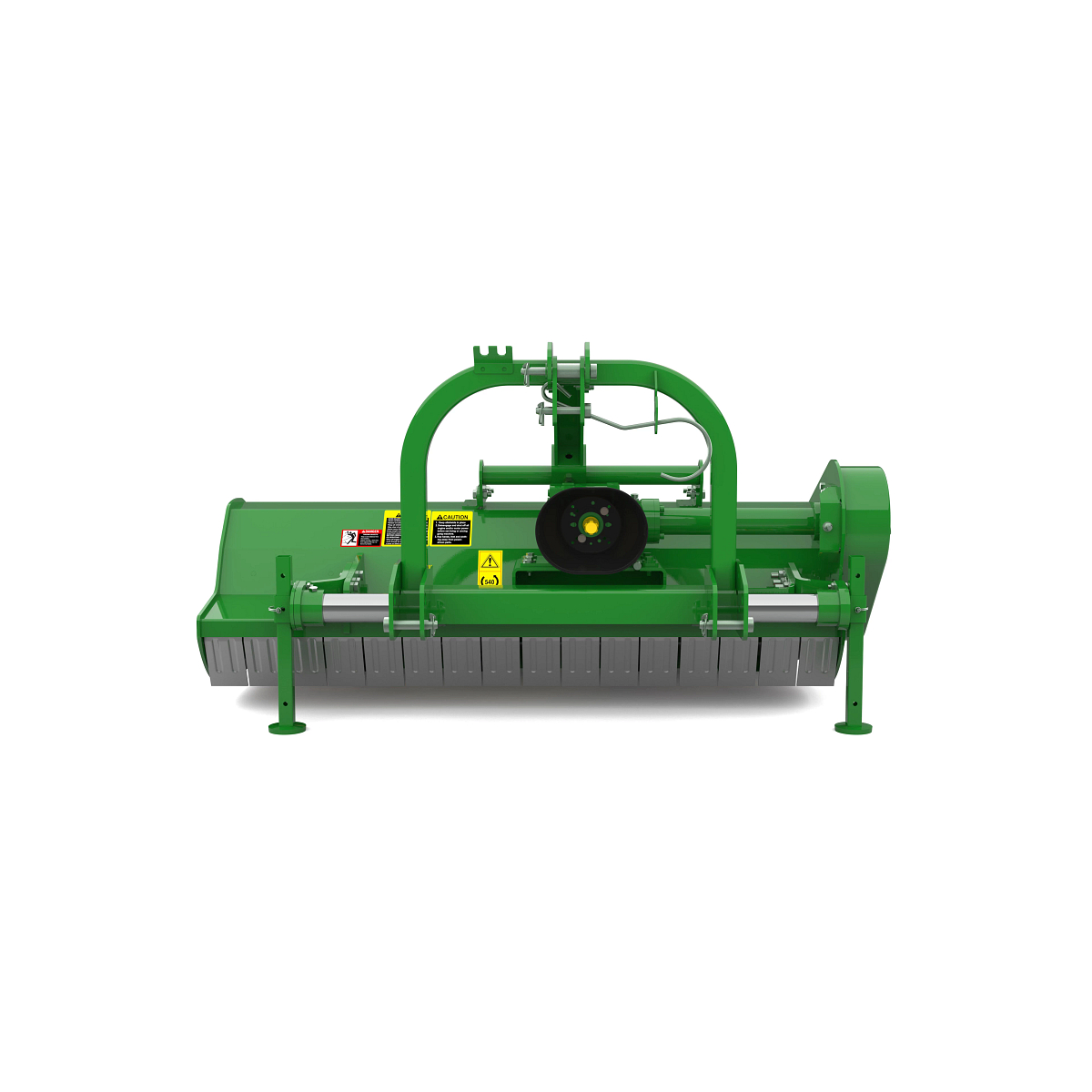

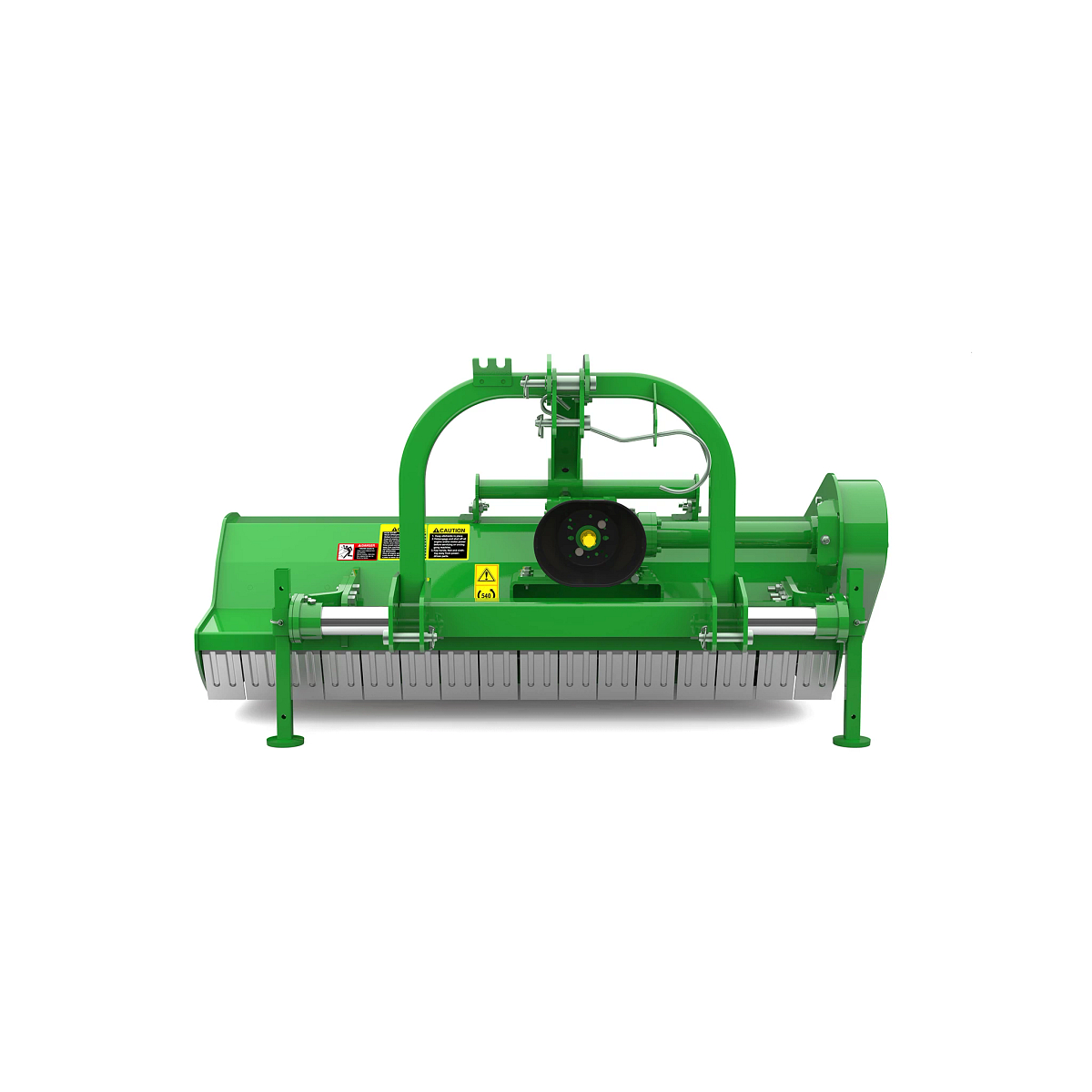

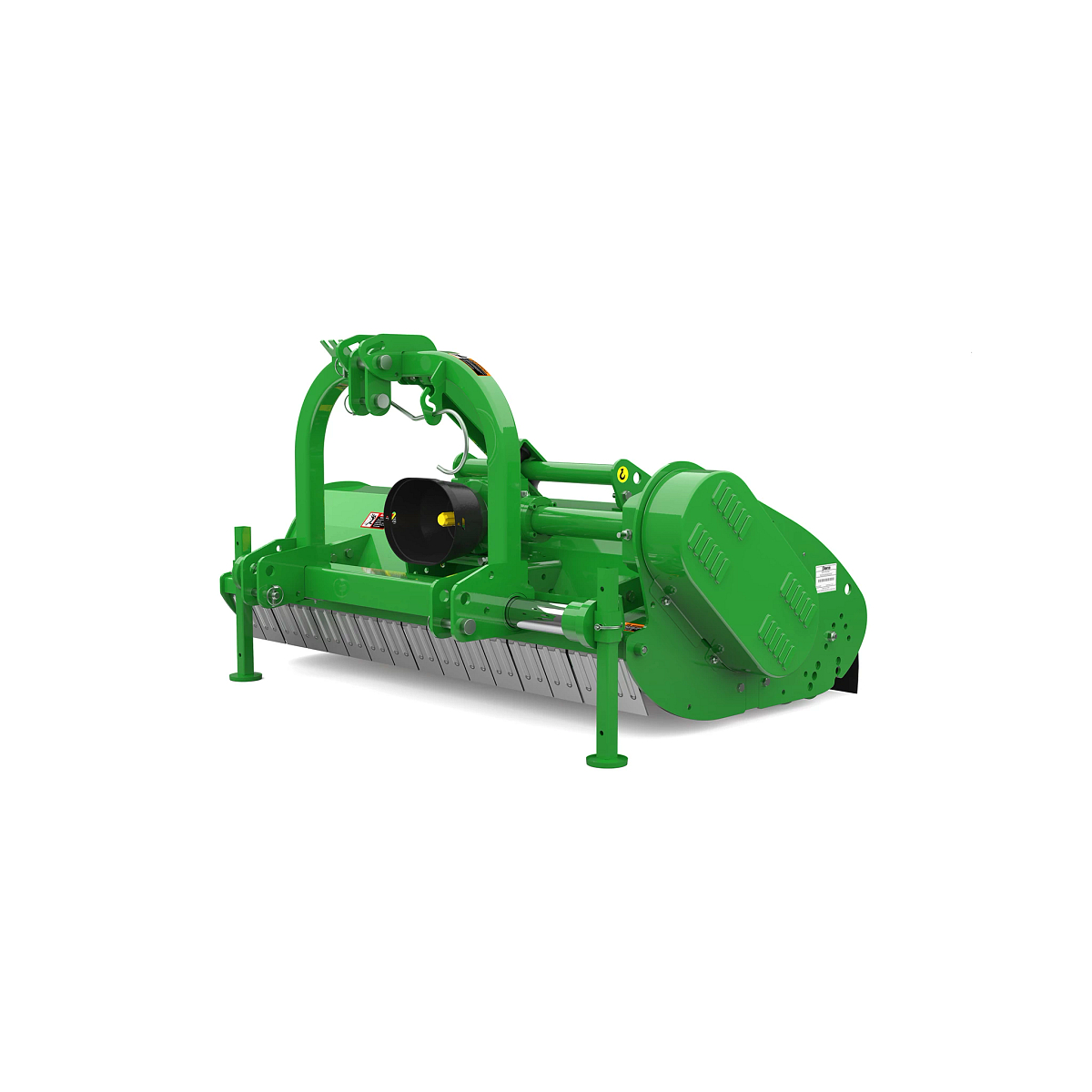

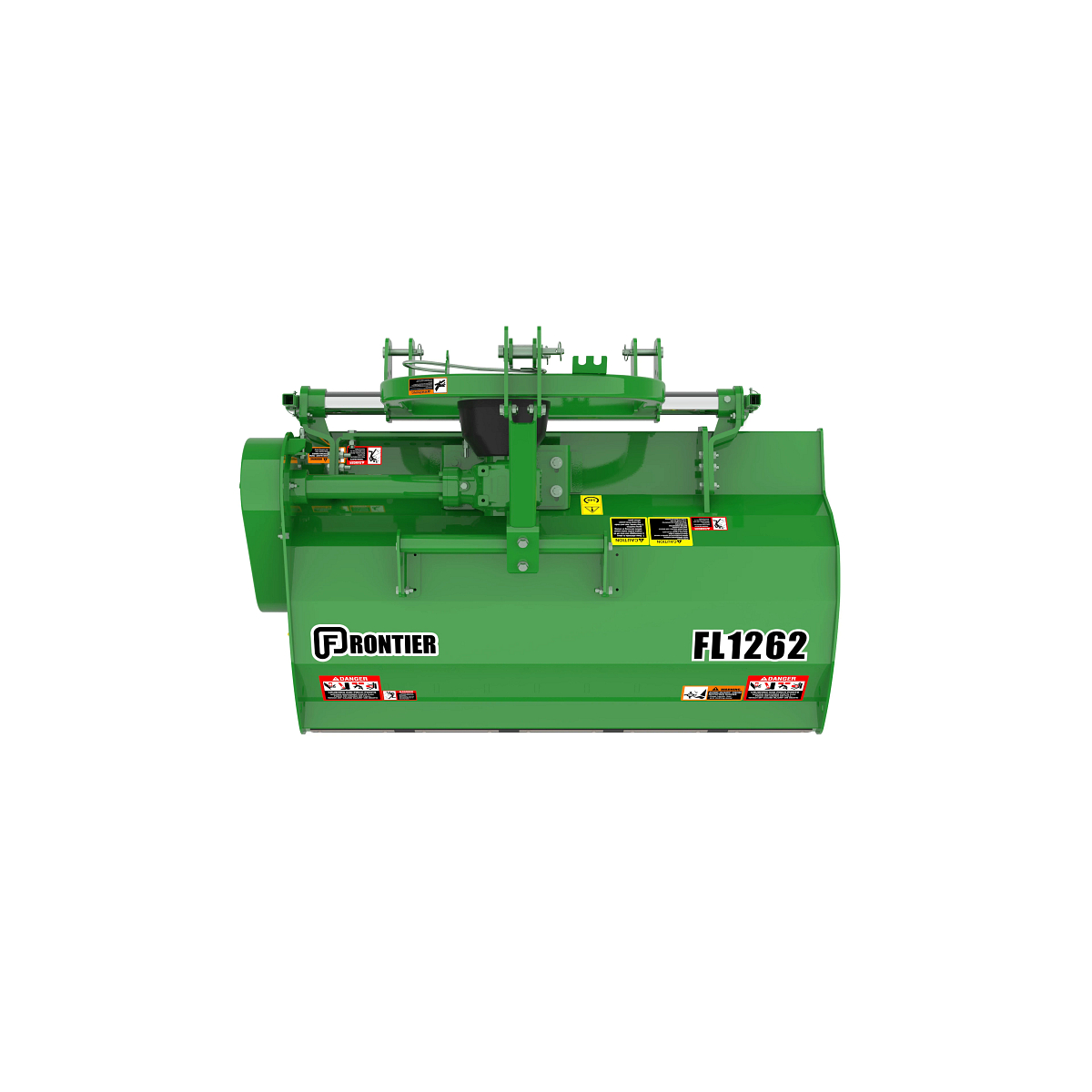

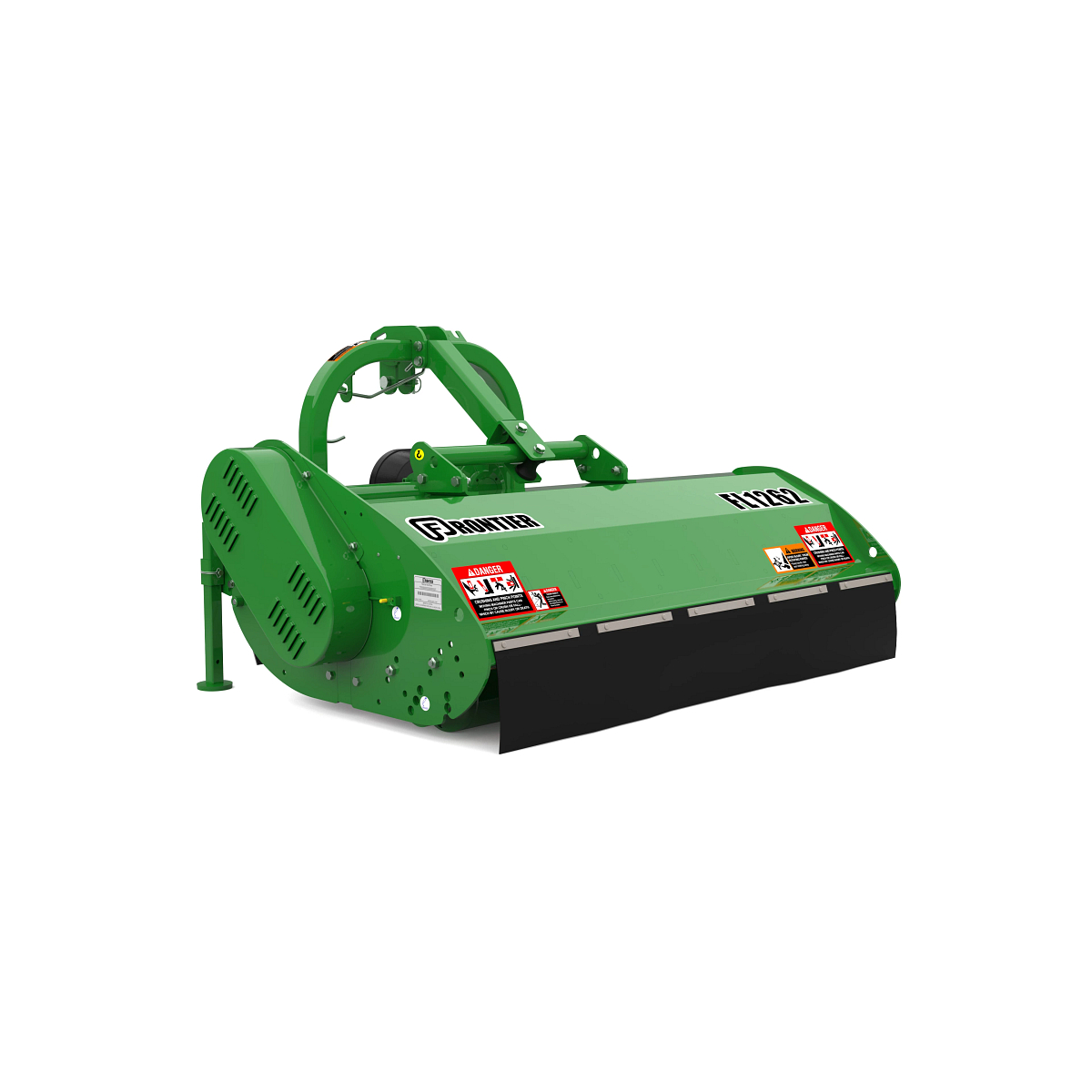

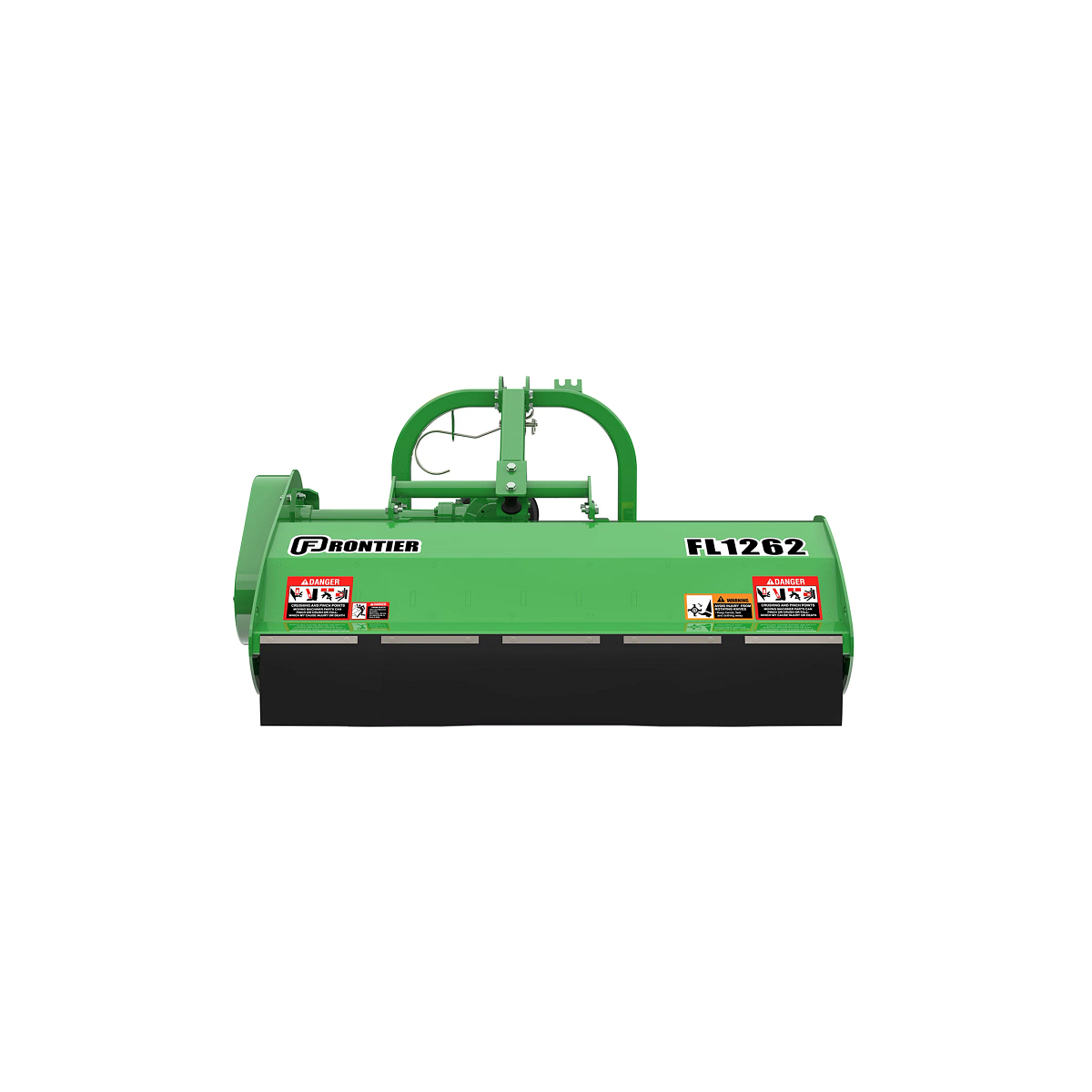

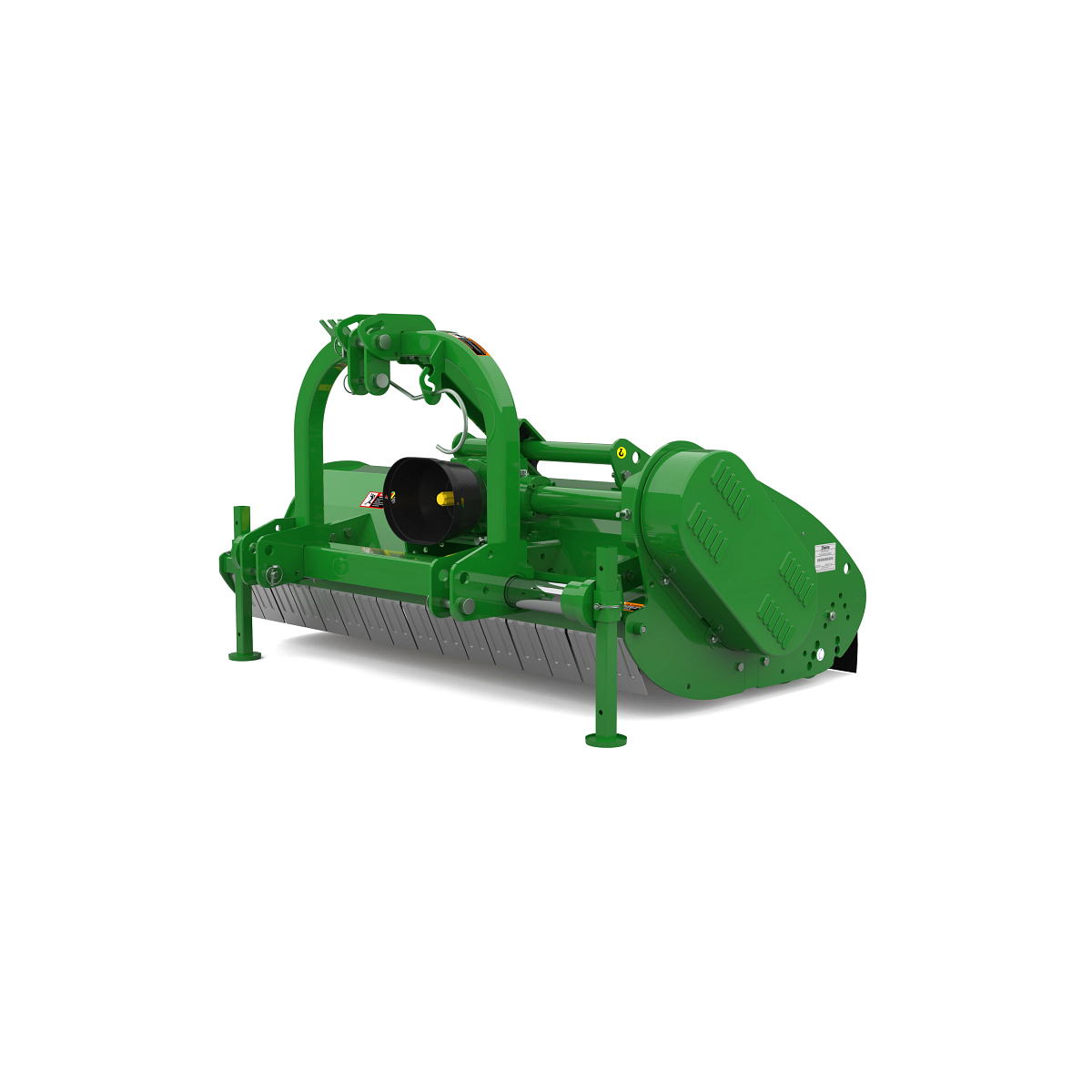

John Deere FL1262

Starting at

Hammer Blades for a Range of Conditions

The FL10 Series models come standard with hammer blades. These are great all-purpose durable blades, providing aggressive cutting for tougher conditions while also delivering a high-quality cut on maintained fields.

Close‑up of a black forged steel flail mower hammer featuring a rectangular cutting edge and a circular mounting hole, shown on a white background
Side Shift to Cut Hard-to-Reach Areas

The FL12 Series comes standard with mechanical side shift, giving it the ability to slide left of center (11- 33 in. [27.9-83.8 cm]) and right of center. Side shift is ideal for trimming along walls, buildings, trees with low-lying branches, fences, or orchards, making those hard-to-reach areas an easy cut.

Rear view of tractor mowing tall grass along a fence line with a rear‑mounted mower attachment.
Built With Durability and Versatility

The Frontier™ FL12 Series Flail Mower combines rugged durability for brush cutting with the finesse to leave turf grass looking polished. Its versatility allows operators to tackle diverse tasks from ditches to hedgerows with a single implement, reducing downtime and protecting tractors by clearing rough material on the first pass.

Rear view of a cab tractor using a flail mower attachment on a grassy hill in front of a yellow field and long, side-less farm building
Question text goes here

Answer text goes here

Dimensions
Cutting Capacity

1.57 in.

Cutting Capacity

4 cm

Cutting Height

1.18/1.96/3.14 in.

Cutting Height

3/5/8 cm

Overall Height

33.8 in.

Overall Height

85.9 cm

Overall Length

46 in.

Overall Length

116.8 cm

Cutting Width

62 in.

Cutting Width

157.5 cm

Overall Width

68.1 in.

Overall Width

173 cm

Weight

1030 lb.

Weight

467.2 kg

Compatibility
Minimum Tractor Power Required

35 hp

Minimum Tractor Power Required

26.1 kW

Maximum Tractor Power Required

80 hp

Maximum Tractor Power Required

59.7 kW

Minimum Tractor Weight

3750 lb.

Minimum Tractor Weight

1701.8 kg

Center of Gravity (COG)

27 in.

Center of Gravity (COG)

68.6 cm

Hitch
Hitch Type

3-point

iMatch Compatible

No

Hitch Category

1

Hitch Position

Offset

Hydraulic Offset

Option

Blades
Blade Type

Hammers (standard)

Number of Hammers

16

Type of Blades/Hammers

8/10

Blade Tip Speed

10039 fpm

Blade Tip Speed

3059 m/min

Rotor
Rotor Diameter

5.5 in.

Rotor Diameter

14 cm

Rotor Speed

2354 rpm

Rotor Thickness

0.39 in.

Rotor Thickness

10 mm

Rotor Work Diameter

16.29 in.

Rotor Work Diameter

41.4 cm

Rotor Bearing Type

Spherical Roller 21309

Drives
Gearbox Speed

540 rpm

Drive Belts

3 - SPB Lp=1320

Gauge Roller Diameter

6.62 in.

Gauge Roller Diameter

16.8 cm

Miscellaneous
Frame Thickness

0.16 in.

Frame Thickness

4 mm

Side Frame Thickness

0.31 in.

Side Frame Thickness

8 mm

Rear Roller Bearing Type

D40 D80 B23 62208 2RS2

Belt Adjustment

Screw adjustment

Primary Pulley Diameter

8.9 in.

Primary Pulley Diameter

225 mm

Secondary Pulley Diameter

6.3 in.

Secondary Pulley Diameter

160 mm

Hood Height

19.68 in.

Hood Height

50 cm

Side Case Height

24.4 in.

Side Case Height

62 cm

PTO Yoke Height

18.9 in.

PTO Yoke Height

48 cm
