John Deere
FL1163
Flail Mowers and Shredders

John Deere FL1163

Starting at

Hammer Blades for a Range of Conditions

The FL10 Series models come standard with hammer blades. These are great all-purpose durable blades, providing aggressive cutting for tougher conditions while also delivering a high-quality cut on maintained fields.

Close‑up of a black forged steel flail mower hammer featuring a rectangular cutting edge and a circular mounting hole, shown on a white background
Versatility and Durability

The Frontier™ FL11 Series Flail Mower combines rugged durability for cutting brush with the finesse to leave turf grass looking polished. Its versatility allows operators to tackle diverse tasks from ditches to hedgerows with a single implement, saving time and protecting equipment by clearing rough material on the first pass.

Aerial view of tractor mowing a grassy field edge beside a large yellow crop field, using a rear-mounted mower attachment.
Side Shift for Hard-to-Reach Areas

The FL11 Series comes standard with mechanical side shift, giving it the ability to slide left of center (11- 33 in. [27.9-83.8 cm]) and right of center. Side shift is ideal for trimming along walls, buildings, trees with low-lying branches, fences, or orchards, making those hard-to-reach areas an easy cut.

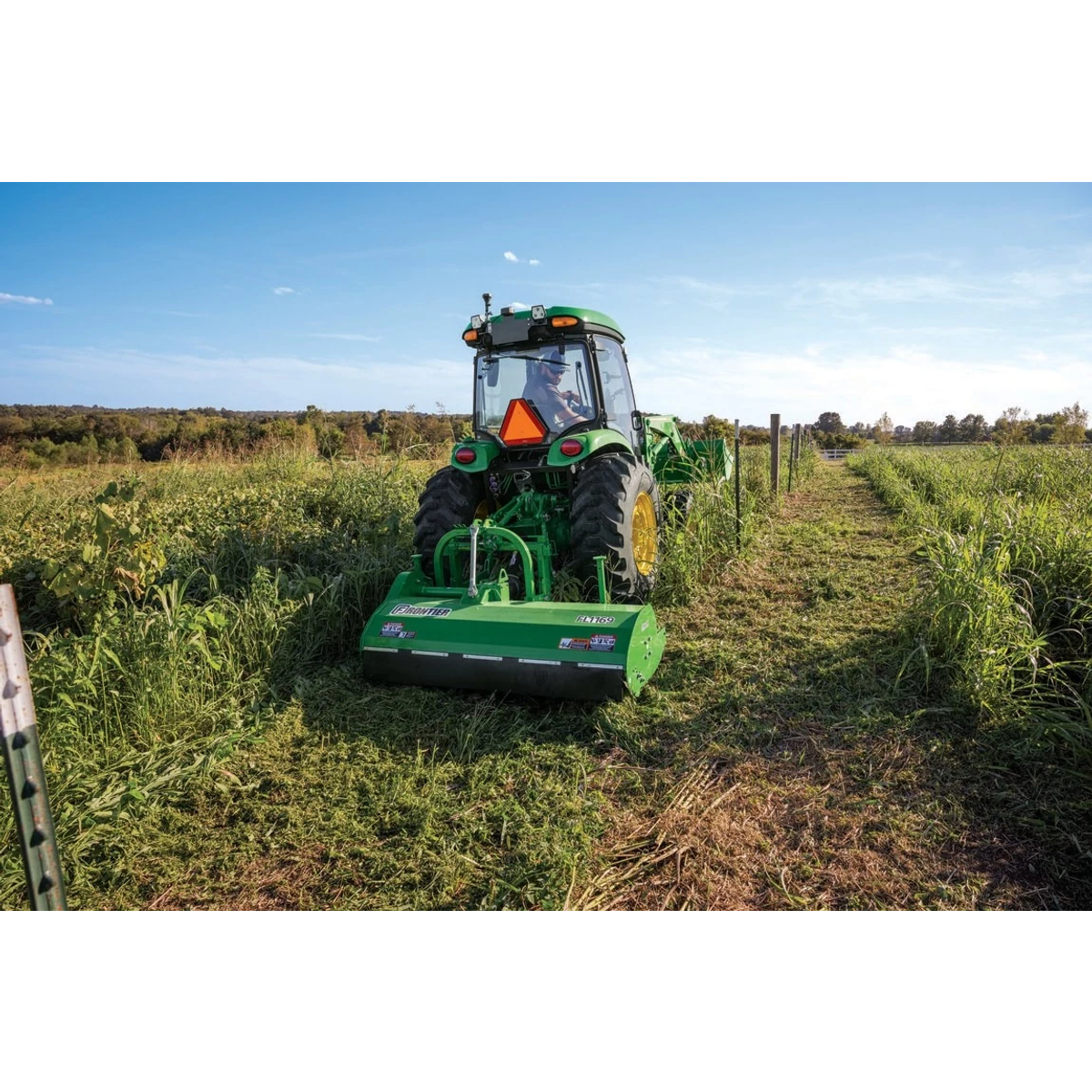

Rear view of tractor mowing tall grass along a fence line with a rear‑mounted mower attachment.
Question text goes here

Answer text goes here

Dimensions
Cutting Capacity

1.5 in.

Cutting Capacity

3.8 cm

Cutting Height

0.98/1.96/2.99 in.

Cutting Height

2.5/5/7.6 cm

Overall Height

36.5 in.

Overall Height

92.7 cm

Overall Length

44.3 in.

Overall Length

112.5 cm

Cutting Width

63 in.

Cutting Width

160 cm

Overall Width

68.88 in.

Overall Width

175 cm

Weight

718 lb.

Weight

325.7 kg

Compatibility
Minimum Tractor Power Required

30 hp

Minimum Tractor Power Required

22.4 kW

Maximum Tractor Power Required

55 hp

Maximum Tractor Power Required

41 kW

Minimum Tractor Weight

2600 lb.

Minimum Tractor Weight

1179.3 kg

Center of Gravity (COG)

25 in.

Center of Gravity (COG)

63.5 cm

Hitch
Hitch Type

3-point

iMatch Compatible

No

Hitch Category

1

Hitch Position

Centered

Offset Range

Left of center: 11-33 in. (27.9-83.8 cm); Right of center: 30-46 in. (76.2-116.8 cm)

Hydraulic Offset

Option

Blades
Blade Type

Hammers (standard); Y-Blade (service)

Number of Hammers

22

Type of Blades/Hammers

18/20

Blade Tip Speed

8937 fpm

Blade Tip Speed

2724 m/min

Rotor
Rotor Diameter

5 in.

Rotor Diameter

12.7 cm

Rotor Speed

2278 rpm

Rotor Thickness

0.31 in.

Rotor Thickness

8 mm

Rotor Work Diameter

15 in.

Rotor Work Diameter

38.1 cm

Rotor Bearing Type

Spherical Roller 22207

Drives
Gearbox Speed

540 rpm

Drive Belts

3 - SPB Lp=1320

Gauge Roller Diameter

5.5 in.

Gauge Roller Diameter

14 cm

Miscellaneous
Hydraulic Quick Coupler Size

0.5 in.

Hydraulic Quick Coupler Size

1.3 cm

Frame Thickness

0.12 in.

Frame Thickness

3 mm

Side Frame Thickness

0.2 in.

Side Frame Thickness

5 mm

Roller Bearing Diameter

2.835 in.

Roller Bearing Diameter

7.2 cm

Rear Roller Bearing Type

YAR 207-2FW/VA201

Belt Adjustment

Screw adjustment

Primary Pulley Diameter

8.9 in.

Primary Pulley Diameter

225 mm

Secondary Pulley Diameter

6.3 in.

Secondary Pulley Diameter

160 mm

Hood Height

18.89 in.

Hood Height

48 cm

Side Case Height

24.01 in.

Side Case Height

61 cm

PTO Yoke Height

18.18 in.

PTO Yoke Height

46.2 cm
