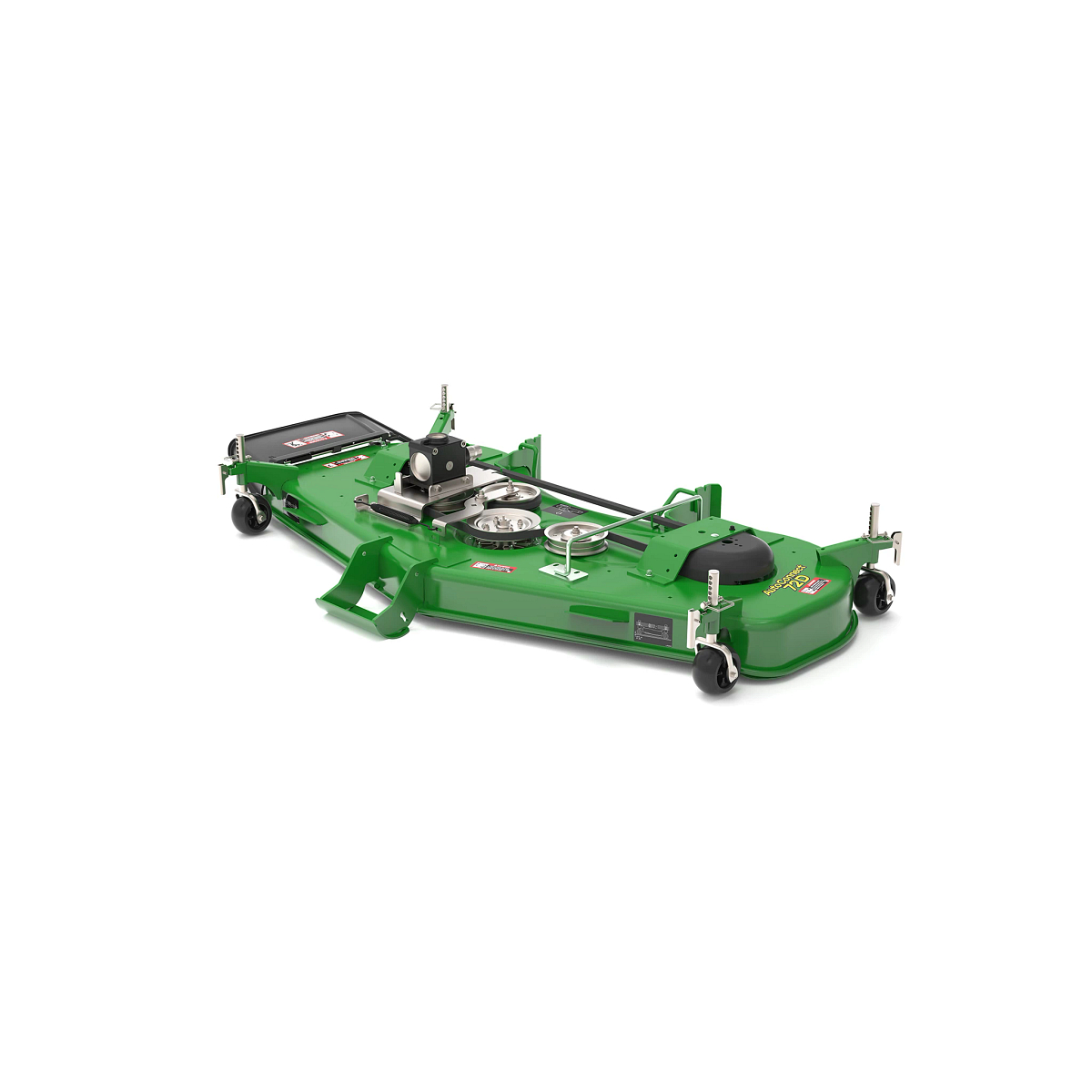

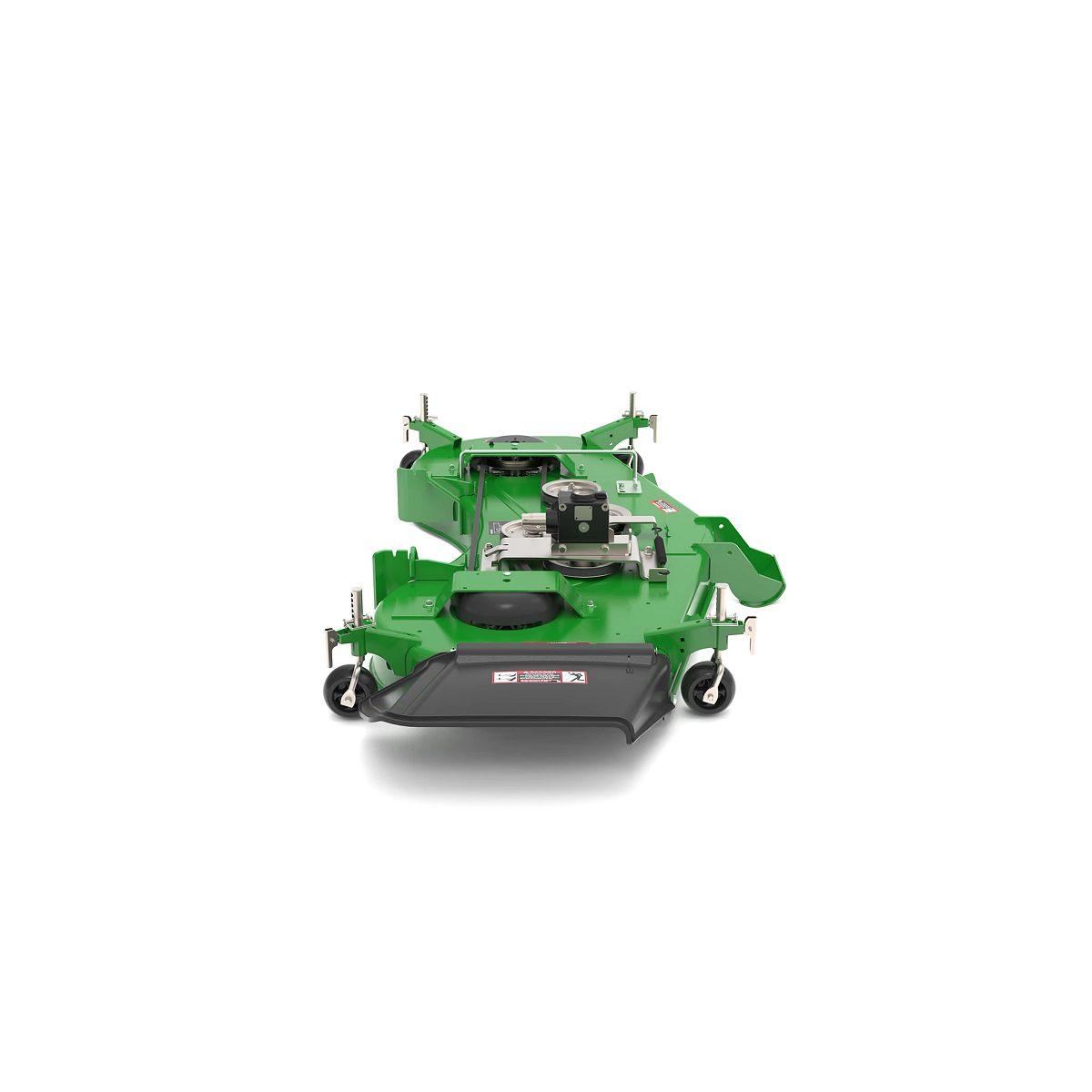

Studio rendering of 72D

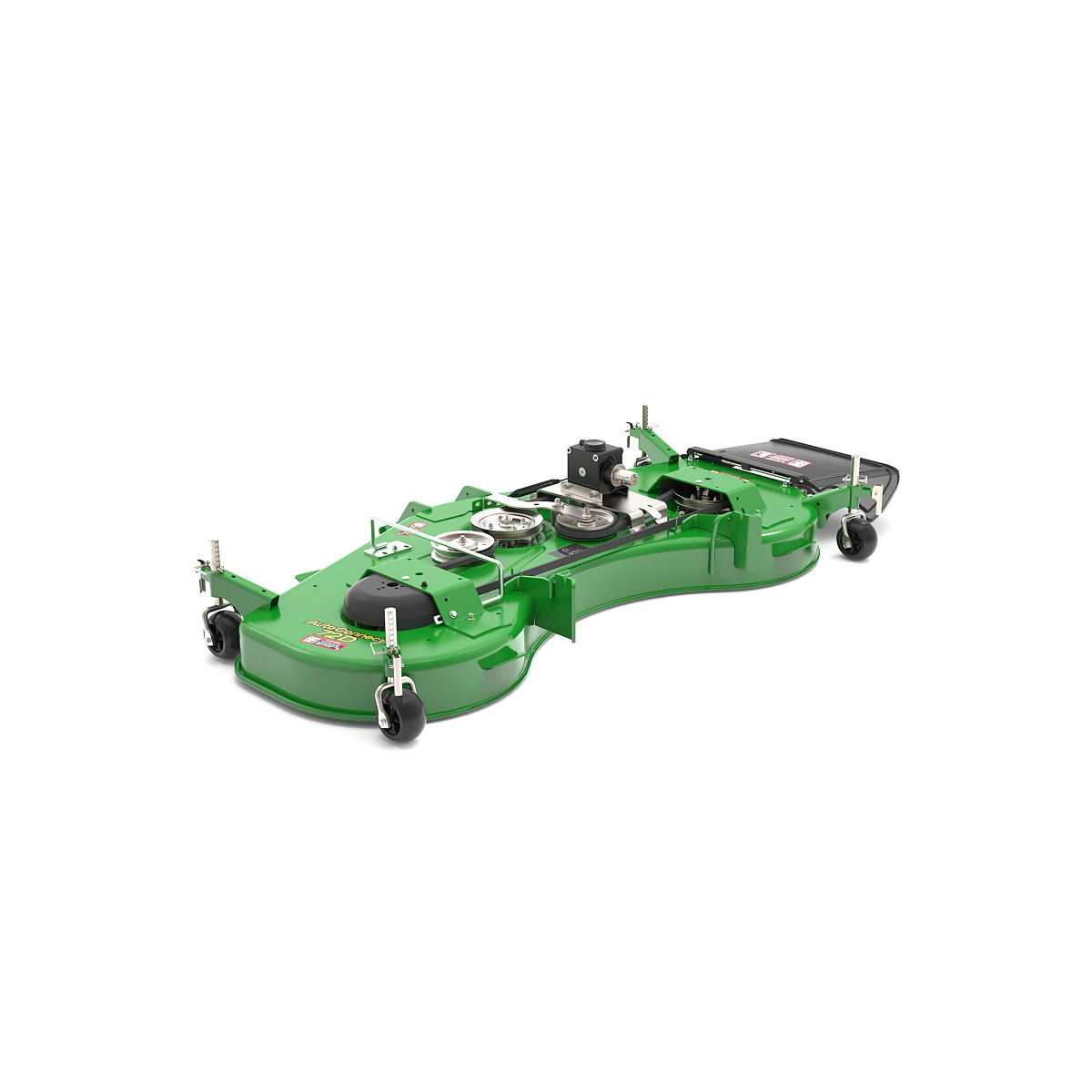

Studio rendering of 72D

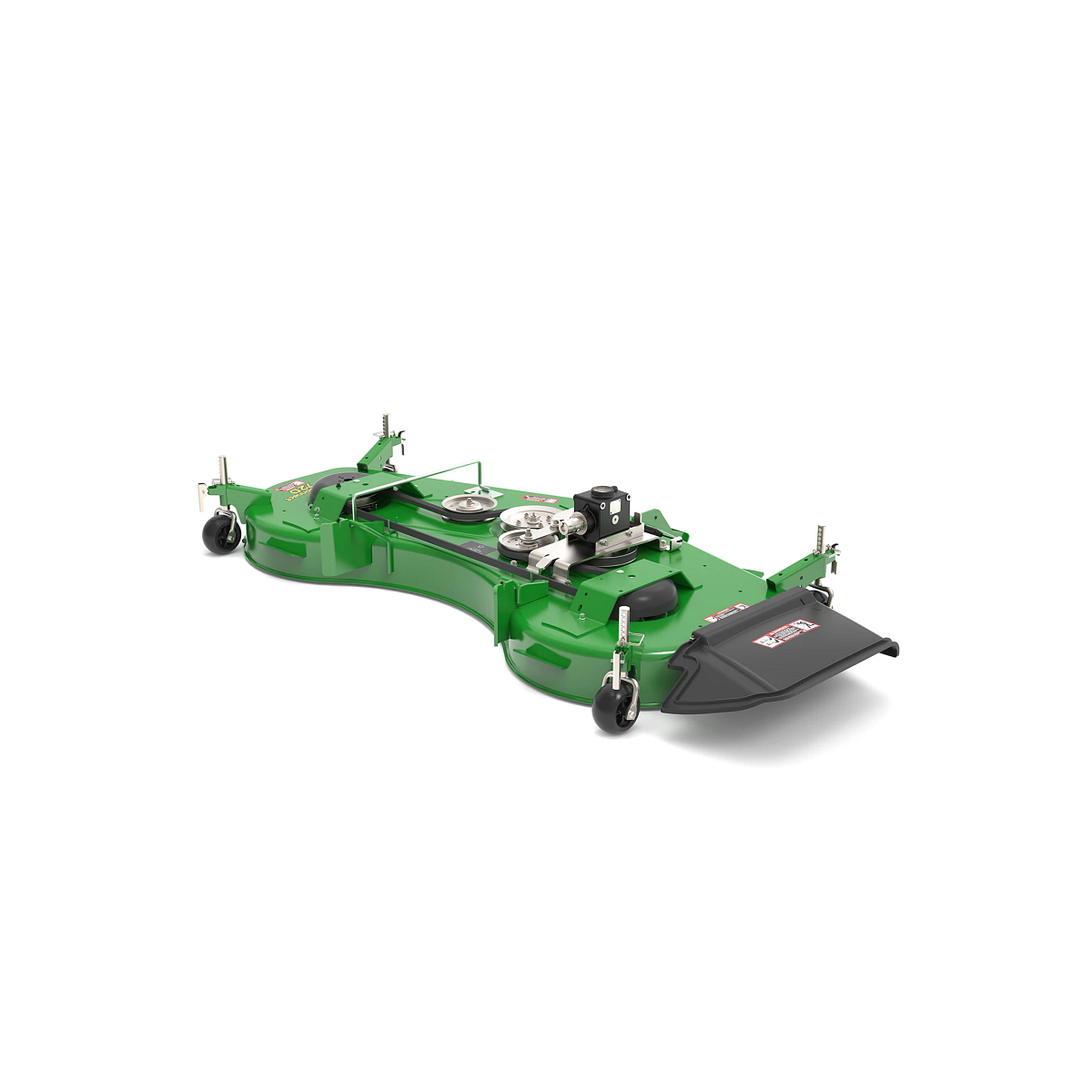

Studio rendering of 72D

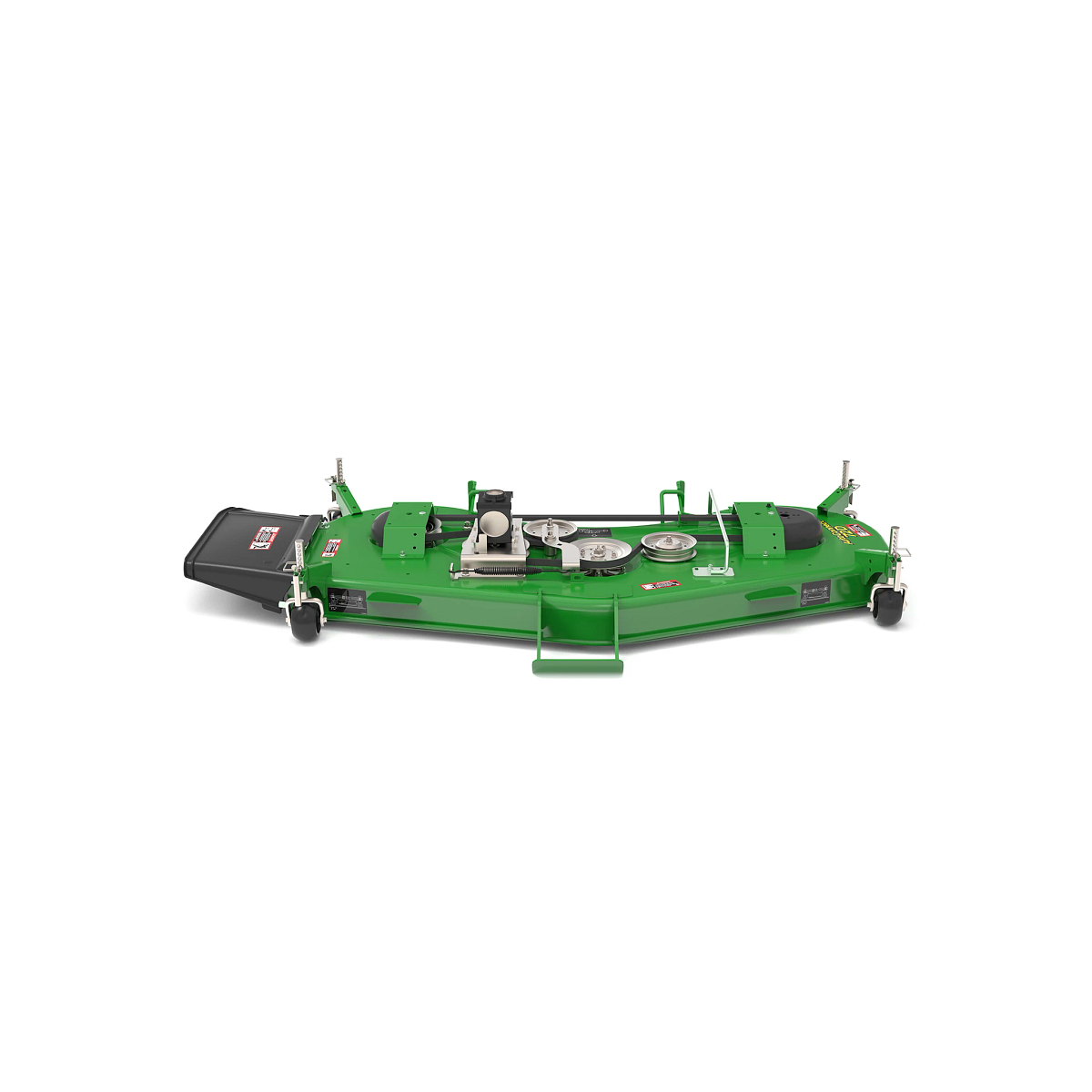

Studio rendering of 72D

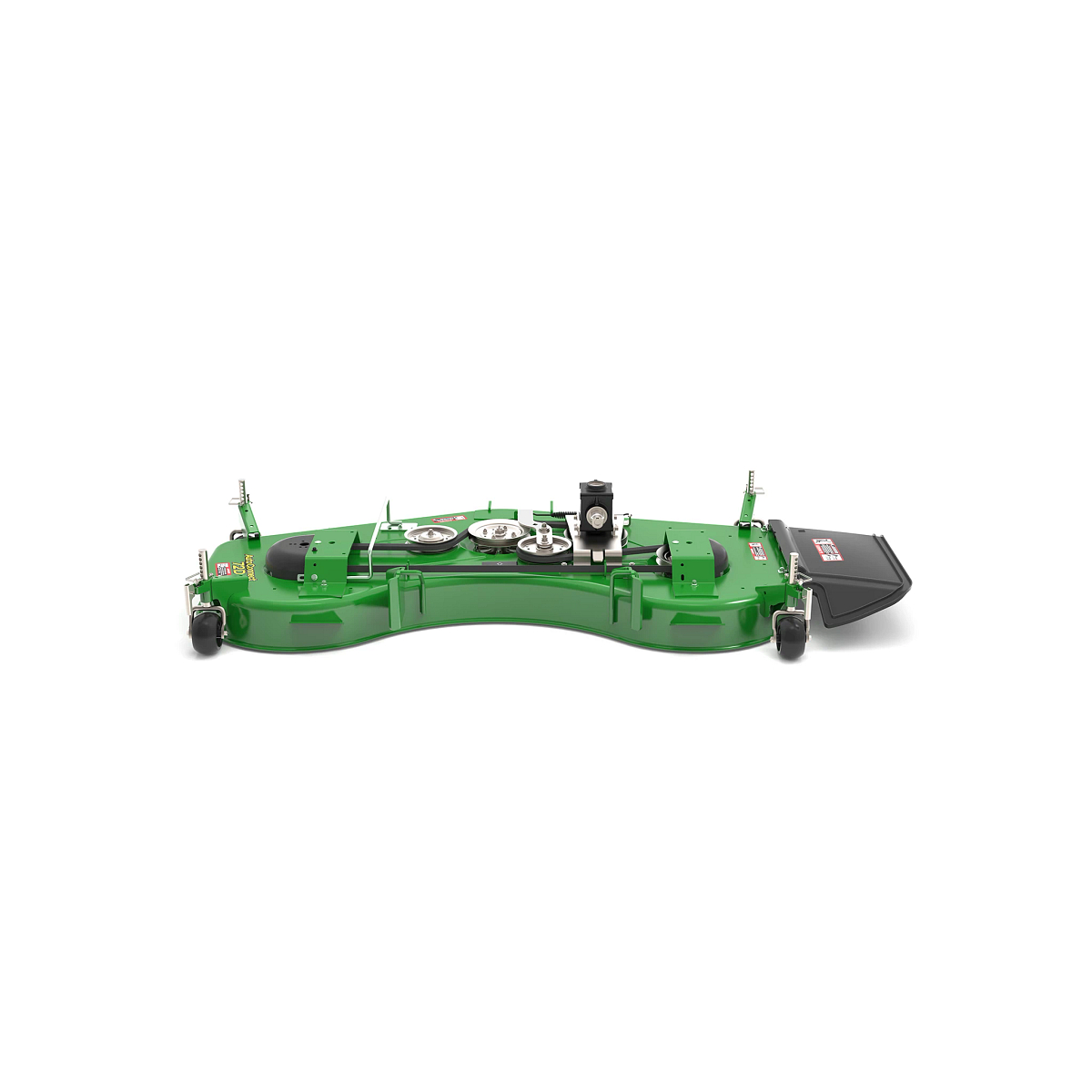

Studio rendering of 72D

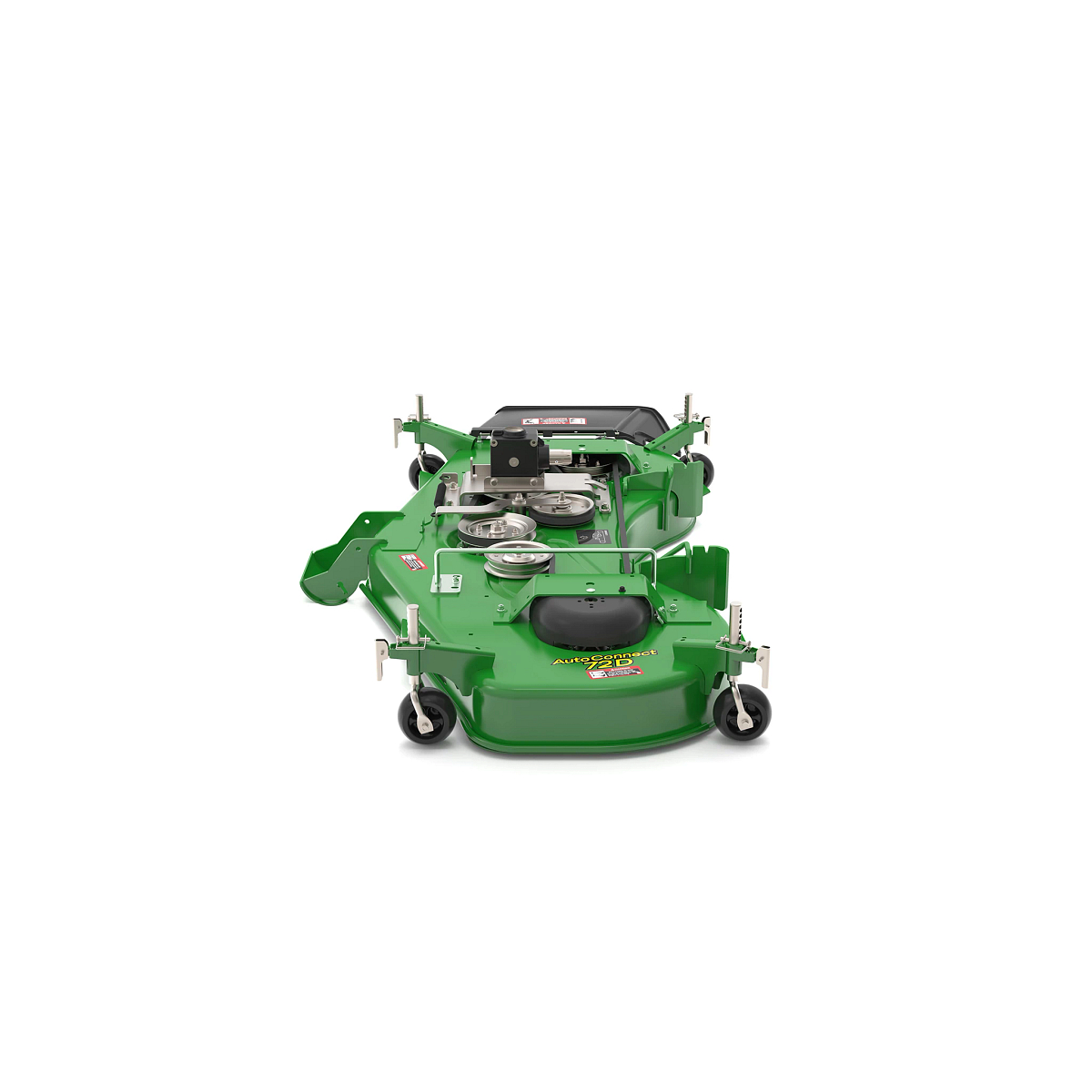

Studio rendering of 72D

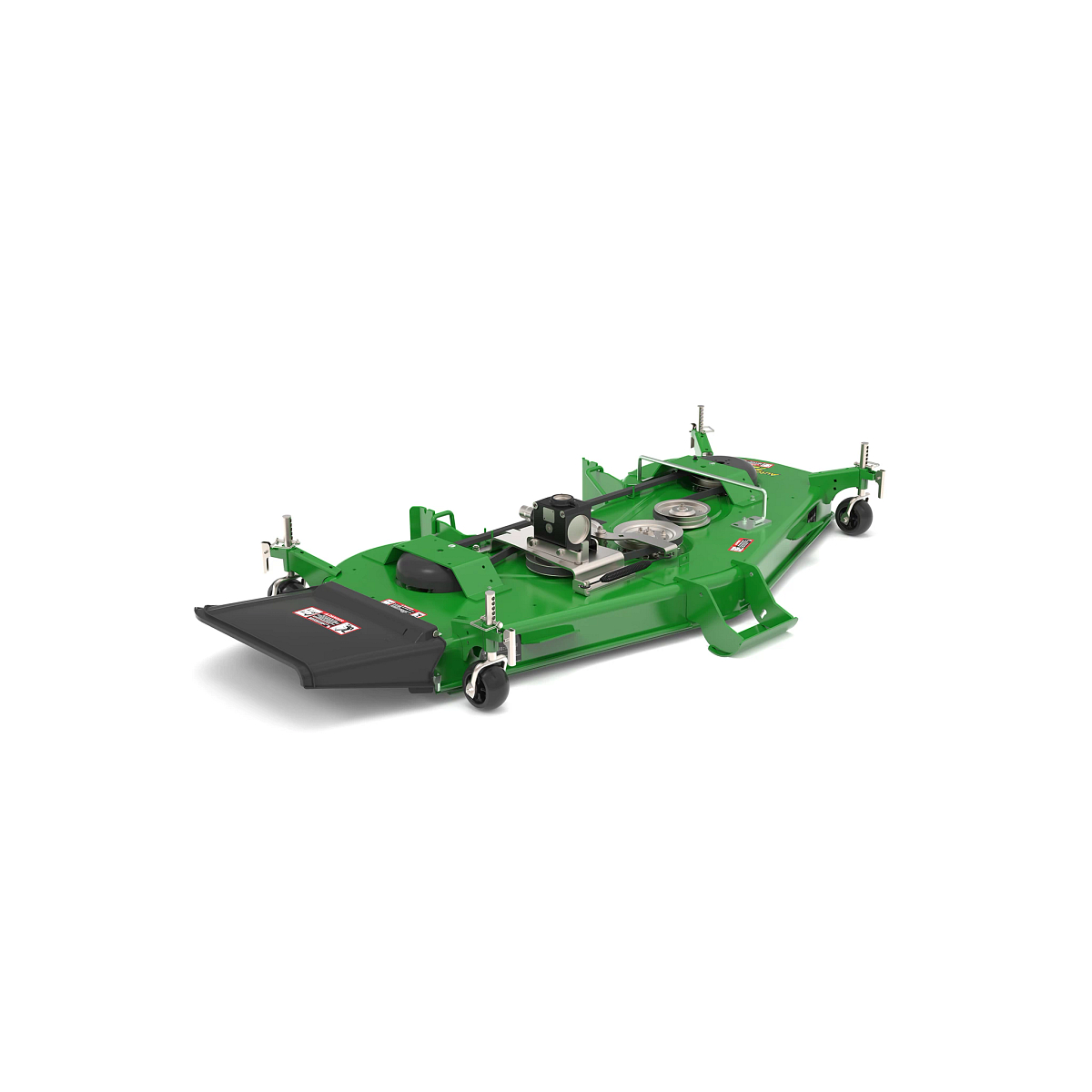

Studio rendering of 72D

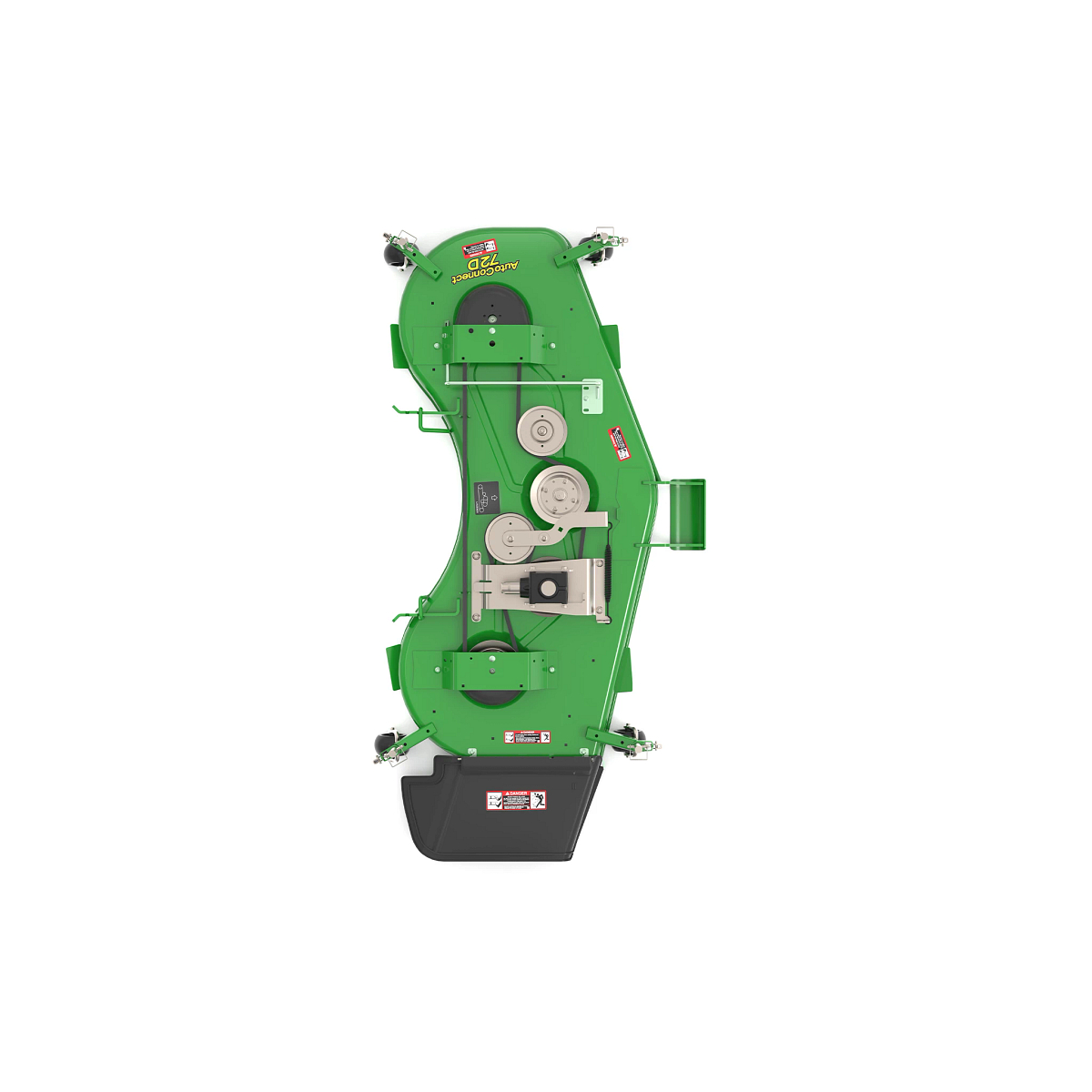

Studio rendering of 72D
Studio rendering of 72D
No items found.
new
John Deere
72D IN.
AutoConnect™ Mid-Mount Mower Decks

John Deere 72D

Starting at

Compatible with Multiple Implements

AutoConnect™ Decks are compatible with rear 3-point hitch attachments, backhoes, loaders, and a front hitch. The operator can keep these extra implements attached to the tractor while mowing, if desired.

Woman operating a green compact tractor with a front-end loader and mower deck, driving across a grassy lawn near a house and trees on a clear day
Mid-power take-off (PTO) driven

Mowers powered by the tractor's mid PTO offer key advantages: they leave the rear PTO free for other implements, use a reliable shaft drive instead of belts, and allow for quicker, easier deck installation.

Side view of the mid-PTO underneath the tractor
Service and Durability Features

These mowers feature easily removable drive-over ramps for belt servicing, greaseable blade spindles to extend bearing life, reinforced deck edges for added strength, and plastic chute guards on the 60-in. (152.4-cm) and 72-in. (183-cm) 7Iron™ Mower Decks.

Close-up top view of a green mower deck showing the discharge chute, warning labels, belt cover, and pulley assembly
Question text goes here

Answer text goes here

Dimensions
Cutting Width

72.8 in.

Cutting Width

185 cm

Overall Width - Deflector Up

73.5 in.

Overall Width - Deflector Up

187 cm

Overall Width - Deflector Down

85.5 in.

Overall Width - Deflector Down

217 cm

Cutting Height

1 - 5.5 in.

Cutting Height

2.5 - 13.9 cm

Deck Thickness

0.1793 in.

Deck Thickness

4.554 mm

Deck Thickness

7 gauge

Blades
Number Of Blades

3

Length

25 in.

Length

63.6 cm

Thickness

0.25 in.

Thickness

0.63 cm

Blade Tip Speed (At 2600 rpm)

14182 fpm

Blade Tip Speed (At 2600 rpm)

4322.7 m/min

Spindles
Diameter

1 in.

Diameter

2.54 cm

Wheels
Front Gauge Wheel Size

5 in. / 12.7 cm

Rear Gauge Wheel Size

5 in. / 12.7 cm

Mulching
Mulching Type

Optional

Weight
Approximate Weight

345 lb.

Approximate Weight

156 kg
