John Deere
DS35
Spreaders

John Deere DS35

Starting at

Make Every Application Window Count

The DS35 Dry Nutrient Spreader pairs high-capacity performance with precision application technology to help operators maximize productivity on the 800R Floater. With up to 330 cu ft of capacity, spread widths up to 105 ft (32 m), and Single Bin, MultApplier™, or MultiBin configurations, the DS35 is built to cover more acres with fewer stops. Advanced rate control, independent spinner control, and optional swath control technologies help deliver consistent nutrient placement, reduce overlap, and optimize input efficiency. Combined with durable stainless-steel construction and automated maintenance features, the DS35 helps keep operators in the field and focused on the work that matters most.

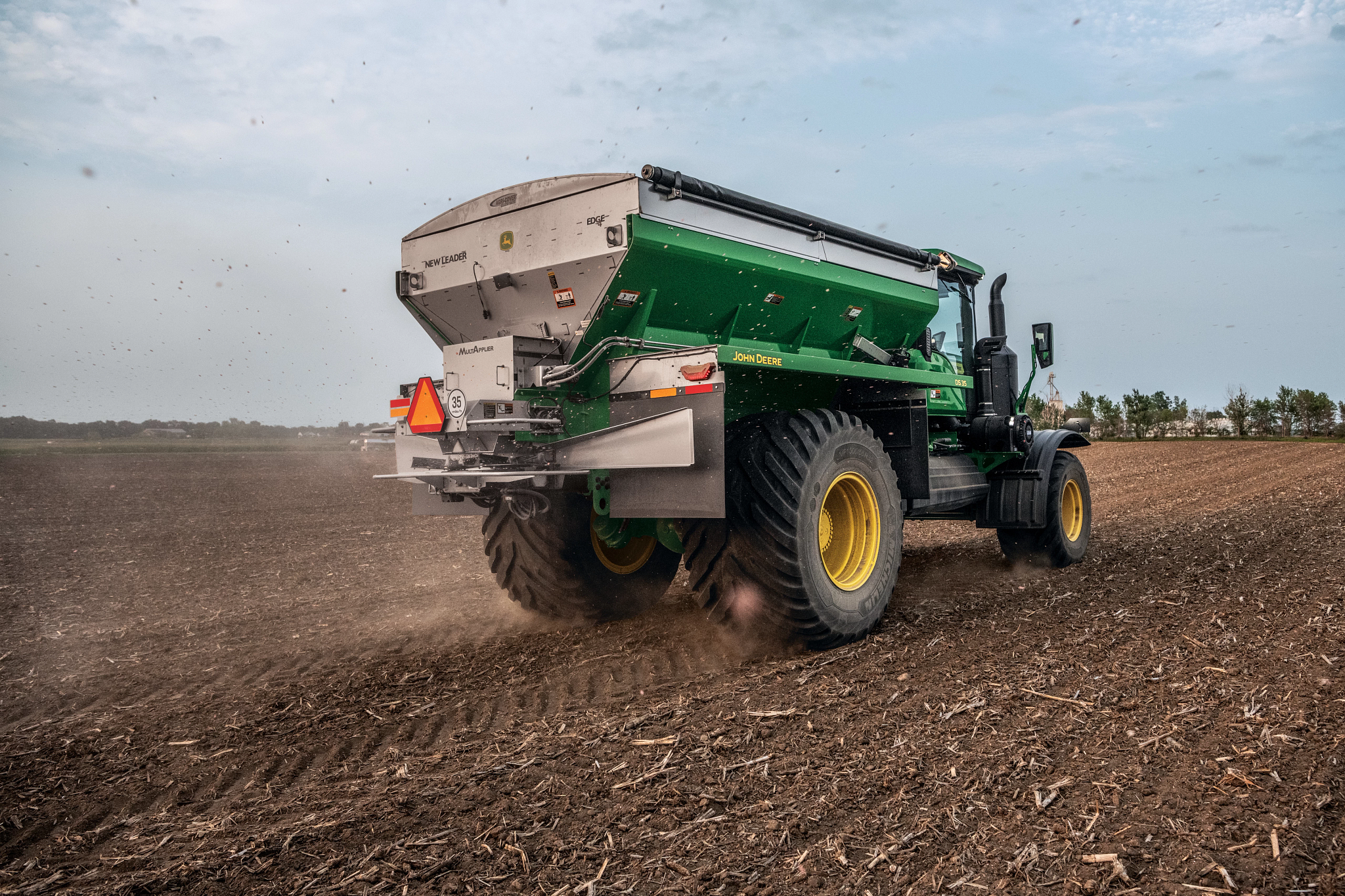

A green 800R Floater with attched DS35 Dry Spreader Box kicks up dust as it operates in a crop field.
Built to Cover More Ground

The DS35 Dry Nutrient Spreader transforms the 800R Floater into a high-capacity dry nutrient application solution, helping operators maximize machine utilization across the application seasons. With 330 cu ft of capacity and spread widths of up to 105 feet, the DS35 enables more acres covered between fills and fewer passes across the field. Advanced application technology delivers accurate, consistent nutrient placement to optimize input efficiency, reduce waste, and support improved crop performance.

A rear view of a DS35 Dry Spreader attached to a 800R operating in a field at sunset.
Widespread Widths Available with New Leader® G-Series Dry Spreaders

Tight application windows demand productivity and precision. The DS35 Dry Nutrient Spreader equips the 800R Floater with up to 330 cu ft of capacity and spread widths up to 105 ft (32 m), helping operators cover more acres with fewer stops and fewer passes. Advanced application technologies, including variable-rate capability, section control, and precise spinner speed management, help deliver accurate, consistent nutrient placement across the field. The result is improved input efficiency, reduced overlap, and the confidence to maximize productivity during critical application windows.

A green 800R Floater with attched DS35 Dry Spreader Box applies dry nutirents over a crop field.
Question text goes here

Answer text goes here

Application system
Spreader Material

Spreader box: 304 stainless steel

Conveyor System

#4 Belt-over-SS Chain

Capacity
Capacity Without Second Product Bin

330 cu ft

Capacity Without Second Product Bin

9.34 m³

Spread width range
Spread Pattern Width With Single-Product Bin

60 - 105 ft

Spread Pattern Width With Single-Product Bin

18.3 - 32 m

Weight
Estimated Spreader Weight

5291 lb.

Estimated Spreader Weight

2400 kg

Dimensions
Feedgate Height

11 in.

Feedgate Height

28 cm

Body Length

168 in.

Body Length

427 cm

Body Width

102 in.

Body Width

259 cm

Body Height

59 in.

Body Height

150 cm
