John Deere Sprayers

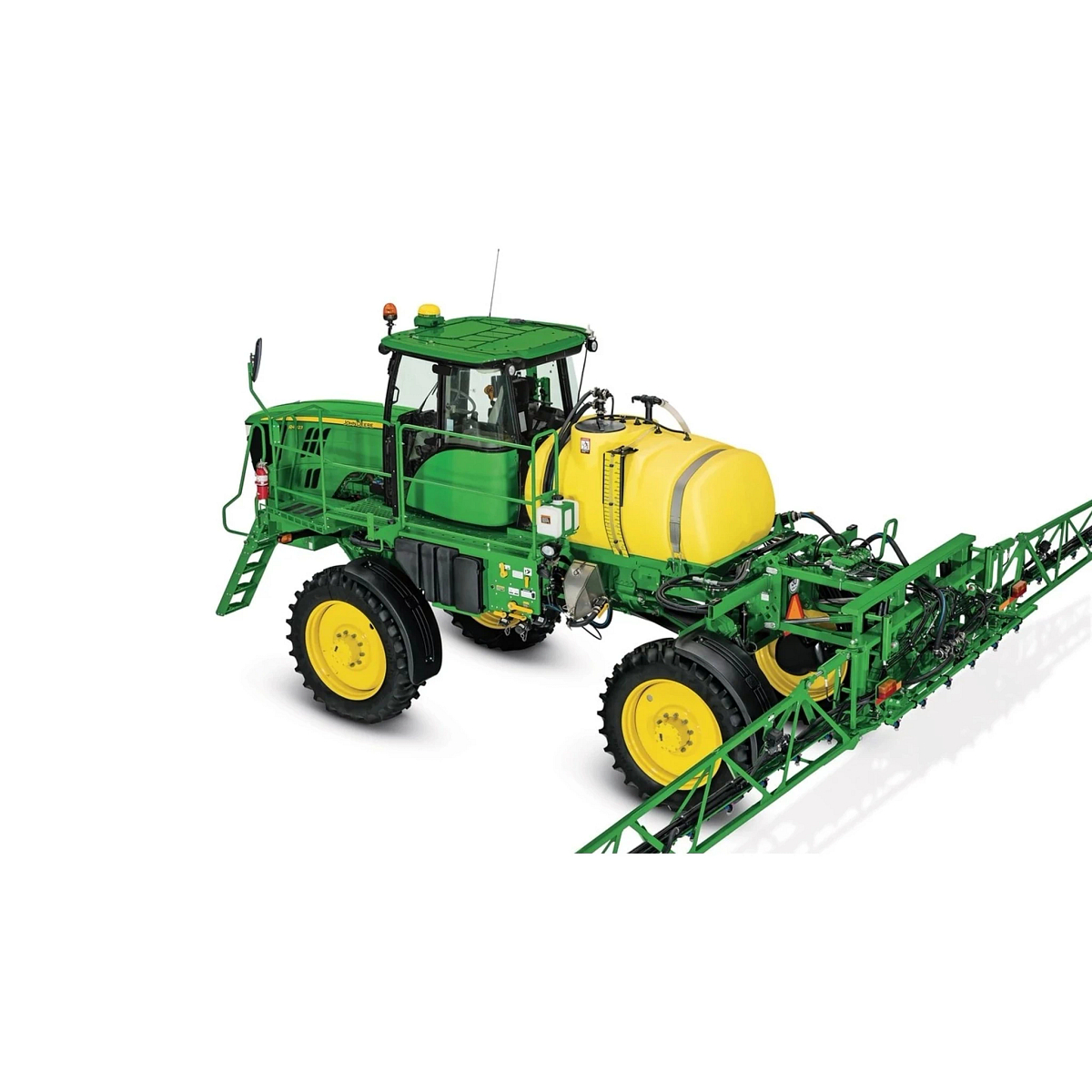

John Deere R4023

Starting at

Key Features

600-Gal (2,300-L) Solution Tank
Up to 90 ft (27 m) Boom
27 mph (43 km/h) Transport Speed
173-hp (129-kW), 4.5 L (275 cu in.) Engine

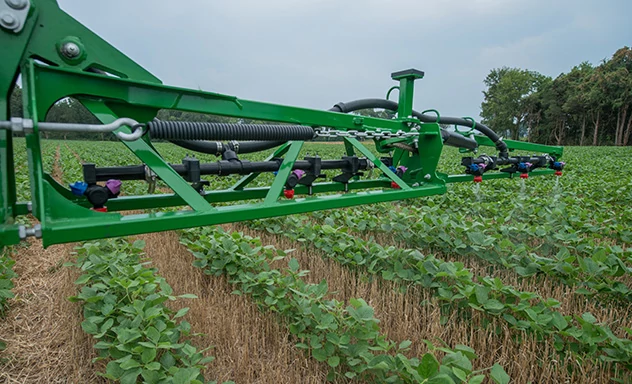

Boom Strength That Delivers Consistent Coverage

High‑strength steel boom construction with a durable 3D design resists twisting and fore‑aft stress during starts, stops, and turns. Protected plumbing and breakaway ends reduce damage risk, helping maintain spray accuracy and uptime across challenging field conditions.

Compact Design That Maximizes Field Access

The R4023 pairs a compact footprint with up to a 27.4-m (90‑ft) boom, making it ideal for smaller, irregular, or confined fields. Fold‑in outer wings improve maneuverability on headlands and tight passes, helping operators spray more acres without sacrificing reach or efficiency.

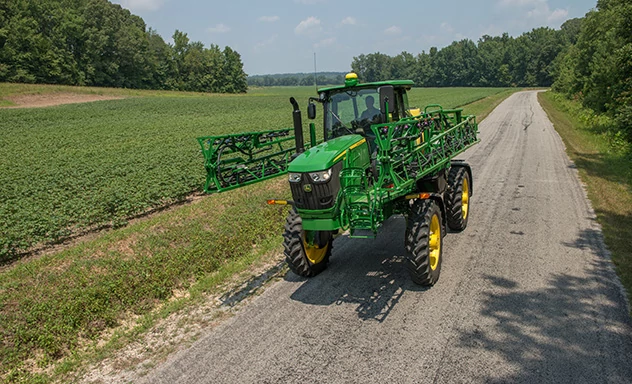

R4023 sprayer in transport mode on a road

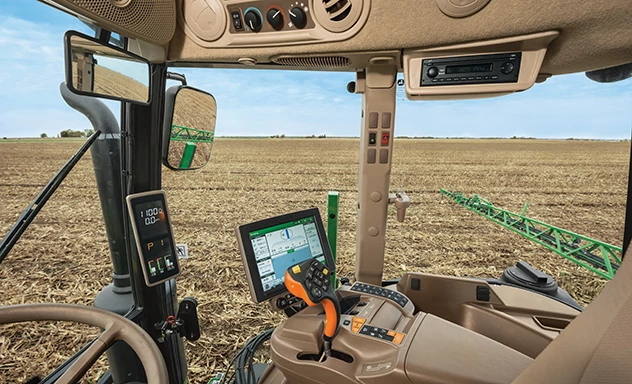

Comfort and Control for Long Application Days

Features like an airbag suspension, ergonomic CommandARM™ controls, and improved sound suppression keep operators comfortable and confident. A smoother ride and intuitive controls reduce fatigue, so operators stay productive and precise during long spraying windows.

Specs & Compare

Select up to 4 models to compare specifications

John Deere

R4023

Self-Propelled Sprayer

John Deere

400R Dry Spinner Spreader (Model year 2022)

John Deere

600R Dry Spinner Spreader (Model year 2022)

John Deere

408R

John Deere

410R

John Deere

412R

John Deere

612R

John Deere

616R

AGCO

RoGator® RG1300

AGCO

RoGator® RG1300C

ADD MODEL


Engine
Engine Make	John Deere
Engine Model	4 Cyl. Turbocharged and Aftercooled
Rated Engine Power	129 kW	243 kW 326 hp	280 kW 375 hp	243 kW 326 hp	265 kW 355 hp	280 kW 375 hp
Rated Engine Power	173 hp	243 kW 326 hp	280 kW 375 hp	243 kW 326 hp	265 kW 355 hp	280 kW 375 hp
Number of Cylinders	4	Six	Six	Six	Six	Six	Six	Six	6	6
Displacement	4.5 L	9.0 L 549 cu in.	9.0 L 549 cu in.	6.8 L 415 cu in.	9.0 L 549 cu in.	9.0 L 549 cu in.	9.0 L 549 cu in.	9.0 L 549 cu in.	8.4 L 512 cu in.	8.4 L 512 cu in.
Displacement	276 cu in.	9.0 L 549 cu in.	9.0 L 549 cu in.	6.8 L 415 cu in.	9.0 L 549 cu in.	9.0 L 549 cu in.	9.0 L 549 cu in.	9.0 L 549 cu in.	8.4 L 512 cu in.	8.4 L 512 cu in.
Solution System
Solution Tank Capacity	2300 L
Solution Tank Capacity	600 gal.
Solution Tank Material	Polyethylene
Rinse Tank Capacity	265 L			646 L 170 gal.	646 L 170 gal.	606 L 160 gal.			454.2 L 120 gal.	454.2 L 120 gal.
Rinse Tank Capacity	70 gal.			646 L 170 gal.	646 L 170 gal.	606 L 160 gal.			454.2 L 120 gal.	454.2 L 120 gal.
Quick Fill Size	7.6 cm			7.6 cm 3 in.	7.6 cm 3 in.	7.6 cm 3 in.			7.6 cm 3 in.	7.6 cm 3 in.
Quick Fill Size	3 in.			7.6 cm 3 in.	7.6 cm 3 in.	7.6 cm 3 in.			7.6 cm 3 in.	7.6 cm 3 in.
Rate Control Make	John Deere Section Control (optional)
Nozzle Control Technology	ExactApply™ Nozzle Control
Solution System Control	Manual Solution Control			Manual Optional: Automatic	Manual Option: Automatic	Manual Option: Automatic			Manual Optional: Automatic	Manual Optional: Automatic
Fill Location	Top lid or side fill			Side fill, front fill (optional)	Side fill, front fill (optional), and LoadCommand (optional)	Side fill, front fill (optional), and LoadCommand (optional)			Side fill, front fill (optional)	Side fill, front fill (optional)
Chemical Eductor Material	Stainless steel eductor
Suction Strainer	16 mesh			20 mesh	20 mesh	20 mesh			20 mesh	20 mesh
Pressure Strainer	50 mesh			50 mesh	50 mesh	50 mesh			50 mesh	50 mesh
Boom Strainer	80 mesh			80 mesh	80 mesh	80 mesh			80 mesh	80 mesh
Chemical Injection Method	Raven Direct Injection System				Direct injection (optional)				Dual-pump direct injection Optional: up to 511 L 135 U.S. gal.	Direct injection (optional)
Boom
Boom Length Options	80 or 90 ft (24.4 or 27.4 m)			27.4, 30.5, 36.6, or 40.2 m 90, 100, 120, or 132 ft Boom material: Steel or carbon fiber	27.4, 30.5, 36.6, or 40.2 m 90, 100, 120, or 132 ft Boom material: Steel or carbon fiber	Steel: 27.4, 30.5, or 36.6 m 90, 100, or 120 ft Carbon: 36.6 or 40.2 m 120 or 132 ft			18.3/27.4, 18.3/30.5, 22/36.6, or 22/40.2 m 60/90, 60/100, 72/120, or 72/132 ft Boom material: Steel or carbon fiber	27.4, 30.5, 36.6, or 40.2 m 90, 100, 120, or 132 ft Boom material: Steel or carbon fiber
Boom Height Control	BoomTrac™ Pro 2 – five sensor (optional)
Sprayline Material	Stainless steel & poly
Boom Material Options	Steel
Boom Sections	5 sections for the 80 ft (24.4 m) boom; 7 sections for the 90 ft (27.4 m) boom			13 sections with boom length: 40.2 m 132 ft 11 sections with boom length: 36.6 m 120 ft 9 sections with boom length: 30.5 m 100 ft 7 sections with boom length: 27.4 m 90 ft	13 sections with boom length: 40.2 m 132 ft 11 sections with boom length: 36.6 m 120 ft 9 sections with boom length: 30.5 m 100 ft 7 sections with boom length: 27.4 m 90 ft	13 sections with boom length: 40.2 m 132 ft 11 sections with boom length: 36.6 m 120 ft 9 sections with boom length: 30.5 m 100 ft 7 sections with boom length: 27.4 m 90 ft			13 sections with boom length: 40.2 m 132 ft 11 sections with boom length: 36.6 m 120 ft 9 sections with boom length: 30.5 m 100 ft 7 sections with boom length: 27.4 m 90 ft	13 sections with boom length: 40.2 m 132 ft 11 sections with boom length: 36.6 m 120 ft 9 sections with boom length: 30.5 m 100 ft 7 sections with boom length: 27.4 m 90 ft
Nozzle Spacings	38.1 or 50.8 cm			38.1 or 50.8 cm 15 or 20 in.	ExactApply™: 38.1 or 51 cm 15 or 20 in.				38.1 or 50.8 cm 15 or 20 in.	38.1 or 50.8 cm 15 or 20 in.
Nozzle Spacings	15 or 20 in.			38.1 or 50.8 cm 15 or 20 in.	ExactApply™: 38.1 or 51 cm 15 or 20 in.				38.1 or 50.8 cm 15 or 20 in.	38.1 or 50.8 cm 15 or 20 in.
Machine Configuration
Drive Type	Hydrostatic Tandem Saur Pumps
Chassis
Dry Compatible	No	Yes: 5.7 m³ 200 cu ft	Yes: 5.7 or 8.7 m³ 200 or 300 cu ft	Yes: 5.7 m³ 200 cu ft	Yes: 5.7 m³ 200 cu ft	Yes: 5.7 m³ 200 cu ft	Yes: 5.7 or 8.5 m³ 200 or 300 cu ft	Yes: 5.7 or 8.5 m³ 200 or 300 cu ft	Yes, 7.3 m³ 258 cu ft	Yes, 7.3 or 8.5 m³ 258 or 300 cu ft
Suspension	Air bar/shock suspended	Dual-strut independent wheel air-ride suspension	Dual-strut independent wheel air-ride suspension	Dual-strut independent wheel air-ride suspension	Dual-strut independent wheel air-ride suspension	Dual-strut independent wheel air-ride suspension	Dual-strut independent wheel air-ride suspension	Dual-strut independent wheel air-ride suspension	Air spring with release valve	Air spring with release valve
Ladder Raise/Lower	Hydraulic
Tread Adjust	Wide Axle (Manual Tread Adjust): 92 – 120 in. (2.3 – 3.0 m); Narrow Axle (Manual Tread Adjust): 72 – 88 in. (1.8 – 2.2 m); Wide Axle (Hydraulic Tread Adjust): 92 – 121 in. (2.3 – 3.0 m)	Standard	Standard	Standard	Standard	Standard	Hydraulic	Hydraulic	Standard	Standard
Transmission
Shifting	Electrohydraulic (on the go)	Electrohydraulic	Electrohydraulic	Electrohydraulic	Electrohydraulic	Electrohydraulic	Electrohydraulic	Electrohydraulic	Electrohydraulic	Electrohydraulic
Steering & Brakes
Parking Brake	Hydraulic release	Spring-engaged, hydraulically disengaged wet disk pack	Spring-engaged, hydraulically disengaged wet disk pack	Spring-engaged, hydraulically disengaged wet disk pack	Spring-engaged, hydraulically disengaged wet disk pack	Spring-engaged, hydraulic-disengaged wet disk pack	Spring-engaged, hydraulically disengaged wet disk pack	Spring-engaged, hydraulically disengaged wet disk pack	Disc brakes on front wheels	Multiple discs in gearbox
Primary Brakes	Hydrostatic	Hydrostatic	Hydrostatic	Hydrostatic	Hydrostatic	Hydrostatic	Hydrostatic	Hydrostatic	Multiple discs in gearbox	Hydrostatic dynamic braking
Capacities
Hydraulic Reservoir Capacity	61 L	98.4 L 26 gal.	98.4 L 26 gal.	98 L 26 gal.	98 L 26 gal.	98.4 L 26 gal.	98.4 L 26 gal.	98.4 L 26 gal.	227 L 60 gal.	227 L 60 gal.
Hydraulic Reservoir Capacity	16 gal.	98.4 L 26 gal.	98.4 L 26 gal.	98 L 26 gal.	98 L 26 gal.	98.4 L 26 gal.	98.4 L 26 gal.	98.4 L 26 gal.	227 L 60 gal.	227 L 60 gal.
Dimensions & Weights
Crop Clearance (Standard)	112, 127 cm	152.4 cm 60 in.	147.3 cm 58 in.	152 cm 60 in.	152 cm 60 in.	152.4 cm 60 in.	147 cm 58 in.	147.3 cm 58 in.	127 cm 50 in.	127 cm 50 in.
Crop Clearance (Standard)	44, 50 in.	152.4 cm 60 in.	147.3 cm 58 in.	152 cm 60 in.	152 cm 60 in.	152.4 cm 60 in.	147 cm 58 in.	147.3 cm 58 in.	127 cm 50 in.	127 cm 50 in.
Wheelbase	373 cm
Wheelbase	147 in.
Turning Radius	16 ft (4.9 m)	8.7 m 28.5 ft	9.2 m 30.2 ft	8.7 m 28.5 ft	8.7 m 28.5 ft	8.7 m 28.5 ft	9.2 m 30.2 ft	9.2 m 30.2 ft	7 m 23 ft	7.3 m 24 ft
Miscellaneous
Foam Marker Capacity	Direct injection optional			Air injection foamer: 5.7 L 1.5 gal.	Injection foamer	Injection foamer			Air injection foamer: 5.7 L 1.5 gal.	Air injection foamer: 5.7 L 1.5 gal.
