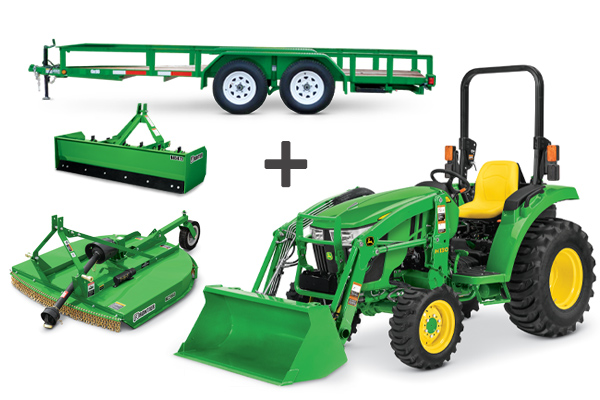

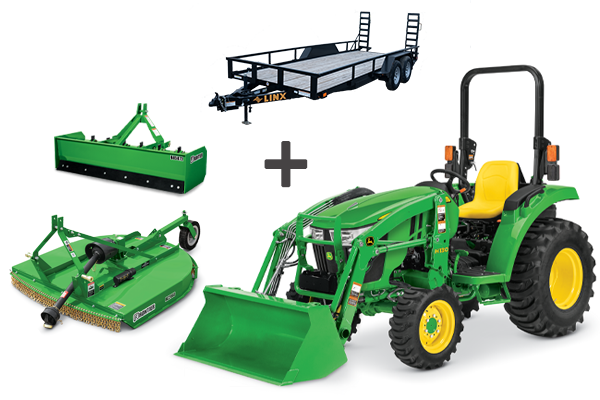

New 3043D Tractor Package

Specifications

Compare >>> Select up to 2 models to compare specifications

John Deere3043D Tractor Package

Add Model --Please Select-- 3025D (Model year 2019) 3025E (Model year 2019) 3032E (Model year 2019) 3033R (Model year 2019) 3035D (Model year 2019) 3038E (Model year 2019) 3039R (Model year 2019) 3046R (Model year 2019) ?L2501 GST L3301 GST L3901 GST

Add Model --Please Select-- 3025D (Model year 2019) 3025E (Model year 2019) 3032E (Model year 2019) 3033R (Model year 2019) 3035D (Model year 2019) 3038E (Model year 2019) 3039R (Model year 2019) 3046R (Model year 2019) ?L2501 GST L3301 GST L3901 GST

Engine power (gross)	SAE J1995 rated power: 31 kW 41.6 hp 42.2 PS at 2800 rpm
Power take-off (PTO) power	27.1 kW 36.3 hp
Steering hydraulics	16.8 L/min 4.4 gpm
Implement hydraulics	22.4 L/min 5.9 gpm
Hitch type	Category 1
Lift capacity, 24-in. behind link arms	944 kg 2081.2 lb
Standard transmission; forward/reverse	8F/8R synchromesh shuttle shift gear transmission
Cruise control	No
Approximate shipping weight (open-station; cab)	Open operator station (OOS): 1288 kg 2840 lb Cab: Not applicable
Wheelbase	1574 mm 62 in.

Family
Manufacturer	Yanmar®
Engine model	3TNV86CT-KJPT
Engine power (gross)	SAE J1995 rated power: 31 kW 41.6 hp 42.2 PS at 2800 rpm
Power take-off (PTO) power	27.1 kW 36.3 hp
Rated engine speed	2800 rpm
Type
Injection pump type	High pressure common rail direct injection
Aspiration	Turbocharged
Emissions compliance	Final Tier 4
Cylinders/displacement	3 / 1.57 L 3 / 95.8 cu in.
Number of cylinders	Three
Cylinder liners	Cast-in-block
Bore and stroke	86 x 90 mm 3.39 x 3.54 in.
Compression ratio	19.1:1
Lubrication	Pressurized
Cooling system	Liquid
Air cleaner	Dual element
Engine torque at rated speed	105.7 Nm 78 lb-ft
Fuel tank capacity	36.7 L 9.7 U.S. gal.

Battery size	600 CCA
Alternator (12-V)	55 amp
Starter size	1.4 kW 1.9 hp

Type	High pressure common rail direct injection
Fuel consumption

Standard transmission; forward/reverse	8F/8R synchromesh shuttle shift gear transmission
Optional transmission; forward/reverse
Left-hand reverser	Yes
Transmission gear ranges	Four gears and two ranges
Final drive	Spur gear
Brakes	Wet disk
Steering	Power steering
Clutch, wet/dry
Clutch disk diameter wet clutch
Axle capacity	Front 880 kg 1940 lb Rear 1600 kg 3527 lb
Creeper	No
Cruise control	No
Differential lock	Yes
Drawbar maximum vertical load

Type	Open center
Pump rated output	Steering 16.8 L/min 4.4 gpm Implement 22.4 L/min 5.9 gpm 39.2 L/min 10.3 gpm
Pump type	Single gear
Maximum operating pressure	172 bar 2495 psi
Draft control sensing	Position control
Remote control valves available	Up to two (optional)

Type	Category 1
Lift capacity, 24-in. behind link arms	944 kg 2081.2 lb

Standard	At 2400 rpm: 540 rpm
Optional
Control	Mechanical
Clutch	Transmission
Brake (for mid and rear PTO)	Wet disk
Engagement method

Crankcase with filter	4.5 L 4.8 gal.
Transmission and hydraulic system	33 L 34.8 qt

Type	Spur gear
Differential lock

Rollover protective structure	Type Foldable ASABE S478
Platform - flat/straddle	Straddle
Gear shift location - console/floor	Right-hand side

Compliance
Visibility
Air conditioning, temperature differential
Doors
Noise rating
Seat equipment

Height
Wheelbase	1574 mm 62 in.
Front axle clearance	Minimum: 331 mm 13 in. Maximum: 353 mm 13.9 in.
Turning radius with brakes	1.63 m 5.3 ft
Turning radius without brakes
Limited slip differential
Approximate shipping weight (open-station; cab)	OOS: 1288 kg 2840 lb Cab: Not applicable

Front	R1 Bar: 7-14 R3 Turf: 27x8.5-15 R4 Industrial: 25x8.5-14
Rear	R1 Bar: 11.2-24 R3 Turf: 41x14-20 R4 Industrial: 15-19.5
Front tread range
Rear tread spacing

Toolbox	Yes
Tilt steering wheel	No
12-V Outlet	No
