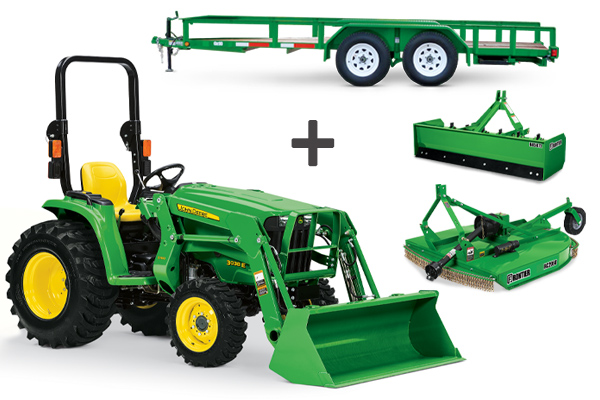

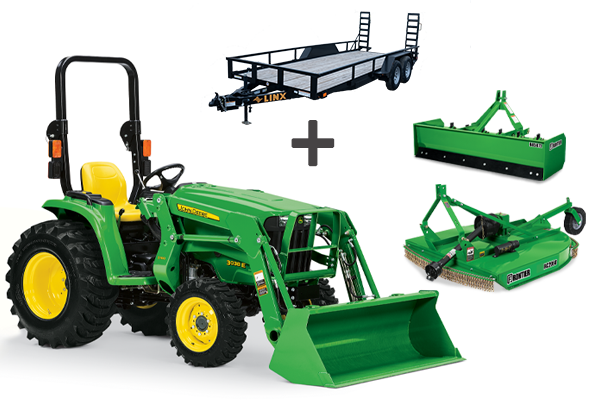

New 3038E Tractor Package

Specifications

Compare >>> Select up to 2 models to compare specifications

John Deere3038E Tractor Package

Add Model --Please Select-- 3025D (Model year 2024) 3025E (Model year 2024) 3032E (Model year 2024) 3033R (Model year 2024) 3035D (Model year 2024) 3039R (Model year 2024) 3043D (Model Year 2024) 3046R (Model year 2024) ?Kubota L3301 HST 4WD, L3301 GST 2WD & 4WD Kubota L3901 HST 4WD, L3301 GST 2WD & 4WD New Holland Workmaster 35 New Holland Workmaster 40

Add Model --Please Select-- 3025D (Model year 2024) 3025E (Model year 2024) 3032E (Model year 2024) 3033R (Model year 2024) 3035D (Model year 2024) 3039R (Model year 2024) 3043D (Model Year 2024) 3046R (Model year 2024) ?Kubota L3301 HST 4WD, L3301 GST 2WD & 4WD Kubota L3901 HST 4WD, L3301 GST 2WD & 4WD New Holland Workmaster 35 New Holland Workmaster 40

Engine power (gross)	SAE J1995 rated power: 27.4 kW 36.7 hp 37.2 PS at 2500 rpm
Power take-off (PTO) power	22.4 kW 30 hp
Steering hydraulics	15.0 L/min 4.0 gpm
Implement hydraulics	20.2 L/min 5.3 gpm
Hitch type	Category 1
Lift capacity, 24-in. behind link arms	615 kg 1356 lb
Standard transmission; forward/reverse	Hydrostatic transmission (HST)
Cruise control	Optional
Approximate shipping weight (open-station; cab)	Open operator station (OOS): 1210 kg 2668 lb Cab: Not applicable
Wheelbase	1593 mm 62.7 in.

Family	FYDXL1.57TDA EYDXL1.57TDA GYDXL1.57TDA
Manufacturer	Yanmar
Engine model	3TNV86CT-NJT2
Engine power (gross)	SAE J1995 rated power: 27.4 kW 36.7 hp 37.2 PS at 2500 rpm
Power take-off (PTO) power	22.4 kW 30 hp
Rated engine speed	2500 rpm
Type	Diesel
Injection pump type	High pressure common rail direct injection
Aspiration	Turbocharged
Emissions compliance	Final Tier 4
Cylinders/displacement	3 / 1.57 L 3 / 95.7 cu in.
Number of cylinders	Three
Cylinder liners	Cast-in-block
Bore and stroke	86 x 90 m 3.4 x 3.54 in.
Compression ratio	19.1:1
Lubrication	Pressurized
Cooling system	Water Pump
Air cleaner	Dual element
Engine torque at rated speed	104.7 Nm 77.2 lb-ft
Fuel tank capacity	28.5 L 7.5 gal.

Battery size	500 CCA
Alternator (12-V)	55 amp
Starter size	1.4 kW 1.9 hp

Type	High pressure common rail direct injection
Fuel consumption

Standard transmission; forward/reverse	Hydrostatic transmission (HST)
Optional transmission; forward/reverse
Left-hand reverser	No
Transmission gear ranges
Final drive	Spur gear
Brakes	Wet disk
Steering	Power steering
Clutch, wet/dry
Clutch disk diameter wet clutch
Axle capacity	Front 880 kg 1940 lb Rear 1200 kg 2645 lb
Creeper	No
Cruise control	Optional
Differential lock	Yes
Drawbar maximum vertical load

Type	Open center
Pump rated output	Steering 15.0 L/min 4.0 gpm Implement 20.2 L/min 5.3 gpm 35.2 L/min 9.3 gpm
Pump type	Dual gear
Maximum operating pressure	172 bar 2495 psi
Draft control sensing	Position control
Remote control valves available	Up to two (optional)

Type	Category 1
Lift capacity, 24-in. behind link arms	615 kg 1356 lb

Standard	Rear - 540 rpm
Optional
Control	Independent
Clutch	Wet disk
Brake (for mid and rear PTO)	Wet disk
Engagement method

Crankcase with filter	4.5 L 4.8 gal.
Transmission and hydraulic system	20.8 L 22 qt

Type	Spur gear
Differential lock	Yes

Rollover protective structure	Type Foldable
Platform - flat/straddle	Straddle
Gear shift location - console/floor	Left-hand side

Compliance
Visibility
Air conditioning, temperature differential
Doors
Noise rating
Seat equipment

Height
Wheelbase	1593 mm 62.7 in.
Front axle clearance	Minimum: 299 mm 11.8 in. Maximum: 333 mm 13.1 in.
Turning radius with brakes
Turning radius without brakes	2.9 m 9.4 ft
Limited slip differential
Approximate shipping weight (open-station; cab)	OOS: 1210 kg 2668 lb Cab: Not applicable

Front	R1 Bar: 7-14 R3 Turf: 27x8.5-15 R4 Industrial: 25x8.5-14 R4 Industrial: 27x8.5-15
Rear	R1 Bar: 11.2-24 R3 Turf: 41x14-20 R4 Industrial: 15-19.5 R4 Industrial: 43x16-20
Front tread range
Rear tread spacing

Toolbox
Tilt steering wheel
12-V Outlet
